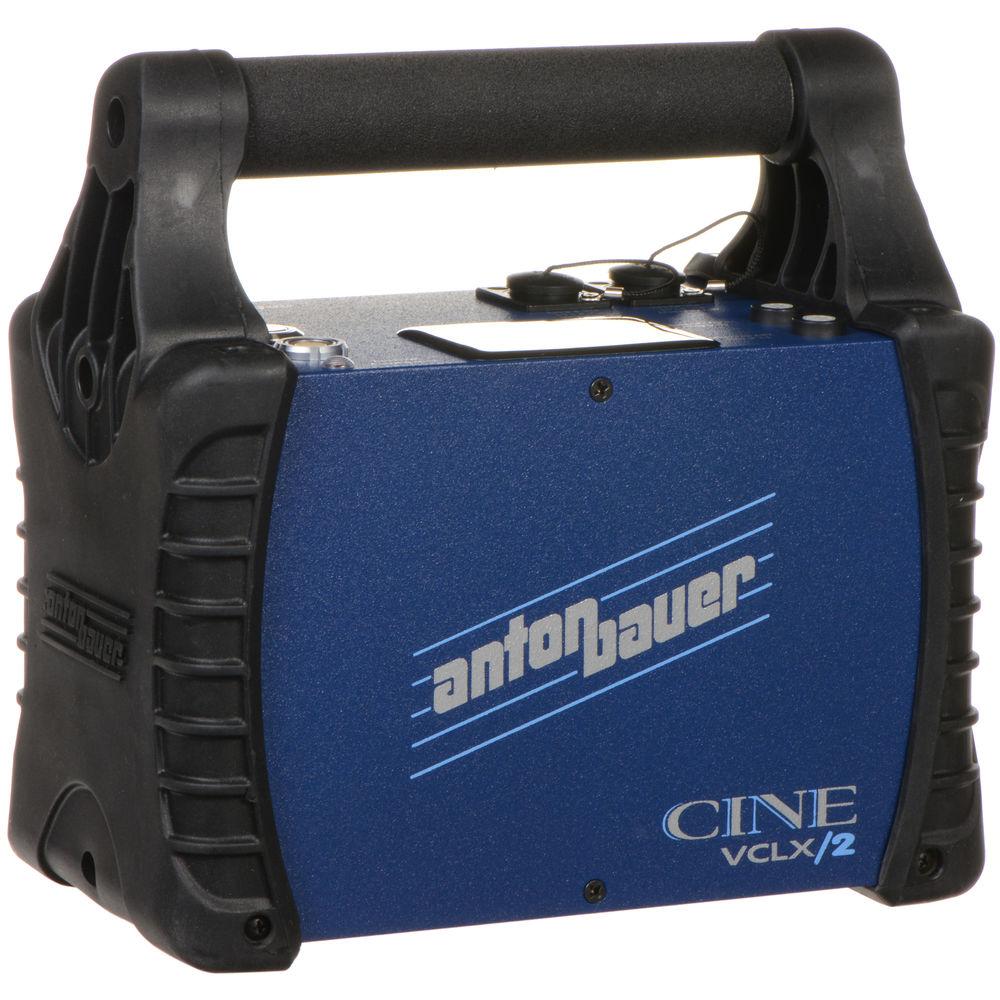

User Manual for Anton Bauer CINE VCLX 2 Battery Click to enlarge the picture
Contents of the user manual for the Anton Bauer CINE VCLX 2 Battery
- Product category: Batteries & Power Anton Bauer
- Brand: Anton Bauer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anton Bauer Batteries & Power
 |
User manual for the Anton Bauer CINE VCLX 2 Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anton Bauer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anton Bauer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anton Bauer product will considerably shorten its lifespan!
|
Product description The Anton Bauer CINE VCLX/2 is an advanced battery for film and video applications. This battery offers 28 VDC cine and 14.4 VDC video capabilities. It features Anton Bauer diagnostics, protection, and a rugged case design.Note: This battery can only be charged by the VCLX/2 or VCLX charger and needs the specific cable for charger connectivity. - Microprocessor
- The microprocessor accurately monitors energy distribution of the battery, allowing this battery to "learn" its own parameters and communicate with the charger for optimum performance.
- Dual Voltage

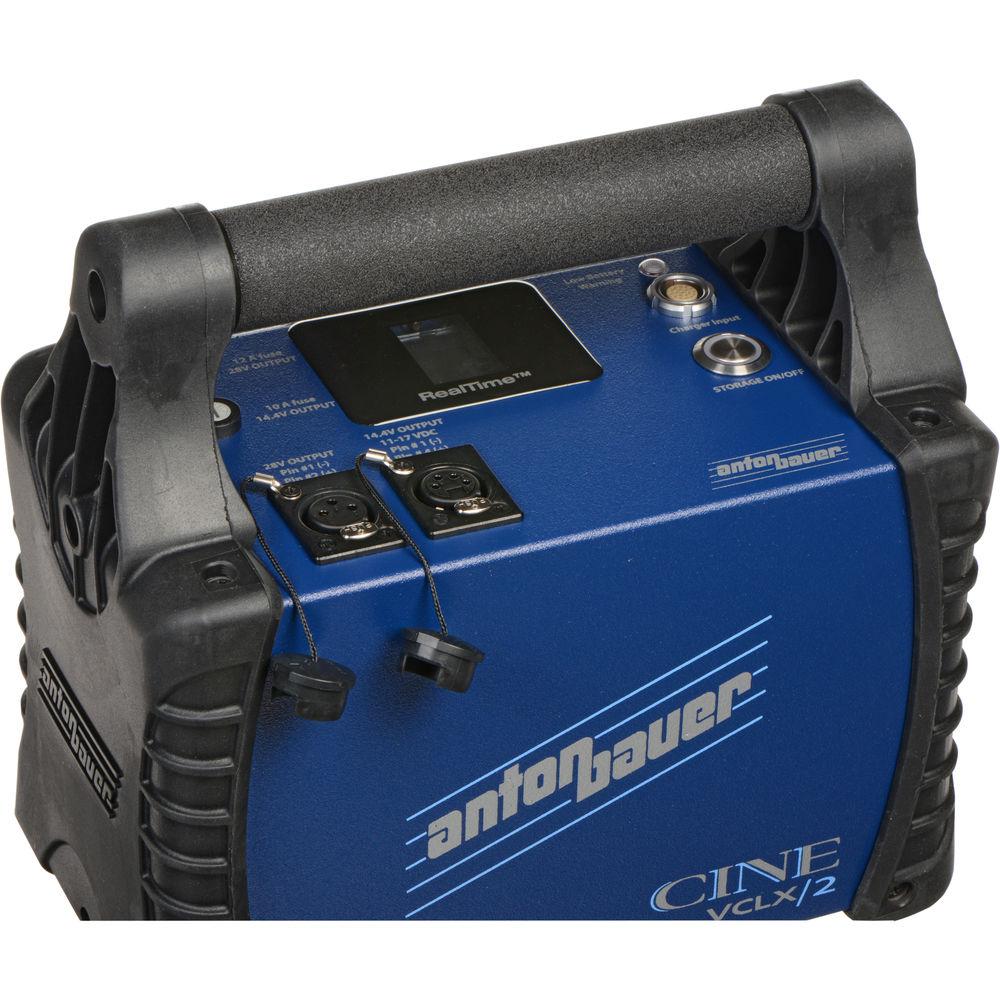

- This battery offers 28 VDC cine voltage on a 3-Pin XLR connection, and 14.4 VDC video voltage via 4-Pin XLR connection.
- Case Design
- The design of this case protects the cells from impact and transportation situations.
- Protection
- A low-voltage cutoff of 12 VDC protects the battery against electronic damage.
In the Box Anton Bauer CINE VCLX/2 Battery (Demo) Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anton Bauer CINE VCLX 2 Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnton Bauer CINE VCLX/2 BATTERY-D Specs | Chemistry | Nickel Metal Hydride | | Connection | 1 x 4-pin XLR
1 x 3-pin XLR | | Output Voltage | 4-Pin XLR: 14.4 VDC
3-Pin XLR: 28 VDC | | Capacity | 280 Wh | | Dimensions | 9.75 x 9.5 x 5.4" / 24.8 x 24.1 x 13.7 cm | | Weight | 14.8 lb / 6.7 kg | | | | Package Weight | 15.9 lb | | Box Dimensions (LxWxH) | 10.4 x 10.1 x 5.9" |
