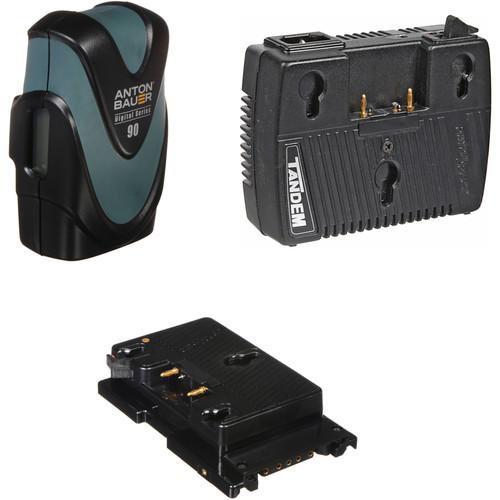

User Manual for Anton Bauer Digital 90 Battery Kit with Tandem-70 Charger & Sony F5 F55 Plate

• Product category: On Camera Batteries Anton Bauer
• Brand: Anton Bauer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anton Bauer On Camera Batteries

Product description

• Anton Bauer Digital 90 Gold Mount Battery (14.4V, 93 Wh) The Anton Bauer Digital 90 Gold Mount Battery (14.4V, 93 Wh), along with the rest of the Digital Battery Series, represents a major makeover for Anton Bauer, featuring a redesign in several aspects over previous series. The result is a long-lasting, sleek and ergonomic, smart, and safe series of batteries, projected for 1000 charge/discharge cycles. The Digital 90 runs on lithium-ion Sanyo cells which Anton Bauer has found to be highly reliable for them in the past. One of the major changes is a reconstruction of the honeycomb interior, built very spacious and housing the cells physically separated from one another, each individually wrapped in its own plastic case and isolated from the others. This ensures that any potential damage to one cell will have no effect on the others, huge for safety. The additional space in the honeycomb also serves to allow more airflow between the cells, effecting more heat dissipation, which will keep the cells cooler and protect them from aging faster.

  As another safety precaution, for instances of above average weather conditions, multiple sensors are built in that detect when the battery is too hot or too cold and trigger a shut down until the temperature is back to normal, at which point the battery automatically turns back on. Designed to the demands of broadcast and cinema digital cameras, the Digital Battery Series employs an algorithm that addresses the issue of "ringing" common to digital cameras. Where batteries are commonly susceptible to sporadic bursts of excess power draw, similar to how a car eats up more gas when the gas pedal is hit too hard, this algorithm smoothes out the power draw, in turn affording longer lasting, more predictable runs with a particular camera and overall longer life.

  The Digital Battery Series is compatible with the concurrently released Performance Series of chargers and with all previous Anton Bauer chargers. Used with any of these chargers, via a feature that has become common to the Anton Bauer name, the Digital 90 exchanges certain digital data with the charger that allows the selection of the best charge routine possible for the battery's cell chemistry, maximizing overall life. Via another familiar Anton Bauer feature, the Digital 90 applies a continuous and constant calibration that enables it to provide more and more accurate capacity and run-time calculations over the life of the battery. Run-time is usefully reported in hours and minutes on an easy-to-read LCD when power is being drawn, and as a percentage value when no load is attached. The reporting in hours and minutes will only get more and more precise with each use as a result of the constant calibration feature.

  The aesthetics have also taken a redesign, with the body shaped ergonomically for a comfortable hold and modern look, and the outer jacket made of rubber that provides a good grip as well as a cushion against accidental drops. The case is made of high-impact polymer, which is the same material used in motorcycle helmets. A P-Tap output is available for powering accessories.
  Key Features
  • • Lithium-ion Sanyo cells housed isolated in a spacious honeycomb interior
    • Increased airflow and heat dissipation protects cells from aging faster
    • Multiple sensors trigger an automatic shutdown when the battery is too hot or cold
    • Addresses the issue of "ringing" with an algorithm that smoothes out the power draw
    • Compatible with Performance Series and previous model Anton Bauer chargers
    • Provides more and more accurate capacity and run-time calculations over the life of the battery
    • Reports run time in hours and minutes when power is drawn, and as a percentage when no load is attached
    • Ergonomically shaped; rubber outer jacket provides cushion against accidental drops
    • P-Tap accessory port
  UPC: 440001510656
• Anton Bauer Tandem-70 On-Camera AC Power/Charger Anton Bauer's Tandem-70 offers a new approach to portable power. It combines all the functionality of a one position InterActive® charger with the convenience of a noise free camera mounted wide range AC Mains Adapter. The Tandem-70 will power even the most power hungry high definition camera from any worldwide AC source. It also doubles as a full function InterActive Charger charging any Anton Bauer Gold Mount battery in two hours or less. Weighing only one pound (450g) the Tandem-70 is the perfect addition to any field camera as a lightweight mains adapter and/or as a high performance charger. Meets all applicable regulatory requirements including CE and FCC.
  Battery Charger
  • As with all Anton Bauer chargers, charging with the Tandem-70 is fully automatic. Mount any Logic Series battery to the Tandem-70 and it will automatically determine the appropriate charge routine and execute it.
    The Tandem-70 will charge any Anton Bauer Logic Series Gold Mount battery including:
  • ProPac 14
  • Digital ProPac 14
  • TrimPac 14
  • Digital Trimpac
  • Hytron 50/100/140
  • Dionic 90/160
  InterActive
  • The Tandem-70 incorporates the exclusive InterActive communication between the battery and charger, which allows the charger to identify any Anton Bauer battery attached and determine the precise charge routine for that particular battery under its present condition.
  Three Stage Charging
  • In general, the Tandem-70 utilizes a Three-Stage Charge Routine for each battery.
  DC Power Supply
  • The Tandem-70 will automatically operate as an AC adapter once the camera or other device is switched on. An On/Off switch is not incorporated into the power supply (a green LED will light, indicating that the unit is operating as a power supply).
  Automatic Source Selection
  • If the AC line voltage is removed, and a charged battery is mounted on the Tandem-70, power from the battery will be routed to the camera. When the AC line voltage is restored, the battery is reevaluated for a proper charge routine.
  UPC: 872496000785
• Anton Bauer V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras This Anton Bauer V-Mount to Gold Mount Adapter Plate allows using Anton Bauer Logic Series batteries to power the Sony F5 and F55 CineAlta cameras. It has four P-Tap outputs for powering accessories. The power plate passes both power and battery information through to your camera. This adapter plate is also compatible with the Sony AXS-R5 recorder.
  • Adapts your Sony F5 or F55 V-mount battery plate Anton Bauer Gold mount.
  • The adapter plate incorporates four P-Tap connectors. Please note Anton Bauer recommends that you not exceed a total load of 10A draw.
  • Battery information is passed through to your camera's viewfinder.
  UPC: 872496007654

• Digital 90 Gold Mount Battery (14.4V, 93 Wh) bfvdyxytfuddverftudwazbwce
• Limited 2-Year Warranty

• Tandem-70 On-Camera AC Power/Charger

• V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
