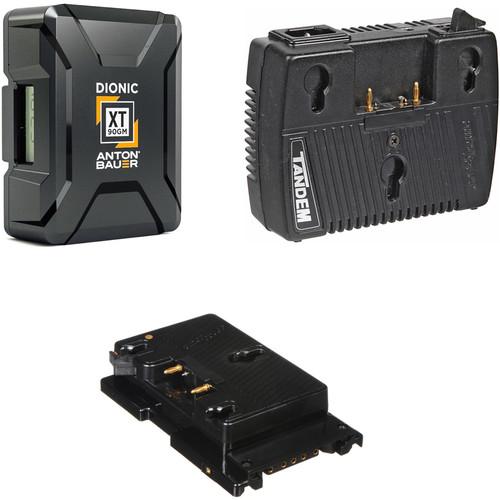

User Manual for Anton Bauer Dionic XT90 2-Battery Kit with Tandem-70 Charger & Sony F5 F55 Plate Click to enlarge the picture
Contents of the user manual for the Anton Bauer Dionic XT90 2-Battery Kit
- Product category: On Camera Batteries Anton Bauer
- Brand: Anton Bauer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anton Bauer On Camera Batteries
|
User manual for the Anton Bauer Dionic XT90 2-Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anton Bauer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anton Bauer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anton Bauer product will considerably shorten its lifespan!
|
Product description Provide long-lasting AC or DC power for your Sony F5/F55 camera and select accessories with this Dionic XT90 2-Battery Kit with Tandem-70 Charger & Sony F5/F55 Plate kit from B&H Photo. This kit includes two lightweight Gold mount Dionic XT90 batteries and the Tandem-70 on-camera AC power/charger. The included QRC-4K-S Gold mount plate outputs power to both your Sony F5/F55 and to select pro-style camera accessories via its four D-Tap ports. - Anton Bauer Dionic XT90 Gold Mount Battery
- Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
Use the Anton Bauer Dionic XT90 Gold Mount Battery to power your Gold mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 12 amps of current on a continuous draw and support peaks of up to 20 amps for two seconds. At the side of the chassis, a backlit LCD has battery capacity information so you know when you'll have to swap out one battery for a fresh one. Using the P-Tap and USB ports, you can power essential accessories on your rig or other small electronics. UPC: 872496009306 - Anton Bauer Tandem-70 On-Camera AC Power/Charger
- Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
Anton Bauer's Tandem-70 offers a new approach to portable power. It combines all the functionality of a one position InterActive® charger with the convenience of a noise free camera mounted wide range AC Mains Adapter. The Tandem-70 will power even the most power hungry high definition camera from any worldwide AC source. It also doubles as a full function InterActive Charger charging any Anton Bauer Gold Mount battery in two hours or less. Weighing only one pound (450g) the Tandem-70 is the perfect addition to any field camera as a lightweight mains adapter and/or as a high performance charger. Meets all applicable regulatory requirements including CE and FCC. - Battery Charger
- As with all Anton Bauer chargers, charging with the Tandem-70 is fully automatic. Mount any Logic Series battery to the Tandem-70 and it will automatically determine the appropriate charge routine and execute it.
The Tandem-70 will charge any Anton Bauer Logic Series Gold Mount battery including: - ProPac 14
- Digital ProPac 14
- TrimPac 14
- Digital Trimpac
- Hytron 50/100/140
- Dionic 90/160
- InterActive
- The Tandem-70 incorporates the exclusive InterActive communication between the battery and charger, which allows the charger to identify any Anton Bauer battery attached and determine the precise charge routine for that particular battery under its present condition.
- Three Stage Charging
- In general, the Tandem-70 utilizes a Three-Stage Charge Routine for each battery.
- DC Power Supply
- The Tandem-70 will automatically operate as an AC adapter once the camera or other device is switched on. An On/Off switch is not incorporated into the power supply (a green LED will light, indicating that the unit is operating as a power supply).
- Automatic Source Selection
- If the AC line voltage is removed, and a charged battery is mounted on the Tandem-70, power from the battery will be routed to the camera. When the AC line voltage is restored, the battery is reevaluated for a proper charge routine.
UPC: 872496000785 Anton Bauer V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras - Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
This Anton Bauer V-Mount to Gold Mount Adapter Plate allows using Anton Bauer Logic Series batteries to power the Sony F5 and F55 CineAlta cameras. It has four P-Tap outputs for powering accessories. The power plate passes both power and battery information through to your camera. This adapter plate is also compatible with the Sony AXS-R5 recorder. - Adapts your Sony F5 or F55 V-mount battery plate Anton Bauer Gold mount.
- The adapter plate incorporates four P-Tap connectors. Please note Anton Bauer recommends that you not exceed a total load of 10A draw.
- Battery information is passed through to your camera's viewfinder.
UPC: 872496007654 In the Box - Dionic XT90 Gold Mount Battery uysbawwueywtxzwrqzwudrxdfxxcyzzyxwa
- Limited 2-Year Warranty
- Tandem-70 On-Camera AC Power/Charger
- V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
Table of Contents
|
Upload User Manual
Have you got an user manual for the Anton Bauer Dionic XT90 2-Battery Kit with Tandem-70 Charger & Sony F5 F55 Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Anton Bauer Dionic XT90 Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 99 Wh | | Output Voltage | 14.4 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Operating Temperature | -4 to 140°F / -20 to 60°C | | IP Rating | None | | Dimensions (W x H x D) | 2.2 x 5.1 x 3.8" / 55.0 x 130.0 x 97.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 7.4 x 4.6 x 3.5" | - Anton Bauer Tandem-70 On-Camera AC Power/Charger
| Power Supply | Yes | | Battery Bays | 1 | | Type of Charging | Single Battery | | Diagnostics | None | | Connections/Interface | Gold Mount Type Female (x 1)
Gold Mount Type Male (x 1) | | Power Requirements | 90-250VAC, 50 or 60Hz | | Dimensions (WxHxD) | 5.25 x 4 x 2.13" (132 x 103 x 56mm) | | Weight | 1 lb (450g) | | | | Box Dimensions (LxWxH) | 10.0 x 9.291 x 2.52" | - Anton Bauer V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
| | | Box Dimensions (LxWxH) | 9.4 x 4.85 x 2.15" |
