Product description

• Anton Bauer Dionic XT90 Gold Mount Battery
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  Use the Anton Bauer Dionic XT90 Gold Mount Battery to power your Gold mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 12 amps of current on a continuous draw and support peaks of up to 20 amps for two seconds. At the side of the chassis, a backlit LCD has battery capacity information so you know when you'll have to swap out one battery for a fresh one. Using the P-Tap and USB ports, you can power essential accessories on your rig or other small electronics. UPC: 872496009306
• Anton Bauer Tandem-70 On-Camera AC Power/Charger
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  Anton Bauer's Tandem-70 offers a new approach to portable power. It combines all the functionality of a one position InterActive® charger with the convenience of a noise free camera mounted wide range AC Mains Adapter. The Tandem-70 will power even the most power hungry high definition camera from any worldwide AC source. It also doubles as a full function InterActive Charger charging any Anton Bauer Gold Mount battery in two hours or less. Weighing only one pound (450g) the Tandem-70 is the perfect addition to any field camera as a lightweight mains adapter and/or as a high performance charger. Meets all applicable regulatory requirements including CE and FCC.
  Battery Charger
  • As with all Anton Bauer chargers, charging with the Tandem-70 is fully automatic. Mount any Logic Series battery to the Tandem-70 and it will automatically determine the appropriate charge routine and execute it.
    The Tandem-70 will charge any Anton Bauer Logic Series Gold Mount battery including:
  • ProPac 14
  • Digital ProPac 14
  • TrimPac 14
  • Digital Trimpac
  • Hytron 50/100/140
  • Dionic 90/160
  InterActive
  • The Tandem-70 incorporates the exclusive InterActive communication between the battery and charger, which allows the charger to identify any Anton Bauer battery attached and determine the precise charge routine for that particular battery under its present condition.
  Three Stage Charging
  • In general, the Tandem-70 utilizes a Three-Stage Charge Routine for each battery.
  DC Power Supply
  • The Tandem-70 will automatically operate as an AC adapter once the camera or other device is switched on. An On/Off switch is not incorporated into the power supply (a green LED will light, indicating that the unit is operating as a power supply).
  Automatic Source Selection
  • If the AC line voltage is removed, and a charged battery is mounted on the Tandem-70, power from the battery will be routed to the camera. When the AC line voltage is restored, the battery is reevaluated for a proper charge routine.
  UPC: 872496000785

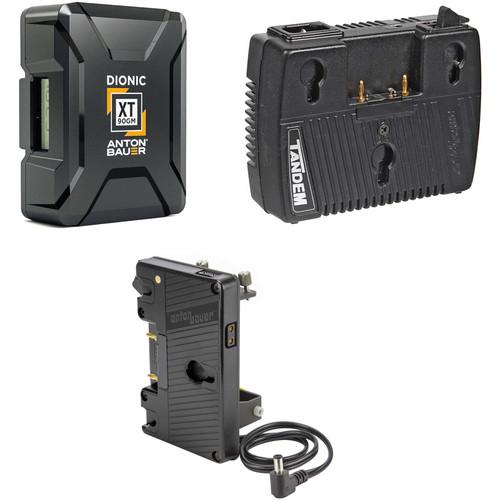

• Anton Bauer QRC-FS7 Gold Mount Power Solution for Sony FS7
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  The QRC-FS7 Power Solution from Anton Bauer is a battery plate and bracket combination that allows you to power your Sony FS7 camera with Gold Mount lithium-ion batteries.

  Using thumbscrews at the top of the bracket, the QRC-FS7 attaches directly to the rear of the FS7 chassis, creating a unified power/counterweight solution. It connects to the FS7 via an integrated 10" cable with a dedicated barrel connector for the camera. It also features two P-Tap ports so you can run an entire setup using a single battery (not included). The QRC-FS7 is designed for compatibility with lithium-ion batteries only. Note: This plate is only compatible with lithium-ion batteries.
  Key Features
  • • Thumbscrew attachment to the rear of the FS7 chassis
    • Dual P-Tap ports
    • Integrated 10" power cable with a dedicated barrel connector for the FS7
  UPC: 872496008965

• Dionic XT90 Gold Mount Battery zzaxyeutzywtcyxcwzwtxz
• Limited 2-Year Warranty

• Tandem-70 On-Camera AC Power/Charger

• QRC-FS7 Gold Mount Power Solution for Sony FS7
