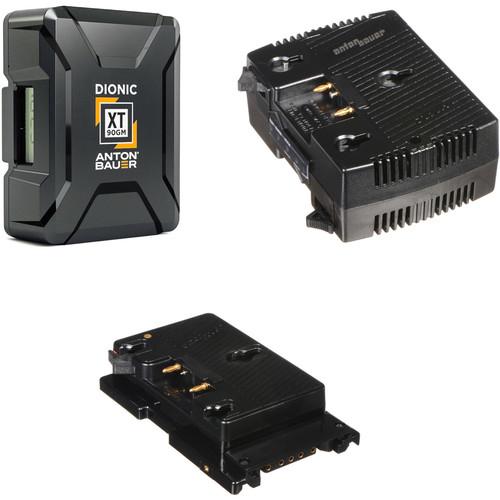

User Manual for Anton Bauer Dionic XT90 2-Battery Kit with TWIN Charger & Sony F5 F55 Plate Click to enlarge the picture
Contents of the user manual for the Anton Bauer Dionic XT90 2-Battery Kit
- Product category: On Camera Batteries Anton Bauer
- Brand: Anton Bauer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anton Bauer On Camera Batteries
|
User manual for the Anton Bauer Dionic XT90 2-Battery Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anton Bauer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anton Bauer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anton Bauer product will considerably shorten its lifespan!
|
Product description Provide long-lasting power for your Sony F5/F55 camera with this Dionic XT90 2-Battery Kit with TWIN Charger & Sony F5/F55 Plate kit from B&H Photo. This kit includes two lightweight Gold mount Dionic XT90 batteries and one TWIN simultaneous charger. The included QRC-4K-S V-mount to Gold mount adapter is compatible with Sony F5/F55 CineAlta camcorders and features four D-Tap ports for powering accessories. - Anton Bauer Dionic XT90 Gold Mount Battery
- Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
Use the Anton Bauer Dionic XT90 Gold Mount Battery to power your Gold mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 12 amps of current on a continuous draw and support peaks of up to 20 amps for two seconds. At the side of the chassis, a backlit LCD has battery capacity information so you know when you'll have to swap out one battery for a fresh one. Using the P-Tap and USB ports, you can power essential accessories on your rig or other small electronics. UPC: 872496009306 - Anton Bauer TWIN Simultaneous Charger for Gold Mount Batteries
- Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
The Anton Bauer TWIN Simultaneous Charger provides charging for two Gold mount batteries. Features include full InterActive charging technology, a slim and ultra-lightweight design, and a three-LED status display.The TWIN Charger is compatible with any Logic Series Gold mount battery and accepts 100-240 V, 50-60 Hz AC input power. - Compatibility
- Any Logic Series battery including:
- ProPac 14/13
- Digital ProPac 14/13
- TrimPac 14/13
- Digital Trimpac 14/13
- Dionic
- InterActive 2000 Hytron
- LED Indicators
- Three LEDs in different combinations indicate various charging states
- InterActive
- Anton Bauer's InterActive communication enables the TWIN charger to determine the precise charge routine for any compatible Anton Bauer battery under its present condition.
- Three-Stage Charging
- Three-stage charging includes a high-rate first stage, second-stage equalizing of any cell imbalance, and third-stage LifeSaver maintenance mode.
UPC: 872496001133 - Anton Bauer V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
- Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
This Anton Bauer V-Mount to Gold Mount Adapter Plate allows using Anton Bauer Logic Series batteries to power the Sony F5 and F55 CineAlta cameras. It has four P-Tap outputs for powering accessories. The power plate passes both power and battery information through to your camera. This adapter plate is also compatible with the Sony AXS-R5 recorder. - Adapts your Sony F5 or F55 V-mount battery plate Anton Bauer Gold mount.
- The adapter plate incorporates four P-Tap connectors. Please note Anton Bauer recommends that you not exceed a total load of 10A draw.
- Battery information is passed through to your camera's viewfinder.
UPC: 872496007654 In the Box - Dionic XT90 Gold Mount Battery swfvatbutartsd
- Limited 2-Year Warranty
- TWIN Simultaneous Charger for Gold Mount Batteries
- V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
Table of Contents
|
Upload User Manual
Have you got an user manual for the Anton Bauer Dionic XT90 2-Battery Kit with TWIN Charger & Sony F5 F55 Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Anton Bauer Dionic XT90 Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 99 Wh | | Output Voltage | 14.4 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Operating Temperature | -4 to 140°F / -20 to 60°C | | IP Rating | None | | Dimensions (W x H x D) | 2.2 x 5.1 x 3.8" / 55.0 x 130.0 x 97.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 7.4 x 4.6 x 3.5" | - Anton Bauer TWIN Simultaneous Charger for Gold Mount Batteries
| Battery Bays | 2 x Gold Mount | | Power Requirements | 100-240 VAC, 50-60 Hz | | Dimensions (WxHxD) | 6 x 5.5 x 2.5" / 15.2 x 14 x 6.4 cm | | Weight | 1.1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 10.5 x 9.6 x 2.5" | - Anton Bauer V-Mount to Gold Mount Adapter Plate for Sony F5/F55 CineAlta Cameras
| | | Box Dimensions (LxWxH) | 9.4 x 4.85 x 2.15" |
