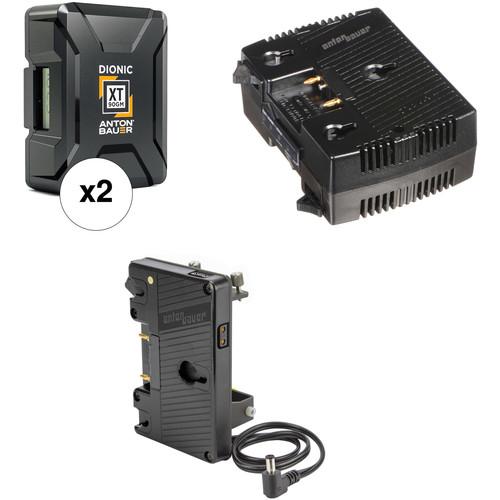

Anton Bauer Dionic XT90 2-Battery Kit

User Manual for Anton Bauer Dionic XT90 2-Battery Kit with TWIN Charger & Sony FS7

• Product category: On Camera Batteries Anton Bauer
• Brand: Anton Bauer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anton Bauer On Camera Batteries

Product description

• 2 x Anton Bauer Dionic XT90 Gold Mount Battery
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  Use the Anton Bauer Dionic XT90 Gold Mount Battery to power your Gold mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 12 amps of current on a continuous draw and support peaks of up to 20 amps for two seconds. At the side of the chassis, a backlit LCD has battery capacity information so you know when you'll have to swap out one battery for a fresh one. Using the P-Tap and USB ports, you can power essential accessories on your rig or other small electronics. UPC: 872496009306
• Anton Bauer TWIN Simultaneous Charger for Gold Mount Batteries
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  The Anton Bauer TWIN Simultaneous Charger provides charging for two Gold mount batteries. Features include full InterActive charging technology, a slim and ultra-lightweight design, and a three-LED status display.The TWIN Charger is compatible with any Logic Series Gold mount battery and accepts 100-240 V, 50-60 Hz AC input power.
  Compatibility
  • Any Logic Series battery including:
    • ProPac 14/13
    • Digital ProPac 14/13
    • TrimPac 14/13
    • Digital Trimpac 14/13
    • Dionic
    • InterActive 2000 Hytron
  LED Indicators
  • Three LEDs in different combinations indicate various charging states
  InterActive
  • Anton Bauer's InterActive communication enables the TWIN charger to determine the precise charge routine for any compatible Anton Bauer battery under its present condition.
  Three-Stage Charging
  • Three-stage charging includes a high-rate first stage, second-stage equalizing of any cell imbalance, and third-stage LifeSaver maintenance mode.
  UPC: 872496001133
• Anton Bauer QRC-FS7 Gold Mount Power Solution for Sony FS7
  • Anton/Bauer Dionic XT Battery Series: Raising the Bar on Performance and Reliability
  The QRC-FS7 Power Solution from Anton Bauer is a battery plate and bracket combination that allows you to power your Sony FS7 camera with Gold Mount lithium-ion batteries.

  Using thumbscrews at the top of the bracket, the QRC-FS7 attaches directly to the rear of the FS7 chassis, creating a unified power/counterweight solution. It connects to the FS7 via an integrated 10" cable with a dedicated barrel connector for the camera. It also features two P-Tap ports so you can run an entire setup using a single battery (not included). The QRC-FS7 is designed for compatibility with lithium-ion batteries only. Note: This plate is only compatible with lithium-ion batteries.
  Key Features
  • • Thumbscrew attachment to the rear of the FS7 chassis
    • Dual P-Tap ports
    • Integrated 10" power cable with a dedicated barrel connector for the FS7
  UPC: 872496008965

• 2 x Dionic XT90 Gold Mount Battery zfcatbzevdryvaxrzv
• Limited 2-Year Warranty

• TWIN Simultaneous Charger for Gold Mount Batteries

• QRC-FS7 Gold Mount Power Solution for Sony FS7

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Anton Bauer Dionic XT90 Gold Mount Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	99 Wh
  Output Voltage	14.4 VDC
  Maximum Load	12 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Operating Temperature	-4 to 140°F / -20 to 60°C
  IP Rating	None
  Dimensions (W x H x D)	2.2 x 5.1 x 3.8" / 55.0 x 130.0 x 97.0 mm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	7.4 x 4.6 x 3.5"

• Anton Bauer TWIN Simultaneous Charger for Gold Mount Batteries

  Battery Bays	2 x Gold Mount
  Power Requirements	100-240 VAC, 50-60 Hz
  Dimensions (WxHxD)	6 x 5.5 x 2.5" / 15.2 x 14 x 6.4 cm
  Weight	1.1 lb / 0.5 kg

  Box Dimensions (LxWxH)	10.5 x 9.6 x 2.5"

• Anton Bauer QRC-FS7 Gold Mount Power Solution for Sony FS7

  Battery Mount	Gold Mount (only compatible with lithium-ion batteries)
  Power Output	1 x Barrel connector compatible with Sony FS7 on an integrated 10" (25 cm) cable 2 x P-Tap
  Fuse	10 A

  Box Dimensions (LxWxH)	7.9 x 4.15 x 2.95"
