User Manual for Anton Bauer Performance Series Dual Charger Gold Mount Click to enlarge the picture
Contents of the user manual for the Anton Bauer Performance Series Dual Charger
- Product category: Chargers Anton Bauer
- Brand: Anton Bauer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anton Bauer Chargers
 |
User manual for the Anton Bauer Performance Series Dual Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anton Bauer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anton Bauer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anton Bauer product will considerably shorten its lifespan!
|
Product description - Anton Bauer Gold and V Mount Batteries: First Look

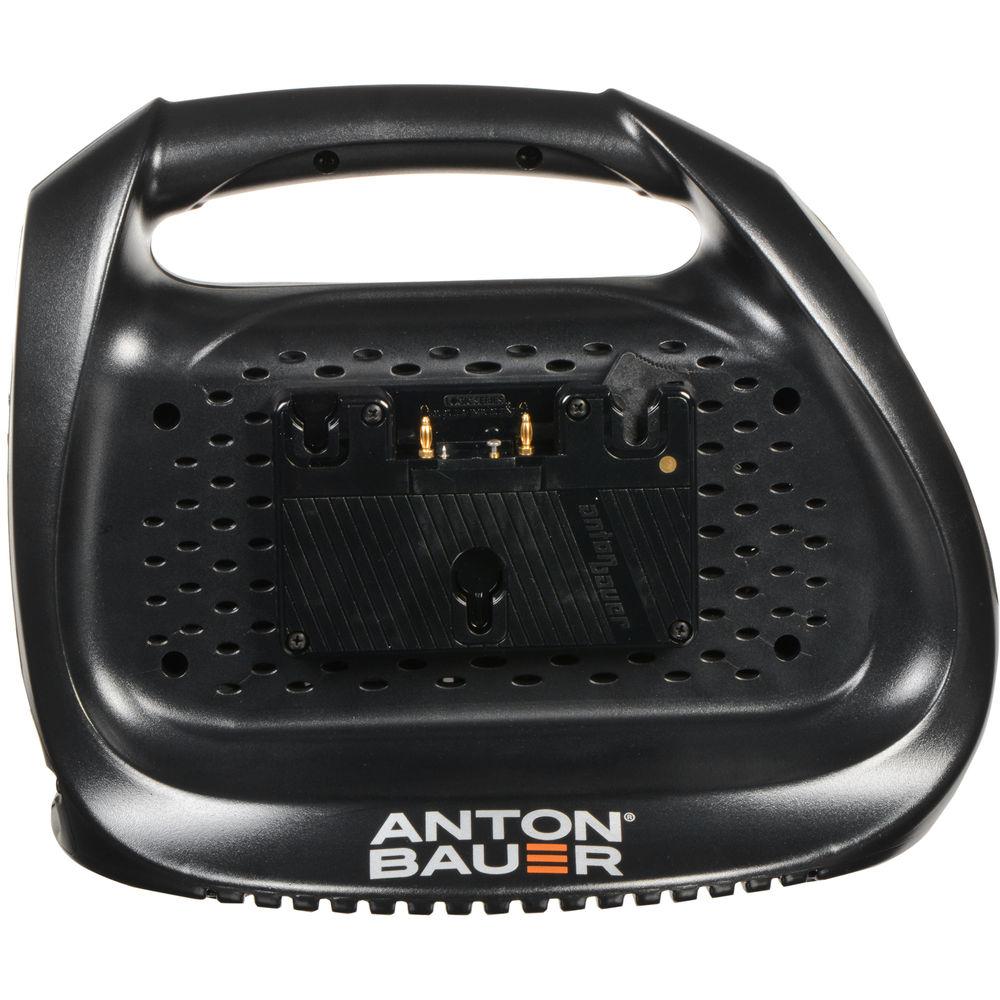

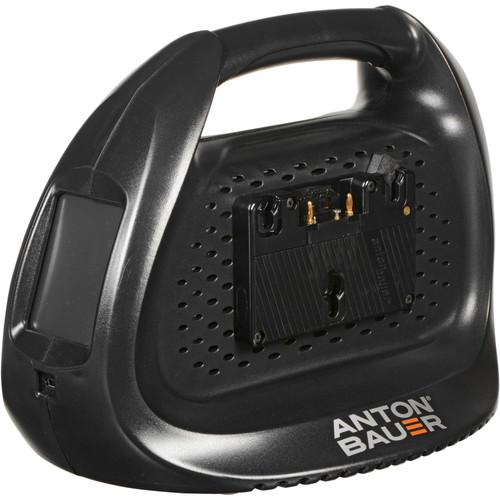

The Anton Bauer Performance Series Dual Charger Gold Mount allocates the most power to the highest-charged battery first, ensuring that you'll have a fully charged battery as soon as possible. The Performance Series is 40% more efficient than previous Anton Bauer chargers by employing faster processing, using a smaller transformer in the power supply, and drawing less amps.
This Gold Mount version supports the concurrently released Digital Battery Series Gold Mount batteries and all previous Anton Bauer models, and it's capable of simultaneous, multi-chemistry charging. Common to the Anton Bauer name, a feature called InterActivity allows the charger to communicate with an Anton Bauer battery and assign the best charge routine possible based on the battery's cell chemistry and the best termination algorithm possible (TCO, -ΔV temperature compensated VCO, dT/dt, CCO, FUL, or I-min), ensuring better overall life. A 4-pin XLR output allows you to power your camera right out of the charger via an XLR cable or converter cable. This can be done off of wall power at the same time as charging your batteries or off of attached batteries if the charger is unplugged. The batteries in the latter case are hot swappable so you can power your camera with uninterrupted power.

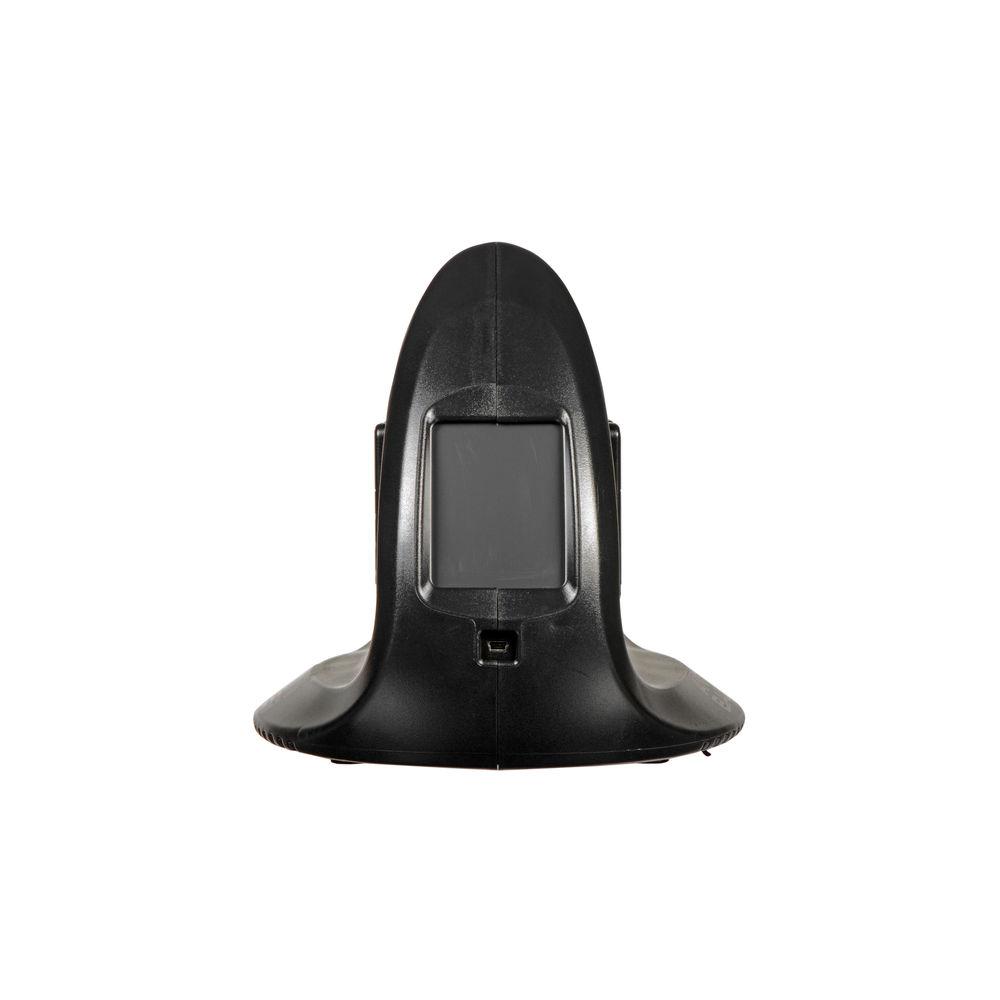

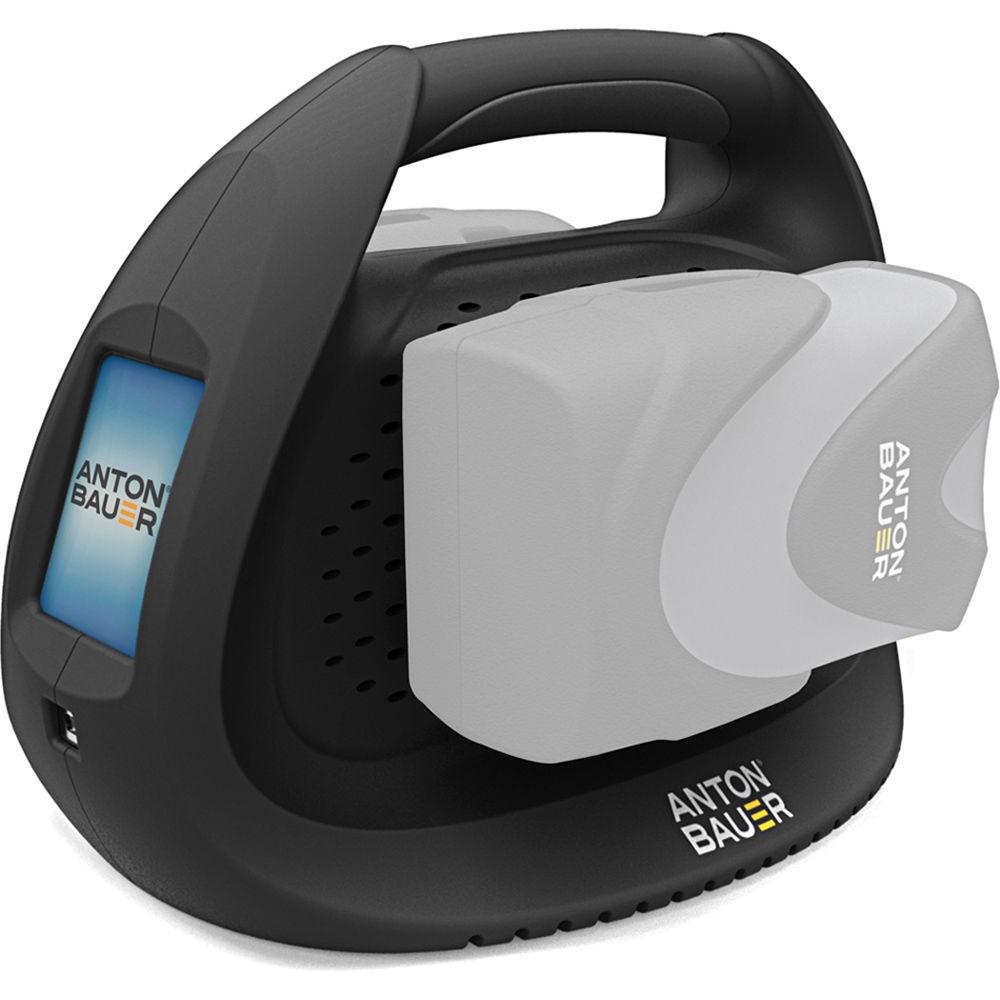

The charger features a simple-to-use, touchscreen display that provides activity and status updates and access to management functions. It also supports an optional Wi-Fi software feature that will allow you to remotely manage the health and status of one or more Performance Series chargers. - Key Features
-
- Allocates the most power to the highest-charged battery
- Supports simultaneous, multi-chemistry charging

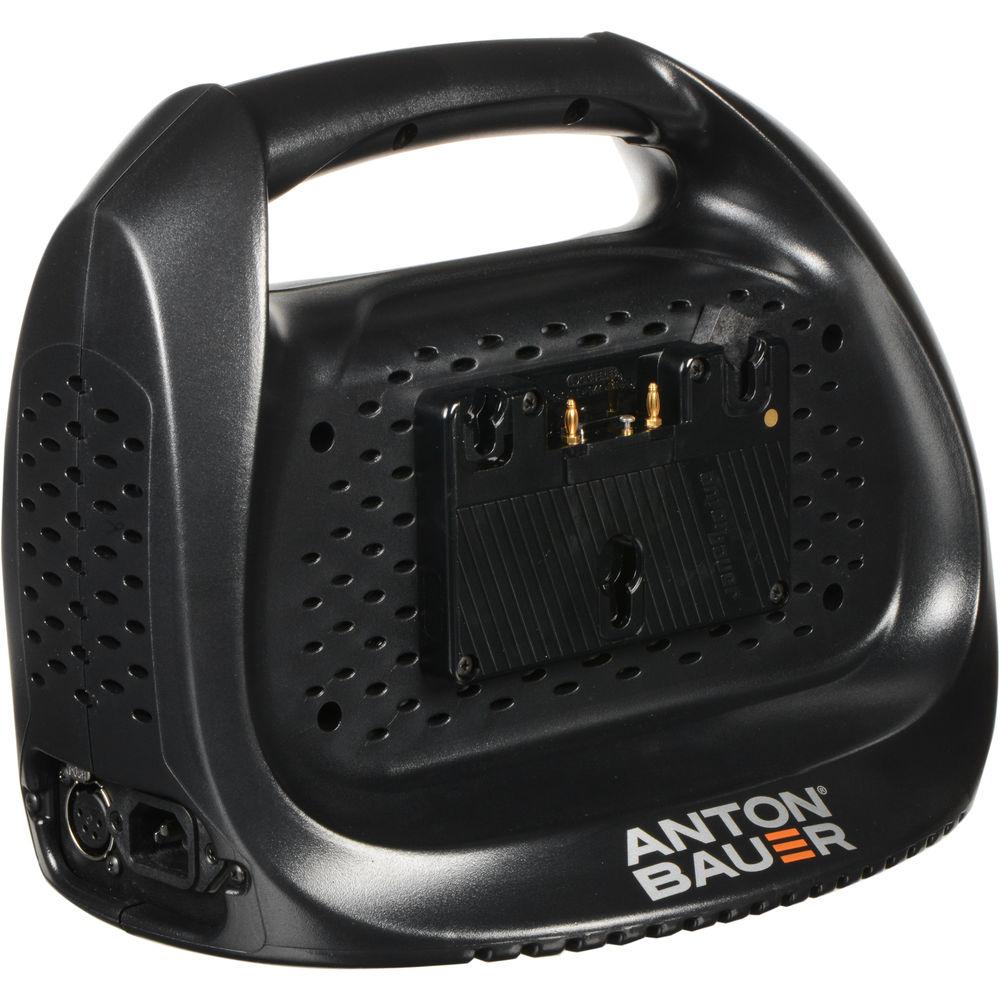

- 4-pin XLR output for powering your camera off of wall power or battery power
- Assigns the best charge routine possible based on the battery's cell chemistry
- Assigns the best termination algorithm possible
- Simple-to-use touchscreen activity, status, and management display
- Ergonomic design with one-hand carry handle
- Supports optional remote health and status management software feature
UPC: 867500708870 In the Box Anton Bauer Performance Series Dual Charger Gold Mount Power Supply 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anton Bauer Performance Series Dual Charger Gold Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnton Bauer 8475-0120 Specs | Mount Type | Gold Mount | | Positions | 2 | | Accessory Port | 1x 4-pin XLR output | | AC Input | 100-240 VAC, 50/60 Hz | | Power Output | 70 W, 16 VDC | | Dimensions | 11.3 x 8.7 x 8.5" (29 x 22 x 22 cm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 7.51 lb | | Box Dimensions (LxWxH) | 12.3 x 12.15 x 9.75" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
