User Manual for Anton Bauer Performance Series Quad Charger V-Mount Click to enlarge the picture
Contents of the user manual for the Anton Bauer Performance Series Quad Charger
- Product category: Chargers Anton Bauer
- Brand: Anton Bauer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anton Bauer Chargers
 |
User manual for the Anton Bauer Performance Series Quad Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anton Bauer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anton Bauer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anton Bauer product will considerably shorten its lifespan!
|
Product description - Anton Bauer Gold and V Mount Batteries: First Look

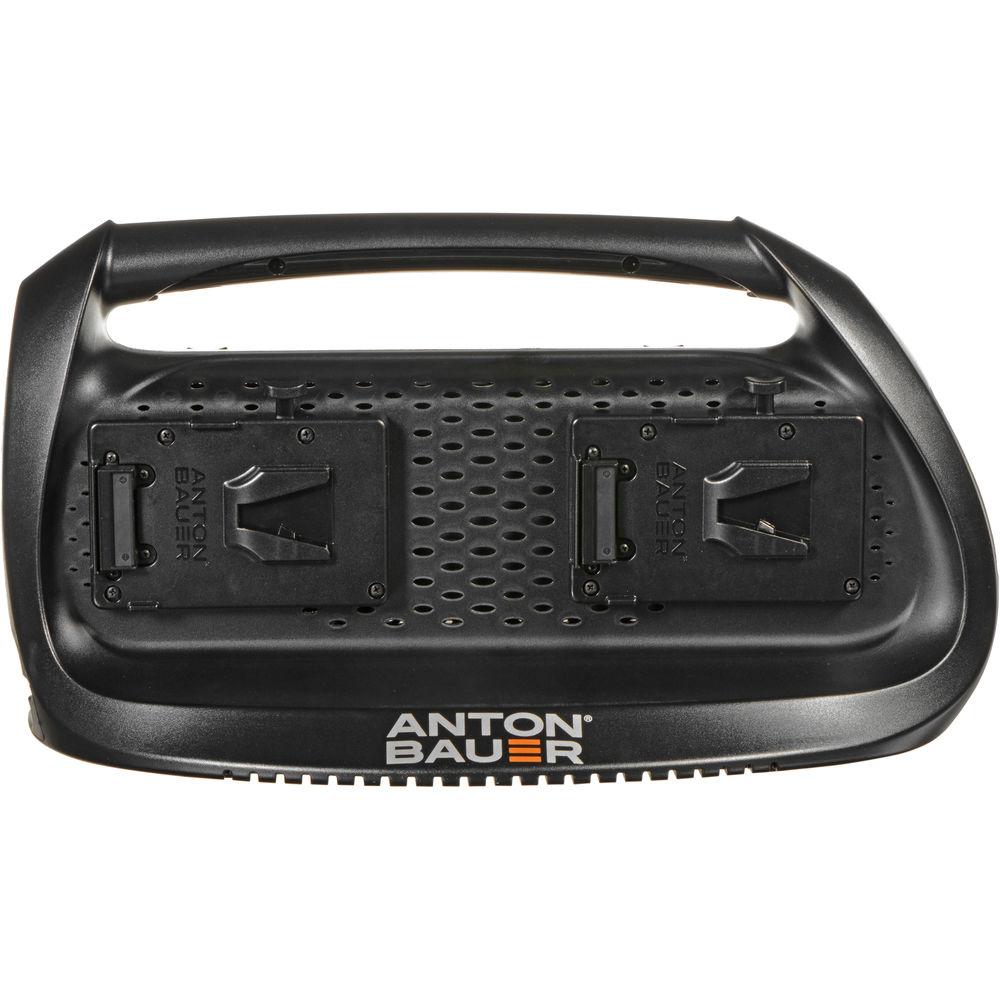

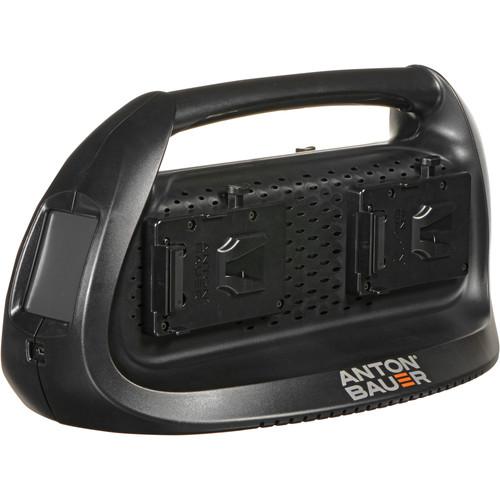

The Anton Bauer Performance Series Quad Charger V-Mount allocates the most power to the highest-charged battery first and subsequently to the next most charged ones, ensuring that you'll have a fully charged battery as soon as possible. The process is similar to a champagne glass pyramid where the top-most glass overflows into those below it. The Performance Series is 40% more efficient than previous Anton Bauer chargers by employing faster processing, using a smaller transformer in the power supply, and drawing less amps.
This V Mount version was designed to support the concurrently released Digital Battery Series V Mount models. It's capable of simultaneous, multi-chemistry charging, which will be useful if Anton Bauer releases V Mount models of different chemistries in the future. (Anton Bauer provides no guarantees that third party V Mount models will safely be supported.) Common to the Anton Bauer name, a feature called InterActivity allows the charger to communicate with an Anton Bauer battery and assign the best charge routine possible based on the battery's cell chemistry and the best termination algorithm possible (TCO, -ΔV temperature compensated VCO, dT/dt, CCO, FUL, or I-min), ensuring better overall life. A 4-pin XLR output allows you to power your camera right out of the charger via an XLR cable or converter cable. This can be done off of wall power at the same time as charging your batteries or off of attached batteries if the charger is unplugged. The batteries in the latter case are hot swappable so you can power your camera with uninterrupted power.
The charger features a simple-to-use, touchscreen display that provides activity and status updates and access to management functions. It also supports an optional Wi-Fi software feature that will allow you to remotely manage the health and status of one or more Performance Series chargers. - Key Features
-
- Allocates the most power to the highest-charged battery
- Supports simultaneous, multi-chemistry charging
- 4-pin XLR output for powering your camera off of wall power or battery power
- Assigns the best charge routine possible based on the battery's cell chemistry
- Assigns the best termination algorithm possible
- Simple-to-use touchscreen activity, status, and management display
- Ergonomic design with one-hand carry handle
- Supports optional remote health and status management software feature
UPC: 872496007999 In the Box Anton Bauer Performance Series Quad Charger V-Mount Power Supply 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Anton Bauer Performance Series Quad Charger V-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnton Bauer 8475-0121 Specs | Mount Type | V-Mount | | Positions | 4 | | Accessory Port | 1x 4-pin XLR output | | AC Input | 100-240 VAC, 50/60 Hz | | Power Output | 70 W, 16 VDC | | Dimensions | 16.5 x 8.7 x 9.9" (42 x 22 x 25 cm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 18.1 x 12.6 x 12.3" |
