User Manual for AOC 24B1H 23.6" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC 24B1H 23.6" 16:9 LCD Monitor
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC 24B1H 23.6" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

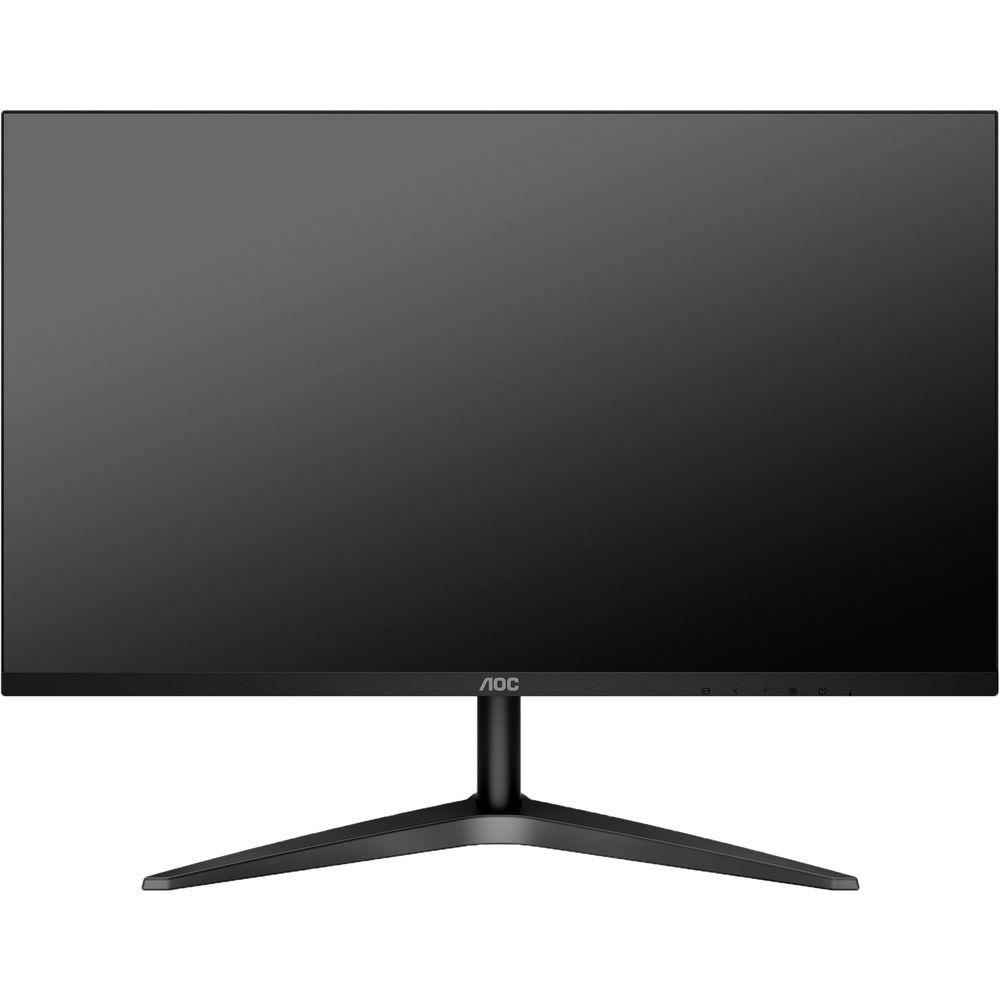

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More rsfwwqusvatdbecysecssxxsztar The 24B1H 23.6" 16:9 LCD Monitor from AOC features an ultra-slim borderless design that's ideal for multi-monitor setups. Specs-wise, it's built with a Multi-Domain Vertical Alignment (MVA) panel that provides you with a 1920 x 1080 Full HD resolution, 3000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors. With these combined, this monitor offers crisp and clear details with vivid, bright colors. Connect this display to your system via HDMI or VGA, and tilt it to your viewing preference - MVA Panel
- The MVA (Multi-Domain Vertical Alignment) panel displays deeper blacks and a high contrast for extra vivid and bright images.
- HDMI
- HDMI is supported by current gaming consoles, current GPUs, and set-top boxes supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate at 1080p and 75 Hz at 1440p, while HDMI 2.0-2.0b versions support 240 Hz at 1080p, 144 Hz at 1440p, and 60 Hz at 2160p (4K).
- 250 cd/m² Brightness
- The high 250 cd/m² brightness achieved by W-LED backlight ensures a good visibility on the display even in these harsh settings. In comparison, the sRGB's reference luminance level is 80 cd/m².
UPC: 685417718085 In the Box AOC 24B1H 23.6" 16:9 LCD Monitor Power Cable HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC 24B1H 23.6" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC 24B1H Specs | | | Size | 23.6" | | Screen Area | 20.52 x 11.54" / 521.2 x 293.22 mm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°

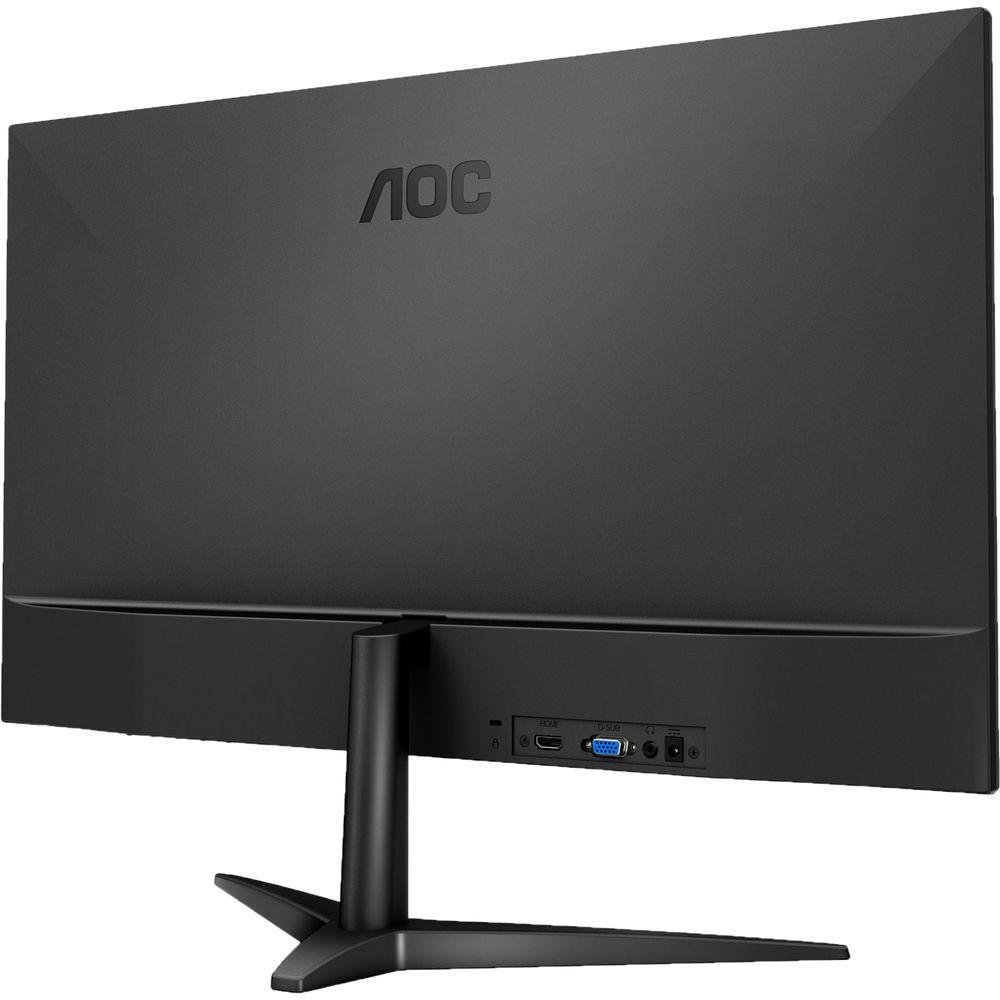

Vertical: 178° | | Dot Pitch | 0.2715 x 0.2715 mm | | Backlight Lifespan | 50,000 Hours | | | | Connectivity | 1 x HDMI 1.4
1 x VGA
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 22 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | CE, FCC, TUV, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -4 to 22° | | Mounting-Hole Pattern | None | | Lock Slot | No | | Dimensions (W x H x D) | 21.3 x 16.4 x 7.4" / 540.1 x 417.4 x 186.8 mm (With Stand) | | Weight | 5.73 lb / 2.6 kg | | | | Package Weight | 9.225 lb | | Box Dimensions (LxWxH) | 23.9 x 18.9 x 6.5" |
