User Manual for AOC 27B1H 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the AOC 27B1H 27" 16:9 IPS Monitor
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC 27B1H 27" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

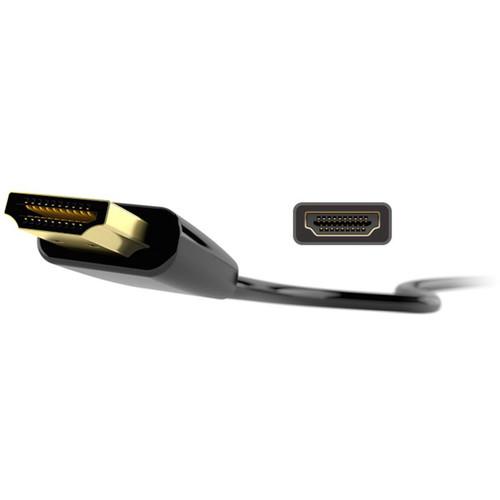

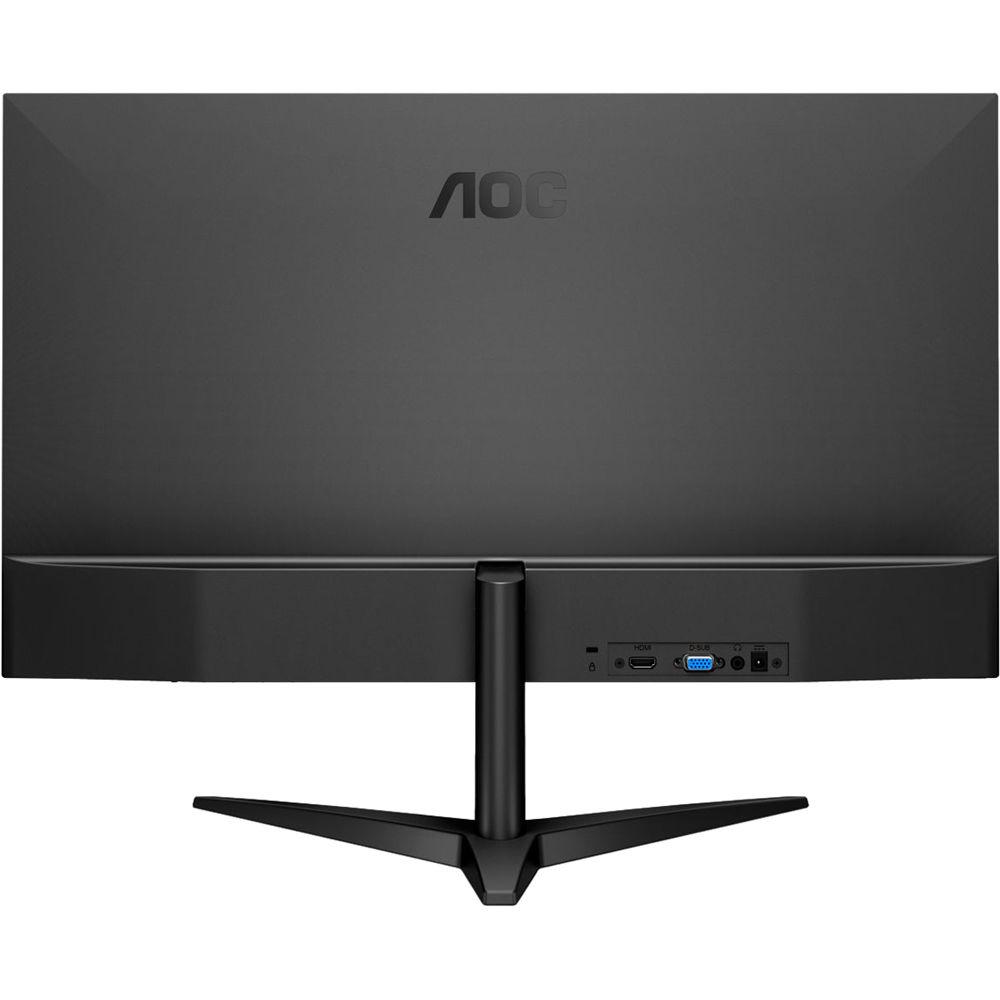

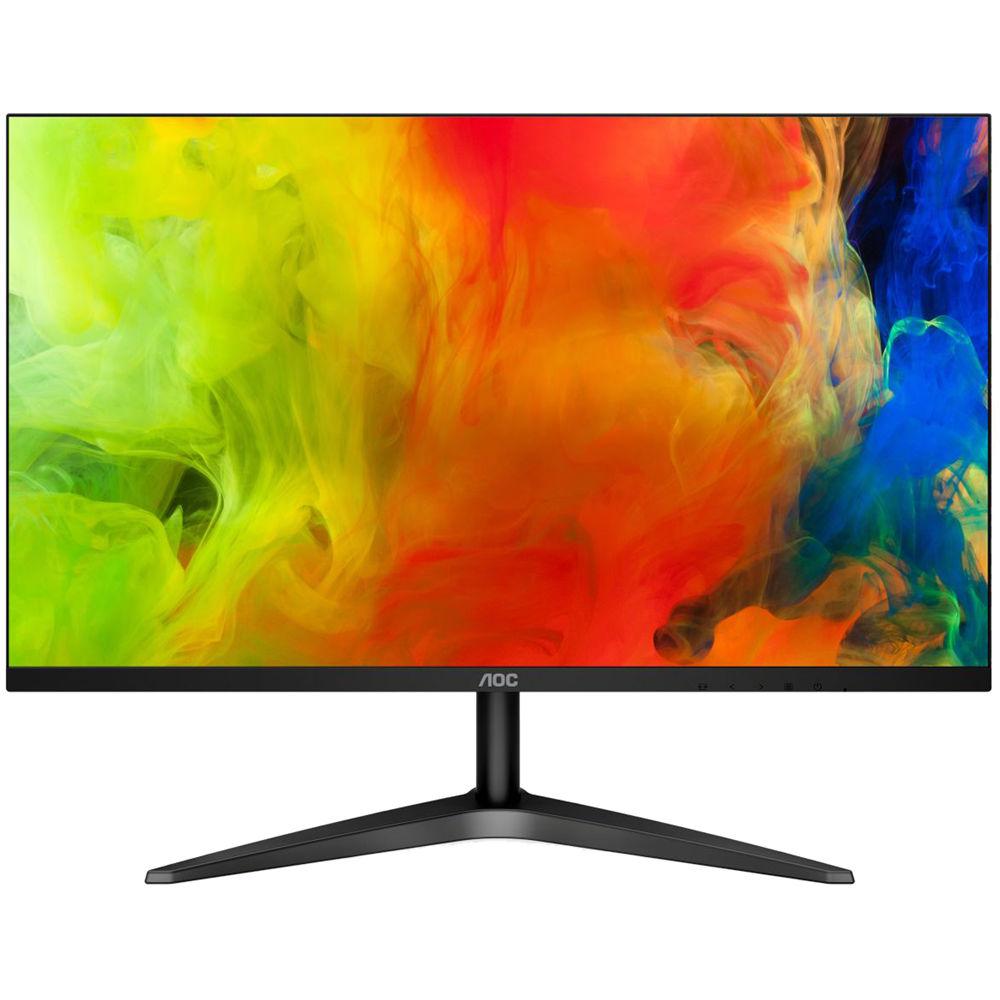

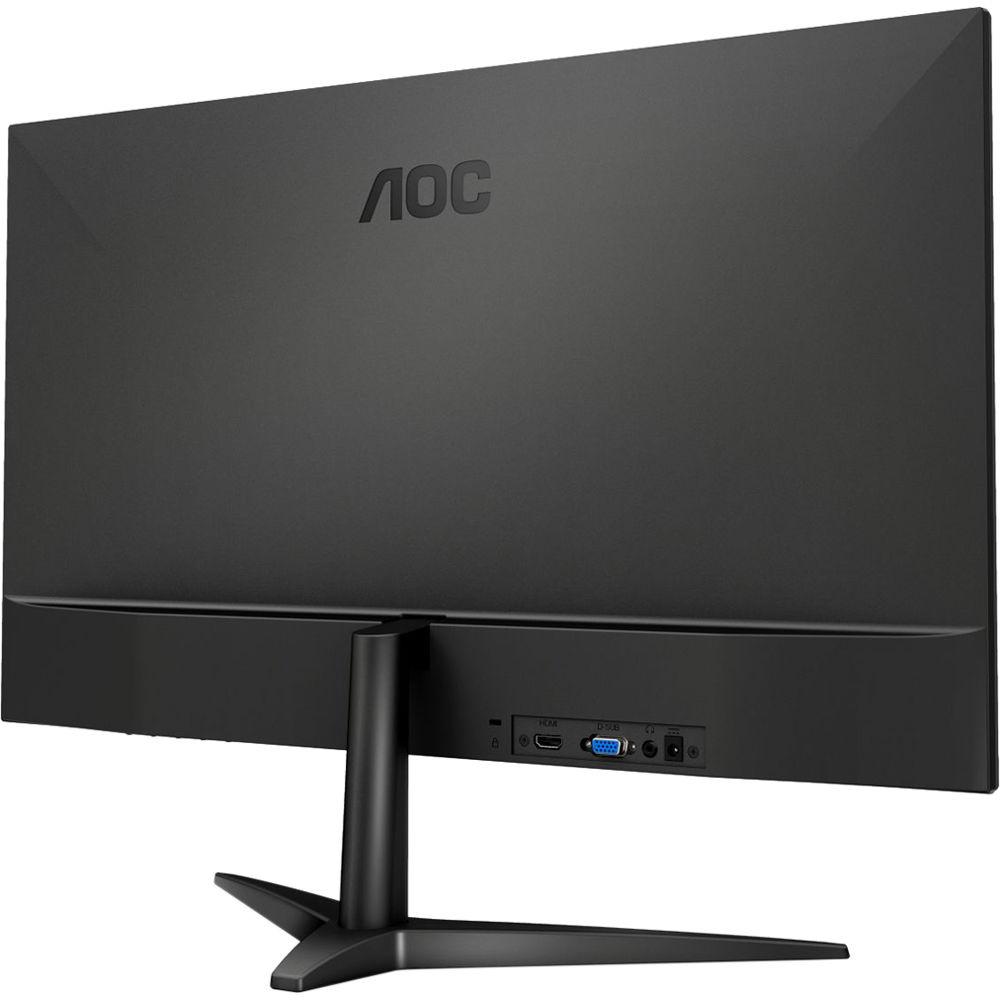

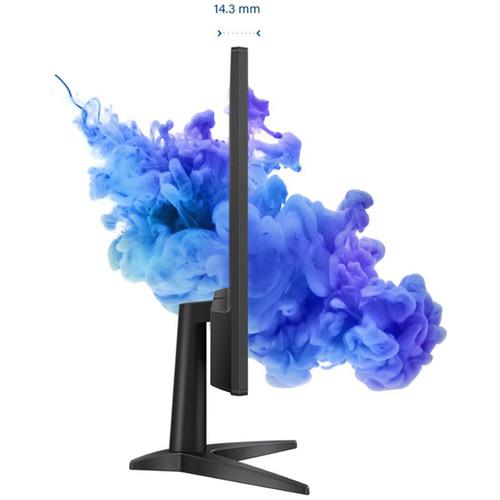

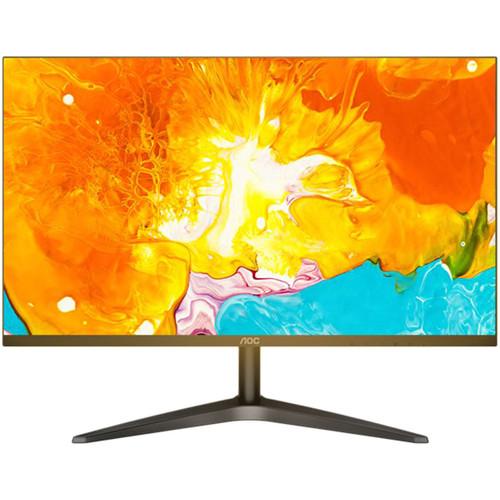

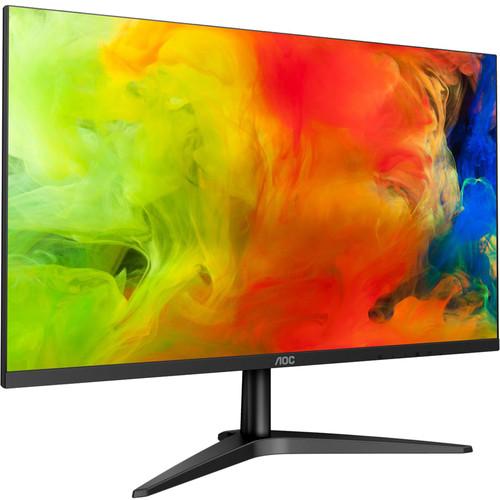

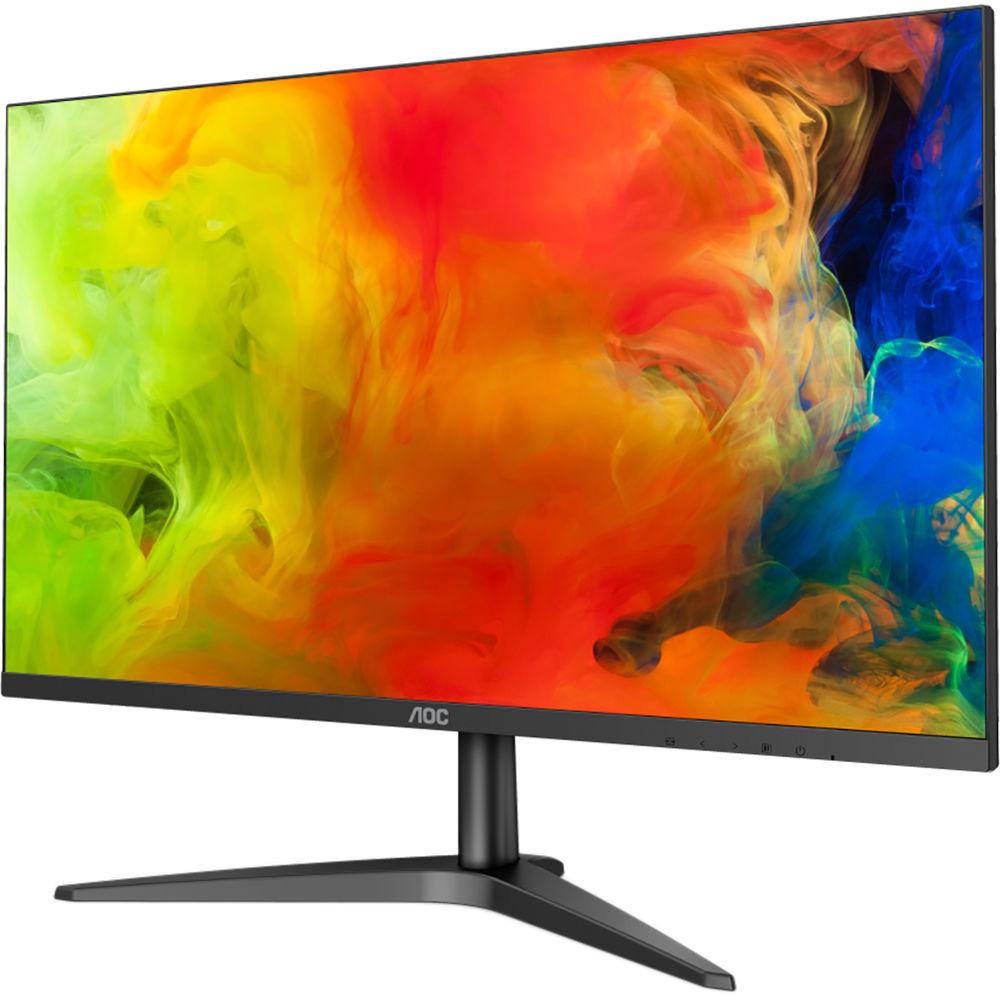

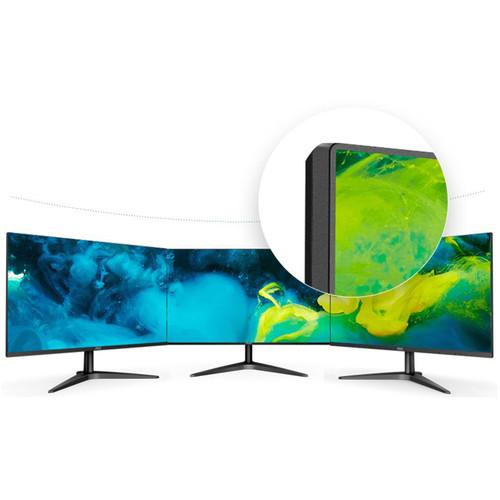

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 27B1H 27" 16:9 IPS Monitor from AOC features a frameless design with slim bezels for a more immersive viewing experience. It's built with an IPS (In-Plane Switching) panel that provides you with vivid colors and wide viewing angles. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 250 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for up to 16.7 million colors to deliver crisp and clear details with brighter bright colors and deeper blacks. Connect this display to your system via HDMI or VGA, and then tilt it to your preferred viewing angle. UPC: 685417718283 In the Box AOC 27B1H 27" 16:9 IPS Monitor Power Cable HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC 27B1H 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC 27B1H Specs | | | Size | 27" | | Screen Area | 23.54 x 13.24" / 597.88 x 336.31 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 9 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.3114 x 0.3114 mm | | Backlight Lifespan | 50,000 Hours | | | | Connectivity | 1 x HDMI 1.4
1 x VGA
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 22 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -4 to 22° | | Dimensions (W x H x D) | 18.1 x 24.1 x 7.9" / 460.1 x 613.0 x 199.8 mm (With Stand) | | Weight | 7.05 lb / 3.2 kg | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 27.5 x 21.3 x 5.8" |
