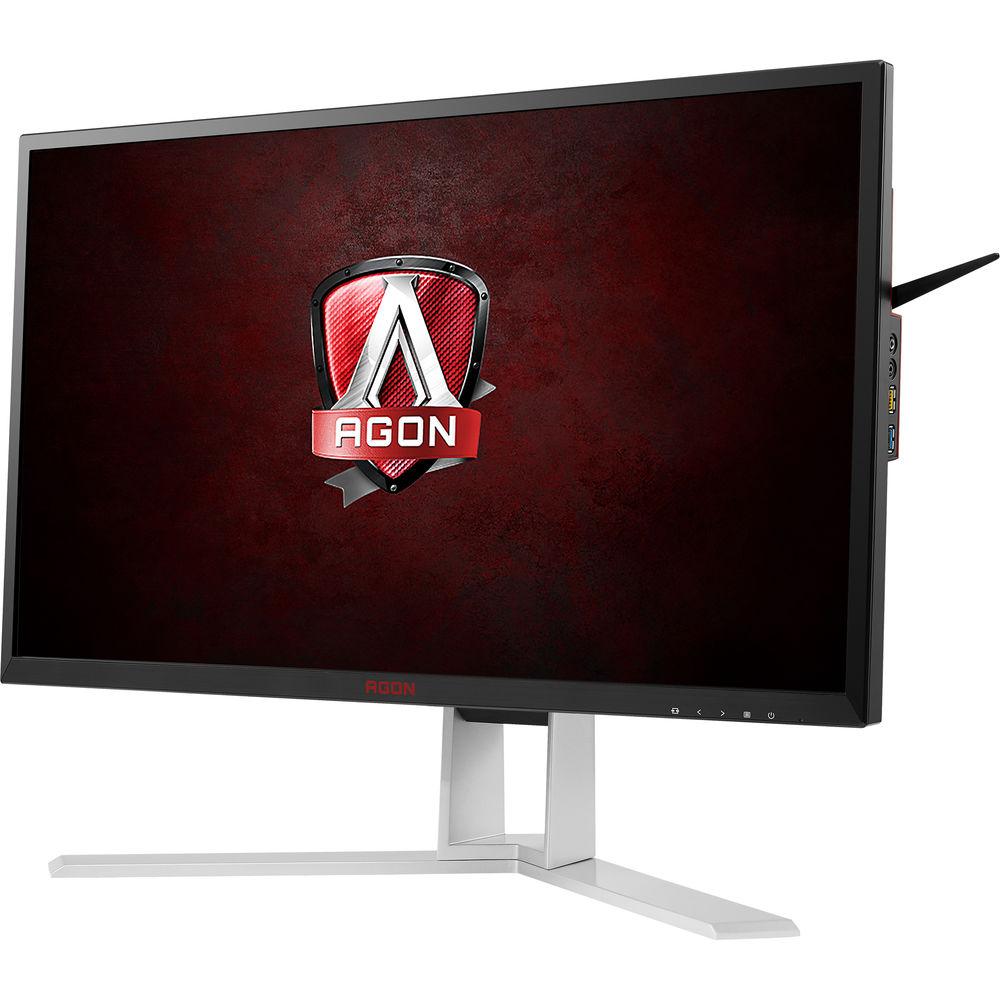

User Manual for AOC AG271QG 27" 16:9 NVIDIA G-SYNC LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the AOC AG271QG 27" 16:9 NVIDIA G-SYNC
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC AG271QG 27" 16:9 NVIDIA G-SYNC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

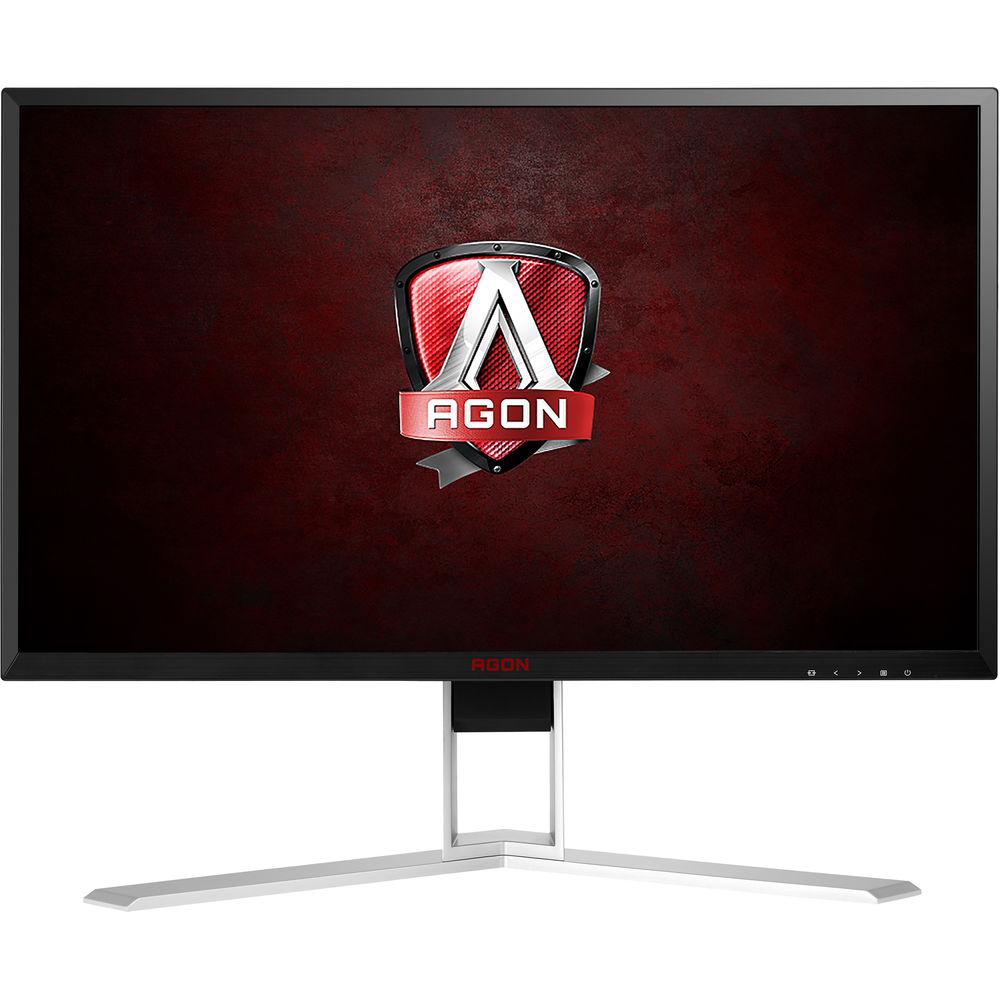

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Offering four times the resolution of a standard 720p monitor, the AG271QG 27" 16:9 NVIDIA G-SYNC LCD Gaming Monitor from AOC features a QHD 2560 x 1440 resolution along with a 165 Hz refresh rate and NVIDIA G-SYNC technology built right into the display. With a 165 Hz refresh rate users benefit from a more responsive display to reduce ghosting and blur while the NVIDIA G-SYNC functionality syncs the monitor to your computers GeForce GTX graphics card for an even smoother, sharper gaming experience. AOC has also included their own Shadow Control feature, which helps lighten dark areas on the screen to help you see darker areas within your game.

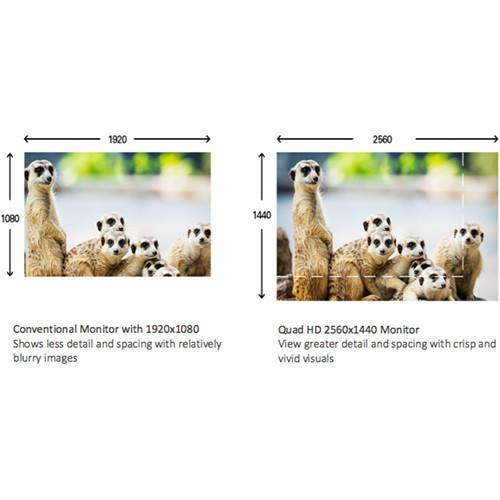

Setup and configuration of the AOC AG271QG is simple as it comes equipped with both HDMI and DisplayPort inputs. In addition to multimedia inputs, this display comes equipped with four USB 3.0 ports to connect peripherals such as hard drives, mice, and keyboards directly to the monitor. Once configured this IPS (In-Plane Switching) panel offers enhanced 178° horizontal and vertical viewing angles along with flicker-free technology to reduce eye fatigue by virtually eliminating all flicker from within the display. - Quad High Definition on a Widescreen
- With AOC's AG271QG, you can enjoy Quad HD at an enhanced 2560 x 1440 resolution. With Quad HD, you get four times the resolution of 720p HD; essentially you can fit four 720p HD videos on the screen at the same time. A Quad HD on a 27-inch widescreen allows you to view greater detail with more spacing, in crisp and vivid visuals. Whether editing photos, videos, or watching movies, AG271QG gives you clarity with quality on a widescreen.

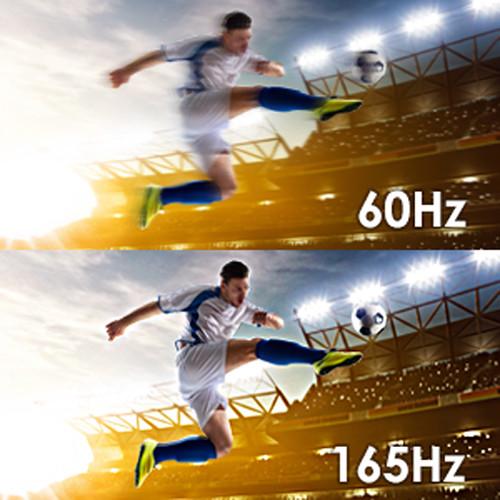

- 165 Hz Refresh Rate
- This AOC display features 165 Hz refresh rate, effectively faster than a standard display. A lower frame rate can make enemies appear to jump from spot to spot on the screen, making them difficult targets to hit. With 165 Hz frame rate, you get those critical missing images on the screen which shows enemy movement in ultra smooth motion so you can easily target them.

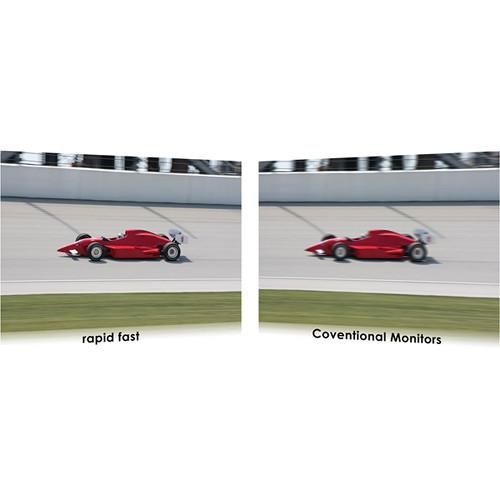

- Fast 4 ms Response Time
- A 4 ms response time means you get to enjoy fast-moving actions without worrying about image smearing or ghosting that occurs with slow response time.

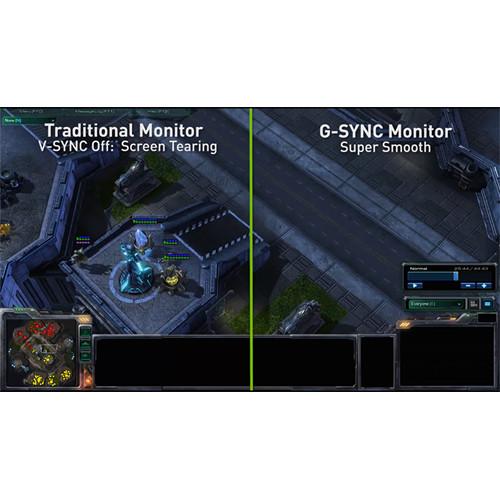

- NVIDIA G-SYNC Technology
- NVIDIA G-SYNC is the solution that synchronizes the display's refresh rates to the GPU in your GeForce GTX-powered PC to eliminate screen tearing and minimize display stutter and input lag, in order to provide a smooth and fast gaming experience.

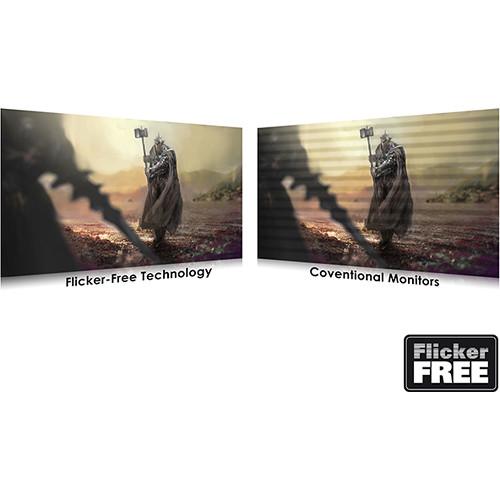

- Flicker-Free Technology for Reduced Eye Fatigue
- Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation). This causes flicker although human eyes can't see it easily, it still causes discomfort over long periods of time. Flicker-free technology is using DC (Direct Current) backlight system to provide more comfortable and healthy viewing.
- AOC Shadow Control
- For gamers, it is important to have the best visibility especially for the dark areas on screen. With AOC's Shadow Control, gamers can dial-in shadow levels in the on-screen display menu to increase contrast for better dark areas without affecting the rest of the screen. This AG271QG display offers 3 levels to adjust the dark portions.
UPC: 685417713684 In the Box AOC AG271QG 27" 16:9 NVIDIA G-SYNC LCD Gaming Monitor Power Adapter Power Cord HDMI Cable DisplayPort Cable Audio Cable USB Cable Limited 1-Year Warranty User Manual PDF 5mbszsabvexaavecxdcwfetzrsbcyvdyyxcs Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC AG271QG 27" 16:9 NVIDIA G-SYNC LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC AG271QG Specs | | | Size | 27" | | Screen Area | 23.5 x 13.2" / 59.7 x 33.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Maximum Brightness | 350 cd/m2 | | Dynamic Contrast Ratio | 50,000,000:1 | | Refresh Rate | 165 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 140 kHz | | Vertical Frequency | 24 to 60 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | | | Connectivity | 1 x 3.5 mm Input/Output
1 x 3.5 mm Output
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
1 x HDMI 1.4 | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 0.5 W (Standby)

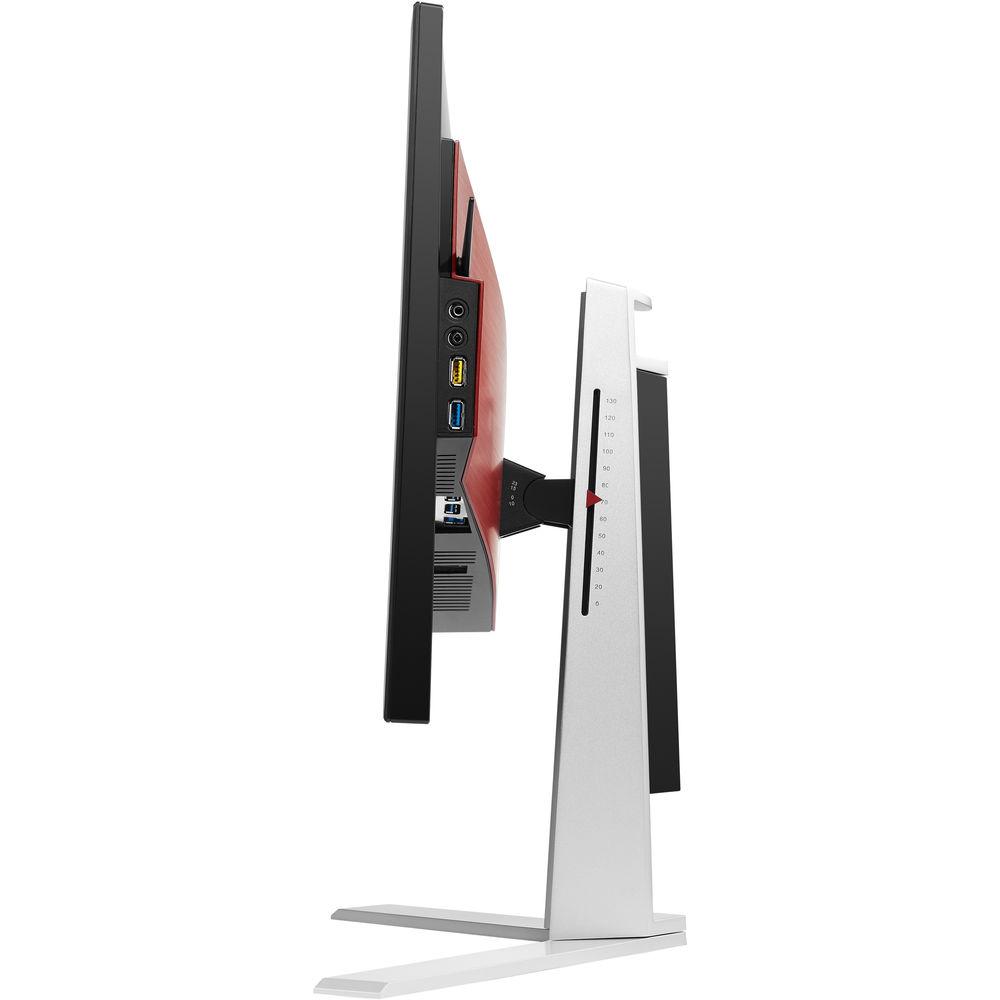

45 W (Typical) | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Certifications | RoHS, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 40° (-20 to 20°) | | Tilt Adjustment | -3.5 to 21.5° | | Dimensions (W x H x D) | 24.5 x 17.0 x 8.6" / 62.3 x 43.3 x 21.8 cm | | Weight | 14.9 lb / 6.8 kg (With Stand) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 28.6 x 18.8 x 9.6" |
