AOC AG271QX 27" 16:9 144 Hz

Search your instruction manual in PDF to download

User Manual for AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor

Click to enlarge the picture
AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor Contents of the user manual for the AOC AG271QX 27" 16:9 144 Hz
  • Product category: Computer Monitors AOC
  • Brand: AOC
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AOC Computer Monitors

AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor
User manual for the AOC AG271QX 27" 16:9 144 Hz contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AOC product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!



Product description

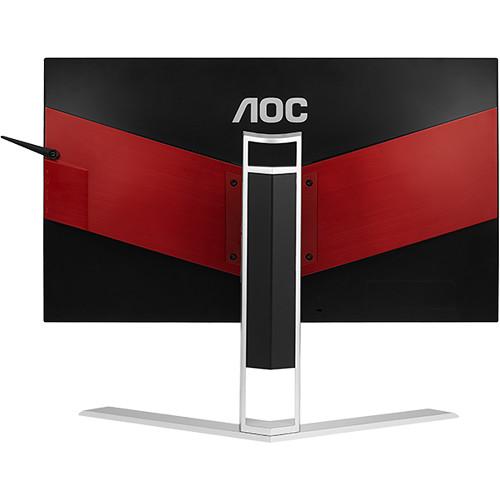

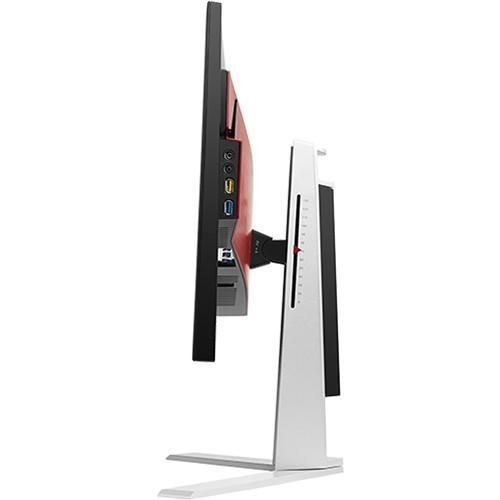

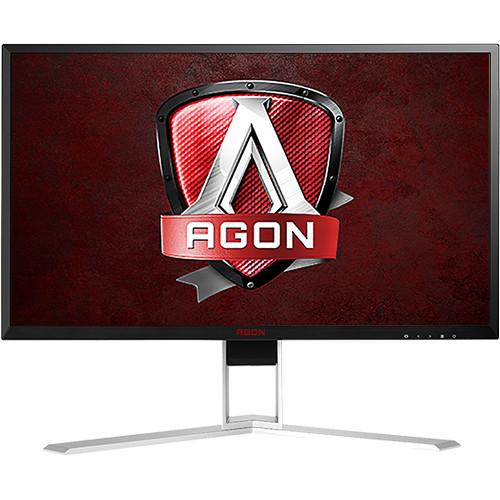

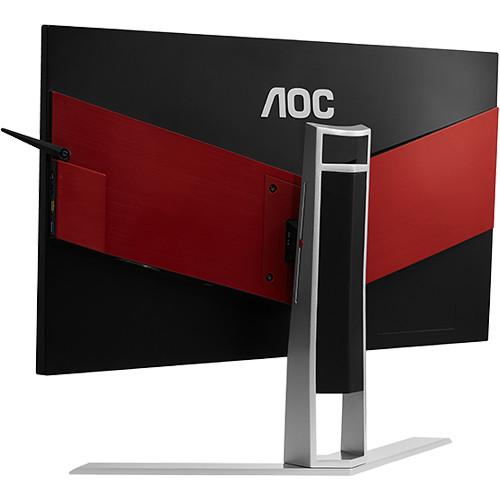

10 Factors to Consider When Selecting A Monitor for Video Editing Read More The AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor from AOC is a gaming-focused monitor designed with helpful features such as AMD FreeSync technology, a fast 1 ms response time, and a 144 Hz refresh rate. Specs-wise it has a 2560 x 1440 resolution, a 350 cd/ma² brightness rating, and a 50 million-to-1 dynamic contrast ratio for crisp and clear content reproduction with deeper blacks and brighter bright colors. Connect this display to your system via VGA, DVI, HDMI, or DisplayPort, then rotate, pivot, swivel, and adjust its height to your viewing preference. Moreover, it has four built-in USB 3.0 Type-A ports so you can easily connect peripherals when needed.

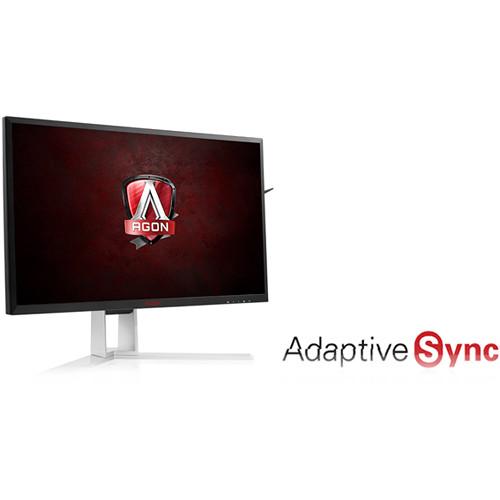

    AMD FreeSync Technology
  • AMD FreeSync Technology syncs the display's refresh rate with the graphics card's frame rate output to reduce tearing, ghosting, and stuttering for a smoother gaming experience.

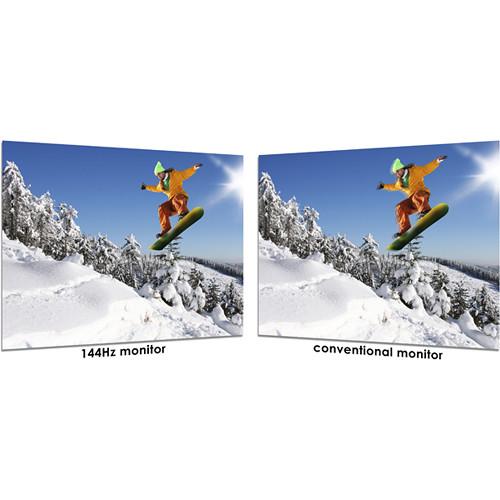

    Fast 144 Hz Refresh Rate
  • A 144 Hz refresh rate eliminates lag and motion blur making first person shooters, racing, real-time strategy, and sports games feel more fluid. 60 Hz is recommended for games that are slower paced, whereas a higher refresh rate is more suited for games which have a lot of fast motion and actions.
    1 ms Response Time
  • The fast 1 ms response time reduces blurring and ghosting for precise and accurate reactions.
    AOC Shadow Control
  • With AOC's Shadow Control, you can adjust shadow levels using the on-screen display menu to increase contrast for better visibility in dark areas without affecting the rest of the screen.

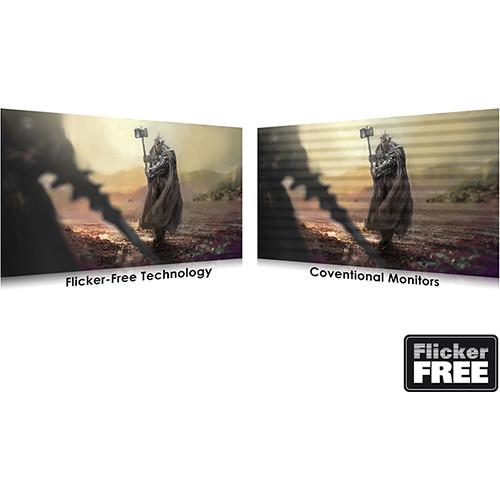

    Flicker-Free Technology
  • Flicker-free technology helps to reduce eyestrain caused by extended use for a more comfortable viewing experience.
    QuickSwitch Remote Keypad
  • The included remote QuickSwitch keypad allows you to change gaming modes or adjust monitor settings on the fly without skipping a beat with your favorite game.
UPC: 685417713585 In the Box AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor
  • Power Cable and Adapter
  • HDMI Cable
  • DisplayPort Cable
  • Audio Cable
  • USB Cable
  • QuickSwitch Remote Keypad
  • Limited 3-Year Warranty
  • User Manual PDF 6.5mbsfxvryzwsuyfdbaddaswcwvs Table of Contents




    Upload User Manual

    Have you got an user manual for the AOC AG271QX 27" 16:9 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AOC Agon Specs

    Screen Size 27" (68.6 cm)
    Display Area 23.5 x 13.2" / 59.7 x 33.6 cm
    Panel TN (Twisted Nematic)
    Backlight LED

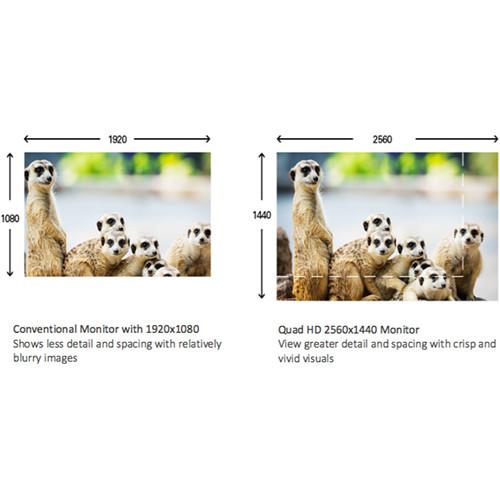

    Resolution 2560 x 1440
    Aspect Ratio 16:9
    Pixel Pitch (H x V) 0.233 x 0.233 mm
    Brightness 350 cd/m²
    Dynamic Contrast Ratio 50,000,000:1
    Response Time (GtG) 1 ms
    Viewing Angles (H/V) 170°/160°
    Horizontal Frequency 30-83 kHz
    Vertical Frequency 50-76 Hz
    Refresh Rate 60 Hz (VGA, DVI, HDMI)
    144 Hz (DP, HDMI /FreeSync)
    Color Depth 16.7 million
    Audio 2 x 3 W speakers
    1 x Audio in/out
    Connectivity 1 x VGA
    1 x Dual-Link DVI
    1 x HDMI 2.0
    1 x HDMI-MHL
    1 x DisplayPort
    4 x USB 3.0 Type-A (1 x fast-charging)
    Tilt -3.5-21.5°
    Pivot 90°
    Swivel Yes
    Height Adjustment 5.1" (13 cm)
    Power Source 110 - 240 VAC, 50 / 60 Hz
    Power Consumption (Operating) 47 W
    Power Consumption (Standby) < 0.5 W
    User Controls Source / Auto / Exit, Left / Volume, Right / ULMB, Menu / Enter, Power
    Regulations cTUVus, CE, FCC, RoHS, Windows 8/10 compatible
    Dimensions (W x H x D) 24.52 x 17.04 x 8.59" (62.27 x 43.27 x 21.82 cm)
    Weight 14.9 lb (6.8 kg)
    Package Weight 26.0 lb
    Box Dimensions (LxWxH) 28.0 x 18.0 x 9.25"
