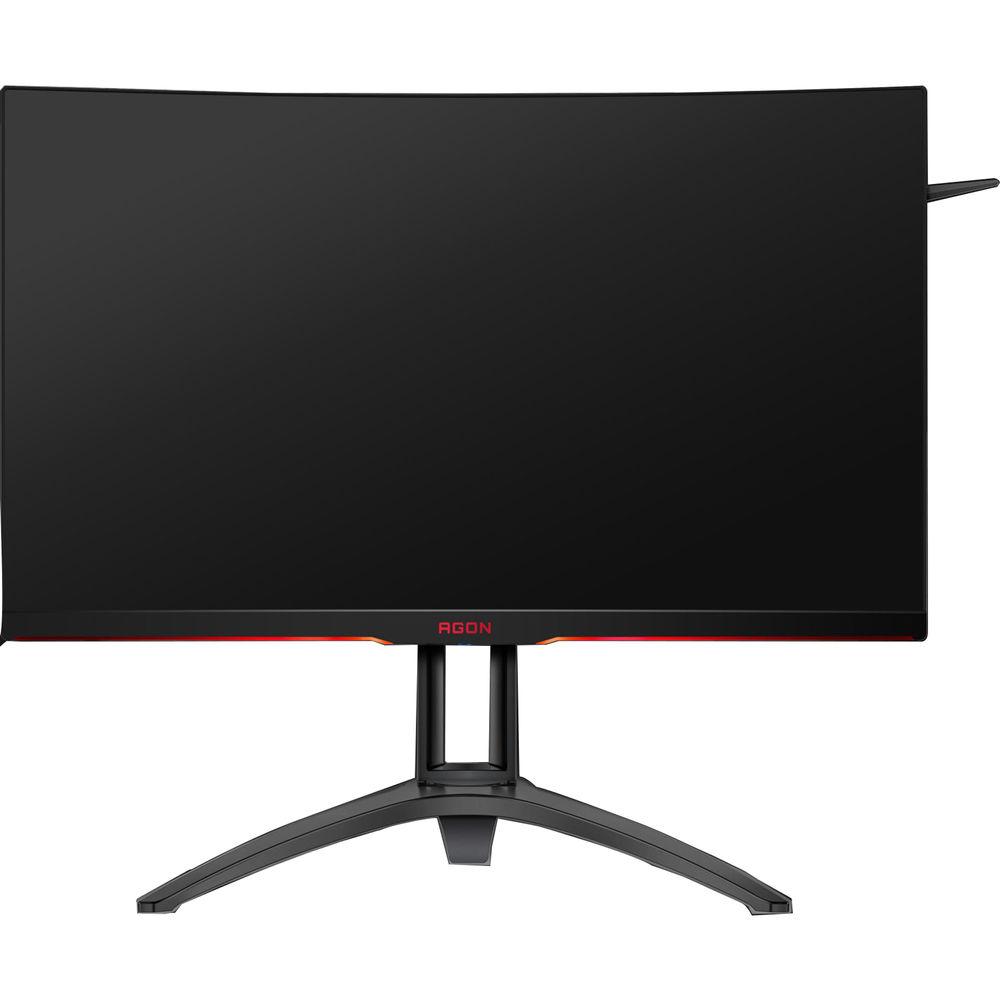

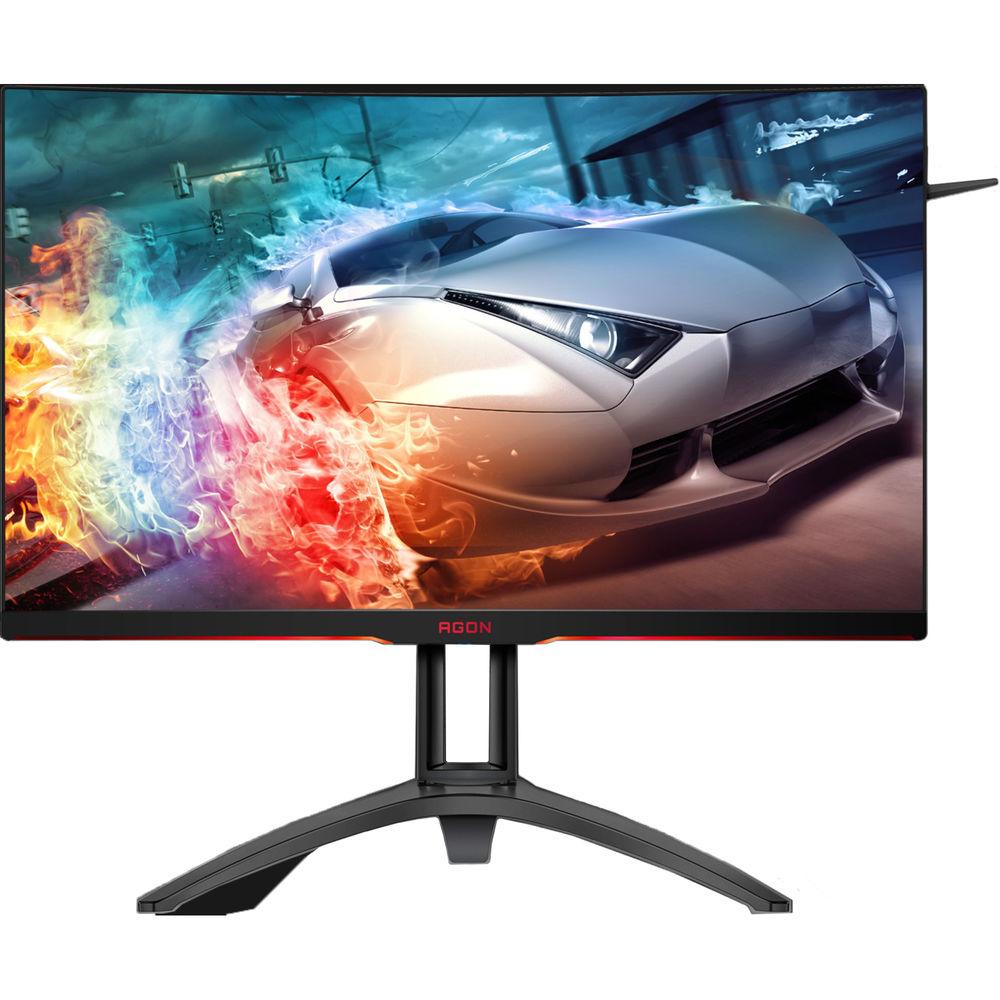

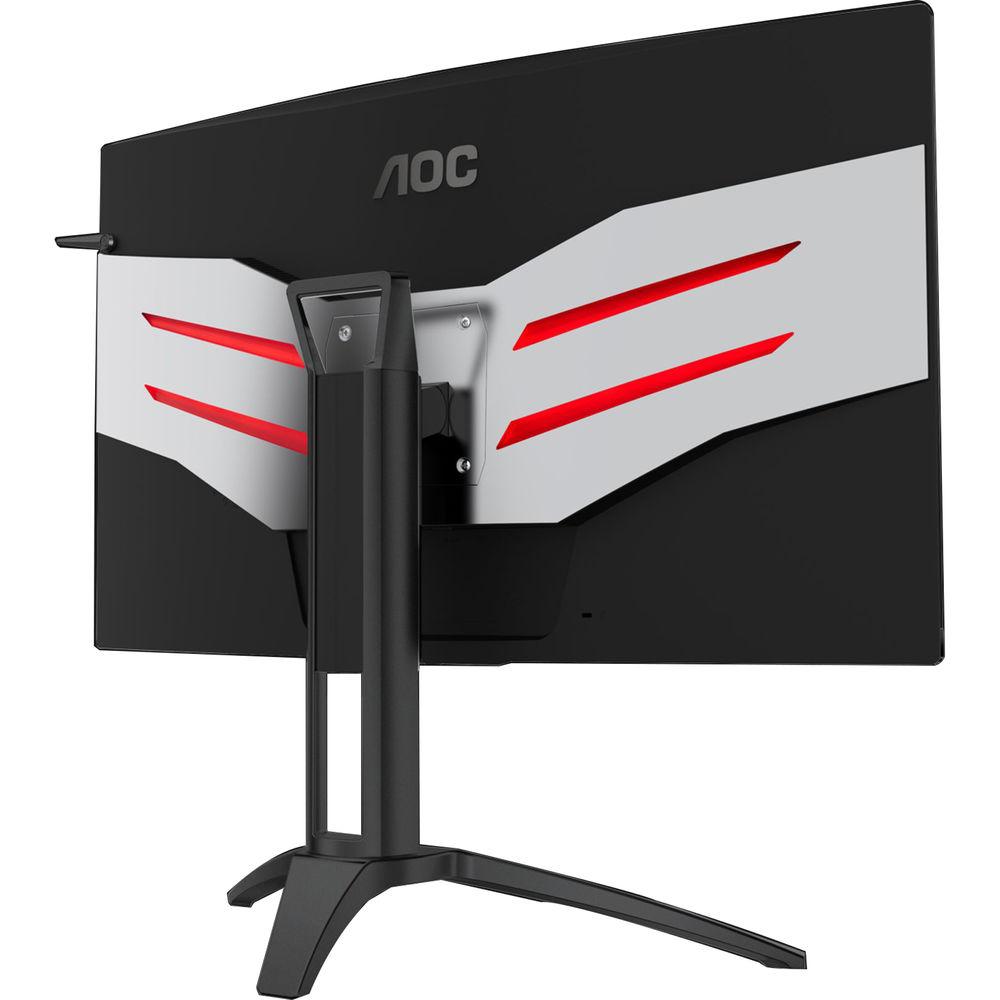

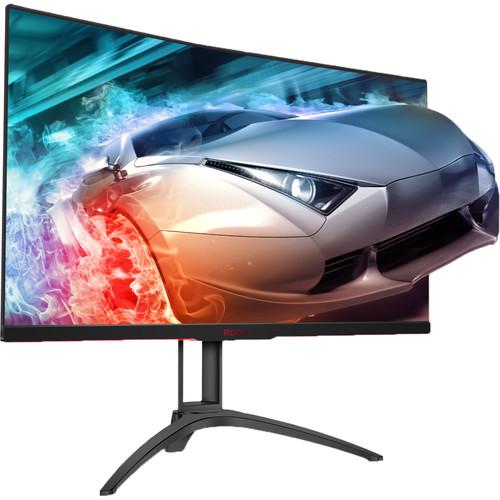

User Manual for AOC AG322QC4 31.5" 16:9 Curved 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC AG322QC4 31.5" 16:9 Curved 144
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC AG322QC4 31.5" 16:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The AG322QC4 31.5" 16:9 Curved 144 Hz FreeSync LCD Monitor from AOC features a curved display that wraps around your field-of-view and places you in the middle of the action for an immersive experience. Specs-wise, it's built with a Vertical Alignment (VA) panel that has a 2560 x 1440 QHD resolution, a 3000:1 static contrast ratio, a 400 cd/m² brightness rating, and support for 16.7 million colors. As a display designed for gamers, it also features a 4 ms response time, a 144 Hz refresh rate, and supports AMD FreeSync 2. Connect it to your system via VGA, HDMI, or DisplayPort and adjust it to your viewing preference. Otherwise, you can install an optional VESA mount, stand, or arm as needed - AMD FreeSync 2
- AMD's FreeSync 2 improves upon its predecessor FreeSync. Aside from syncing the display's refresh rate with your graphics card's frame rate output, it also includes gaming-specific HDR (High Dynamic Range) support to reduce input lag with HDR monitors. Furthermore, it has stricter requirements and uses Low Frame Compensation (LFC) technology for smoother, latency-, stutter-, and tear-free gaming at a higher dynamic range.
- DisplayHDR 400
- The VESA DisplayHDR 400 certification ensures 8-bit image quality, global dimming, and a brightness rating of 400 cd/m
|
Upload User Manual
Have you got an user manual for the AOC AG322QC4 31.5" 16:9 Curved 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC AG322QC4 Specs | | | Size | 31.5" | | Screen Area | 27.45 x 15.44" / 697.344 x 392.256 mm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2724 x 0.2724 mm | | | | Connectivity | 1 x VGA
2 x HDMI 2.0
2 x DisplayPort 1.2
1 x 3.5 mm Output | | Built-In Speakers | Yes, 2 x 5 W | | | | Power Consumption | 47 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Certifications | CE, FCC, as per Manufacturer | | | | Height Adjustment | 4.33" / 110 mm | | Rotation Adjustment | None | | Swivel Adjustment | 60° (-30 to 30°) | | Tilt Adjustment | -6 to 29° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 28.1 x 25.0 x 10.9" / 712.7 x 634.6 x 275.8 mm | | Weight | 14.64 lb / 6.64 kg | | | | Package Weight | 29.5 lb | | Box Dimensions (LxWxH) | 32.0 x 22.0 x 10.8" |
