User Manual for AOC C32G1 32" 16:9 Curved 144 Hz FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC C32G1 32" 16:9 Curved 144
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC C32G1 32" 16:9 Curved 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

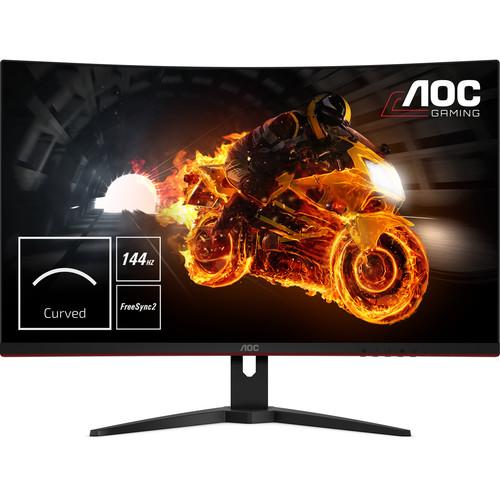

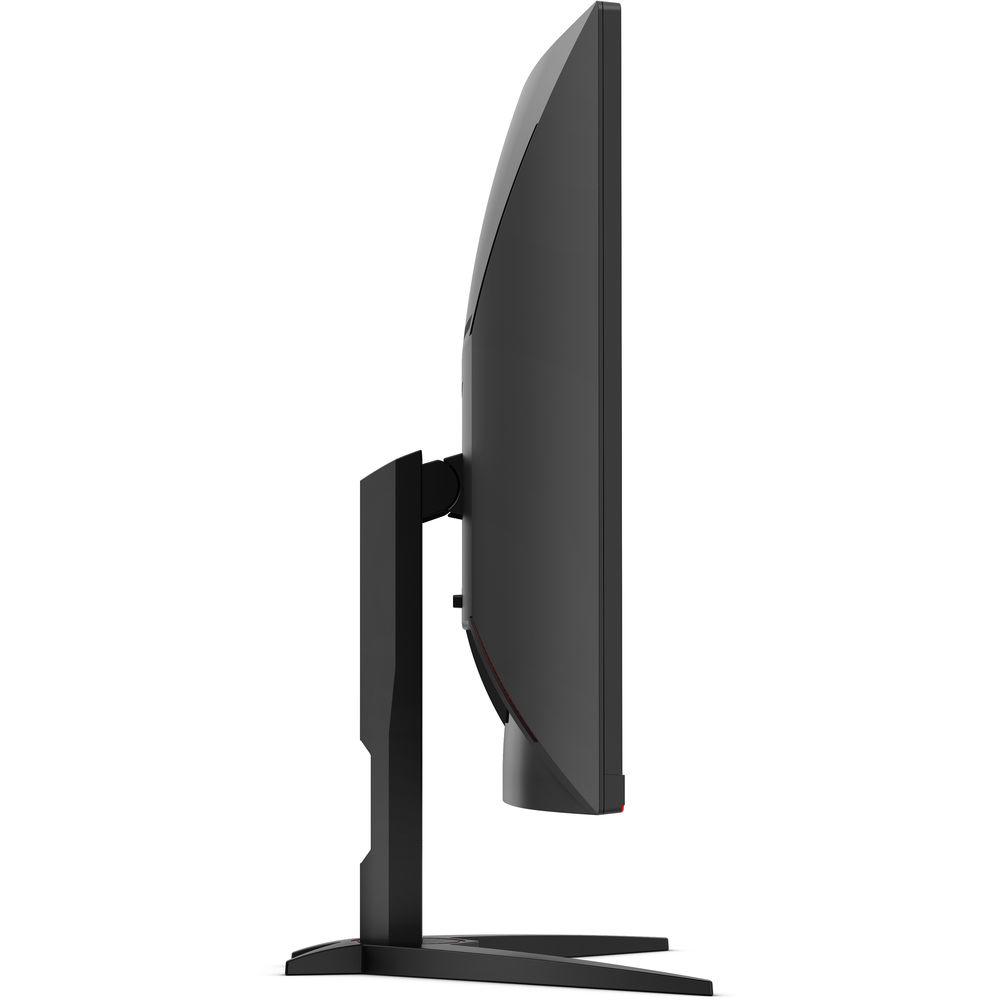

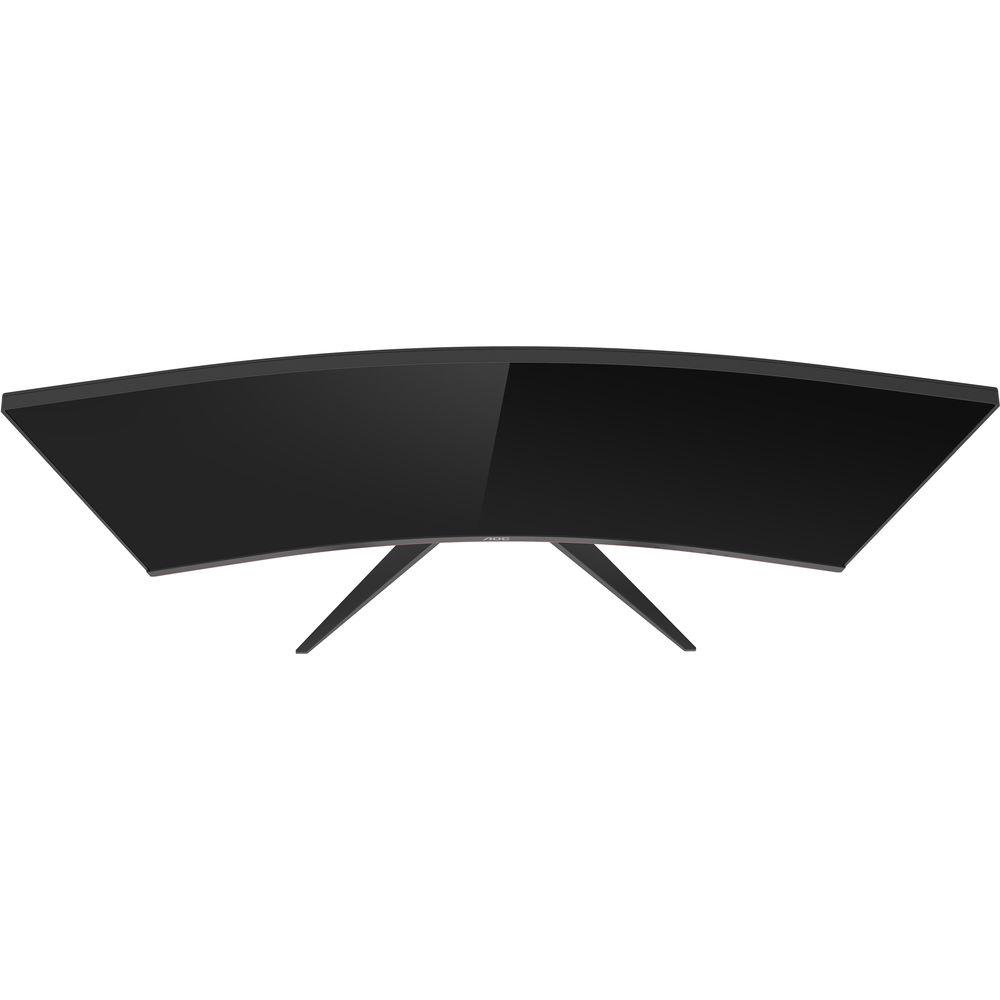

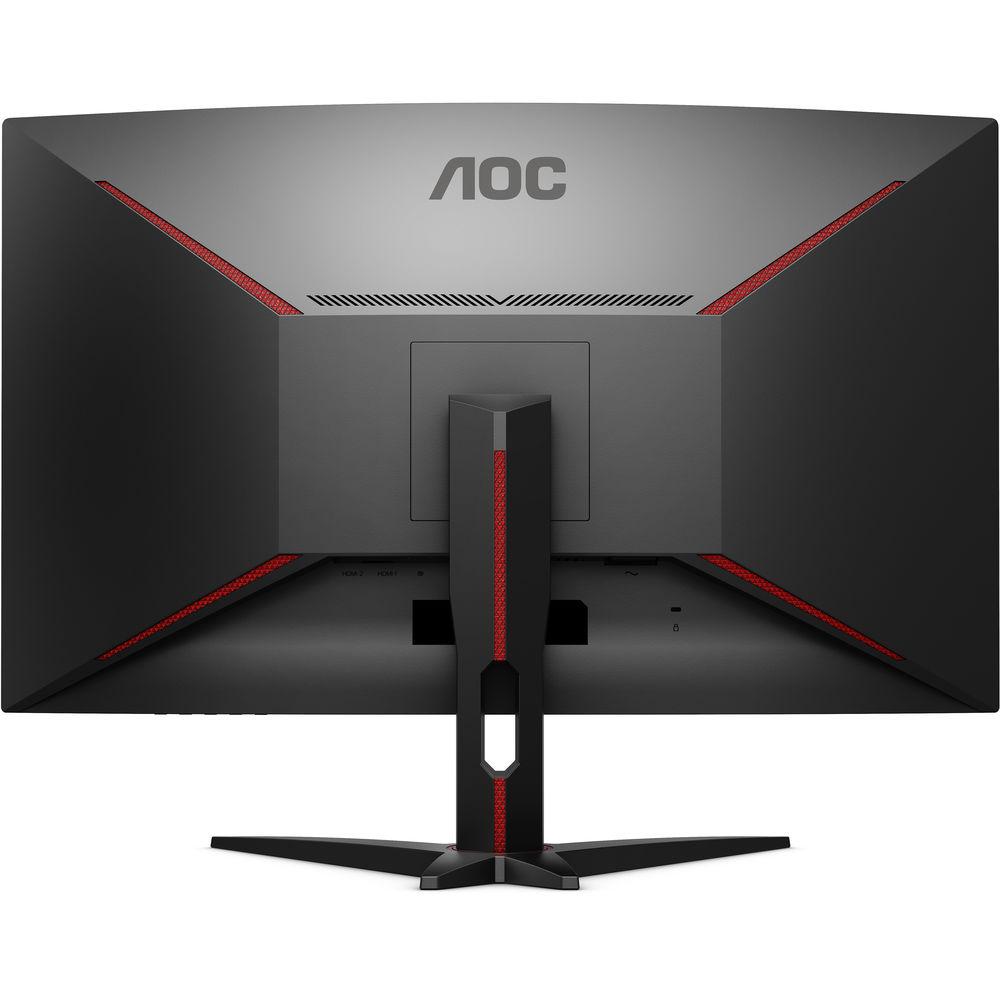

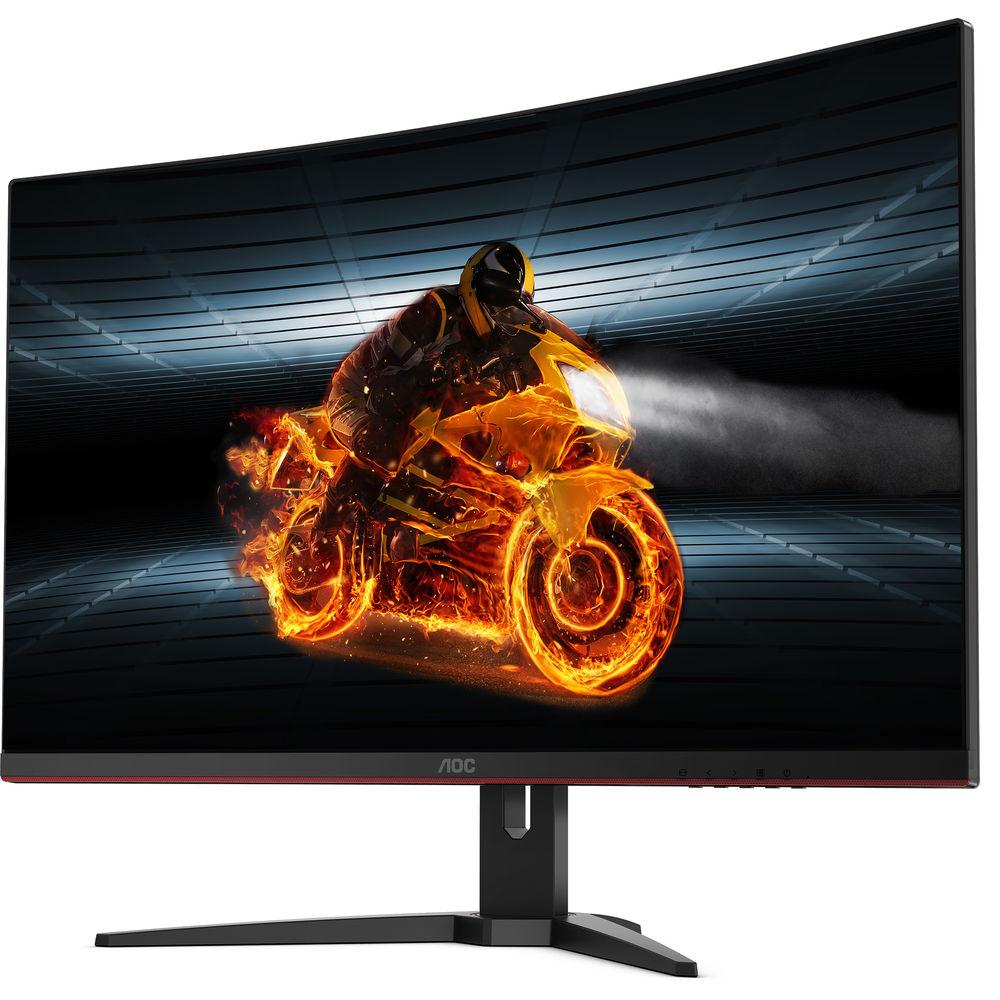

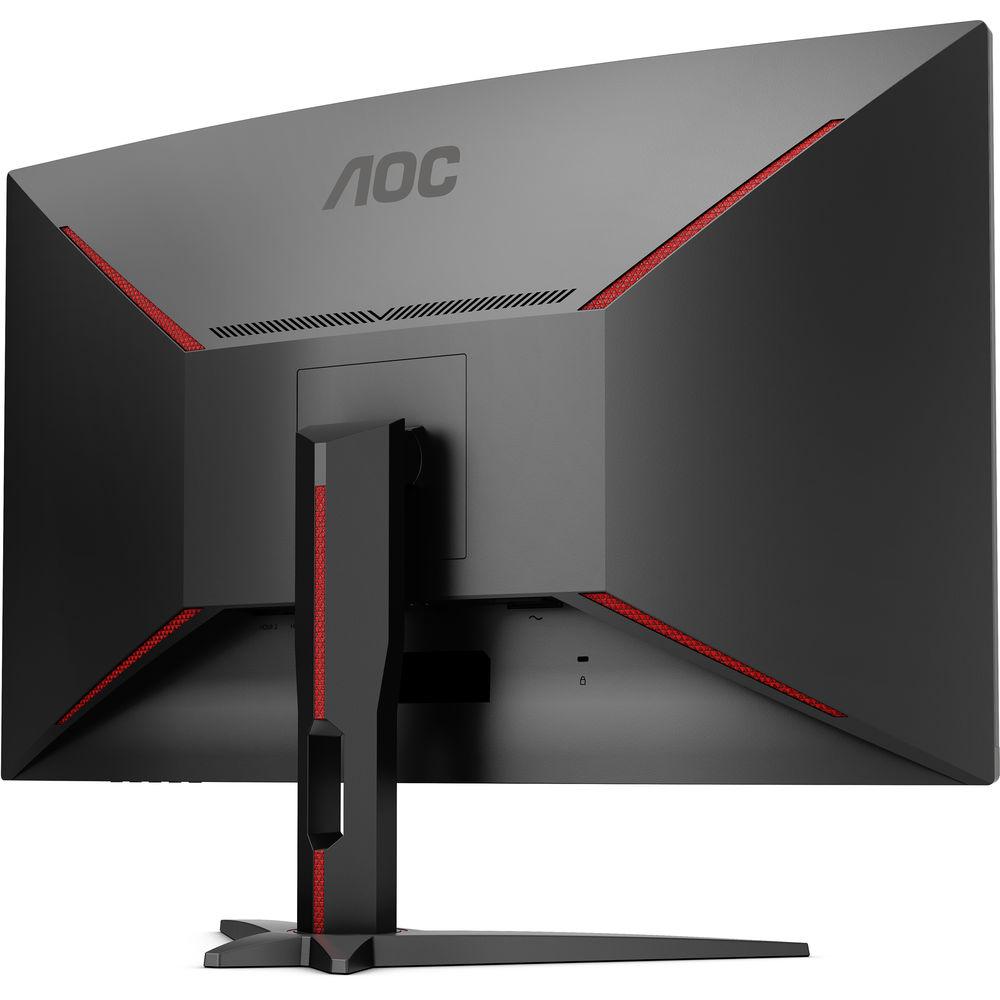

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The C32G1 32" 16:9 Curved 144 Hz FreeSync LCD Monitor from AOC features a 1800R curvature that wraps around your field of view, placing you in the middle of the action for a more immersive experience. Built with a Vertical Alignment panel, it features a 1920 x 1080 Full HD resolution, a 3000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 16.7 million colors. Combined, these specs provide you with crisp and clear pictures with vivid colors. For gaming, the C32G1 has a 144 Hz refresh rate, a 1 ms response time, and supports AMD FreeSync technology, which helps to reduce screen tearing, stuttering, and ghosting. Connect this display to your system via VGA, DisplayPort, or HDMI and adjust it to your viewing preference. You can also install an optional mount, stand, or arm using the VESA mounting holes on the back. - AMD FreeSync Technology.
- AMD FreeSync Technology syncs the display's refresh rate with the graphics card's frame rate output to reduce screen tearing and stuttering. When combined with its 1 ms response time and a 144 Hz refresh rate, you'll be able to enjoy a smoother gaming experience.
- Flicker-Free
- This display is built with AOC's Flicker-Free technology to reduce flickering, reducing eyestrain and fatigue over extended gaming sessions.
UPC: 685417720286 In the Box AOC C32G1 32" 16:9 Curved 144 Hz FreeSync LCD Monitor HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC C32G1 32" 16:9 Curved 144 Hz FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC C32G1 Specs | | | Size | 32" | | Screen Area | 27.50 x 15.47" / 698.4 x 392.85 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 69 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 1 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.3637 x 0.3637 mm | | | | Connectivity | 1 x VGA
1 x DisplayPort 1.2
2 x HDMI 1.4
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 50 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | No | | Dimensions (W x H x D) | 20.9 x 28.1 x 9.6" / 530.3 x 713.1 x 244.9 mm (With Stand) | | Weight | 15.39 lb / 6.98 kg | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 32.0 x 21.0 x 9.5" |
