User Manual for AOC e1659Fwu 16" Widescreen USB 3.1 Gen 1 Powered LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC e1659Fwu 16" Widescreen USB 3.1
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC e1659Fwu 16" Widescreen USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

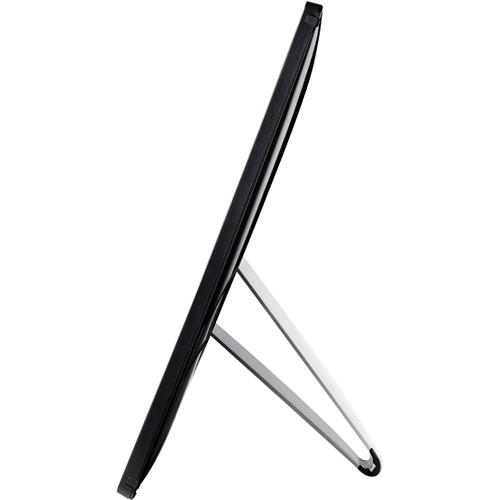

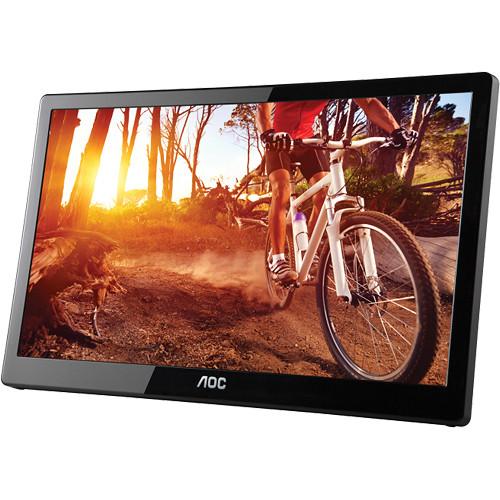

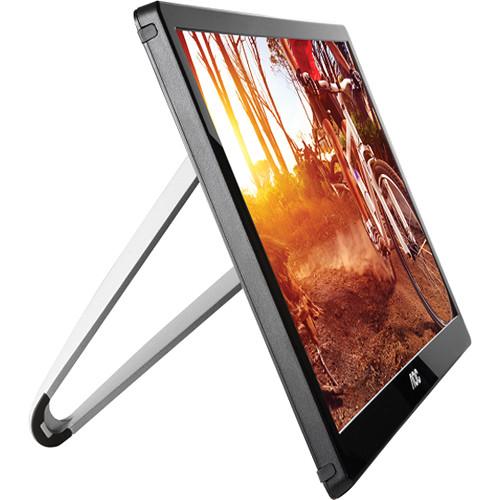

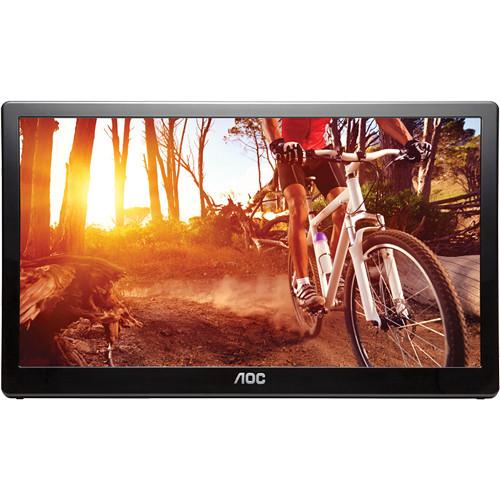

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The e1659Fwu 16" Widescreen USB 3.0 Powered LED Backlit LCD Monitor from AOC is a bus-powered, portable monitor complete with a micro USB 3.0 port. The monitor comes equipped with a built-in stand allowing for easy viewing in both portrait and landscape modes. The display is also VESA compatible making it easy to mount the monitor to the wall.
With a 15.6" diagonal viewable display you can see all of your documents, movies, pictures, and more with enhanced clarity as this portable monitor features a 1366 x 768 optimal resolution. Along with an enhanced resolution, you also benefit from a 500:1 static contrast ratio, 8 ms response time, and a brightness rating of 200 cd/m². Once configured you can view the display from a variety of perspectives as it supports 90° horizontal and 50° vertical viewing angles. - 15.6" viewable image and 16:9 aspect ratio
- Ultra-slim and lightweight with stylish piano-black glossy finish

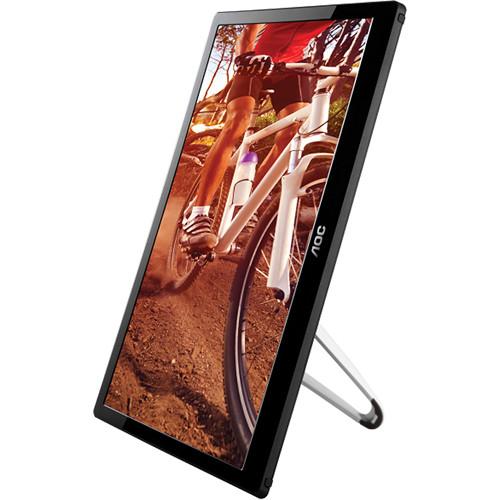

- Auto-pivot feature for viewing in landscape or portrait mode according to display's orientation
- Perfect accessory for the frequent traveler or on-the-go presentations
- USB 3.0 Technology for USB-powered plug-and-play connection
- USB 3.0 achieves high transfer rates and delivers high-quality images

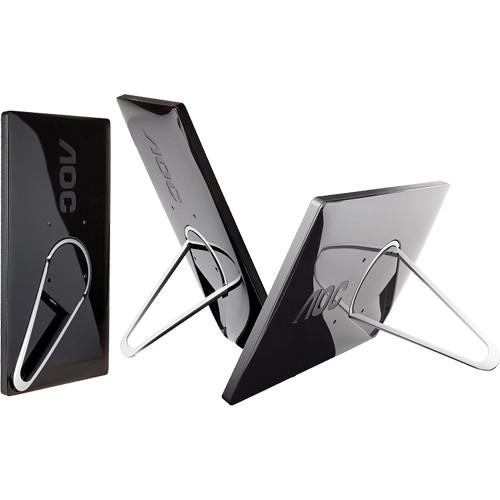

- Foldable stand for landscape and portrait mode
- Built-in DisplayLink technology for multiple USB monitors connection
UPC: 685417062485 In the Box AOC e1659Fwu 16" Widescreen USB 3.1 Gen 1 Powered LED Backlit LCD Monitor USB 3.0 Cable Carry Case CD (Drivers, AOC Software, User's Manual, Warranty) Limited 3-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC e1659Fwu 16" Widescreen USB 3.1 Gen 1 Powered LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC e1659Fwu Specs | | | Size | 15.6" | | Screen Area | 13.6 x 7.6" / 34.4 x 19.4 cm | | Touchscreen | No | | Resolution | 1366 x 768 | | Maximum Brightness | 200 cd/m2 | | Contrast Ratio | 500:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit (262K Colors) | | Response Time | 8 ms | | Viewing Angle | Horizontal: 90°
Vertical: 50° | | Dot Pitch | 0.252 x 0.252 mm | | | | Connectivity | 1 x USB (USB 3.1 Gen 1) | | | | Power Consumption | 1 W (Standby)
8 W (Typical) | | | | Certifications | ENERGY STAR, RoHS, as per Manufacturer | | | | Tilt Adjustment | -15 to 30° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 14.8 x 9.2 x 0.9" / 37.5 x 23.4 x 2.3 mm (With Stand) | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 17.5 x 11.6 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
