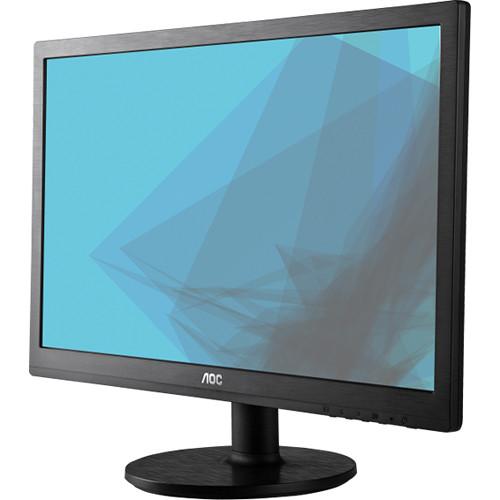

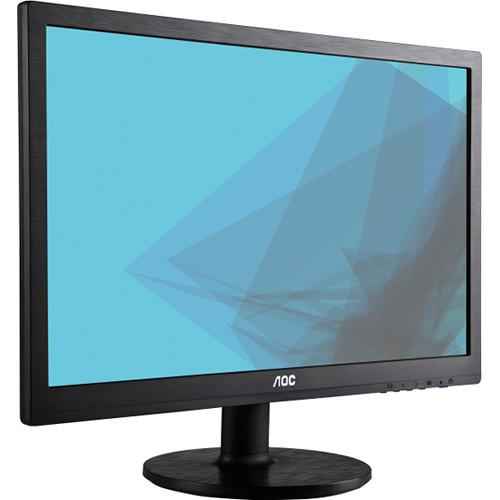

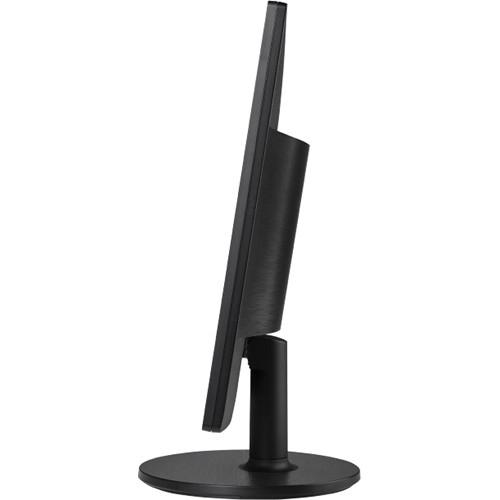

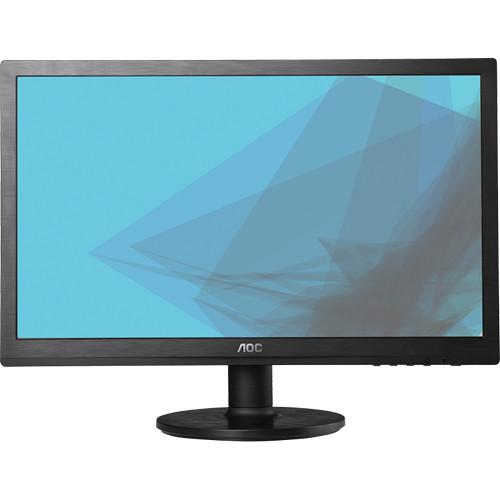

User Manual for AOC e2260Swdn 21.5" LED Backlit LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC e2260Swdn 21.5" LED Backlit LCD
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC e2260Swdn 21.5" LED Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More cdfacyruytrzzactuzsr The e2260Swdn 21.5" LED Backlit LCD Monitor from AOC is a slim, energy-efficient monitor complete with a 20,000,000:1 contrast ratio, a 5 ms response time and a Full HD 1920 x 1080 resolution ensuring you receive a crisp, clear picture. The enhanced contrast ratio provides deeper dark and bright light colors while the low response time helps to reduce lag when viewing fast moving videos. Setup and configuration of this monitor is simple as it comes equipped with both DVI and D-sub inputs as well as the ability to mount this VESA-compatible monitor to the wall. - Slim, Energy-Efficient Monitor
- The 21.5" e2260Swdn slim, energy-efficient monitor is both Energy Star and EPEAT Silver Certified for its green packaging and production. The display's LED backlight is completely free of toxic Mercury. The monitor is also equipped with multiple power-saving features for reduced environmental impact.
- Versatile Connectivity with Enhanced Image Quality
- The display comes with both a (15-pin) D-sub male and (24-pin) DVI-D with HDCP connector and a maximum resolution of 1920 x 1080. The monitor offers enhanced image quality with a 16:9 aspect ratio and a 20,000,000:1 contrast ratio, revealing darker image areas in greater depth. The e2260Swdn also comes equipped with a 5 ms response time to eliminate drag.
- Personalize Your Monitor

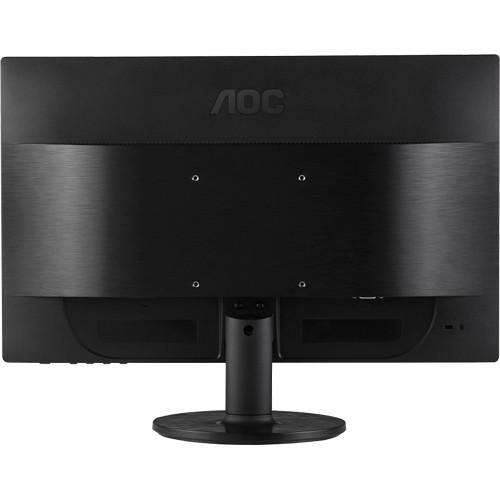

- The e2260Swdn is VESA wall mount compliant, features a Kensington security slot, and a graphical OSD menu. Other bonus features include: e-Saver software that allows for user-preset power conservation modes for the display when the PC is not in use; the iMenu option, which allows the user to change settings using only the keyboard and mouse; and Screen+ software that divides the screen into four self-contained work areas for improved productivity.
UPC: 685417047888 In the Box AOC e2260Swdn 21.5" LED Backlit LCD Monitor CD Manual Monitor Base Power Cable Analog Cable Limited 3-Year Warranty User Manual PDF 2.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC e2260Swdn 21.5" LED Backlit LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC e2260Swdn Specs | | | Size | 21.5" | | Screen Area | 18.8 x 10.6" / 47.7 x 26.8 cm | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 200 cd/m2 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 75 Hz | | Pixel Clock Frequency | 165 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 90°
Vertical: 60° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x DVI-D
1 x VGA | | HDCP Support | Yes | | | | Power Consumption | 30 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | EPEAT Silver, RoHS, as per Manufacturer | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.1 x 14.7 x 7.3" / 51.1 x 37.3 x 18.5 cm | | Weight | 5.9 lb / 2.7 kg | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 5.0" |
