User Manual for AOC G2460VQ6 24" 16:9 LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the AOC G2460VQ6 24" 16:9 LCD Gaming
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC G2460VQ6 24" 16:9 LCD Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

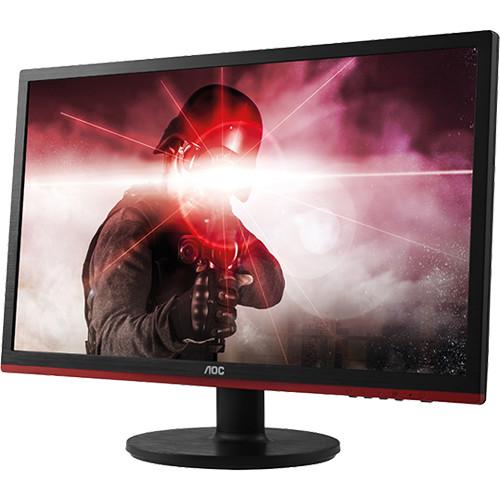

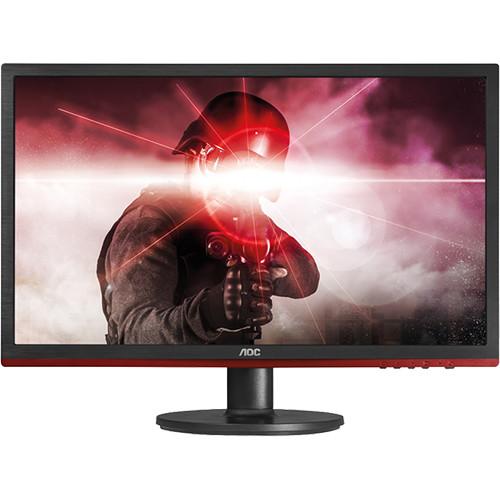

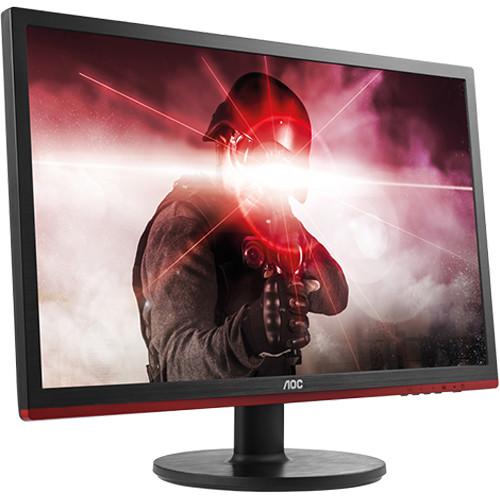

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With built-in AMD FreeSync technology, the G2460VQ6 24" 16:9 LCD Gaming Monitor from AOC virtually eliminates tearing and stuttering as it is capable of syncing with compatible AMD FreeSync graphics cards. In addition to AMD FreeSync technology, this monitor also supports a 1 ms response time and a 1,000:1 static contrast ratio to provide reduced ghosting and a more dynamic picture with brighter light and darker dark colors.

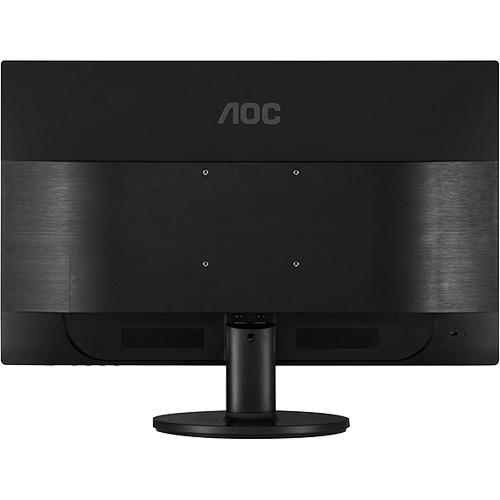

Setup and configuration of the G2460VQ6 is simple as it comes equipped with D-Sub, HDMI, and DisplayPort inputs to plug a wide variety of multimedia devices into this monitor. Once configured users can take advantage of a Full HD 1920 x 1080 resolution along with a 250 cd/m² brightness rating, and a 75 Hz refresh rate. The display can be viewed using the included stand or mount it using a 100 x 100mm VESA compatible mount. Once situated the display can be viewed from nearly any angle thanks to 170° horizontal and 160° vertical viewing angles. - AMD FreeSync Technology
- Virtually eliminate tearing, stuttering, and input lag by syncing this monitor to your computer equipped with a FreeSync-enabled AMD graphics card.
- HDMI Input
- High Definition Multimedia Interface or HDMI is a global standard for digitally transmitting high-definition video and multi-channel audio. This versatile single-cable solution allows you to easily connect your display to devices like computers, laptops, game consoles, and media players.
- 1 ms Response Time
- A pixel response time of 1 ms means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting.
- Anti-Blue Light
- Shortwave blue light can damage your eyes. AOC Anti-Blue Light Technology blocks harmful blue light rays, without changing display color. Other attempts to reduce blue light use filters or settings that cause dim/yellowish images. AOC Anti-Blue Light preserves the monitor's color accuracy while taking care of your eyes.
- Flicker Free
- AOC Flicker Free Technology's hybrid solution regulates brightness without flickering ensuring comfortable viewing.
- Integrated Speakers
- Built-in speakers make it easy to catch up with family, friends, and colleagues. For movies, music, games, and more, you'll enjoy quality audio without the hassle of connecting external speakers.
- DisplayPort
- DisplayPort offers ultra-fast digital audio and video transmission without quality loss or input lag. Quickly and easily connect a range of devices to your screen, including your computer, laptop, media player, game console, and more.
- Additional Features
- • Plug-and-play support
• Anti-blue light
• i-Menu
• e-Saver
• Flicker free UPC: 685417714889 In the Box AOC G2460VQ6 24" 16:9 LCD Gaming Monitor HDMI Cable Power Cord Limited 3-Year Warranty User Manual PDF 3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC G2460VQ6 24" 16:9 LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC G2460VQ6 Specs | | | Size | 24" | | Screen Area | 20.9 x 11.8" / 53.1 x 29.9 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 48 to 76 Hz | | Pixel Clock Frequency | 165 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.276 x 0.276 mm | | | | Connectivity | 1 x HDMI
1 x VGA
1 x DisplayPort | | HDCP Support | Yes | | Built-In Speakers | Yes | | | | Power Consumption | 0.5 W (Standby)
23 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, EPEAT Silver, REACH, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.3 x 16.2 x 8.6" / 56.5 x 41.2 x 21.9 cm | | Weight | 9.4 lb / 4.3 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 4.6 x 3.7 x 1.0" |
