User Manual for AOC I1659FWUX 15.6" 16:9 USB Powered IPS Monitor Click to enlarge the picture
Contents of the user manual for the AOC I1659FWUX 15.6" 16:9 USB Powered
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC I1659FWUX 15.6" 16:9 USB Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

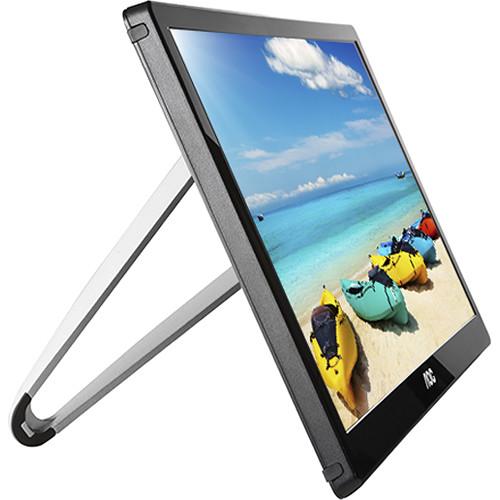

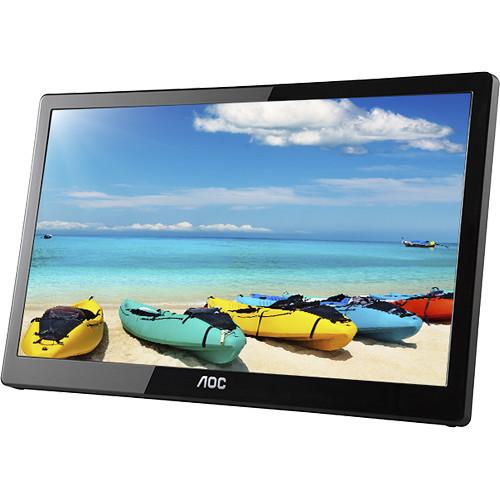

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for on-the-go use, the bus powered I1659FWUX 15.6" 16:9 USB Powered IPS Monitor from AOC features plug-and-play connectivity along with an ultra-slim, lightweight construction to take it with you virtually anywhere you go. The display comes equipped with a foldable flexi-stand allowing it to be viewed in either landscape or portrait modes to suit a variety of content.

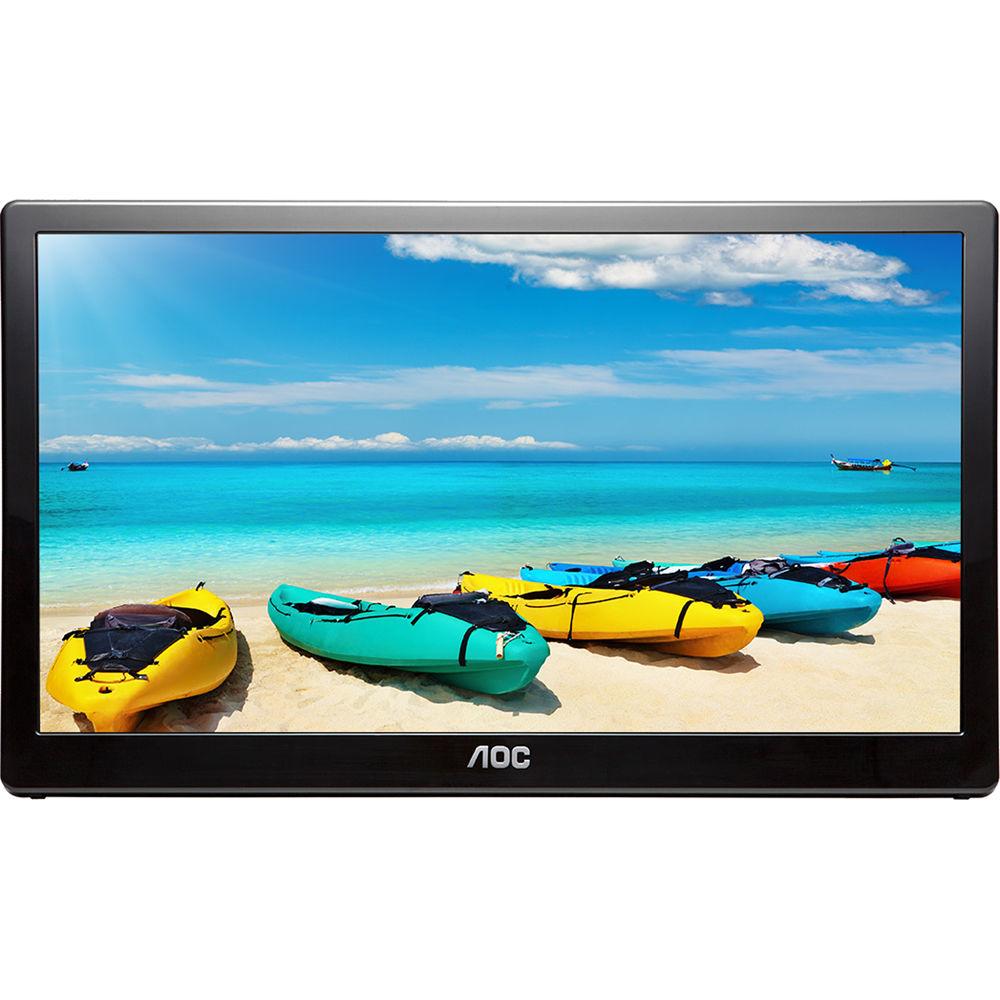

This 15.6" I1659FWUX display features a Full HD 1920 x 1080 resolution, a 700:1 contrast ratio, a 220 cd/m² brightness rating, a 25 ms response time, and support for up to 292,000 colors. Setup is simple thanks to the USB 3.0 port, which also powers the display. Once configured, viewers benefit from 160° horizontal and vertical viewing angles, and the display can even be mounted using a VESA compatible wall mount for optimal viewing. - IPS Panel
- This USB monitor from AOC has a sleek design and fast USB 3.0 connection for high transfer rates. Designed with a piano-black glossy finish, this USB monitor has a 15.6" diagonally viewable image. The IPS (In-Plane Switching) panel of the I1659FWUX offers a 700:1 contrast ratio and a crisp 1920 x 1080 Full HD Resolution at 60 Hz.
- Auto-Pivot for Landscape or Portrait Mode

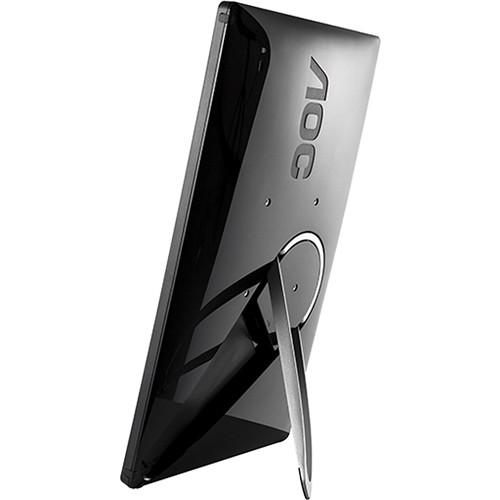

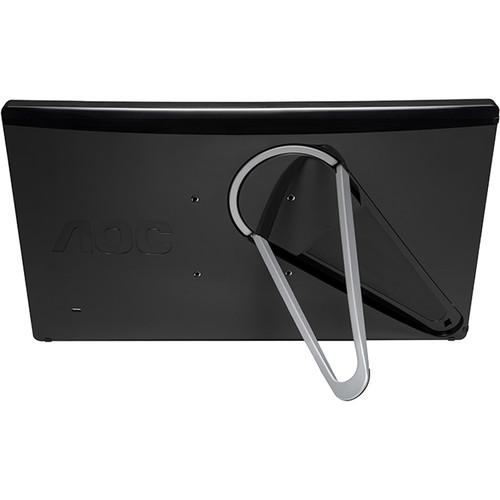

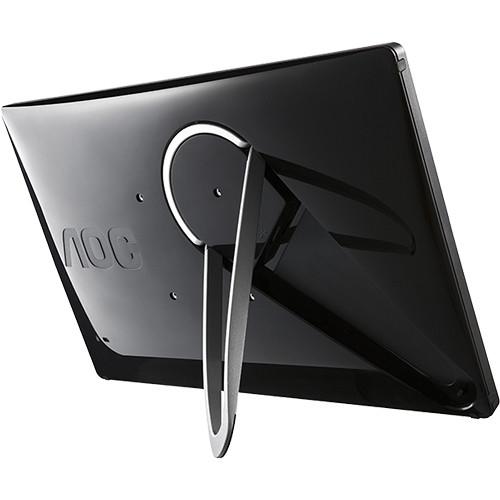

- The I1659FWUX USB Monitor has a foldable flexi-stand for viewing in landscape or portrait mode. Landscape mode is ideal for presentations and Excel sheets, while the Portrait mode conveniently gives you an easy vertical view of your instant messaging program, or sidebars such as search results. This monitor has the unique auto-pivot feature that automatically adjusts the image according to the display's orientation, so you will never have to change settings as you switch between landscape and portrait mode.
- Ultra Lightweight and Slim Portability

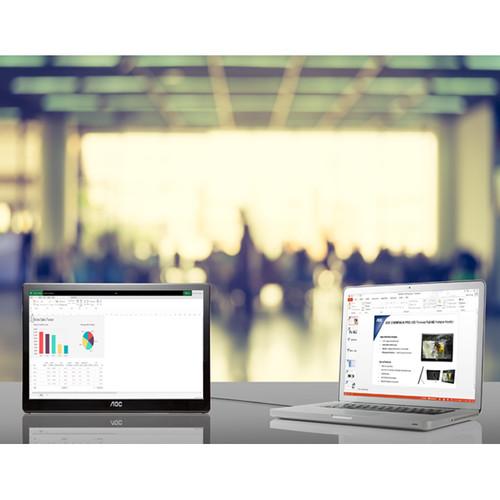

- It's ultra-lightweight and slim for great portability, making it perfect for business presentations, the frequent traveler, photo frame applications, and dual monitor setups on-the-go. The I1659FWUX USB monitor is the solution for the frequent traveler who needs to pack multiple displays, as it easily fits into a backpack or the carry case that comes with the USB monitor.
UPC: 685417713981 In the Box AOC I1659FWUX 15.6" 16:9 USB Powered IPS Monitor USB Cable Carrying Case Limited 3-Year Warranty User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC I1659FWUX 15.6" 16:9 USB Powered IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC I1659FWUX Specs | Viewable Image Size | 15.6" / 39.62 cm (diagonal) | | Panel Type | TFT active matrix LCD
LED backlight
IPS panel | | Aspect Ratio | 16:9 | | Brightness | 220 cd/m² | | Refresh Rate | 60 Hz | | Contrast Ratio | 700:1 | | Response Time | 25 ms | | Resolution | 1920 x 1080 @ 60 Hz | | Color Depth | 292,000 colors | | Pixel Pitch | 0.179 mm | | Viewing Angles (H/V) | 160°/160° (CR>10) | | Display Area (H/V) | 13.5 x 7.6" / 34.4 x 19.4 cm | | Scanning Frequency (H/V) | 67.5 kHz / 60 Hz | | Adjustability | Tilt: 15 to 30°
Pivot: Auto | | Inputs | 1 x USB 3.0 | | Power | Power Consumption
Typical: 8 W
Standby: 0.5 W
Power Source
USB 5 V | | Wall Mount | 75 x 75 mm | | Regulations | cTUVus, CE, FCC, RoHS, EPEAT, ENERGY STAR, Windows 8/10 compatible | | OSD Languages | 16 languages including English, French, and Spanish | | Dimensions | 9.16 x 14.64 x 1.4" / 23.27 x 37.19 x 3.55 cm | | Weight | 2.64 lb / 1.2 kg | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 11.5 x 7.25 x 4.0" |
