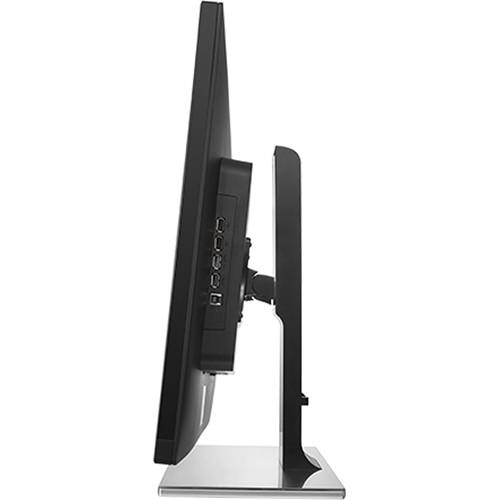

User Manual for AOC Pro-Line U3277PWQU 31.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the AOC Pro-Line U3277PWQU 31.5" 16:9 LCD
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC Pro-Line U3277PWQU 31.5" 16:9 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

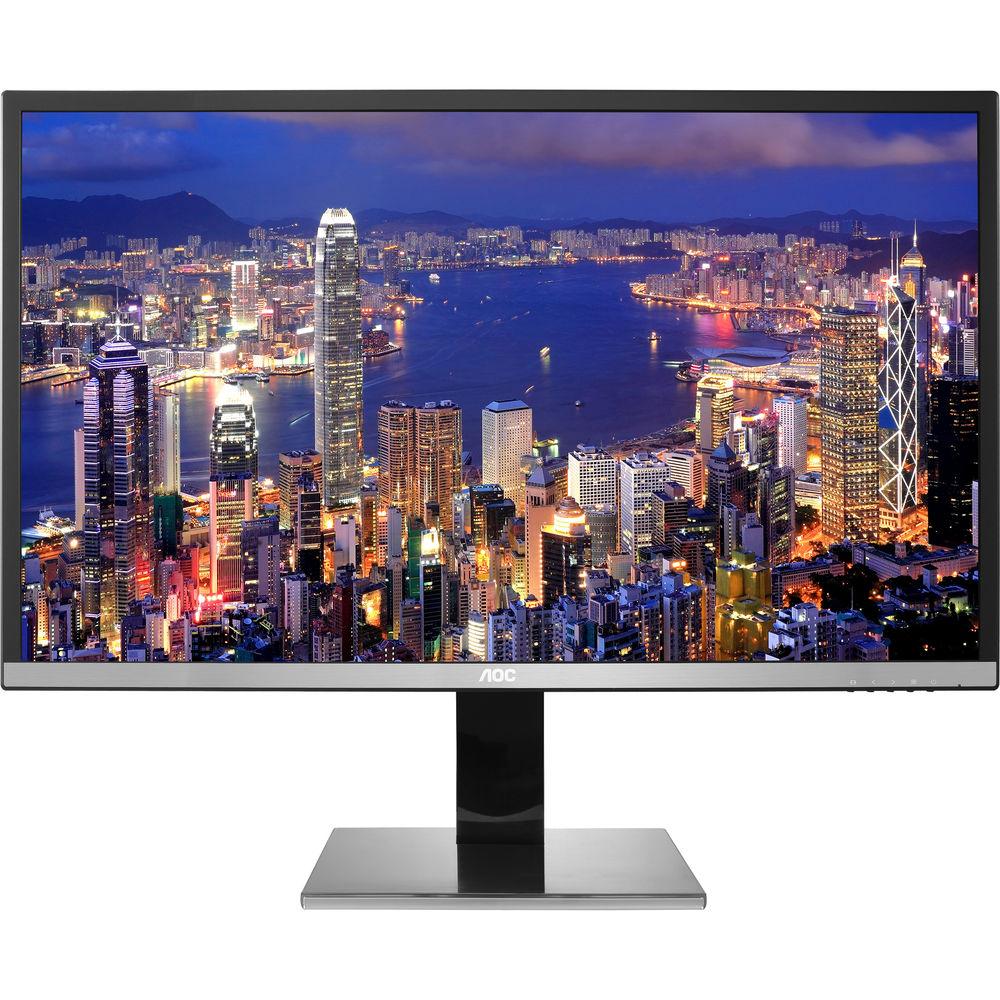

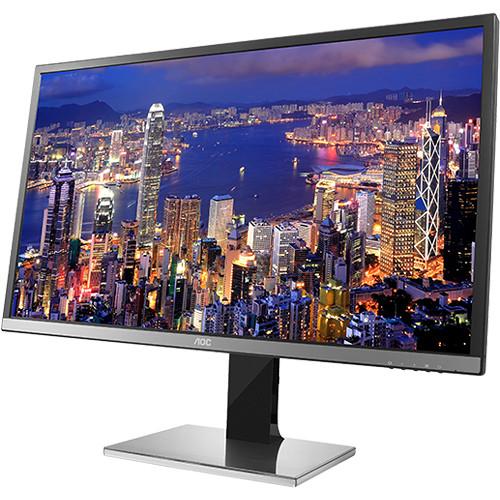

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering 95% of the NTSC color space and 100% of the sRGB color space, the MVA panel found on the Pro-Line U3277PWQU 31.5" 16:9 LCD Monitor from AOC is designed for enhanced color accuracy with support for up to 1.07 billion colors. In addition to enhanced color accuracy, this AOC monitor features a 4K Ultra HD 3840 x 2160 resolution, a 4 ms response time, and a 3,000:1 static contrast ratio for a crisp, clear picture quality.

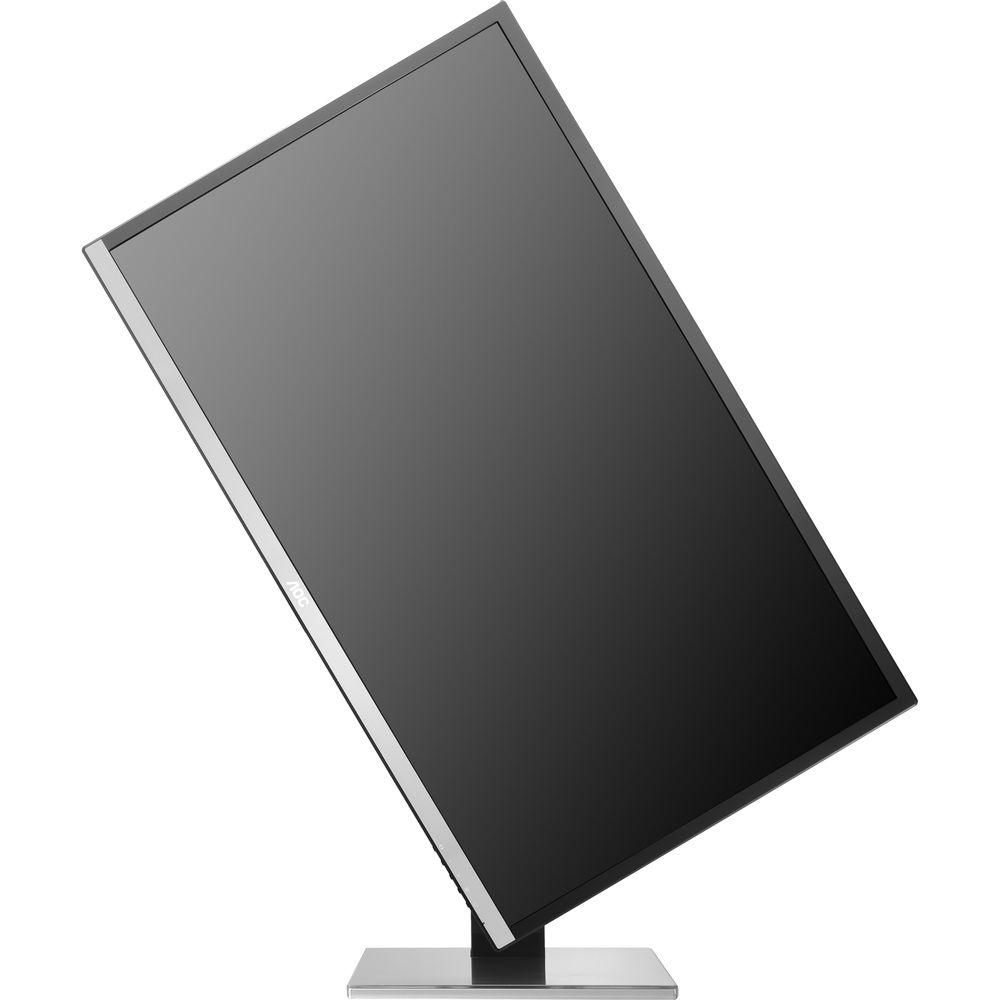

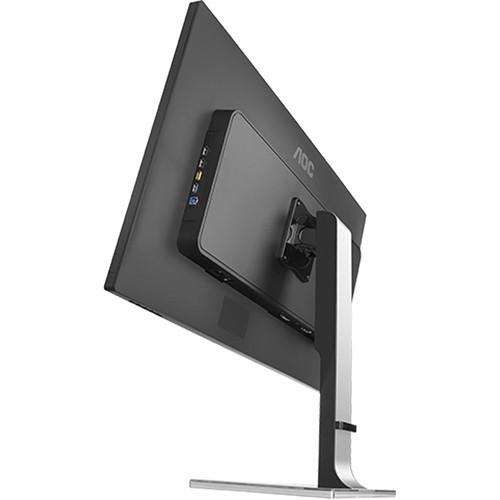

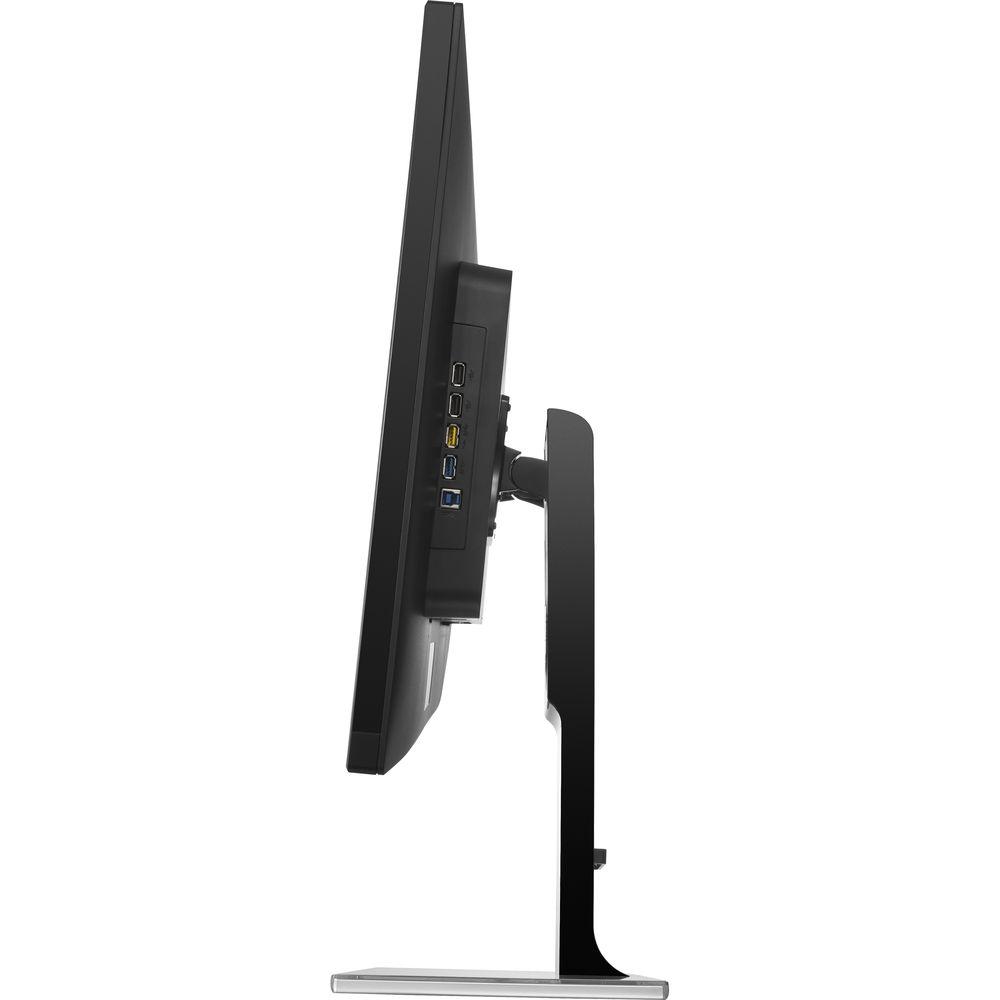

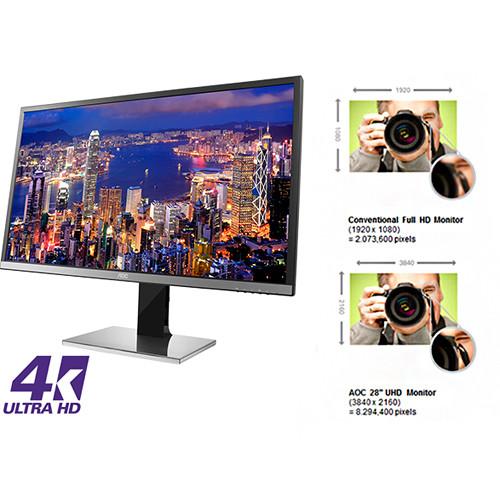

Setup and configuration of this AOC monitor is simple as it comes with a variety of inputs including D-Sub, DVI, HDMI, and DisplayPort connectors. Users can even plug in USB compatible peripherals directly into the display as it comes equipped with 4 USB 3.0 ports and a single USB 2.0 port. Once configured, the display can be tilted and swiveled into place and the height can be adjusted for maximum viewing comfort. Additionally, 178° horizontal and vertical viewing angles make it easy to see the screen from virtually any angle. - Stretch your productivity to the limits. With a 4K Ultra HD resolution you can see all of the details on a large 31.5-inch 16:9 screen that is ideal for multitasking.

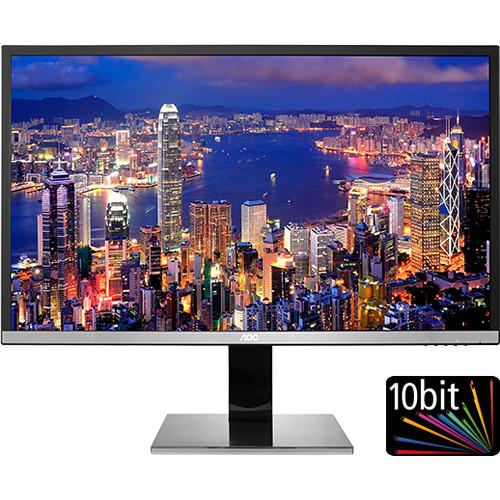

- With advanced MVA panel technology, you'll enjoy accurate color reproduction (95% NTSC and 100% sRGB, 1.07 billion colors), wide viewing angles, and quick refresh rates, no matter what you're doing.
- A range of connectors like HDMI 2.0, DisplayPort, and DVI-D makes it easy to hook up your PC, laptop, and other devices, plus built-in speakers deliver clear sound for music or video.
- Additional Features
-
- Plug-and-Play
- Multiview
- i-Menu
- e-Saver
- Screen+
UPC: 685417714384 In the Box AOC Pro-Line U3277PWQU 31.5" 16:9 LCD Monitor VGA Cable HDMI Cable DisplayPort Cable Audio Cable USB 3.0 Cable Power Schuko C7 Cable Limited 3-Year Warranty User Manual PDF 5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC Pro-Line U3277PWQU 31.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC U3277PQU Specs | | | Size | 31.5" | | Screen Area | 27.9 x 15.7" / 70.8 x 39.9 cm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 160 kHz | | Vertical Frequency | 23 to 80 Hz | | Pixel Clock Frequency | 170 MHz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.1845 x 0.1845 mm | | | | Connectivity | 1 x USB Type-B (USB 3.1 Gen 1) Input
4 x USB Type-A (USB 3.1 Gen 1) Output
1 x DVI
1 x HDMI
1 x DisplayPort Input
1 x VGA | | HDCP Support | Yes | | | | Power Consumption | 0.5 W (Standby)
50 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | TCO Certified, ENERGY STAR, RoHS, REACH, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 7.1" / 18 cm | | Swivel Adjustment | 330° (-165 to 165°) | | Tilt Adjustment | -5 to 24° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 29.1 x 25.9 x 6.7" / 74.2 x 65.9 x 17.1 cm | | Weight | 25.4 lb / 11.5 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 33.5 x 22.7 x 9.5" |
