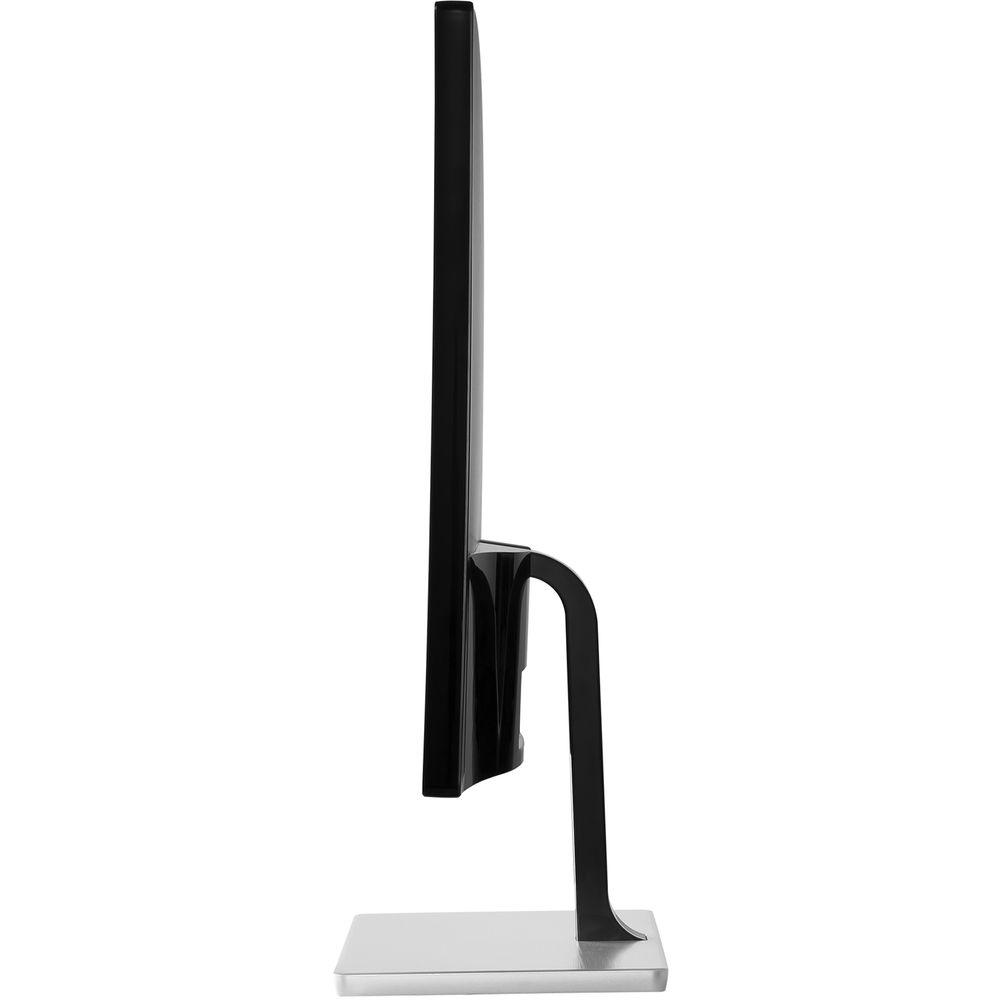

User Manual for AOC Q3279VWFD8 31.5" 16:9 FreeSync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the AOC Q3279VWFD8 31.5" 16:9 FreeSync IPS
- Product category: Computer Monitors AOC
- Brand: AOC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOC Computer Monitors
 |
User manual for the AOC Q3279VWFD8 31.5" 16:9 FreeSync IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOC product will considerably shorten its lifespan!
|

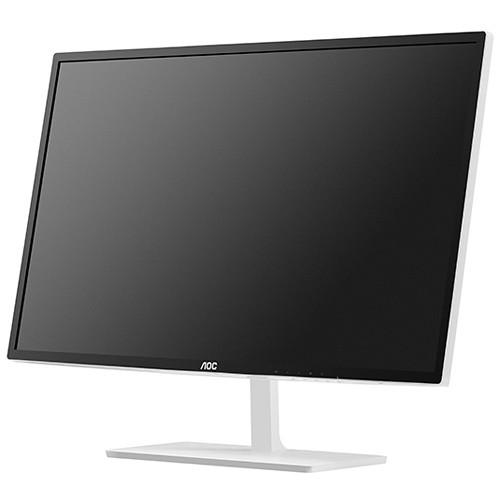

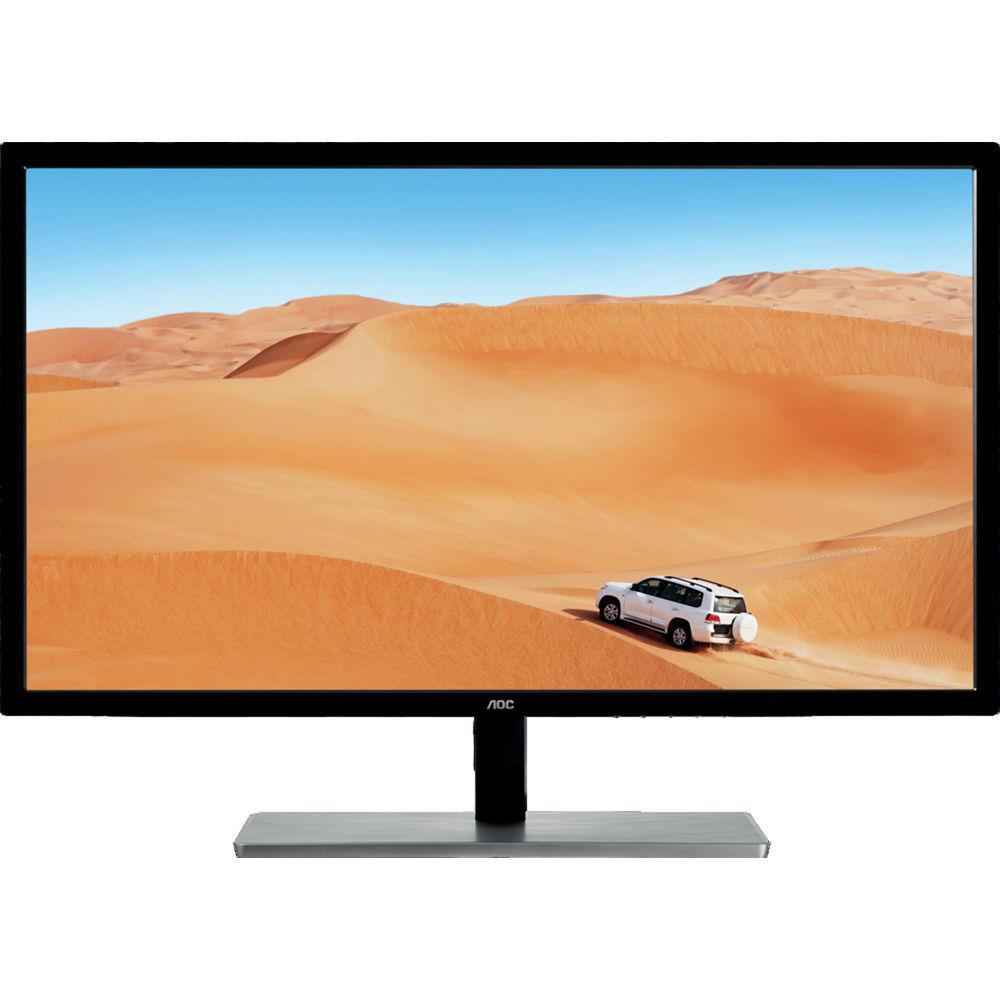

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Q3279VWFD8 31.5" 16:9 FreeSync IPS Gaming Monitor from AOC is designed to provide gamers with a smooth gaming experience thanks to AMD FreeSync support and multiple game-optimized presets. Specs-wise, it features a 2560 x 1440 QHD resolution, a 1200:1 static contrast ratio, a 250 cd/m² brightness rating, and support for 1.07 billion colors to deliver crisp and clear images with brighter bright colors and deeper blacks. With multiple connectivity options including VGA, DVI-D, HDMI, and DisplayPort, it's compatible with a wide variety of systems. - AMD FreeSync Technology
- AMD FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a more fluid and responsive gaming experience.
- Shadow Control
- Shadow Control alters the dark areas to improve visibility without affecting the rest of the screen.
- Game Color & Game Mode
- Game Color lets you adjust the display's color saturation and through 20 gray levels. Game Mode consists of multiple setting and game presets so you can optimize the display to best fit your current application.
- Low Blue Light
- Low Blue Light reduces harmful blue light emissions for more comfortable viewing during extended sessions.
UPC: 685417719983 In the Box AOC Q3279VWFD8 31.5" 16:9 FreeSync IPS Gaming Monitor Power Cable Limited 3-Year Warranty User Manual PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the AOC Q3279VWFD8 31.5" 16:9 FreeSync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOC Q3279VWFD8 Specs | | | Size | 31.5" | | Screen Area | 27.48 x 15.46" / 698.112 x 392.688 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1200:1 | | Dynamic Contrast Ratio | 80,000,000:1 | | Refresh Rate | 75 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 99 kHz (VGA)
30 to 99 kHz (DVI)
30 to 114 kHz (HDMI)
30 to 114 kHz (DisplayPort) | | Vertical Frequency | 50 to 76 Hz (VGA)
50 to 76 Hz (DVI)
48 to 76 Hz (HDMI)
48 to 76 Hz (DisplayPort) | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 88% NTSC | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°

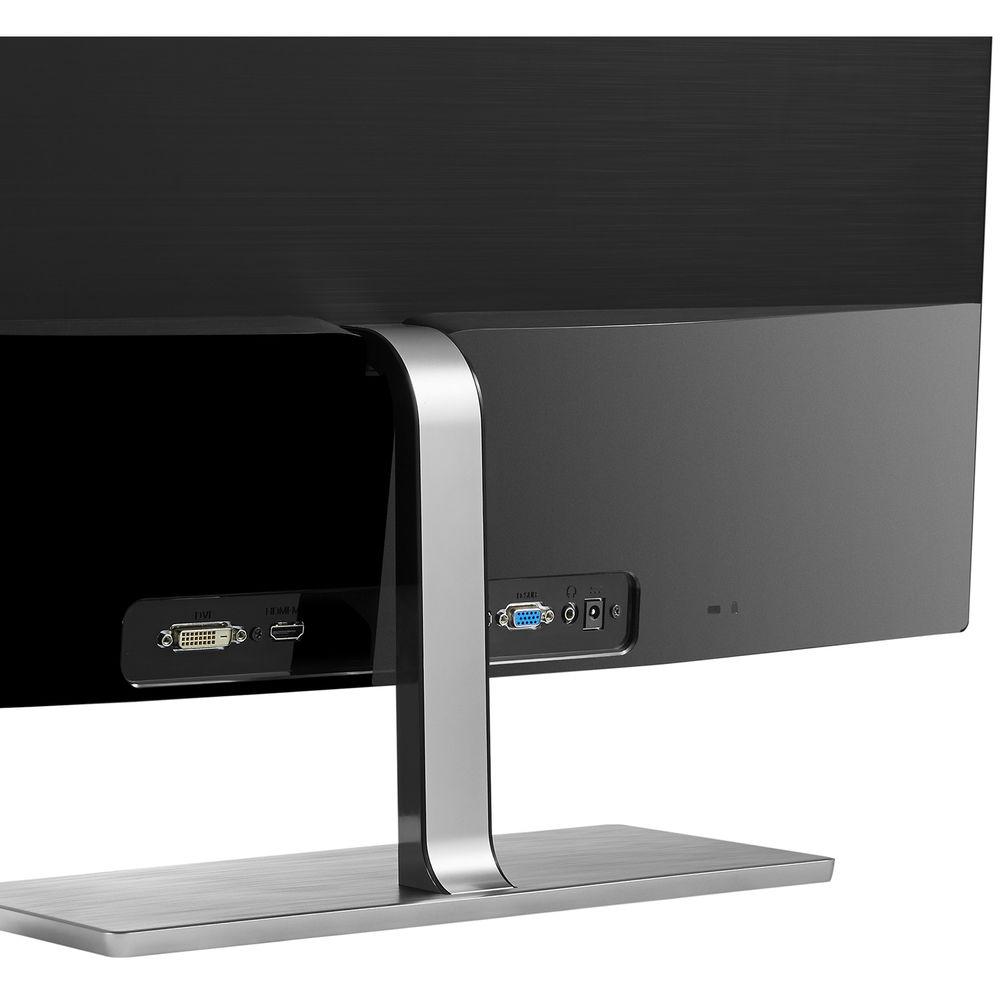

Vertical: 178° | | Dot Pitch | 0.273 x 0.273 mm | | | | Connectivity | 1 x VGA
1 x DVI-D
1 x HDMI (MHL)
1 x DisplayPort
1 x 3.5 mm Output | | Built-In Speakers | None | | | | Power Consumption | 50 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | BSMI, CE, FCC, Kcc, RCM, RoHS, TUV, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -4 to 24° | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 28.7 x 21.0 x 6.0" / 729.6 x 533.0 x 153.2 mm (With Stand) | | Weight | 15.43 lb / 7 kg (With Stand) | | | | Package Weight | 20.9 lb | | Box Dimensions (LxWxH) | 33.0 x 25.0 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
