User Manual for AOI DLP-03 Underwater Glass Semi-Dome Lens Port for Olympus PEN Camera Housings Click to enlarge the picture
Contents of the user manual for the AOI DLP-03 Underwater Glass Semi-Dome Lens
- Product category: Lens Ports AOI
- Brand: AOI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOI Lens Ports
 |
User manual for the AOI DLP-03 Underwater Glass Semi-Dome Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOI product will considerably shorten its lifespan!
|

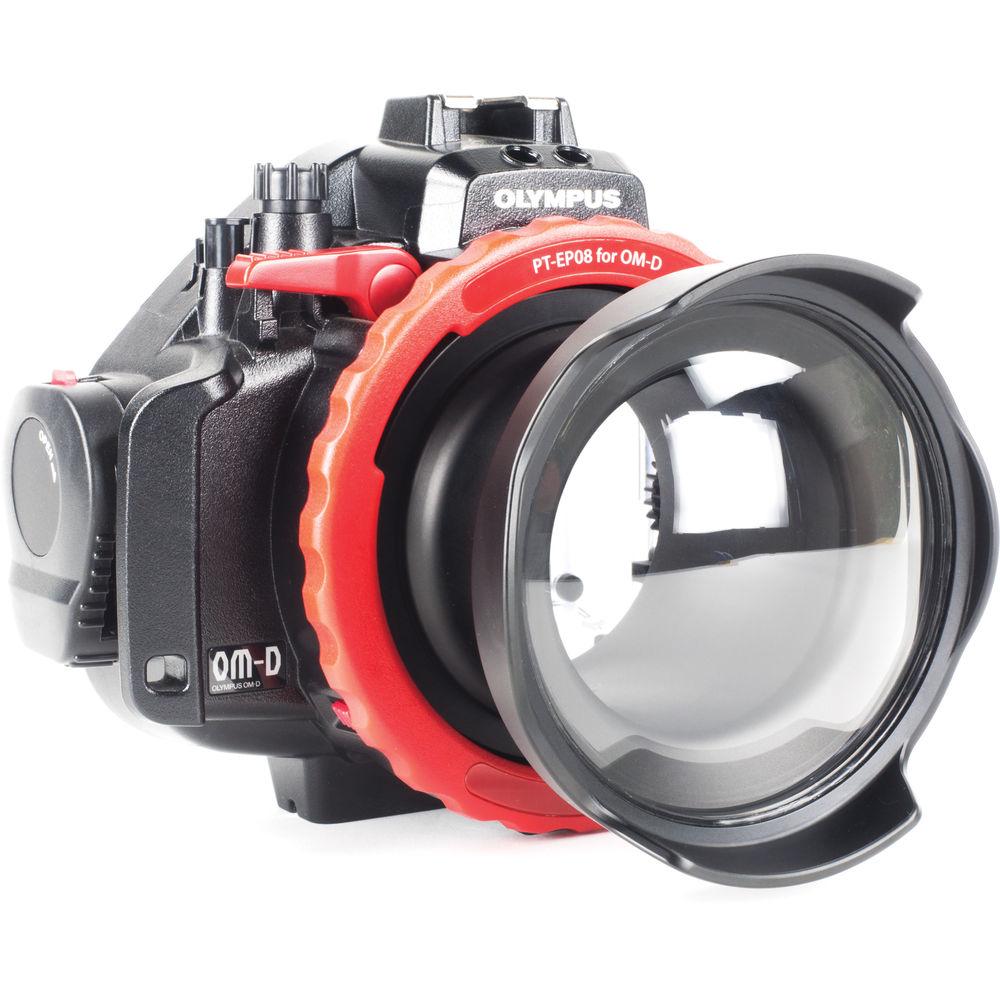

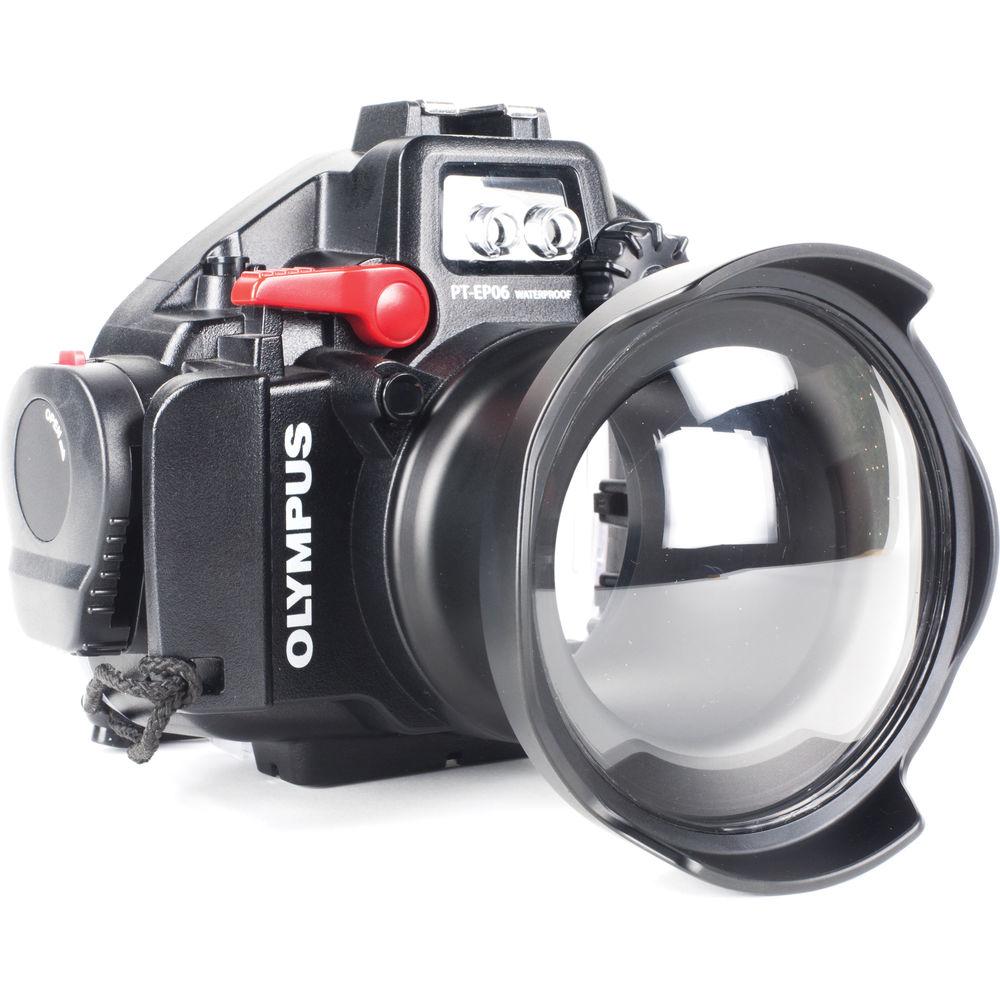

Product description Capture wide shots of fish, coral, and other sea life at depths up to 200' with this AOI DLP-03 Underwater Glass Semi-Dome Lens Port for various Olympus M.Zuiko lenses in Olympus PEN series camera housings. Using the optional AD-LP-01 adapter from AOI, you can mount the port onto Olympus OM-D series housings. The dome-shaped front element corrects for the size distortion that occurs underwater, which causes everything to look larger and closer. Designed especially for wide-angle lenses but also suitable for several macro models, it enables you to reduce the amount of water between you and your subjects for clearer, more accurate images, while fitting more in the frame.
The front element is crafted from optical glass with an anti-reflection coating on the inner surface. The tulip-shaped dome shade blocks stray light to prevent lens flare, while also offering some added protection against impact and allowing the port to maintain a light weight. Built for durability, the port body is made from aluminum that has been hard anodized for resistance to corrosion. - Compatible Lenses
- Works with the following Olympus M.Zuiko lenses:
- ED 12-50mm f/3.5-6.3 EZ
- 14-42mm f/3.5-5.6 II R
- ED 9-18mm f//4.0-5.6
- 12mm f/2.0
- 17mm f/1.8 & f/2.8
- 25mm f/1.8
- 45mm f/1.8
- ED 60mm f/2.8 Macro
- 75mm f/1.8
- Compatible Housings
- Works with the following Olympus underwater camera housings:
- PT-EP05
- PT-EP05L
- PT-EP06
- PT-EP06L
- PT-EP08, using optional adapter AD-LP-01
- PT-EP10
- PT-EP11, using optional adapter AD-LP-01
- PT-EP12
- PT-EP13, using optional adapter AD-LP-01
In the Box AOI DLP-03 Underwater Glass Semi-Dome Lens Port for Olympus PEN Camera Housings Neoprene Front Dome Cover Silicone Rear Cap Table of Contents
|
Upload User Manual
Have you got an user manual for the AOI DLP-03 Underwater Glass Semi-Dome Lens Port for Olympus PEN Camera Housings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOI AOI-DLP-03 Specs | Depth Rating | 200' / 60 m | | Material of Construction | Front Element: Glass
Body/Bezel: Hard Anodized Aluminum | | Coating | Yes, Anti-Reflection Coating on Inner Surface | | Dimensions | Diameter x Length: 4.75 x 3.9" / 121 x 100 mm | | Weight | 17.1 oz / 485 g |
