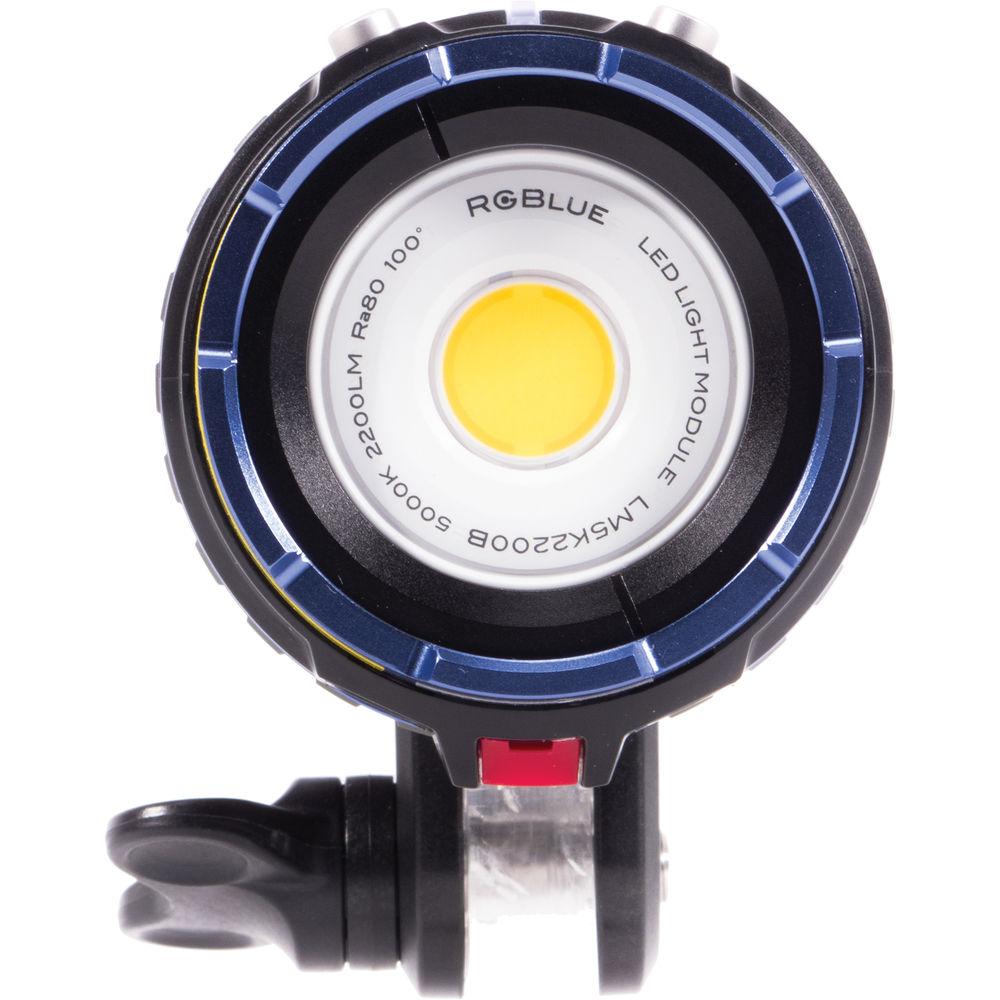

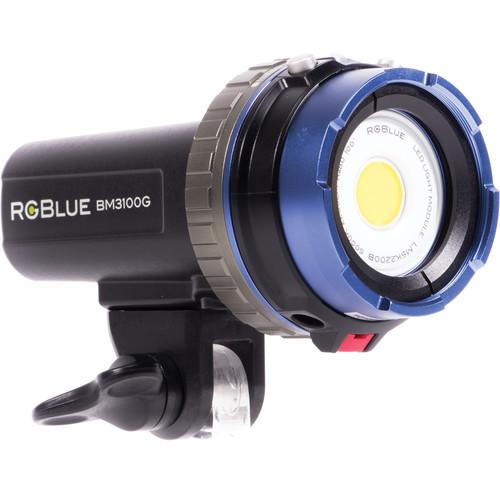

Product description Illuminate the beauty of the world beneath the surface at depths up to 328' with the RGBlue System 01 Underwater LED Video Light from AOI. It is designed exclusively for use underwater, and features a wide 100° angle of coverage to help you shed a broad swath of light on those parrot fish, moray eels, and coral seascapes. This coverage angle is a good fit for wide-angle DSLR or mirrorless lenses and wide-angle video cameras like the GoPro. The beam angle can be reduced to 60° via the included condensing lens.
The light outputs 300-2200 lumens in 6 selectable levels for a run time of 0.5-8.3 hr. With the optional remote, you can control the light's brightness without touching the switching mechanism, which is beneficial when it's mounted onto a lighting arm on your camera tray. A color temperature of approximately 5000K gives you a light beam that is a little warmer than daylight.
Built for durability, the System 01 is constructed from anodized aluminum and polycarbonate, both of which are corrosion-resistant. The emitter window is made from chemically-strengthened optical glass, and is surrounded by a 49mm threaded mounting ring for attaching optional filters. Power is supplied by the rechargeable lithium-ion battery. - Light Performance
-
- Six outputs from 300-2200 lumens
- Using 4-step brightness control, you can select 500, 900, 1300, and 1800 lumens
Using non-step control, you can select 300 to 2200 lumens - Run time of 0.5-8.3 hr with rechargeable lithium-ion battery, depending on output level selected
- Chip On Board LED emits light from a single plane, eliminating color irregularity, multi-shadow effect, and irregular light distribution from center to periphery that can occur with multi-LED sources
- Color temperature of approximately 5000K gives you a light beam that is a little warmer than daylight
- CRI of 80 helps bring out full, natural colors of your subjects and environments
- Wide 100° angle of coverage to help you shed a broad swath of light on those parrot fish, moray eels, coral, and more
- Coverage is a good fit for wide-angle DSLR or mirrorless lenses and wide-angle video cameras like GoPro
- Included condensing lens CL60-49M reduces beam angle to 60° for brighter, more focused and concentrated illumination
- Flat light is distributed evenly throughout beam
- Safety function reduces light to minimum intensity when remaining battery power drops to 5%
- Protection against overheating, overcharging/discharging, short circuits, and excessive pressure

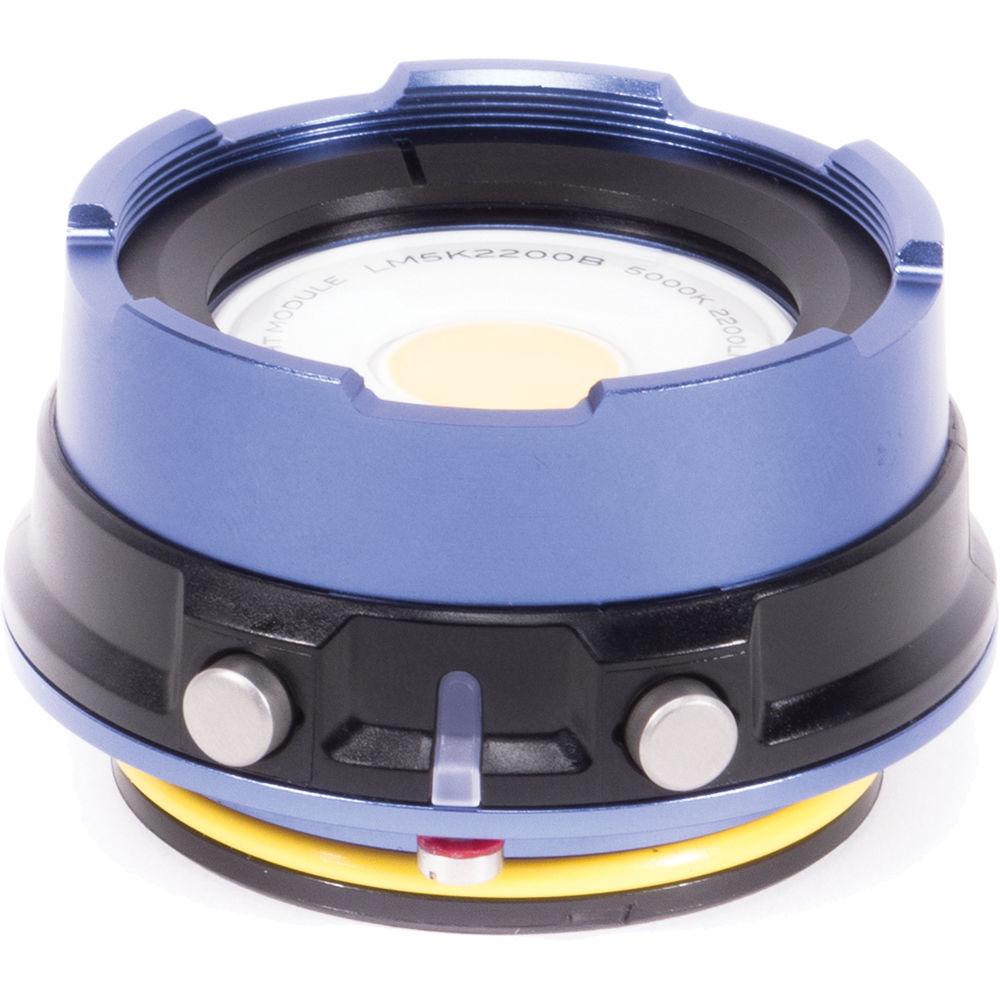

- Switching
-
- 2 push-buttons on light head for increasing or decreasing brightness and powering light on/off, as well as for selecting standby mode
- With optional remote, you can control the light's brightness without touching the switching mechanism, which is beneficial when it's mounted onto a lighting arm on your camera tray
- Construction Details
-
- Depth rating: 328'
- Meets IPX8 and JIS class 8 standards for long-term continuous submersion
- Sealed with an O-ring
- Independent waterproofing for each module

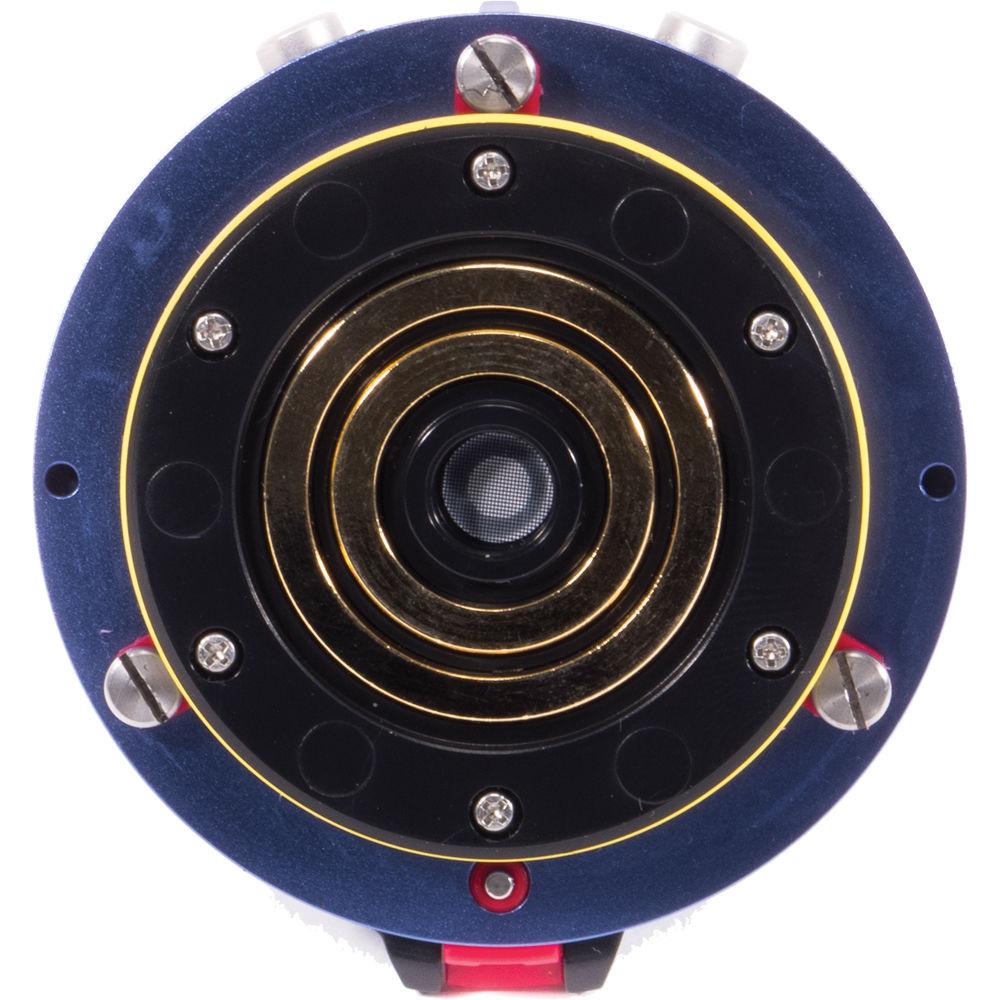

- Protection circuitry keeps electrical contacts from corroding
- For underwater use only
- If illuminated continuously over land, heat increases too much, causing safety circuitry to dim or extinguish light
- Made from anodized aluminum and polycarbonate, both of which are corrosion-resistant
- Emitter window is made from chemically-strengthened optical glass, and is surrounded by a 49mm threaded mounting ring for attaching optional filters

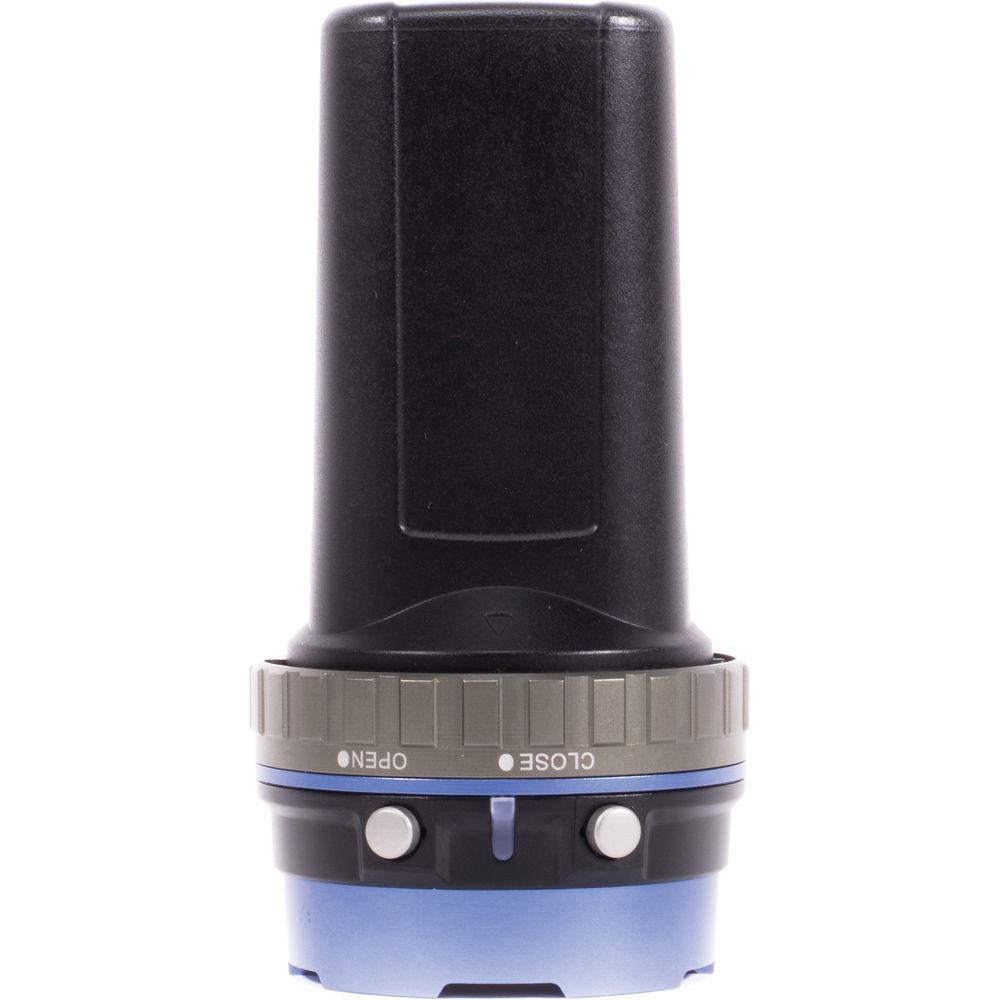

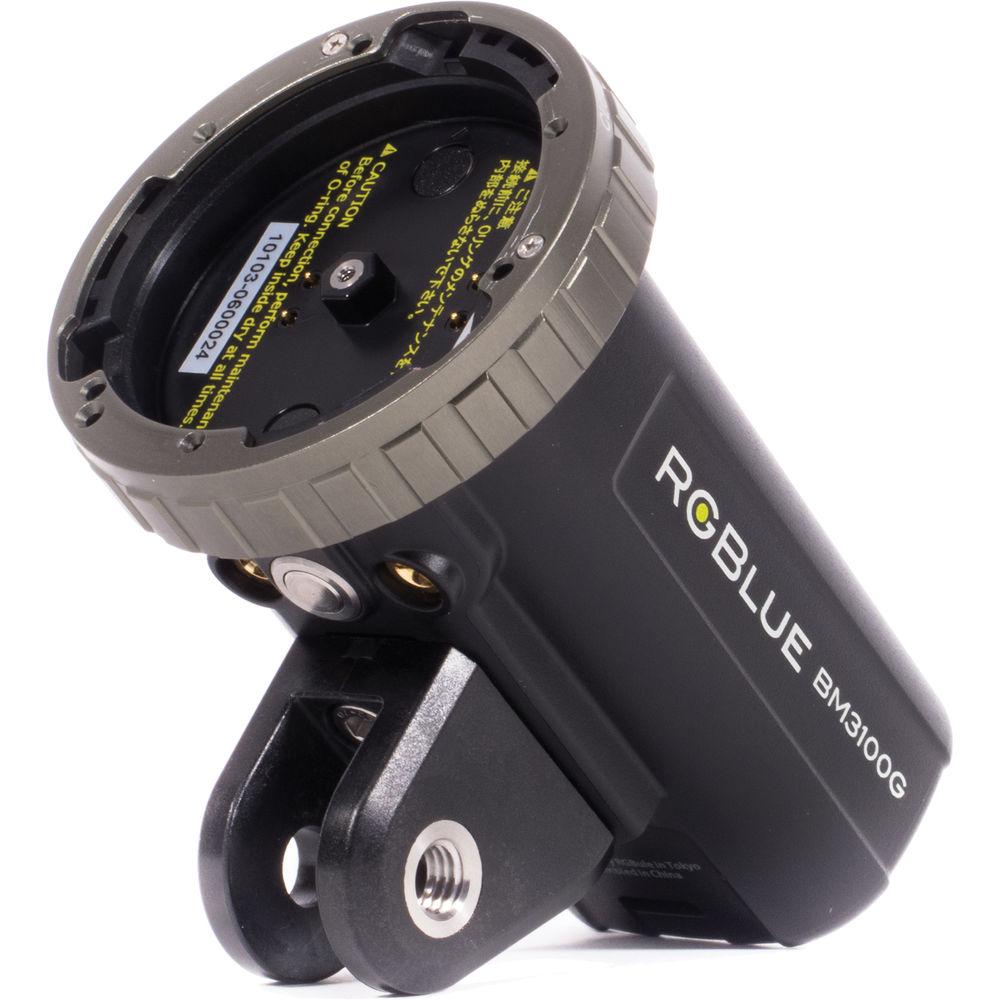

- Consists of light head module and battery module, which can be connected and disconnected with ease, thanks to bayonet mechanism
- Modular design allows you to connect a System 01 module with an optional System 02 module for versatility
- Modules cannot be connected and disconnected underwater
- Additional Included Accessories
-
- YS adapter set YSAN-01 for attachment to YS lighting arm

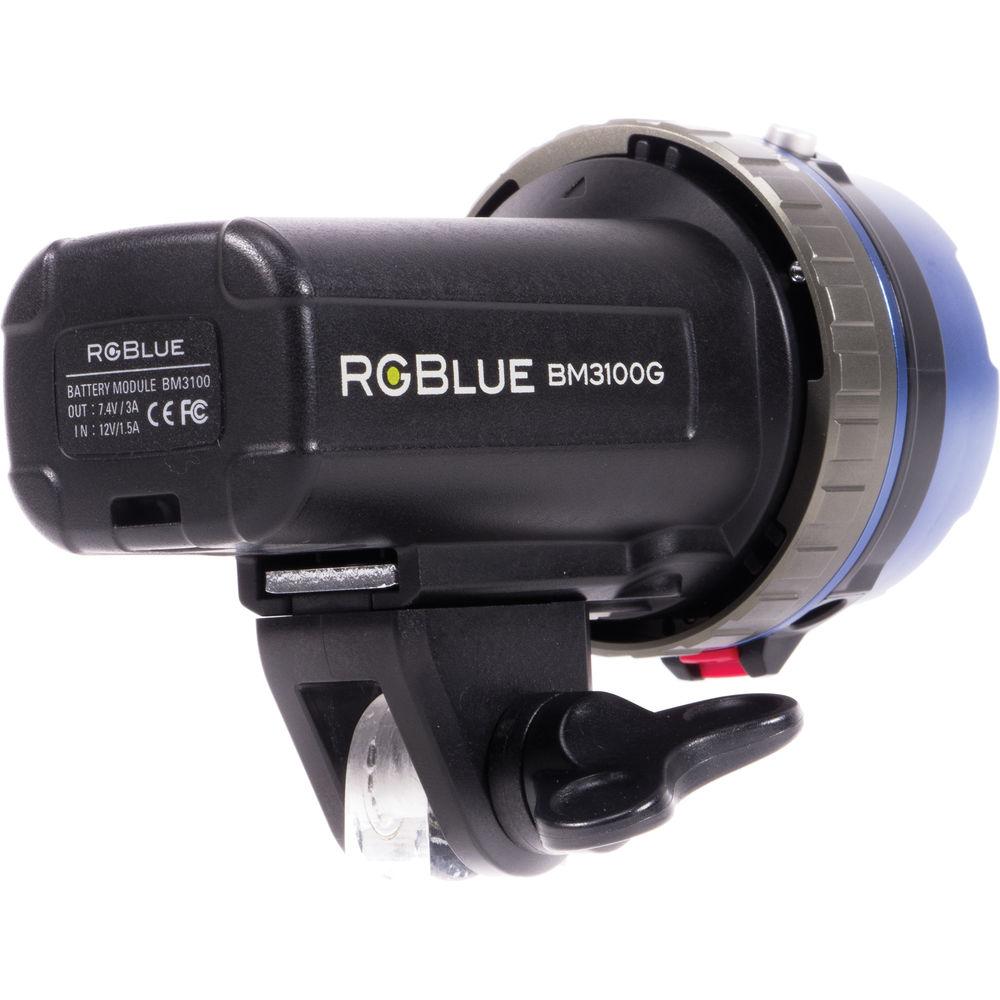

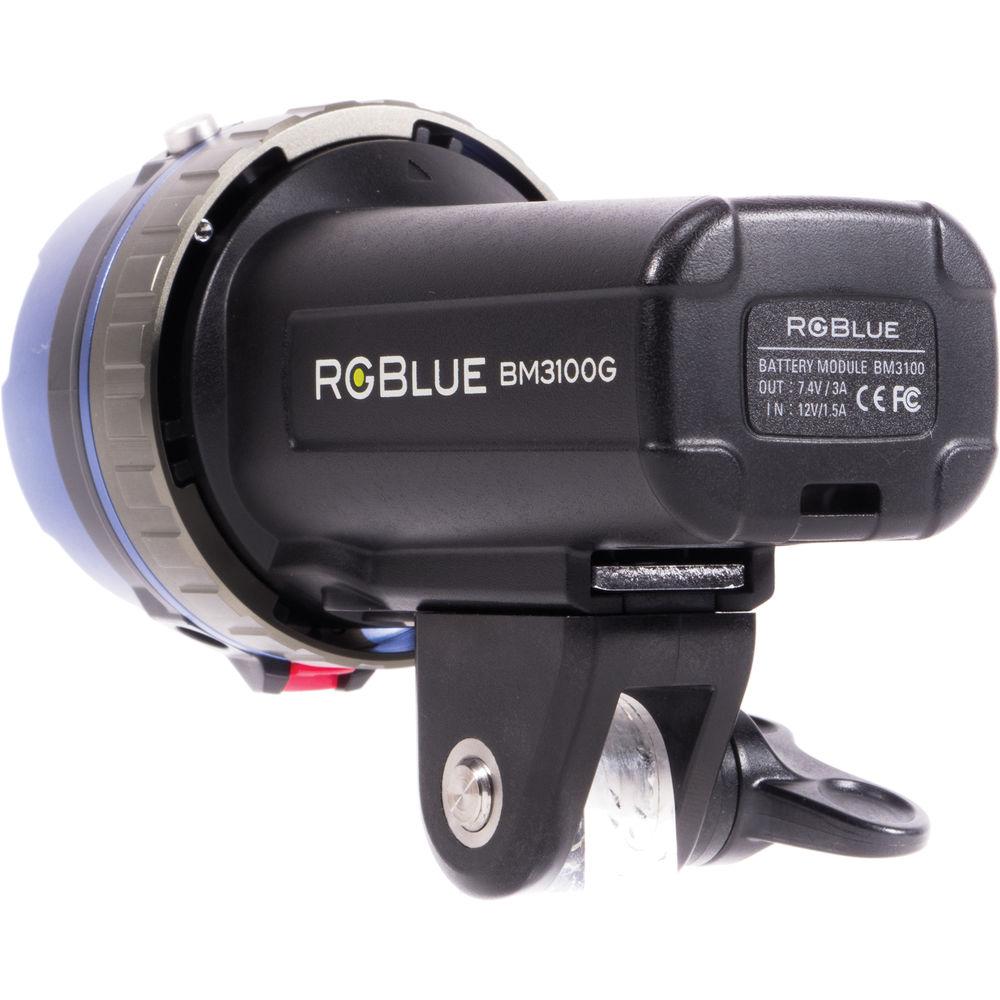

- Rechargeable lithium-ion battery (7.4 V, 3100 mAh, 23 Wh)
- 100-240 VAC adapter ACBP-01 with three dedicated plugs (two 2-prong and one grounded) for charging
- RGB-MK01 Maintenance Kit with spare O-ring, O-ring remover, and silicone grease
- Case EC01 for holding/transporting light, condensing lens, and YS adapter
In the Box AOI RGBlue System 01 Underwater LED Video Light RGBlue RGB-MK01 Maintenance Kit for System 01 and System 02 Lights RGBlue System 01 Carrying Case RGBlue YSAN-01 YS Adapter Set for System 01 and System 02 Lights RGBlue ACBP-01 AC Adapter & Recharge Plug Set for System 01 or 02 Light RGBlue CL60-49M Condensing Lens for System 01 or 02 Underwater Video Light Table of Contents
|
Upload User Manual
Have you got an user manual for the AOI RGBlue System 01 Underwater LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOI AOI-SYSTEM01 Specs | Depth Rating | 328' / 100 m
Meets IPX8 and JIS class 8 standards for long-term continuous submersion | | Light Source | LED | | Light Intensity | Using 4-Step Brightness Control: 500, 900, 1300, and 1800 lumens
Using Non-Step Brightness Control: 300 to 2200 lumens | | Beam Angle | 100°
60° with included condensing lens CL60-49M | | Color Temperature | Approx. 5000 K | | Color Rendering Index | 80 | | Run Time | 4-Step Brightness Control:
500 Lumens: 300 min
900 Lumens: 120 min
1300 Lumens: 80 min
1800 Lumens: 50 min

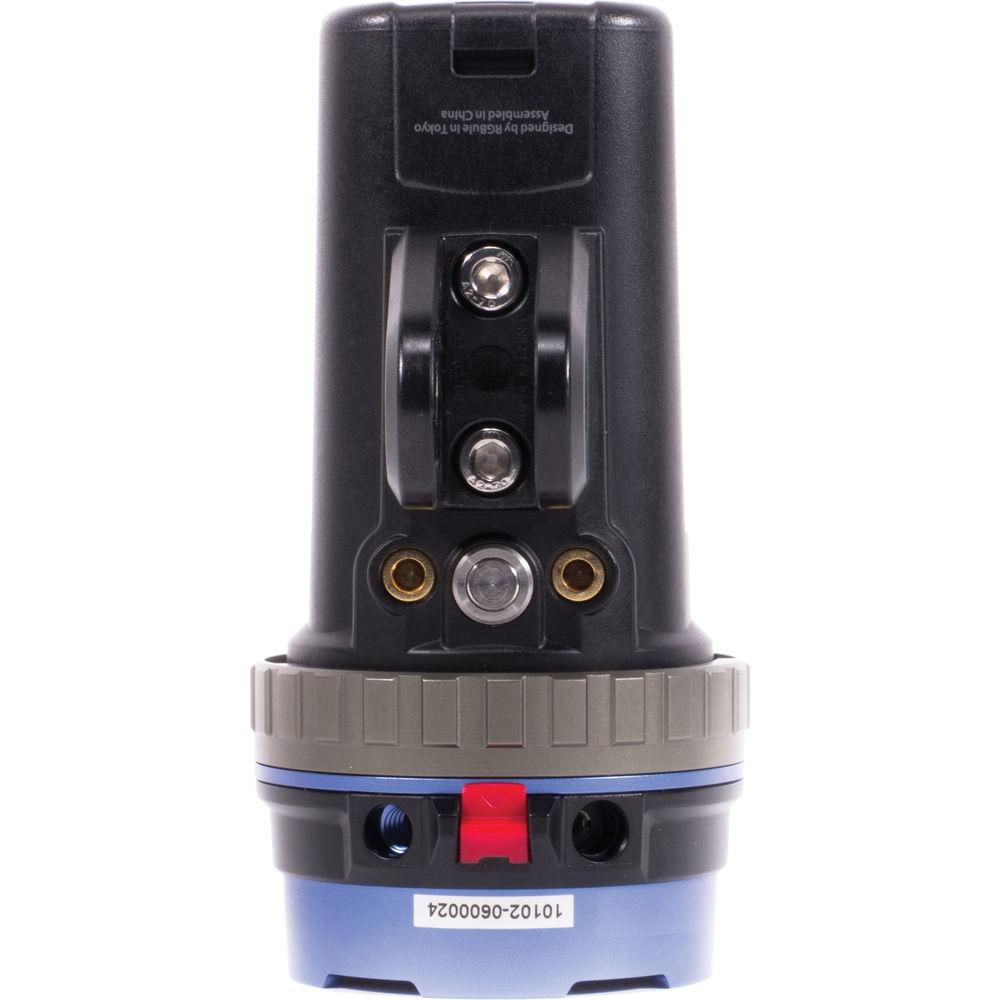

Non-Step Brightness Control: 35-500 min | | Switching System | 2 push-buttons on light head
Brightness control accessible via remote (not included) | | Material of Construction | Hard anodized aluminum, polycarbonate
Optical glass emitter window | | Mounting | Bottom plate/head compatible with mounting screw
YS adapter set included for attachment to YS lighting arm | | Power | Rechargeable lithium-ion battery (7.4 V, 3100 mAh, 23 Wh)
100-240 VAC adapter with three dedicated plugs (ACBP-01) for charging | | Charge Time | Not specified by manufacturer | | Number of Charges | Approx. 500 | | LED Indicators | Remaining Battery Power: Blue → Purple → Yellow → Red
Error: Flashing red | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Storage Temperature | 23 to 113°F / -5 to 45°C | | Storage Humidity | 20 to 60% | | Certifications | CE, FCC, PSE | | Filter Thread | 49 mm (M49) | | Dimensions | Diameter x Length: 2.5 x 4.9" / 64.2 x 123.5 mm | | Weight | Out of Water: 0.9 lb / 0.4 kg
Underwater: 6.0 oz / 170 g |
