User Manual for AOPEN 18.5" eTILE 19M Multi-Touch All-in-One Commercial PC Click to enlarge the picture
Contents of the user manual for the AOPEN 18.5" eTILE 19M Multi-Touch All-in-One
- Product category: Smart Display Clients AOPEN
- Brand: AOPEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOPEN Smart Display Clients
 |
User manual for the AOPEN 18.5" eTILE 19M Multi-Touch All-in-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOPEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOPEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOPEN product will considerably shorten its lifespan!
|

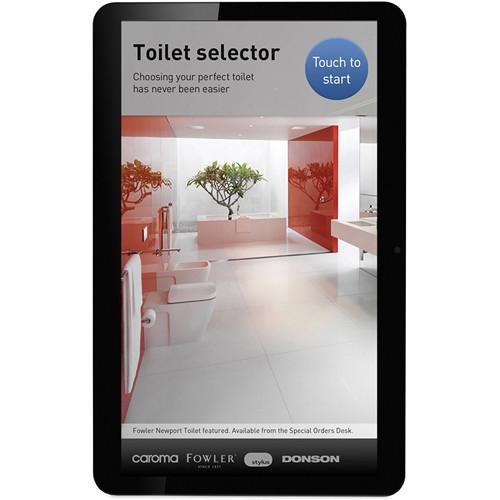

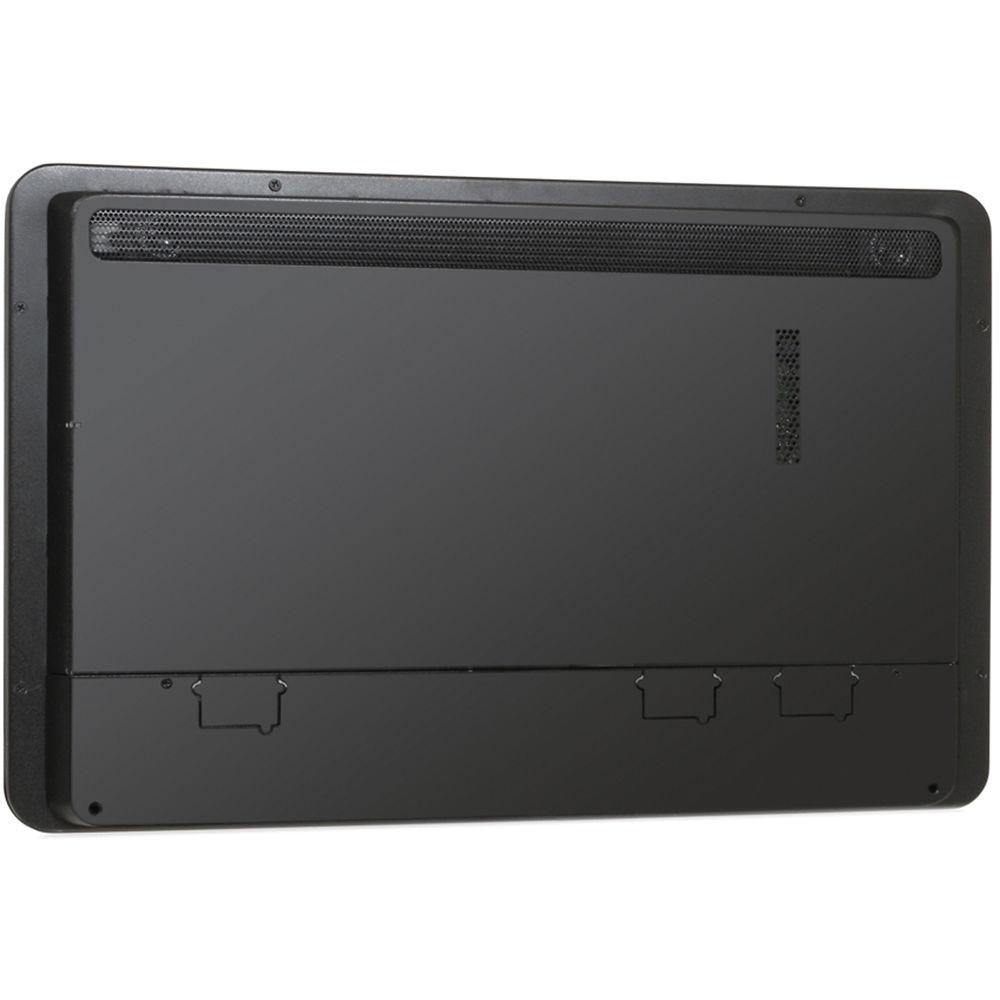

Product description The piano black 18.5" eTILE 19M Multi-Touch All-in-One Commercial PC from AOPEN is equipped with an Intel Pentium B980 processor and 4GB of RAM for power and multi-tasking. A 320GB hard drive is onboard for long-term data storage. This PC is suitable for use in commercial and retail environments and features an 18.5" PCT multi-touch display with a HD 1366 x 768 screen resolution. It is also IP65 rated, which allows it to be resistant to dust and water. High-speed Internet connectivity is enabled by the system's built-in Wi-Fi and Ethernet connectivity.

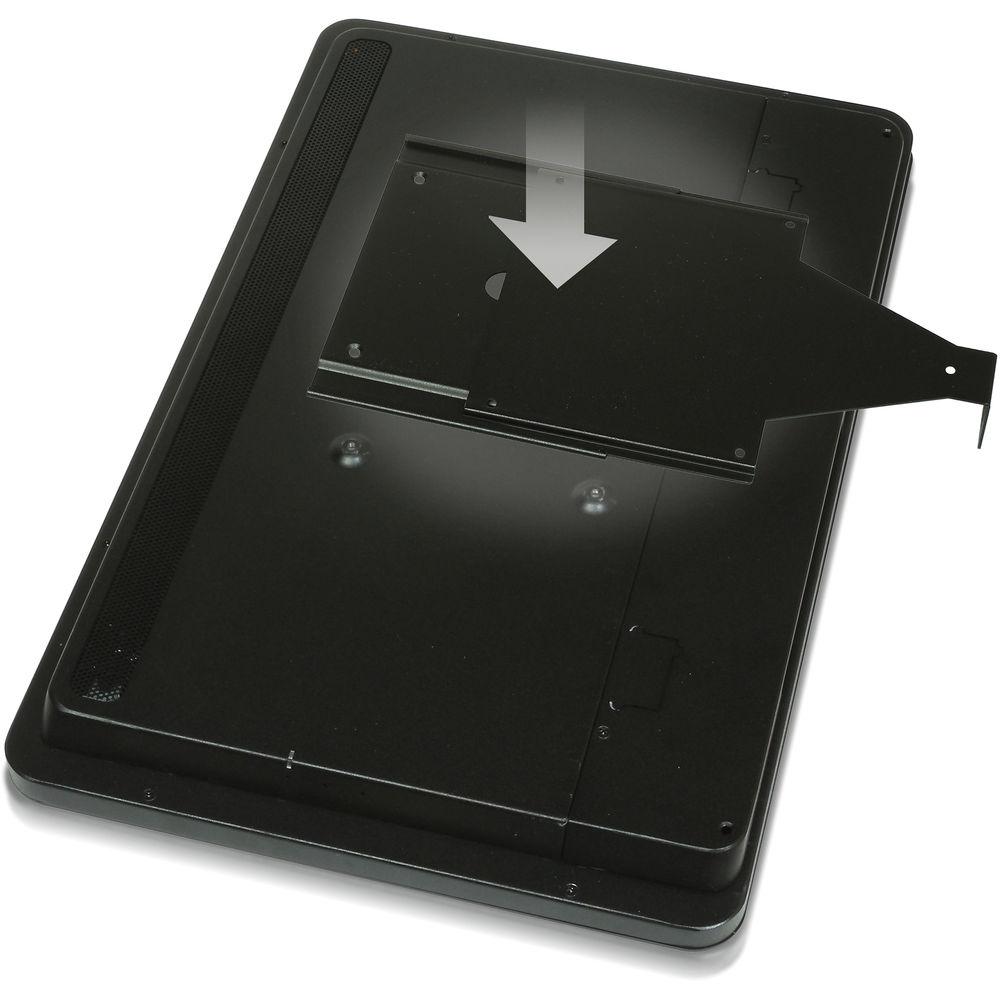

This system's built-in 1.3-megapixel webcam allows you to take advantage of video chatting applications. With 2 x USB 2.0 and 2 x USB 3.0 ports, the eTILE 19M is ready for high-speed peripheral connections, and an HDMI output is also available for connecting the system to a wide variety of external displays. While the AOPEN eTILE 19M doesn't have an operating system pre-installed, it supports a variety of Windows operating systems, such as Windows 7 and 8. - Standard VESA wall mount kit included for streamlined Installation
- Onscreen keyboard and concealed power on/off designed for public access area usage

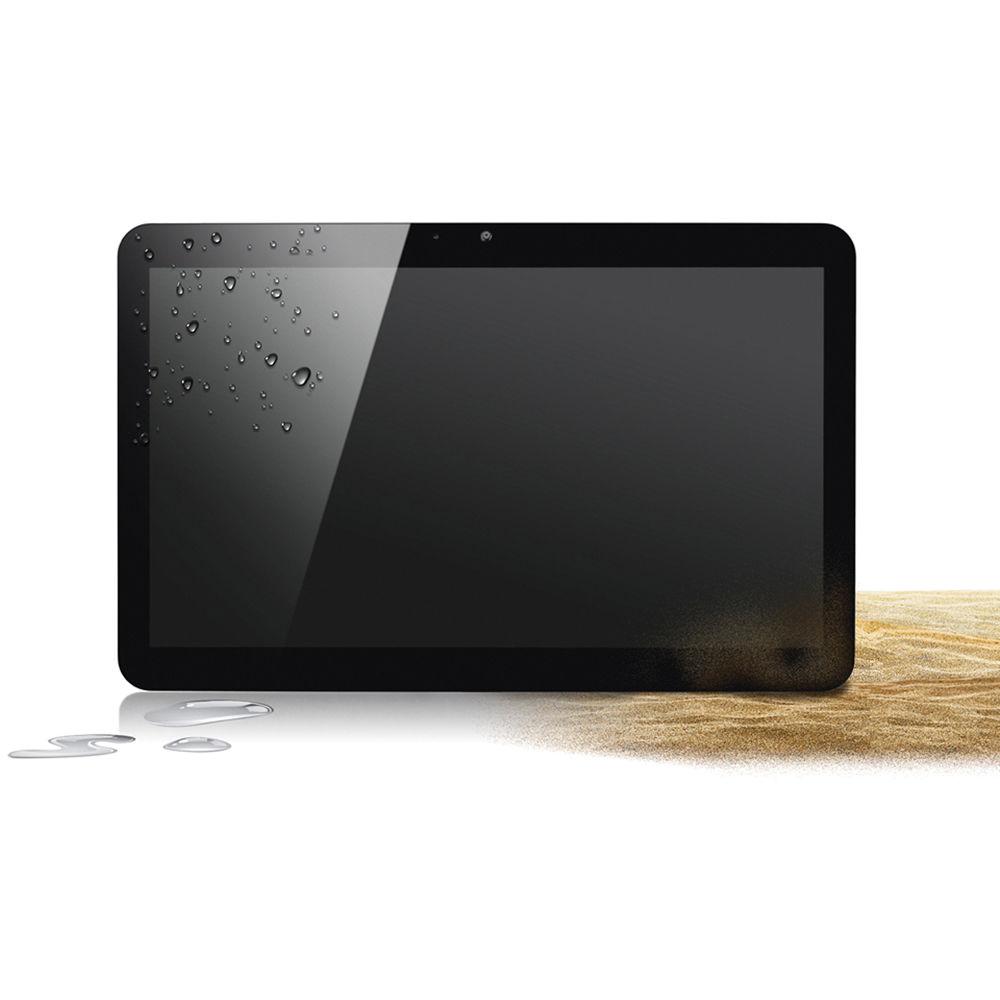

- IP65 rated (dust proof and water resistant) and 7H hardness rated panel

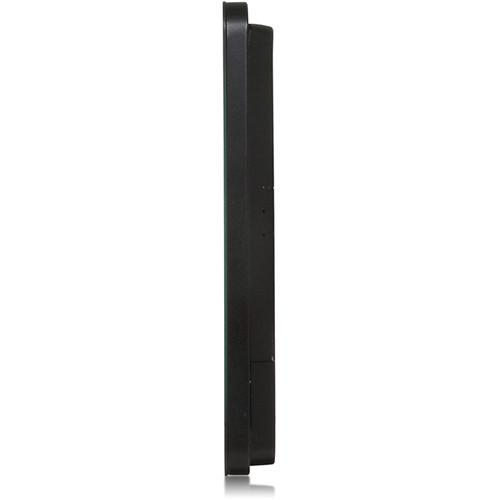

- Slim form factor at just 1.2" deep
- Built-in dual 2W speakers for stereo playback
In the Box AOPEN 18.5" eTILE 19M Multi-Touch All-in-One Commercial PC (Piano Black, Intel Pentium B980 Version) 120W AC Adapter Power Cord VESA Mounting Kit CD-ROM with Drivers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOPEN 18.5" eTILE 19M Multi-Touch All-in-One Commercial PC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOPEN 91.WT300.F730 Specs | | | Processor | Intel Pentium B980 | | RAM | 4 GB (2 GB x 2) dual-channel | | Storage | 320 GB | | Operating System | None | | | | Size | 18.5" (47.0 cm) | | Resolution | 1366 x 768 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m2 (maximum) | | Touchscreen Type | PCT multi-touch surface | | Hardness | 7H | | Webcam | 1.3-megapixel | | | | Wi-Fi | Yes (embedded antenna) | | LAN | 1 x Ethernet | | Inputs | 2 x USB 2.0
2 x USB 3.0
1 x Mic | | Outputs | 1 x HDMI
1 x HD audio speaker | | Other Ports | 2 x COM
1 x Power | | Slots | Mini Card Slot:
1 x Full size
1 x Half size | | | | Technology | Realtek ALC886 HD audio | | Speakers | 2 x 2 W | | | | Security | Hidden keyboard
Cable and port cover
Concealed on/off power | | Power | 120 W AC adapter | | MTBF (Approx.) | 40,000 hours | | Environment | Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Vibration: 0.6 Gms
Operating Shock: 8 g | | Certification | CB, CE, FCC, UL | | Dimensions (WxHxD) | 17.6 x 11.2 x 1.2" (44.7 x 28.4 x 3.0 cm) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 23.622 x 18.504 x 6.693" |
