AOPEN 21.5" eTILE 22M Multi-Touch All-in-One

Search your instruction manual in PDF to download

User Manual for AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC

Click to enlarge the picture
AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC Contents of the user manual for the AOPEN 21.5" eTILE 22M Multi-Touch All-in-One
  • Product category: Smart Display Clients AOPEN
  • Brand: AOPEN
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AOPEN Smart Display Clients

AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC
User manual for the AOPEN 21.5" eTILE 22M Multi-Touch All-in-One contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AOPEN product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AOPEN user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AOPEN product will considerably shorten its lifespan!



Product description

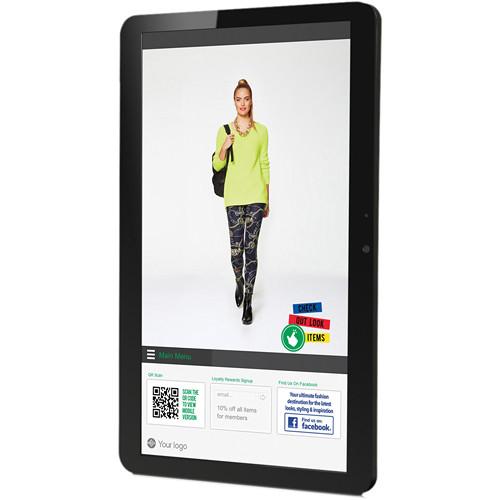

The piano black 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC from AOPEN is equipped with an Intel Core i3 processor and 4GB of RAM for power and multi-tasking. A 320GB hard drive is onboard for long-term data storage. This PC is suitable for use in commercial and retail environments and features a 21.5" PCT multi-touch display with a Full HD 1920 x 1080 screen resolution. It is also IP65 rated, which allows it to be resistant to dust and water. High-speed Internet connectivity is enabled by the system's built-in Wi-Fi and Ethernet connectivity.

This system's built-in 1.3-megapixel webcam allows you to take advantage of video chatting applications. With 6 x USB 2.0 and 2 x USB 3.0 ports, the eTILE 22M is ready for high-speed peripheral connections, and an HDMI output is also available for connecting the system to a wide variety of external displays. While the AOPEN eTILE 22M doesn't have an operating system pre-installed, it supports a variety of Windows operating systems, such as Windows 7 and 8.

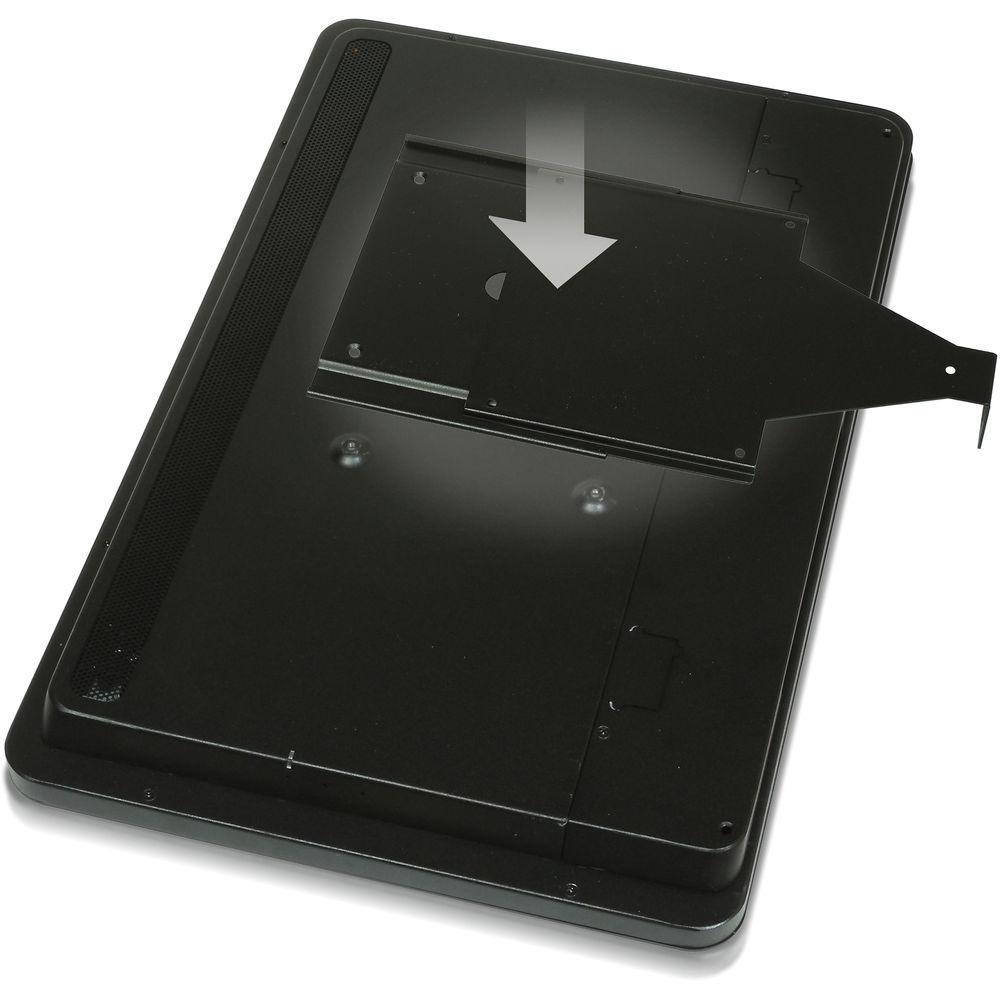

  • Standard VESA wall mount kit included for streamlined Installation
  • Onscreen keyboard and concealed power on/off designed for public access area usage

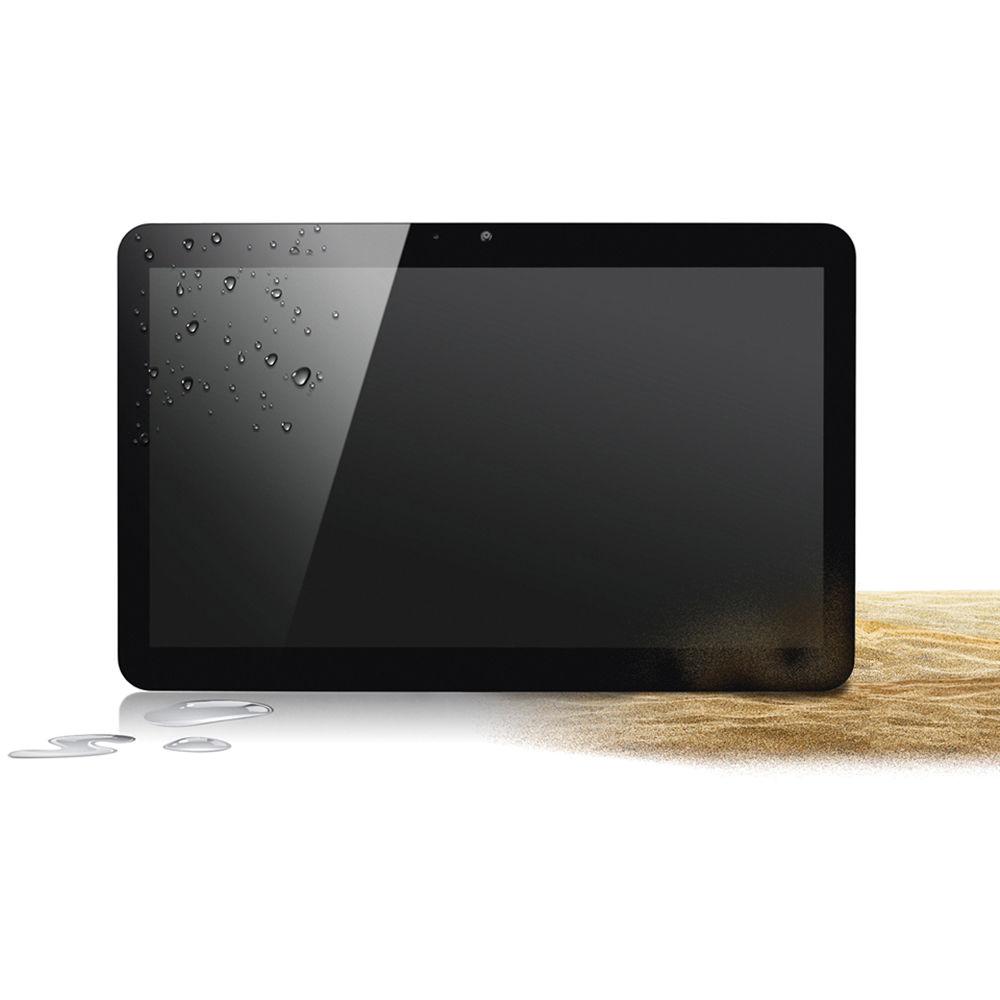

  • IP65 rated (dust proof and water resistant) and 7H hardness rated panel

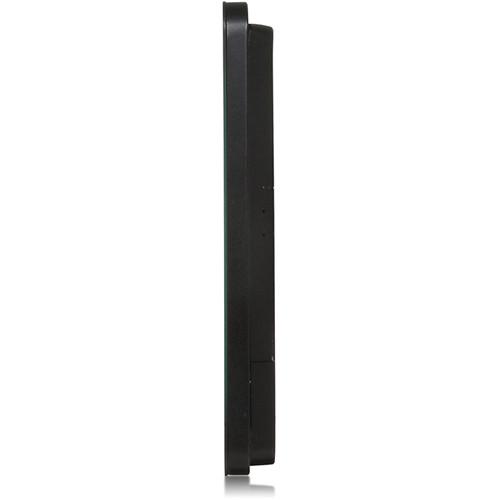

  • Slim form factor at just 1.3" deep
  • Built-in dual 2W speakers for stereo playback
In the Box AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC (Piano Black, Intel Core i3 Version)
  • 120W AC Adapter
  • Power Cord
  • VESA Mounting Kit
  • CD-ROM with Drivers
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AOPEN 21.5" eTILE 22M Multi-Touch All-in-One Commercial PC in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    AOPEN 91.WT300.F210 Specs

    Processor Intel Core i3
    RAM 4 GB (2 GB x 2) dual-channel
    Storage 320 GB
    Operating System None
    Size 21.5" (54.6 cm)
    Resolution 1920 x 1080
    Aspect Ratio 16:9
    Brightness 250 cd/m2 (maximum)
    Touchscreen Type PCT multi-touch surface
    Hardness 7H
    Webcam 1.3-megapixel
    Wi-Fi Yes (embedded antenna)
    LAN 1 x Ethernet
    Inputs 6 x USB 2.0
    2 x USB 3.0
    1 x Mic
    Outputs 1 x HDMI
    1 x HD audio speaker
    Other Ports 2 x COM
    1 x Power
    Slots Mini Card Slot:
    1 x Full size
    1 x Half size
    Technology Realtek ALC886 HD audio
    Speakers 2 x 2 W
    Security Hidden keyboard
    Cable and port cover
    Concealed on/off power
    Power 120 W AC adapter
    MTBF (Approx.) 40,000 hours
    Environment Operating Temperature: 32 to 104°F (0 to 40°C)
    Operating Vibration: 0.6 Gms
    Operating Shock: 8 g
    Certification CB, CE, FCC, UL
    Dimensions (WxHxD) 20.7 x 13.1 x 1.3" (52.6 x 33.3 x 3.3 cm)
    Package Weight 20.3 lb
    Box Dimensions (LxWxH) 23.25 x 19.0 x 6.5"
