Product description

  • Product Demo

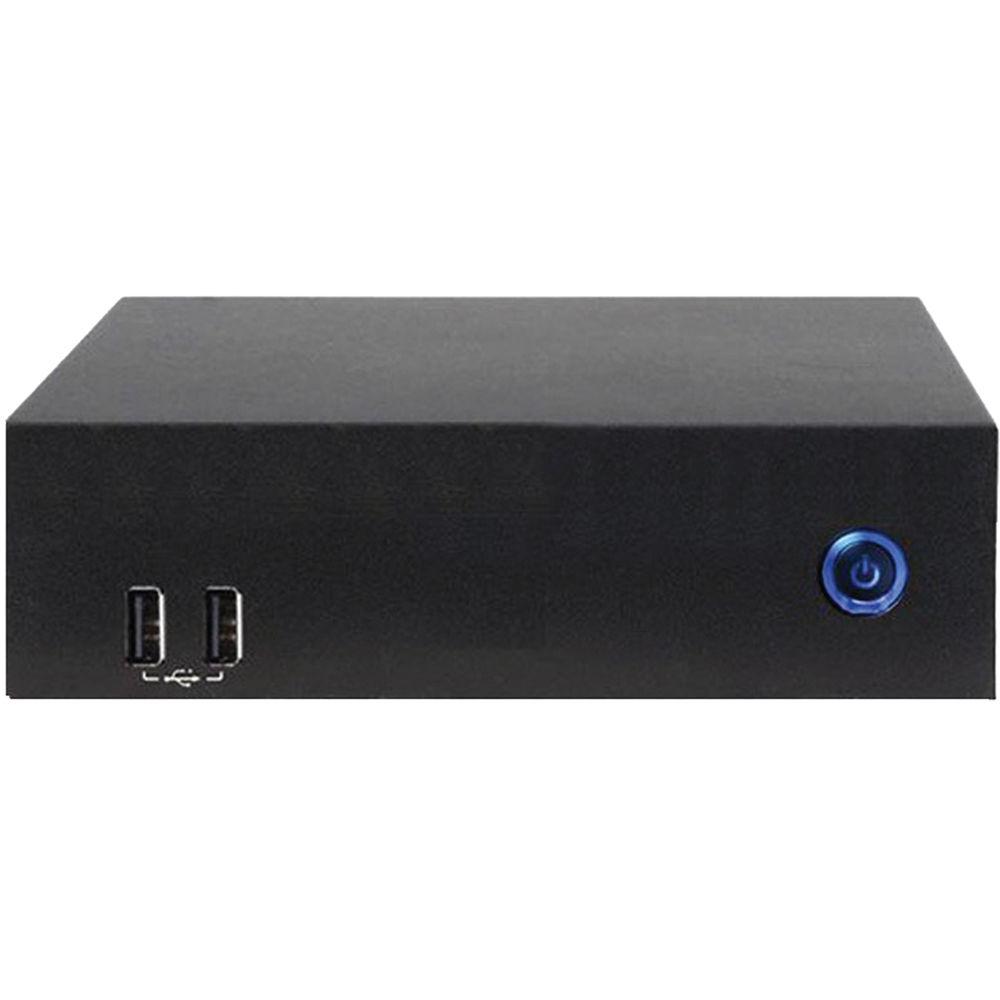

Feed high-definition content to your commercial displays with the AOPEN DE6140-443E Digital Signage Media Player. This media player has the ability to power a 2x2 or a 1x4 video wall. A 320GB hard drive and 4GB of RAM are built-in for storage and multi-tasking. High-speed Internet connectivity is enabled by the unit's onboard Ethernet connectivity.

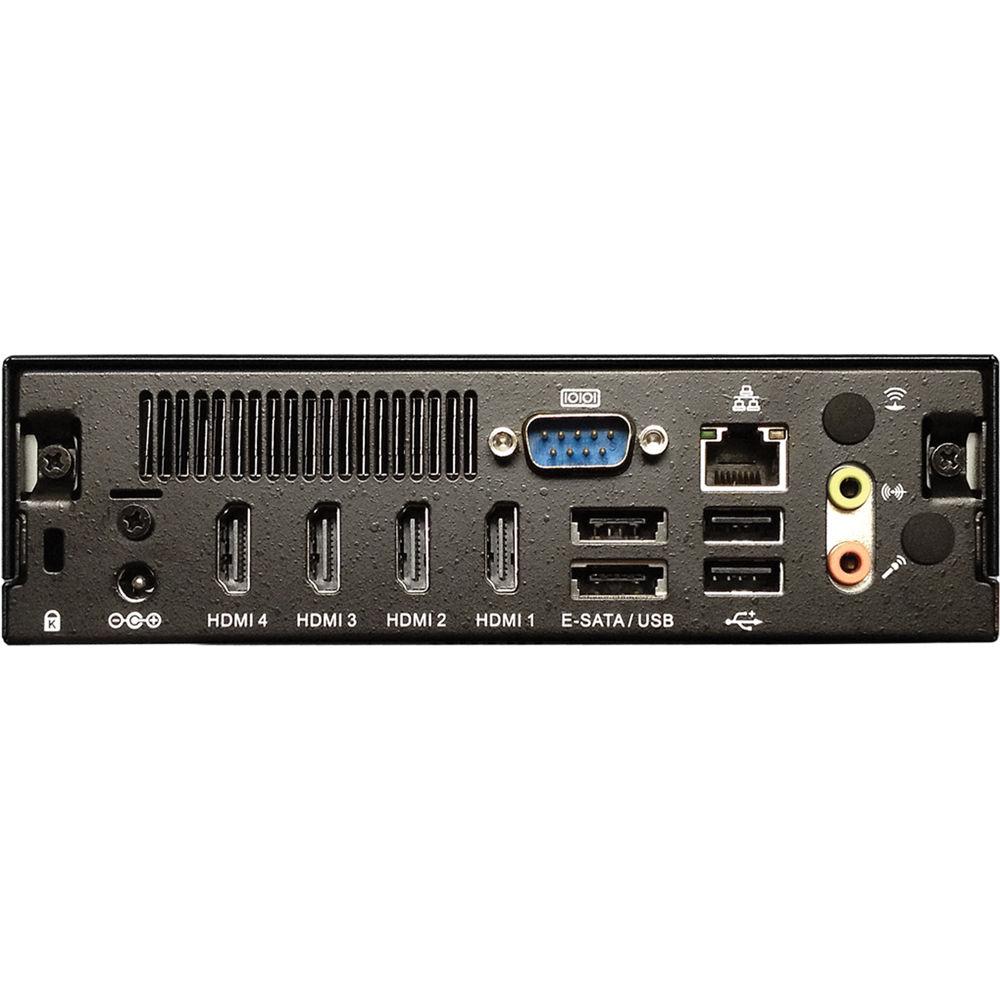

Four HDMI, six USB 2.0, and two eSATA interfaces are available for connecting external devices; the two eSATA ports are shared with the USB ports. The AOPEN DE6140-443E comes with the Windows Embedded 7 operating system pre-installed.
  • Support for both Spanning (stretched desktop) and Extended Desktop on all connected screens for up to four independent (Full HD) displays
  • Designed for 24/7 operation and energy efficiency
  • APAR (AC power auto recovery) design for digital signage
  • Support for 4K video playback (results may vary based on software, codecs, and content being played)
  • Supports optional expansion slot modules
In the Box AOPEN DE6140-443E Digital Signage Media Player
  • Power Adapter
  • Power Cord
  • Hard Drive Screw Kit
  • Power Clamp
  • CD-ROM with Drivers
  • L Type Holder
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AOPEN DE6140-443E Digital Signage Media Player in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AOPEN DE6140 Specs

    CPU Type: R464L (2.3 GHz, quad-core)
    Socket: FS1r2
    Chipset: AMD A70M
    Memory Total: 4 GB
    Channels: Dual Channel
    Type: DDR3 SO-DIMM x 2
    DDR: 1333 / 1600 Mb/s
    Max Memory: 16 GB (based on OS support)
    Storage 320 GB SATA hard drive
    Graphics Integrated AMD Radeon HD 7660G
    Audio Type: Realtek ALC662 HD audio
    Channels: Stereo
    Form Factor Mini-ATX
    Wi-Fi None
    LAN Type: Realtek GbE LAN controller RTL8111E-VL
    Speed: 10/100/1000 Mb/s
    Mini Card Slot 1 x Full size (supports mSATA)
    Ports 6 x USB 2.0 (2 x front / 2 x eSATA shared)
    4 x HDMI
    1 x Mic-in
    1 x Speaker-out
    1 x RJ-45 LAN
    1 x COM
    2 x Antenna hole
    1 x Power
    Security 1 x Kensington slot (rear)
    Watchdog Timer 1 to 255 Sec./min.
    Housing Material SECC t=0.8 mm
    Power 90 W (19 V, 4.74 A) AC adapter
    Input Voltage 100 - 240 VAC, 12 DC, 19 V
    MTBF (Approx.) 40,000-hours
    Environment Operating Temperature: 32 to 122°F (0 to 50°C)
    Storage Temperature: -22 to 149°F (-30 to 65°C)
    Relative Humidity: 95% RH (50ºC non-Condensing)
    Operating Vibration: 0.8 ms, Random, 5 to 500 Hz,X,Y,Z 3Axes, 0.5-hr / axis
    Non-Operating Vibration: 2 Gms, Random, 10 to 300 Hz,X,Y,Z 3Axes, 1-hr / axis
    Operating Shock: 8 G, Half sine, 11 ms duration
    Non-Operating Shock: 50 G, Half sine, 11 ms duration
    Certification CB, CE, FCC, UL
    Operating System Windows Embedded 7
    Dimensions (WxHxD) 6.54 x 1.89 x 6.18" (166 x 48 x 157 mm)
    Volume 1.25 L
    Weight 2.46 (1.12 kg)
    Package Weight 5.0 lb
    Box Dimensions (LxWxH) 11.811 x 8.071 x 3.543"
