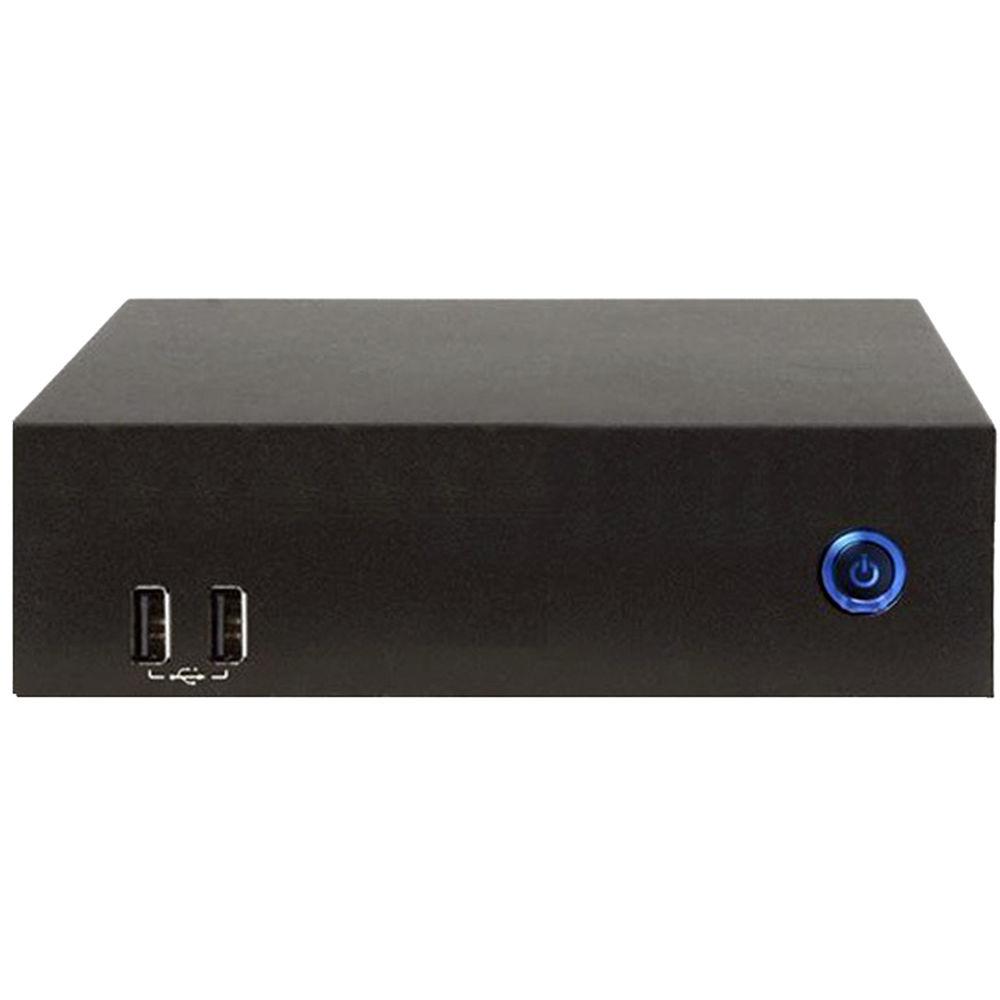

User Manual for AOPEN DE6140-48BP Digital Signage Media Player Click to enlarge the picture
Contents of the user manual for the AOPEN DE6140-48BP Digital Signage Media Player
- Product category: Digital Signage Players AOPEN
- Brand: AOPEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AOPEN Digital Signage Players
|
User manual for the AOPEN DE6140-48BP Digital Signage Media Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AOPEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AOPEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AOPEN product will considerably shorten its lifespan!
|
Product description Feed high-definition content to your commercial displays with the AOPEN DE6140-48BP Digital Signage Media Player. This media player has the ability to power a 2x2 or a 1x4 video wall. A 64GB SSD and 8GB of RAM are built-in for storage and multi-tasking. 8GB of memory allows the player to efficiently handle four individual 1080p video streams. High-speed Internet connectivity is enabled by the unit's onboard Ethernet connectivity.
Four HDMI, six USB 2.0, and two eSATA interfaces are available for connecting external devices; the two eSATA ports are shared with the USB ports. The AOPEN DE6140-48BP comes with the Windows 7 Professional operating system pre-installed. - Support for both Spanning (stretched desktop) and Extended Desktop on all connected screens for up to four independent (Full HD) displays
- Designed for 24/7 operation and energy efficiency
- APAR (AC power auto recovery) design for digital signage
- Support for 4K video playback (results may vary based on software, codecs, and content being played)
- Supports optional expansion slot modules
In the Box AOPEN DE6140-48BP Digital Signage Media Player Power Adapter Power Cord Hard Drive Screw Kit Power Clamp CD-ROM with Drivers L Type Holder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOPEN DE6140-48BP Digital Signage Media Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOPEN DE6140-48BP Specs | CPU | Type: R464L (2.3 GHz, quad-core) Socket: FS1r2 Chipset: AMD A70M | Memory | Total: 8 GB Channels: Dual Channel Type: DDR3 SO-DIMM x 2 DDR: 1333 / 1600 Mb/s Max Memory: 16 GB (based on OS support) | Storage | 320 GB SATA hard drive | Graphics | Integrated AMD Radeon HD 7660G | Audio | Type: Realtek ALC662 HD audio Channels: Stereo | Form Factor | Mini-ATX | | Wi-Fi | None | LAN | Type: Realtek GbE LAN controller RTL8111E-VL Speed: 10/100/1000 Mb/s | Mini Card Slot | 1 x Full size (supports mSATA) | Ports | 6 x USB 2.0 (2 x front / 2 x eSATA shared) 4 x HDMI 1 x Mic-in 1 x Speaker-out 1 x RJ-45 LAN 1 x COM 2 x Antenna hole 1 x Power | | Security | 1 x Kensington slot (rear) | Watchdog Timer | 1 to 255 Sec./min. | Housing Material | SECC t=0.8 mm | Power | 90 W (19 V, 4.74 A) AC adapter | Input Voltage | 100 - 240 VAC, 12 DC, 19 V | MTBF (Approx.) | 40,000-hours | Environment | Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: -22 to 149°F (-30 to 65°C) Relative Humidity: 95% RH (50ºC non-Condensing) Operating Vibration: 0.8 ms, Random, 5 to 500 Hz,X,Y,Z 3Axes, 0.5-hr / axis Non-Operating Vibration: 2 Gms, Random, 10 to 300 Hz,X,Y,Z 3Axes, 1-hr / axis Operating Shock: 8 G, Half sine, 11 ms duration Non-Operating Shock: 50 G, Half sine, 11 ms duration | Certification | CB, CE, FCC, UL | Operating System | Windows 7 Professional | Dimensions (WxHxD) | 6.54 x 1.89 x 6.18" (166 x 48 x 157 mm) | Volume | 1.25 L | Weight | 2.46 (1.12 kg) | | Package Weight | 4.6 lb | Box Dimensions (LxWxH) | 12.1 x 8.4 x 3.8" |
