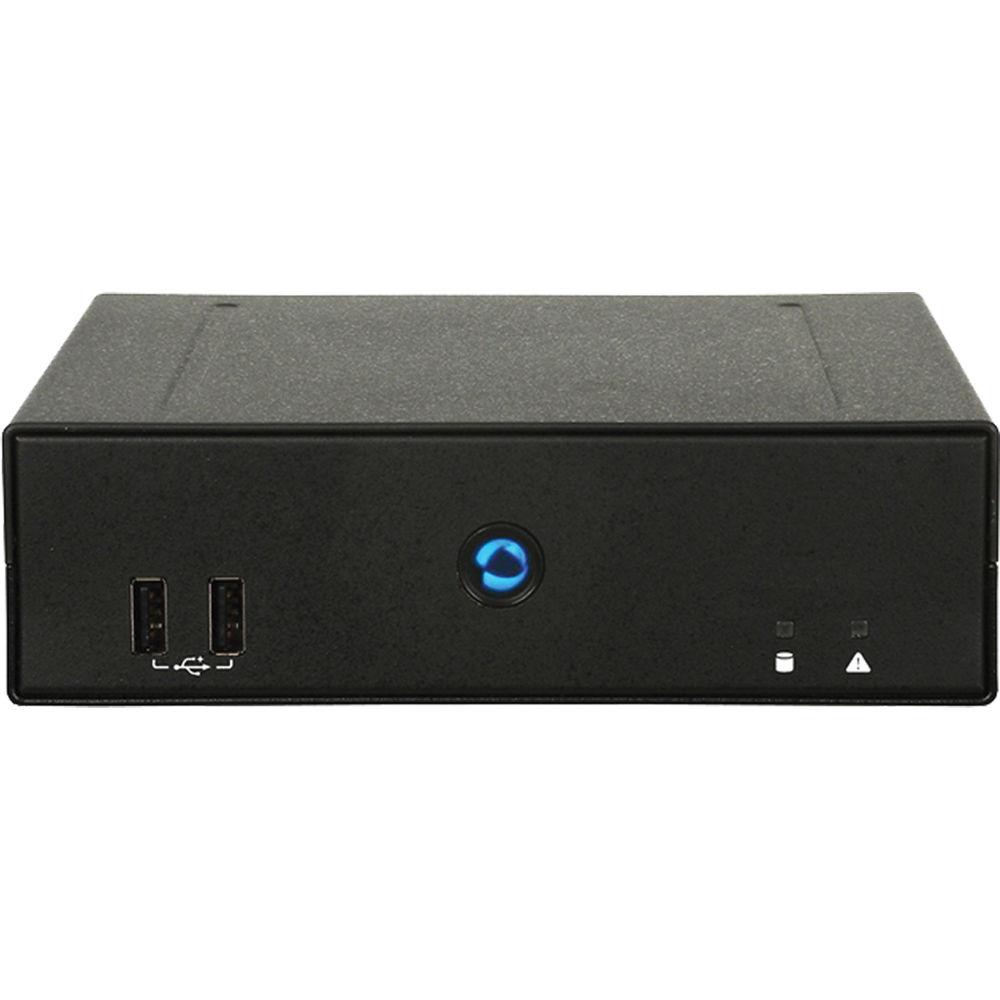

Product description Feed high-definition content to your commercial displays with the black AOPEN DE7200-3430 Digital Signage Media Player. This media player has the ability to display 4K content and supports up to four independent 1080p video streams. In addition to a powerful Intel i3 CPU, a 320GB hard drive and 4GB of RAM are built-in for storage and multi-tasking. High-speed Internet connectivity is enabled by the unit's Ethernet connectivity. Two HDMI, four USB 2.0, and two eSATA interfaces are available for connecting external devices; the two eSATA ports are shared with the USB ports.
While the AOPEN DE7200-3430 doesn't have an operating system pre-installed, it supports a variety of Windows operating systems such as Windows 7 and 8. It also supports Linux operating systems. - Support for Extended Desktop on all connected screens for up to three independent (Full HD) displays
- Support for 4K video playback (results may vary based on software, codecs, and content being played)
- Flexible integration due to a compact mini-ATX form factor
- Designed for 24/7 operation and energy efficiency
- Power switch extension for remote control
In the Box AOPEN DE7200-3430 Digital Signage Media Player (Black) AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AOPEN DE7200-3430 Digital Signage Media Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAOPEN DE7200 Specs | | | CPU | Type: Intel Core i3
Socket: Socket G3/rPGA946
Chipset: Intel QM87
Thermal Module: AOPEN Thermal Mode, Noise (idle mode): 27 dB | | Memory | Total: 4 GB
Channels: Dual Channel
Type: DDR3 SO-DIMM x 2
DDR: 1333 / 1600 Mb/s
Max Memory: 16 GB (based on OS support) | | Storage | 320 GB SATA hard drive | | Graphics | Integrated Intel HD Graphics 4600 | | Audio |
Type: Realtek HD audio codec ALC269Q
Channel: Stereo 5.1-channel with HDMI | | Form Factor | Mini-ATX | | | | LAN | Intel Gigabit Ethernet WGI217LM, 10/100/1000 Mb/s | | Expansion Slot | 1 x Full size
1 x Half size | | Storage Bays | 1 x SATA Connector

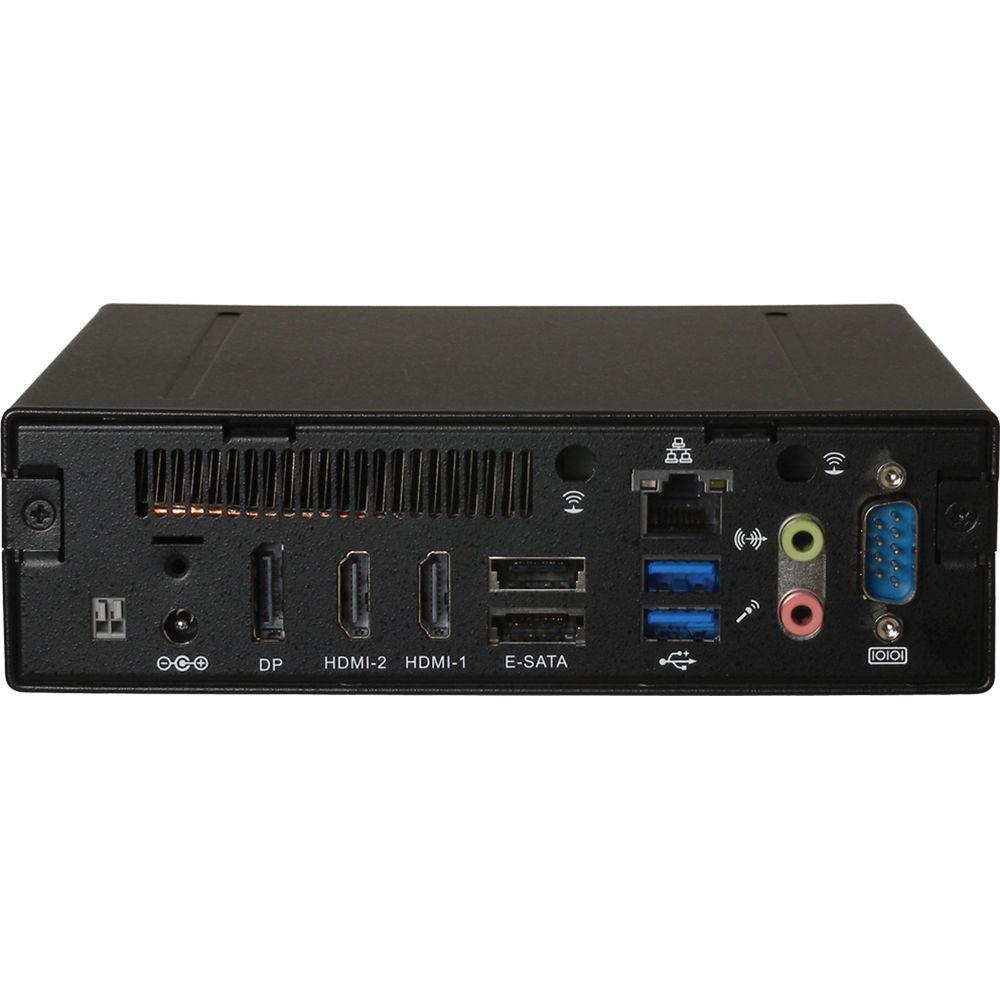

1 x mSATA (2.5" SATA HDD) | | Ports | 1 x DC
2 x HDMI
1 x DisplayPort
2 x USB 2.0 (combined with eSATA)
2 x USB 3.0
2 x eSATA
1 x RJ-45 LAN
1 x Legacy RS232 serial (COM port)
1 x Audio line-out
1 x Audio mic-in
2 x Antenna hole
1 x Kensington lock | | | | Operating System Support | Windows, Linux | | Security | Trusted Platform Modules (TPM v1.2) SLB9635TT1.2 | | Watchdog Timer | 1 to 255 Sec./min. | | Housing Material | SECC t=0.8 mm | | Power | 90 W (19 / 12 V, 4.5 A) AC adapter | | Input Voltage | 100 - 240 VAC, 12 DC, 20 V | | MTBF (Approx.) | 50,000-hours | | Environment | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -22 to 149°F (-30 to 65°C)
Relative Humidity: 95% RH (50ºC non-Condensing)
Operating Vibration: 0.5 Gms, Random, 5 to 500 Hz, X,Y,Z 3Axes, 0.5-hr / axis
Non-Operating Vibration: 2 Gms, Random, 10 to 300 Hz,X,Y,Z 3Axes, 1-hr / axis
Operating Shock: 8 G, Half sine, 11 ms duration
Non-Operating Shock: 50 G, Half sine, 11 ms duration | | Certification | BSMI, CB, CE, FCC, UL | | Dimensions (WxHxD) | 6.54 x 1.89 x 6.18" (166 x 48 x 157 mm) | | Volume | 1.25 L | | Weight | Not Specified By Manufacturer | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 6.693 x 6.496 x 2.362" |
