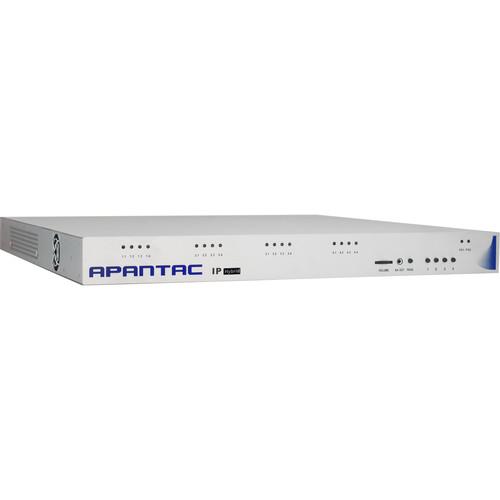

User Manual for Apantac 4 4 Hybrid Multiviewer with 4 IP & 4 SDI Inputs Click to enlarge the picture
Contents of the user manual for the Apantac 4 4 Hybrid Multiviewer with
- Product category: Multiviewer Processors Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Multiviewer Processors
|
User manual for the Apantac 4 4 Hybrid Multiviewer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description - Key Features
-
- Hybrid inputs
- Mixture of 4-16 IP, SD-SDI/HD-SDI/3G inputs in groups of four
- Decode up to 16 streams
- Compliant to ISO/IEC 13818-1 MPEG-2 Transport Stream Specification
- Demultiplex incoming SPTS/MPTS
- Supports AFD, WSS
- MPEG2 / H.264 decode
- MPEG2 MP@HL, resolution up to 1080p/1080i@60Hz
- 2 - 4 channels of audio per decode IP stream
- 16 channels of embedded audio per SDI input
- 4 channels of discrete audio per input (optional)
- Field upgradable to allow discrete audio (AES/AA)
- Multiple outputs in DVI, HDMI or VGA (option)
- Output resolution up to 2048 x 1080 (incl. 1080p)
- Multiple labels per video windows - UMD, OMD, IMD, standalone labels
- Automatic input aspect ratio detection on SDI inputs
- Built-in video, audio alarm detections - no audio, audio high/low, no video, video black, video frozen
- Apantac Skin Technology allows on-screen graphical elements to be designed with any graphics tool
- Front panel headphone jack with volume adjustment for audio monitoring
- Front panel buttons for quick preset recalls
Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac 4 4 Hybrid Multiviewer with 4 IP & 4 SDI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac IL-4+4 Specs | | | Type | Multiviewer system | | Width | 17.5 in | | Depth | 23.6 in | | Height | 1.8 in | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | Max Power Consumption | 100 W |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
