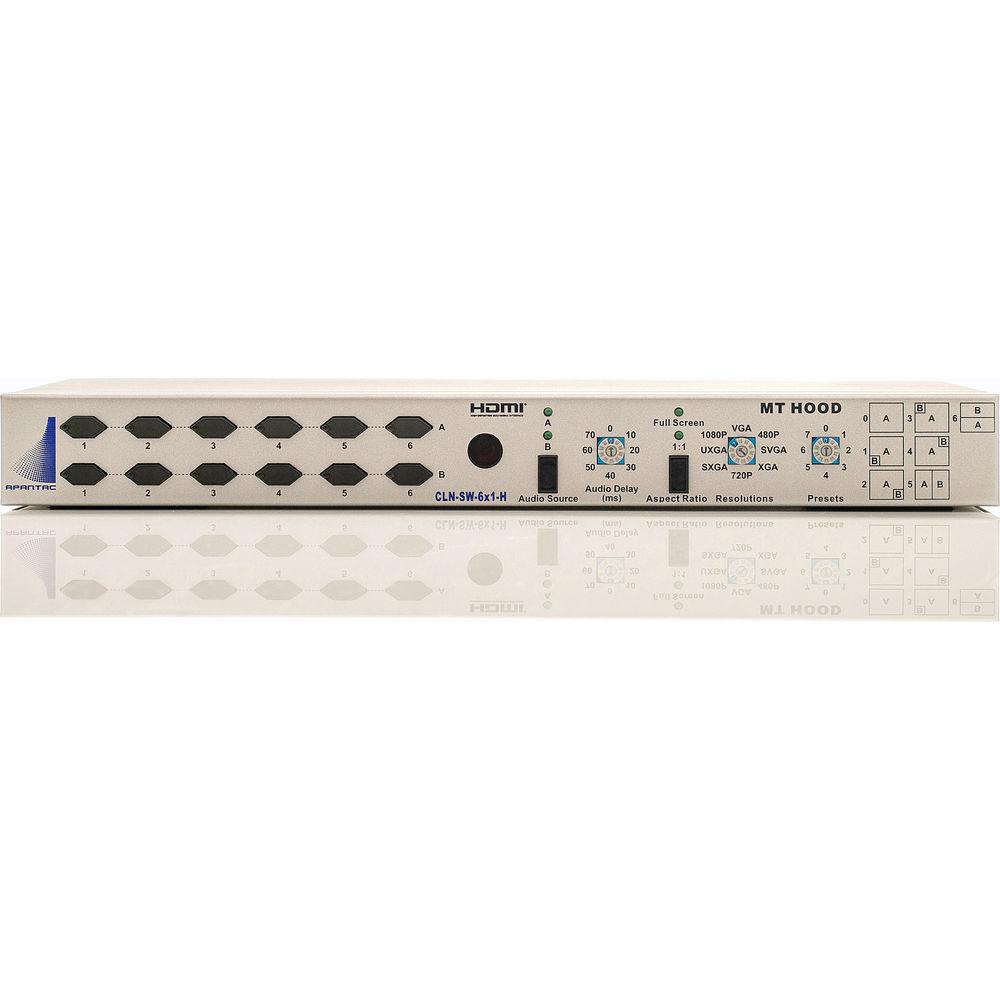

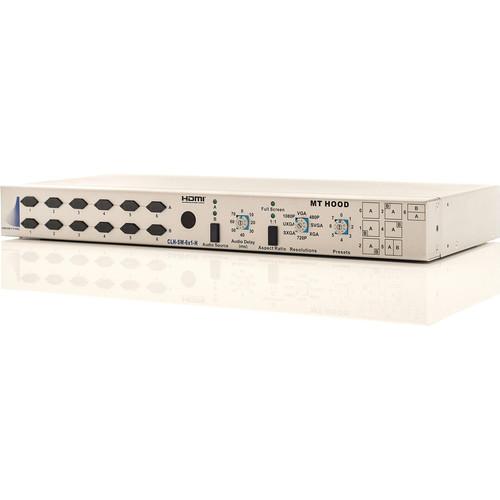

Product description The CLN-SW-6X1-H HDMI 6x1 Clean Switch from Apantac features 12-bit deep color support. With support for video resolutions up to 1080p, this switch comes with eight predefined output resolutions and seven predefined presets, including full-screen, PiP, and PbP. - Up/down/cross converter equipped with HDMI input and output
- Deep color, 12-bit support
- HDTV resolution up to 1080p
- De-interlacing (interlace to progressive conversion)
- Compliant with the specifications of HDMI
- Seven built-in preset modes (one full-screen, four PiP, two PbP)
- Supports adjustable audio delay time for lip sync (up to 70 ms)
- Supports 1:1 aspect ratio mode, which keeps original input source aspect size and ratio
- Supports full-screen aspect ratio mode, which modifies the original input image to fit the aspect ratio of the output display
- Image may be cropped or distorted to fit within the screen of the output display
- VGA, 480p, SVGA, XGA, 720p, SXGA, UXGA, and 1080p resolutions
- Supports audio delay adjustment for lip sync
- Supports both HDMI and VGA output
- Supports Ethernet control
- Hot-pluggable and 1 RU rack design
- EDID management (copy from destination port)

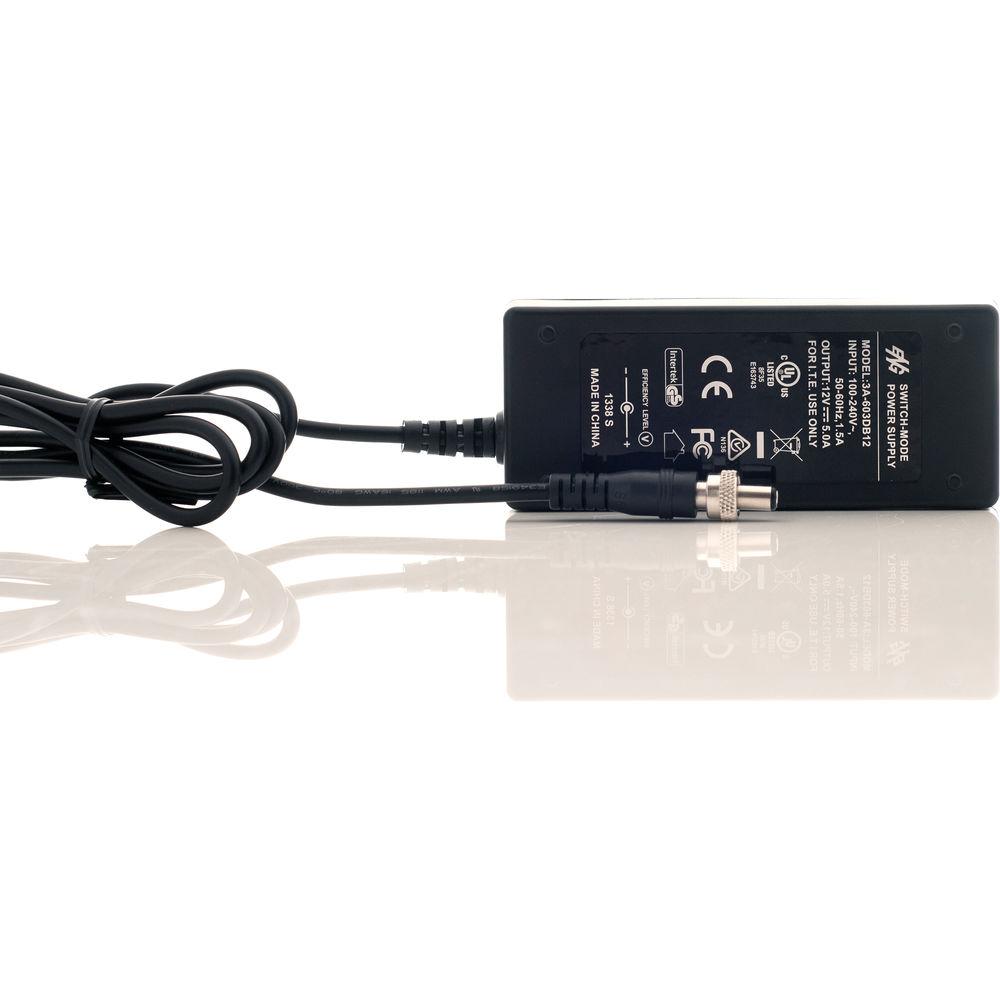

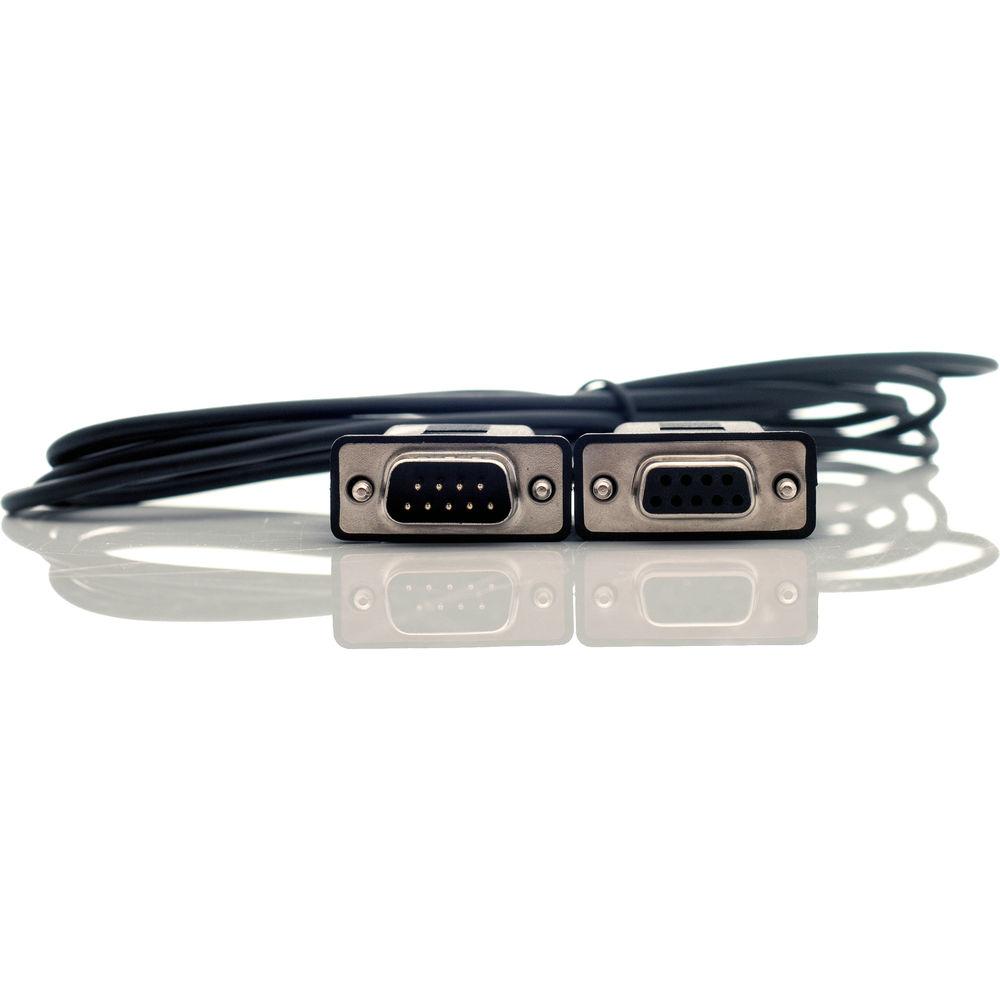

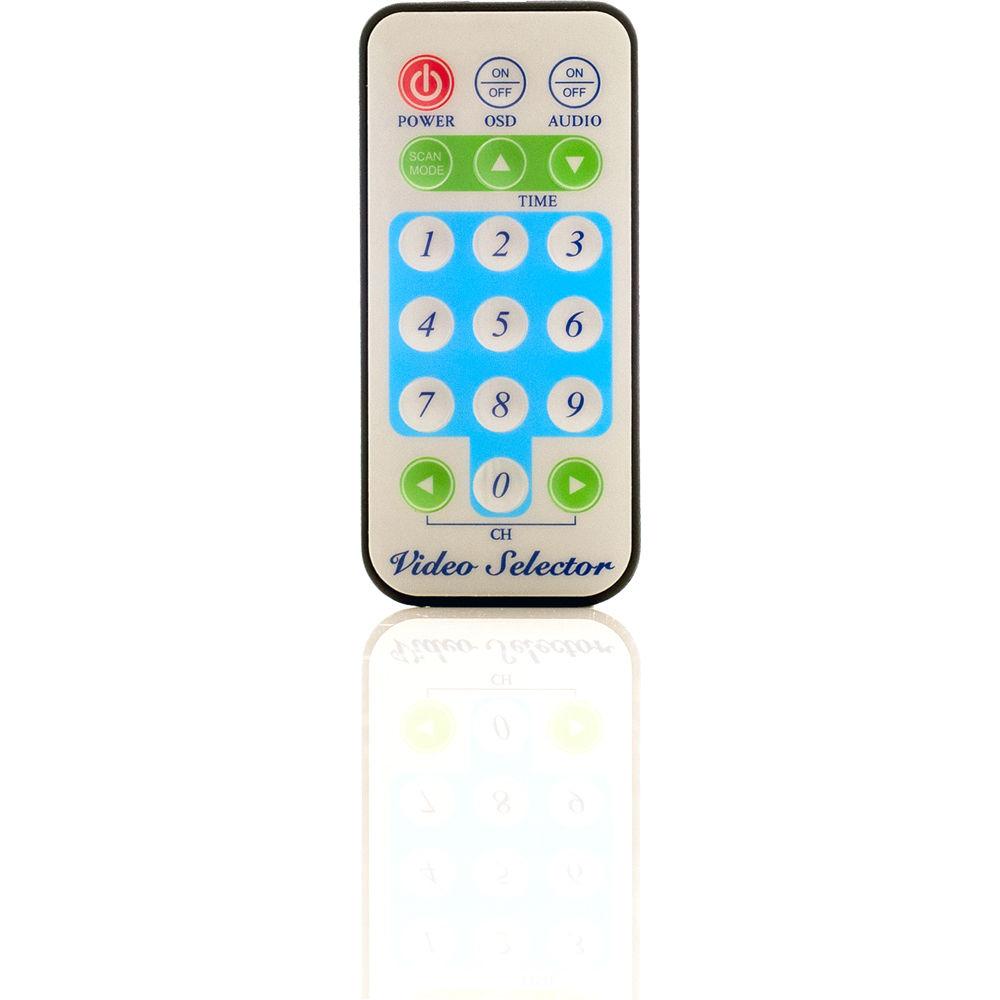

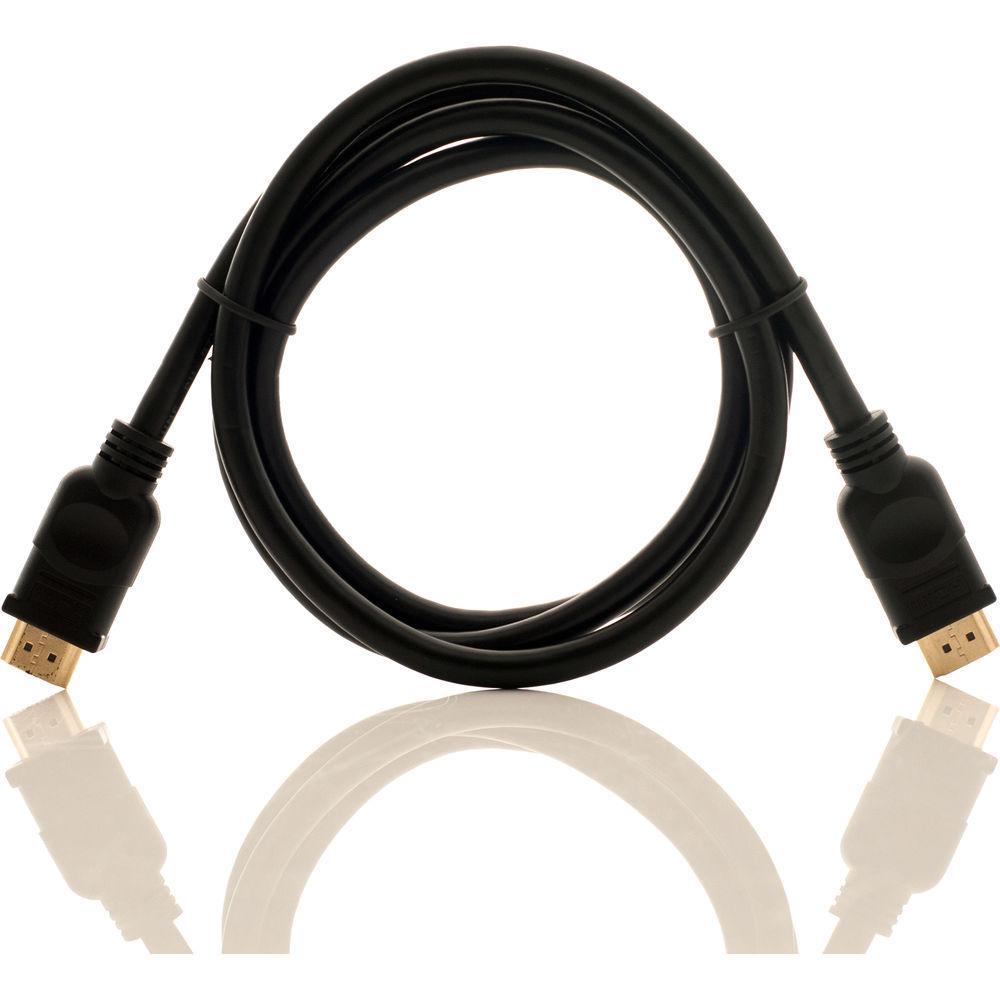

In the Box Apantac CLN-SW-6X1-H HDMI 6x1 Clean Switch RS-232 Cable Power Cord Power Adapter HDMI Cable Remote Control Software CD Rack Ear Screws 2 x Rackmount Brackets Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac CLN-SW-6X1-H HDMI 6x1 Clean Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

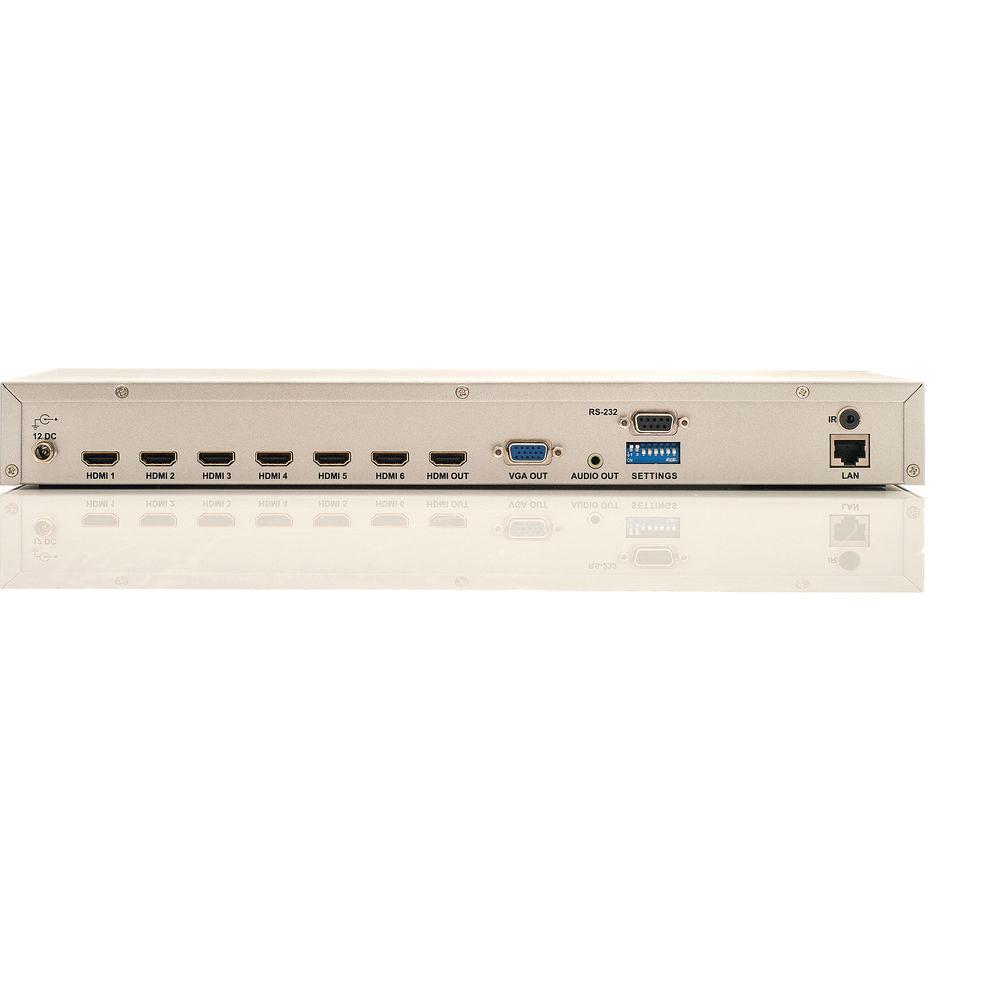

Technical parametersApantac CLN-SW-6X1-H Specs | Inputs | 6 x HDMI | | Outputs | 1 x HDMI
1 x VGA 15-pin
1 x 3.5 mm Mini jack | | Control | 1 x RS-232
1 x IR
| | LAN Connectors | 1 x RJ45 | | Output Resolutions | VGA, 480p, SVGA, XGA, 720p, SXGA, UXGA, 1080p | | Audio Delay | Up to 70 ms | | Presets | Seven presets (including full-screen, PiP, and PbP) | | Power Adapter | Locking 12 VDC | | Dimensions (W x H x D) | 6.8 x 1.8 x 15.1" (17.3 x 4.5 x 38.4 cm) | | Weight | 4.2 lb (1.8 kg) |
