User Manual for Apantac Crescent 1RU W-3x3 Video Wall Processor Click to enlarge the picture
Contents of the user manual for the Apantac Crescent 1RU W-3x3 Video Wall
- Product category: Multiviewer Processors Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Multiviewer Processors
 |
User manual for the Apantac Crescent 1RU W-3x3 Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

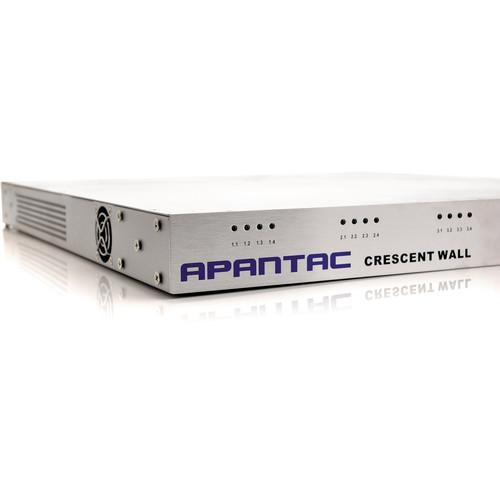

Product description The Crescent 1RU W-3x3 Video Wall Processor from Apantac supports up to nine 1920x1080 or 1366x768 displays for creating video walls and maximizing the visual impact of the video signal being displayed. This multi-purpose display solution is ideal for digital signage, corporate, government, a vast range of broadcast environments, as well as any professional audio visual system installation that requires a video wall platform. The Crescent W-3x3 has nine RJ-45 outputs which can output video signals up to 115' away from the video wall unit. All of the input and output ports of the Crescent use RJ45 connectors, a single HDMI to RJ45 converter is included for the HDMI input, however separate RJ45 to HDMI converters (HDMI-PHR) are required for each screen. - Plug and play - no software required for operation
- Color temperature adjustments
- Pure hardware architecture, not a PC
- Source can be up to 115' away
- Maximum resolution up to 5760 x 3240
- Supports 9 x 1920x1080 or 9 x 1366x768 LCD/Plasma Panels (with mullion compensation)
- Can also be configured as 3 2x2 wall or 3 1x3 wall
- Can also be configured as 3x3 wall
- Can also be configured as 2x3 (crop) wall
In the Box Apantac Crescent 1RU W-3x3 Video Wall Processor HDMi-1-E HDMI Extender Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Crescent 1RU W-3x3 Video Wall Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

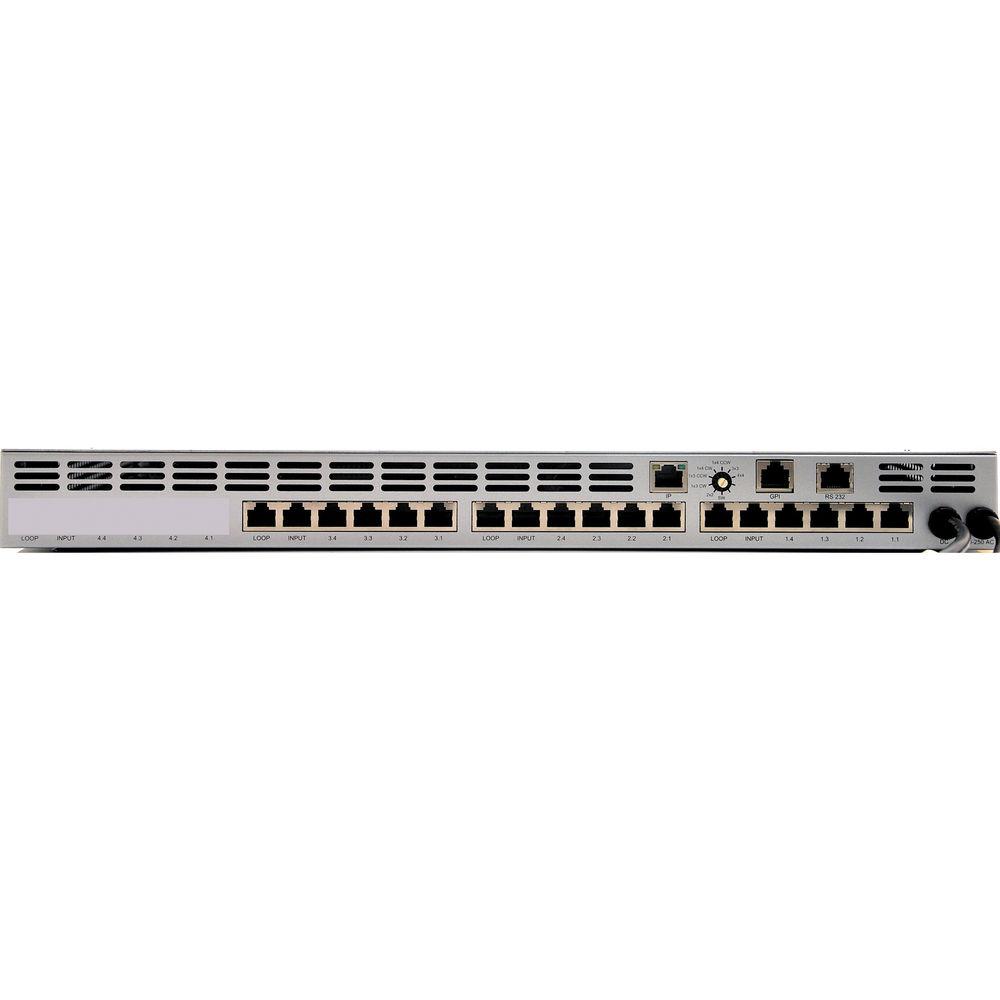

Technical parametersApantac W-3X3 Specs | Inputs | 1 x RJ45 Input | | Outputs | 9 x RJ45 Outputs HDMI to to RJ45 converter is included
Seperate RJ45 to HDMI receiver is required for each output | | Maximum Resolution | 3x3: 5760 x 3240
3 times 2x2: 3840 x 2160
3 times 1x3: 3240 x 1920 | | Interface | 1 | | Serial Interface | RS232 | | IP | 100Base Tx | | Electrical | 75 W, 90 to 250 V, 50/60 Hz | | EMI / RFI | Complies with FCC Part 15, Class A, CE EU EMC, C-tick | | Dimensions (WxD) | 1 RU, 17.5 x 23.6" (44.5 x 60 cm) | | | | Package Weight | 29.7 lb | | Box Dimensions (LxWxH) | 25.5 x 22.75 x 9.75" |
