User Manual for Apantac DA-SDI-DE SDI Audio De-Embedder Click to enlarge the picture
Contents of the user manual for the Apantac DA-SDI-DE SDI Audio De-Embedder
- Product category: Embedders & De-Embedders Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Embedders & De-Embedders
|
User manual for the Apantac DA-SDI-DE SDI Audio De-Embedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

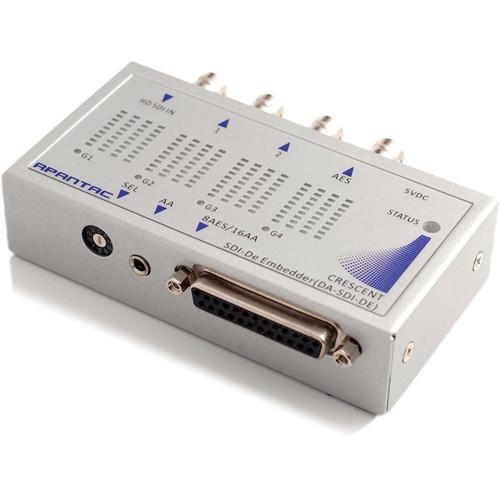

Product description The DA-SDI-DE SDI Audio De-Embedder from Apantac supports up to 16 channels of analog audio and 8 pairs of AES audio. This de-embedder supports SDI inputs up to 3G, and features two looping inputs. Any pair of audio can be selected for monitoring. The unit's SDI input features data rates from 125 Mb/s to 2.97 Gb/s. The DA-SDI-DE features a status indicator that turns green when the unit is powered on, and amber when an SDI signal is locked on. The real-time LED audio meters are designed to show the audio input level at any given moment. The rear panel of this unit features a rotary switch for selecting an audio monitoring pair, an analog audio monitoring stereo phone jack, and an AES/AA breakout (a DB25 breakout cable is required. Not included). - De-embeds 3G/HD/SD-SDI with 16 channels of audio
- Outputs 8 AES pairs or 16 mono analog audio
- Onboard LED meters for display audio presence
- Onboard LED for display of group association
In the Box Apantac DA-SDI-DE SDI Audio De-Embedder Stereo Phone Jack 1x2 Cable Power Adapter Power Adapter Fastener 75 Ω Terminator Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac DA-SDI-DE SDI Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DA-SDI-DE Specs | Connectors | 1 x BNC, SDI input
2 x BNC, SDI output
1 x BNC, AES output
1 x 25-pin Sub-D, AES/AA output
1 x BNC, analog audio output | | Control | 1 x Analog audio output audio channel selector | | Indicators | 1 x Status indicator
4 x Audio meter | | Data Rate | Input: 125 Mb/s to 2.97 Gb/s
Output: Up to 2.97 Gb/s | | Mount | Magnetic | | Power | 5 VDC | | Dimensions (W x D x H) | 2.4 x 4.4 x 1.1" (6.2 x 11.3 x 2.9 cm) | | Weight | 1.0 lb (0.45 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.5 x 7.3 x 3.8" |
