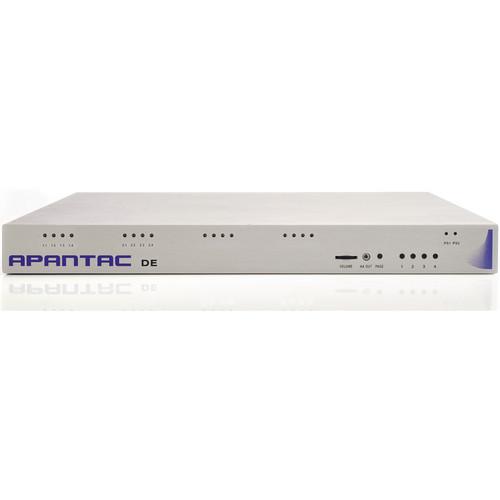

User Manual for Apantac DE-4 Four DVI, VGA, YPbPr, YC, Composite, or HDMI Multiviewer Click to enlarge the picture
Contents of the user manual for the Apantac DE-4 Four DVI, VGA, YPbPr,
- Product category: Multiviewer Processors Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Multiviewer Processors
|
User manual for the Apantac DE-4 Four DVI, VGA, YPbPr, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Apantac DE-4 Four DVI, VGA, YPbPr, YC, Composite, or HDMI Multiviewer receives up to 4 DVI, VGA, YPbPr, YC, HDMI, SD-SDI / HD-SDI and composite input signals and sends these to a maximum of 2 DVI/VGA/HDMI (1.2/3) outputs, with user selectable resolutions up to 2048x1080 (including 1920x1080p). It features built-in analog and digital clocks that provides up/down counters and time of day. The Multiviewer supports HDMI embedded audio and comes with built-in LTC timecode and NTP for clock sync. On-screen graphical elements can be designed with any graphics tool using Apantac skin technology. Front panel headphone jack features buttons for volume adjustment and quick reset calls. - Receives up to 4 DVI, VGA, YPbPr, YC, HDMI, SD-SDI / HD-SDI and composite input signals, and sends these to a maximum of 2 DVI/VGA/HDMI (1.2/3) outputs
- User selectable resolutions up to 2048x1080 (including 1920x1080p)
- Features built-in analog and digital clocks that provides up/down counters and time of day
- Supports HDMI embedded audio
- Up to 16 channels of SDI embedded audio
- Built-in LTC timecode and NTP for clock sync
- Built-in CATx extender - extend 1080p up to115 feet with optional receivers
- Multiple labels per video windows - UMD, OMD, IMD, standalone labels
- On-screen graphical elements can be designed with any graphics tool using Apantac skin technology
- Front panel headphone jack features buttons for volume adjustment and quick reset calls
In the Box Apantac DE-4 Four DVI, VGA, YPbPr, YC, Composite, or HDMI Multiviewer 15' (4.57 m) of CAT6 Cable RJ45 to DVI Receiver RJ45 to HDMI Receiver SCSI to DB9 for GPI RJ50 to DB9 for GPI RJ45 to DB9 for Serial DVI to VGA Adapter DVI to Composite / YC Adapter CD (Software, Manual) Rack Mount 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac DE-4 Four DVI, VGA, YPbPr, YC, Composite, or HDMI Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DE-4 Specs | Video Inputs | Up to 4 DVI/VGA/HDMI/Composite/ YPbPr/YC and optional HD-SDI/SD-SDI | | Connectors | DVI-I (DVI-I-VGA Adapter, DVI-I-Composite / YC Adapter, optional DVI-I-HDMI Adapter, optional DVI-I-YPbPr Adapter), BNC IEC 61169-8 Annex A | | Total windows | 4 | | Composite | NTSC (SMPTE-170M), PAL (ITU624-2) | | Input Impedance | Composite / SDI: 75 ohm DVI-I: 100 ohm | | Alarm | No audio, audio high / low, no video, video black, video frozen | | Control | Front panel buttons for quick preset recalls, GPIs, Apantac ASCII Protocol (AXP), Director (config & control app) | | AES Audio | 4 channels per video input (2 pairs, balanced / unbalanced) | | Analog Stereo Audio | 4 channels per video input (balanced / unbalanced) | | Embedded Audio | SMPTE-272M-A, HDMI | | Outputs | 1-2 DVI, HDMI, VGA (option) 1 SDI (option) | | Output Resolution | 800 x 480 - 2048 x 1080 (1080p) | | Built-in CATx Extender | Up to 35' (10.66 m) Extend up to 115' (35.05 m) (option) | | General Purpose IO | Up to 24 inputs with DB9 connectors | | OSD | Skin Technology for customizing borders, labels (4 / window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, dynamic UMD | | Serial Port | RS232 with RS422 or RS485 option Connector: RJ45, Baud Rate Up to 115200, Supported protocols: TSL, TSI, AXP | | IP | 100 Base-TX, Supported Protocols TSL, AXP, Connector: RJ45 | | Electrical | 110W, 90-250V 50/60 Hz | | EMI/RFI | Complies with FCC Part 15, Class A, CE, EU EMC, C-tick | | Power | Optional redundant power supply | | Size | 1RU, (17.5 x 19.7") (44.5 x 50 cm) (W x D) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 26.0 x 23.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
