User Manual for Apantac Dual-Head VGA USB over CATx KVM-2-Eu Extender & KVM-2-Ru Receiver Set Click to enlarge the picture
Contents of the user manual for the Apantac Dual-Head VGA USB over CATx
- Product category: KVM Extenders Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac KVM Extenders
|
User manual for the Apantac Dual-Head VGA USB over CATx contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

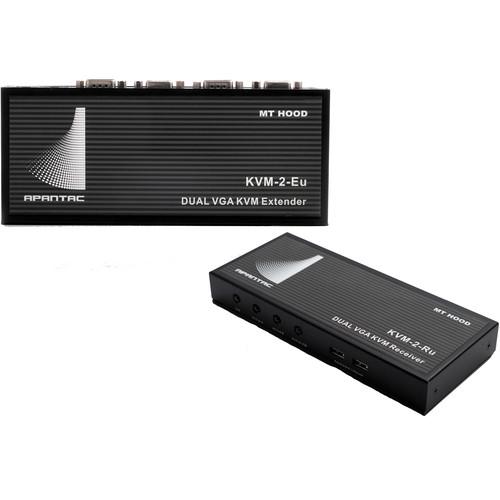

Product description The Dual-Head VGA/USB over CATx KVM-2-Eu Extender & KVM-2-Ru Receiver Set from Apantac is designed to extend audio, USB, and VGA signals up to 1000' away via a single CATx cable. It has VGA resolution of up to 2048 x 1536. This plug and play set also features remote/local monitoring and control. It supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems. - Extends audio, USB, and VGA Signals over a single CATx cable
- Maximum VGA resolution of 2048 x 1536 up to 1000' away
- Plug and play - no software required
- Remote / local monitoring and control
- Supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems
Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Dual-Head VGA USB over CATx KVM-2-Eu Extender & KVM-2-Ru Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac KVM-SET-8 Specs | Connectors | Extender:
1 x 3.5 mm phone jack, audio
1 x PS2, keyboard
1 x PS2, mouse
1 x 15-pin Sub-D, VGA monitor A Audio/USB input
1 x 15-pin Sub-D, VGA monitor B input
1 x 15-pin Sub-D, VGA monitor A local output
1 x 15-pin Sub-D, VGA monitor B local output
1 x RJ45, Link A
1 x RJ45, Link B
1 x Power
Receiver:
1 x 3.5 mm phone jack, audio
1 x PS2, keyboard
1 x PS2, mouse
1 x 5 VDC barrel, power
1 x 15-pin Sub-D, VGA monitor A output
1 x 15-pin Sub-D, VGA monitor B output
1 x RJ45, Link A
1 x RJ45, Link B | | Controls and Indicators | Extender:
1 x Link status indicator
1 x Activity A status indicator
1 x Activity B status indicator
1 x USB status indicator
Receiver:
1 x Gain control rotary knob
1 x Focus control rotary knob
1 x Link status indicator
1 x Activity A status indicator
1 x Activity B status indicator
1 x USB status indicator | | Maximum Resolution | 2048 x 1536 @ 60 Hz | | Transmission Range | Up to 1000' (300 m) | | Mount | Magnetic | | Power | 5 VDC, 1200 mA | | Dimensions (W x D x H) | Each Unit: 3.3 x 7.6 x 1.1" (8.5 x 19.2 x 2.9 cm) | | Weight | Both Units: 6.0 lb (2.7 kg) |
