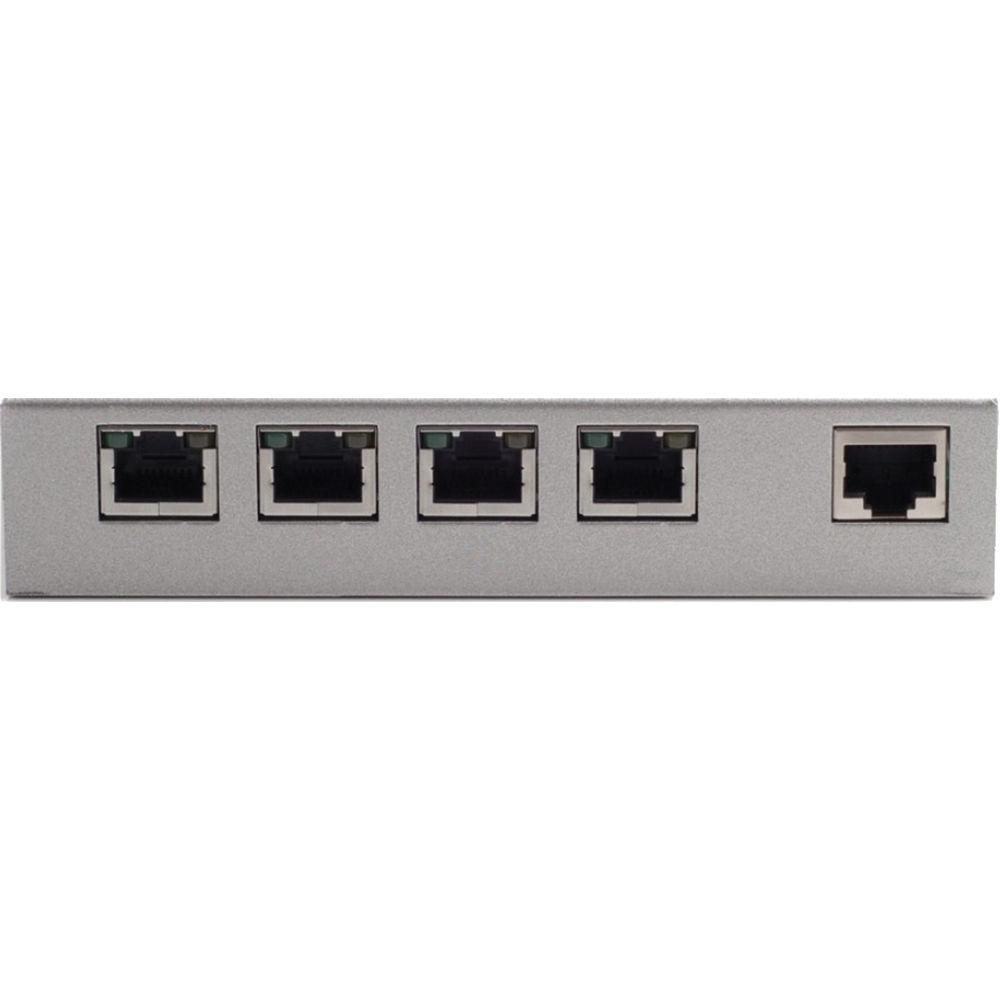

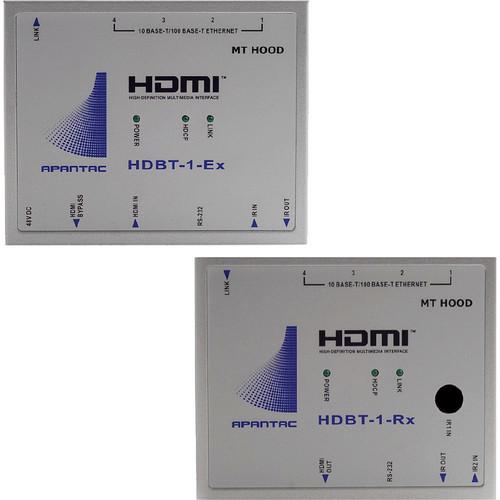

Product description The Apantac HD Base T HDMI Extender / Receiver with Ethernet, POE extends HDMI signals up to 330’ (100 m) through a single-port HDBase-T. This extender and receiver set features IR and RS232 control, Ethernet, and PoE (Power over Ethernet). - Single-port HDBase-T HDBT-1-Ex extender and HDBT-1-Rx receiver set
- Extend HDMI signals up to 330' (100 m)
- Supports HDMI and DVI formats including 1080P, HD, and 3D
- Ethernet control with 8 port hub
- HDBT-1-Rx receiver is powered by PoE
- Supports all frequency band IR control, RS232 (bi-directional transfer), 10/100 Base-T
- Ethernet (IEEE 802.3/3u/3x), HDMI 1.4 with 3D function, HDMI 1.2 and 1.3a, and 3D & CEC pass-through
- Plug-and-play; no software required
In the Box Apantac HD Base T HDMI Extender / Receiver with Ethernet, POE HDBT-1-Ex Extender HDBT-1-Rx Receiver User Manual Power Adapter (48 VDC) IR Blaster Cable (Peak Wavelength 940 nm) IR Receiver Cable Magnetic Mounting Plate Mounting Screws 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac HD Base T HDMI Extender Receiver with Ethernet, POE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

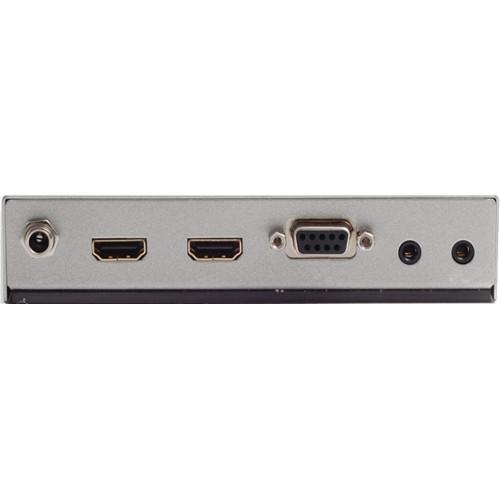

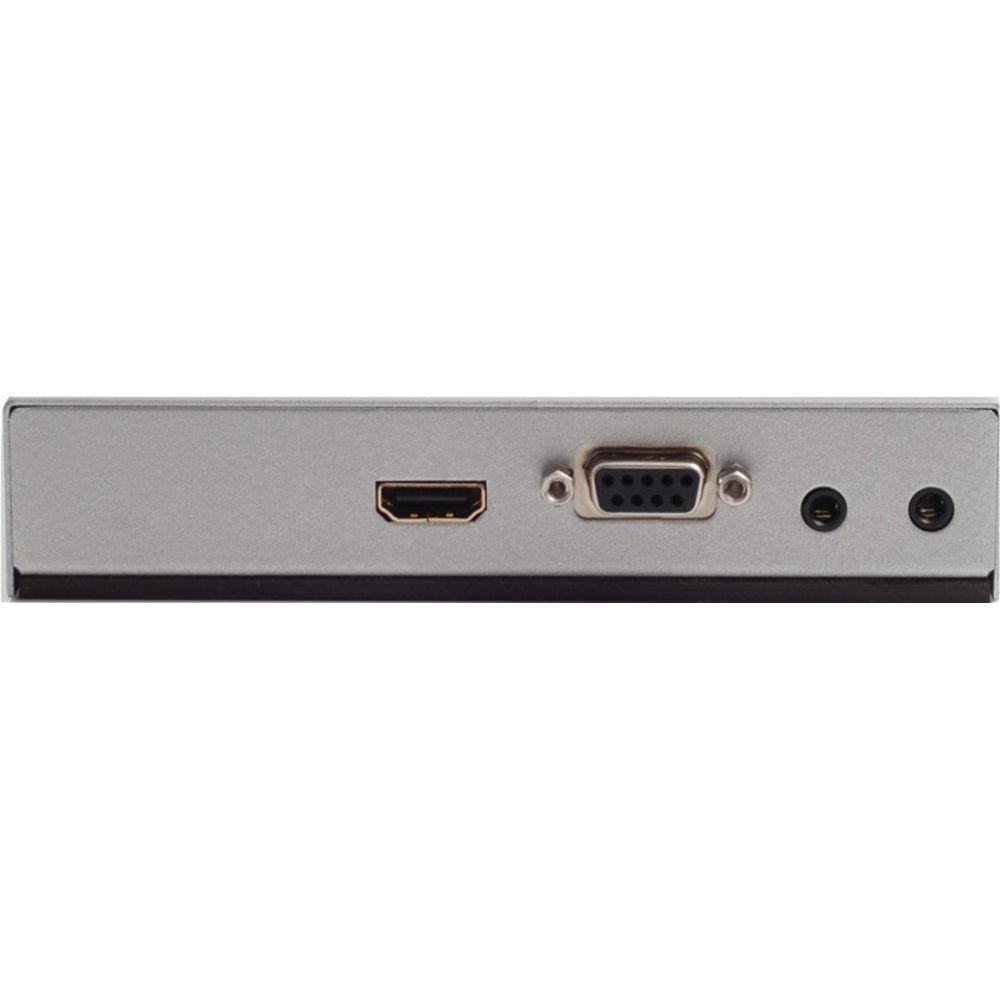

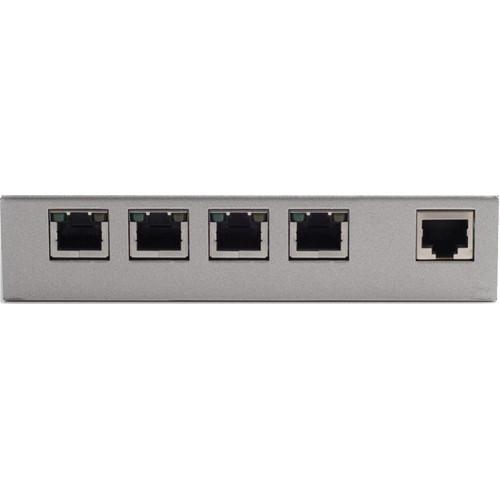

Technical parametersApantac HDBT-SET-2 Specs | | | Input | 1 x HDMI (A type female)
1 x RS232
4 x RJ45 (10/100 Base-T Ethernet)
1 x IR (3.5 mm jack) | | Output | 1 x RJ45 (link)
1 x HDMI (bypass)
1 x IR out (3.5 mm jack for emitter) | | Maximum Resolution / Distance | Maximum resolution of 1920 x 1200 (including 1080p at 60 Hz and 3D) up to 330' (100 m) | | Ethernet | 10/100 Base-T (IEEE 802.3/3u/3x) | | Power | 48 VDC | | Dimensions (W x D x H) | 6.73 x 4.72 x 0.98" (171 x 120 x 25 mm) | | | | Input | 1 x RJ45 (link)
4 x RJ45 (10/100 Base-T Ethernet)
1 x direct IR receiver (on top)
1 x extended IR receiver (3.5 mm jack) | | Output | 1 x HDMI (A type female)
1 x RS232 | | Maximum Resolution / Distance | Maximum resolution of 1920 x 1200 (including 1080p at 60 Hz and 3D) up to 330' (100 m) | | Ethernet | 10/100 Base-T (IEEE 802.3/3u/3x) | | Power | PoE | | Dimensions (W x D x H) | 6.73 x 4.72 x 0.98" (171 x 120 x 25 mm) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 12.7 x 8.9 x 5.1" |
