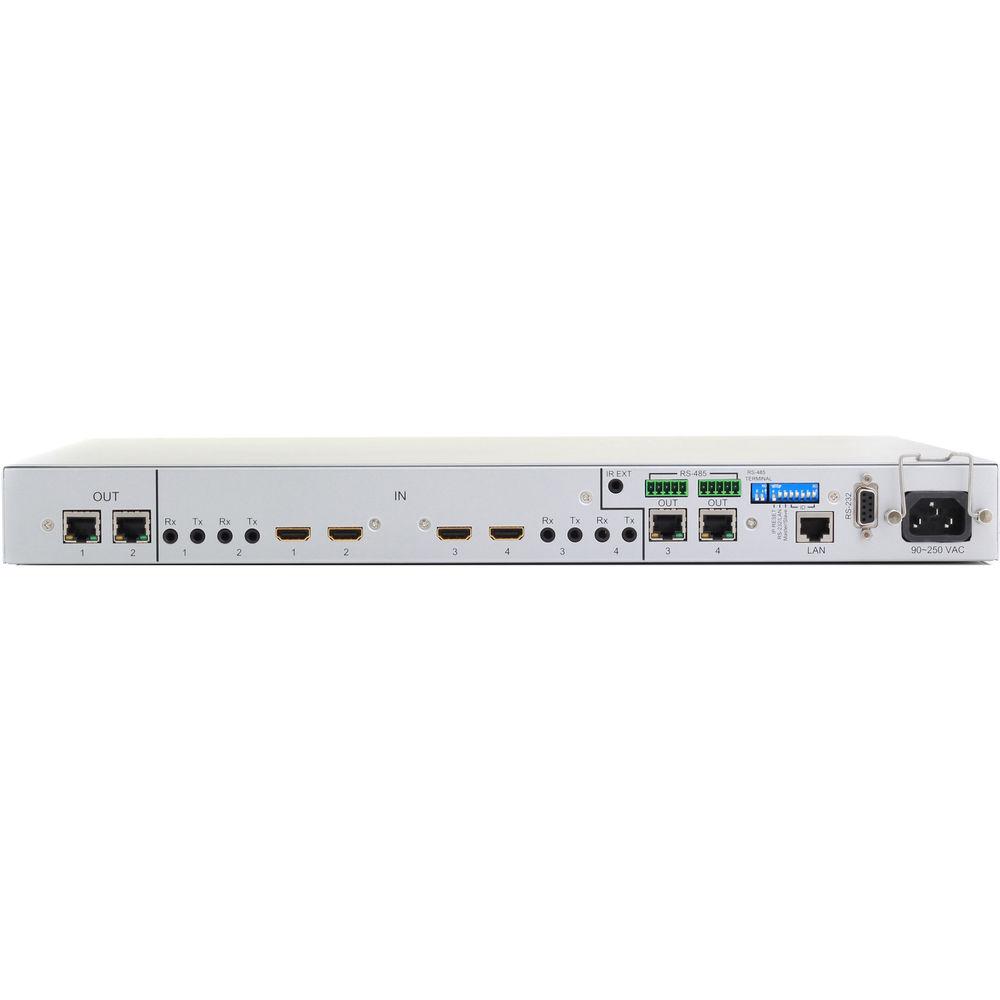

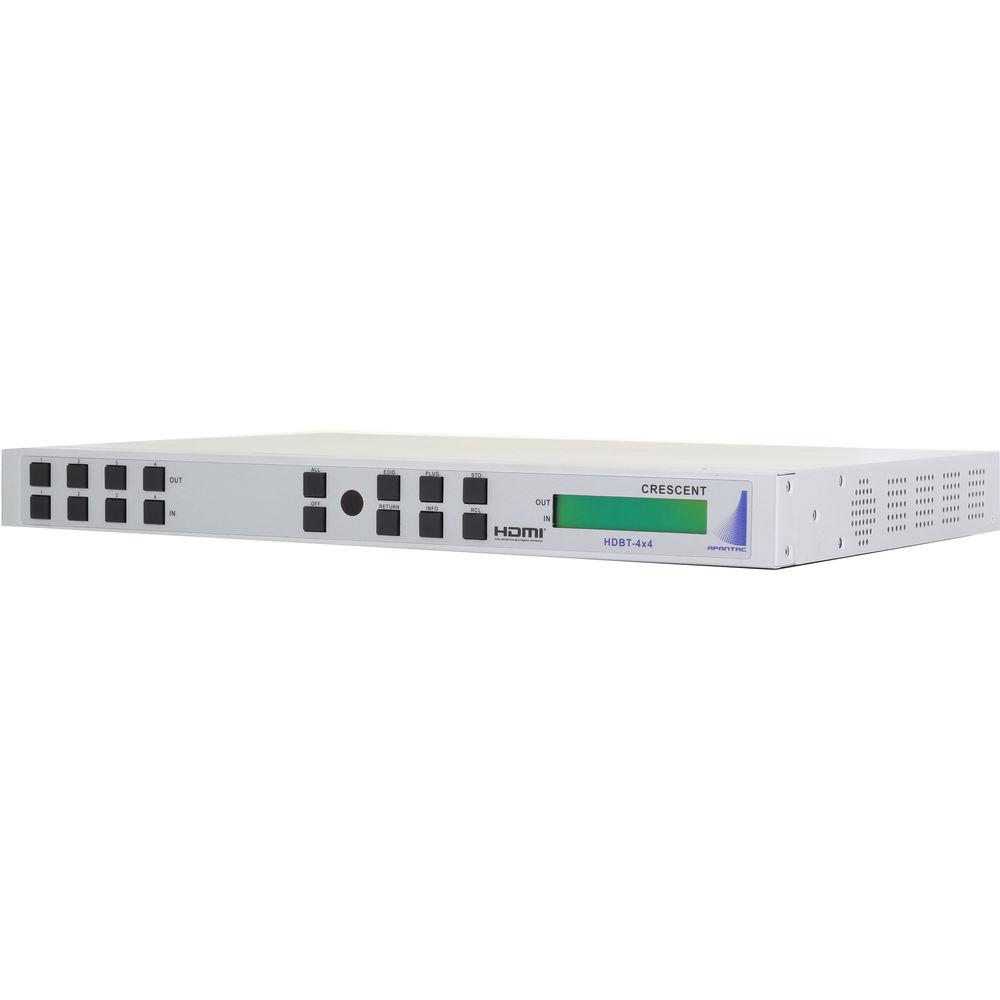

Product description Extend four HDMI sources in Ultra HD 4K, 1920 x 1200, 1080p, and 3D over single CATx cables. A 1 RU matrix switcher, Apantac's HDBT-4x4 offers a neatly organized front panel with an LCD and clearly labeled input and output controls. Route your sources via the front panel, IR, or RS-232 up to 330' to optional HDBT-1-R receivers or 230' to HDBT-1-Rs receivers. Note: Optional Apantac HDBT-1-R or HDBT-1-Rs receiver(s) required. - Key Features
-
- Extend Ultra HD 4K, 1920 x 1200, and 1080p signals up to 330' to optional HDBT-1-R receiver(s)
- Extend up to 230' to optional HDBT-1-Rs receiver(s)
- 3D signals supported
- HDMI 1.3
- HDCP compliant
- EDID management
- 8 presets
- Full audio support
- Front panel, IR, and RS-232 control
- IR pass-through from input to output
- Routes over single CATx cables
- Integrated U.S. power supply (international adapters included for international sales)
In the Box Apantac HDBaseT HDMI 4x4 Matrix Switcher (1 RU) Remote Control IR Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac HDBaseT HDMI 4x4 Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac HDBT-4X4 Specs | Inputs | 4 x HDMI 1.3 Type A, 1 x RS-232 | | Outputs | 4 x RJ45 | | Resolution Supported | Up to Ultra HD 4K x 2K 8-bit @ 30 Hz, 1920x1200, and 1080p 12-bit @ 60 Hz (including 3D) | | Transmission Distance | To Optional HDBT-1-R Receiver:
Up to 330' / 100 m in Ultra HD 4K, 1920x1200, 1080p (including 3D)
To Optional HDBT-1-Rs Receiver:
Up to 230' / 70 m in Ultra HD 4K, 1920x1200, 1080p (including 3D) | | Power | 90-240 VAC
Integrated U.S. power supply (international adapters provided for international sales) | | Dimensions | 1 RU |
