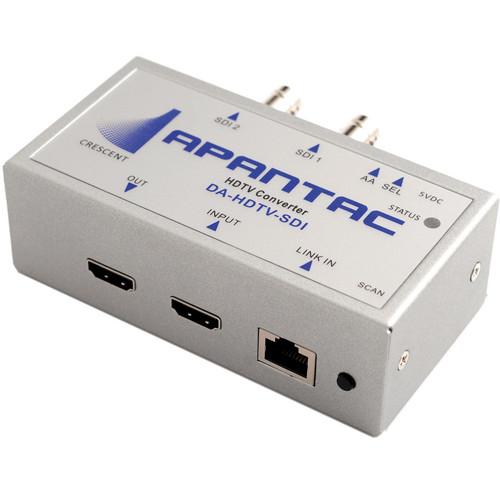

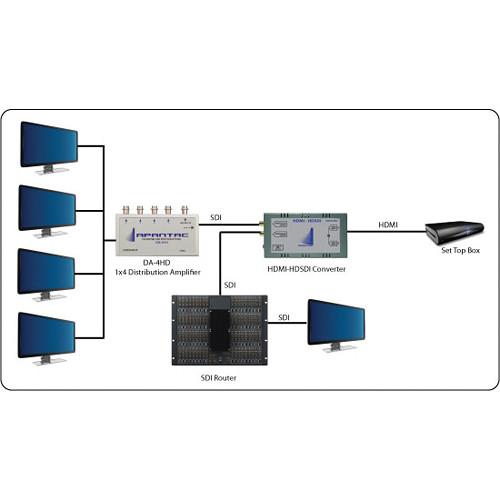

Product description Apantac's HDMI 1.3a to SDI Converter with Dual 3G-SDI Out converts an HDMI input to two 3G/HD-SDI outputs with 4 channels of embedded audio. The converter is HDCP-compliant and is capable of and requires HDCP handshaking. In addition to the HDMI input, an RJ45 input is available for signals converted from HDMI by an optional HDMI to RJ45 converter (for the purpose of achieving even greater distance via CAT5e/6 cables, which have longer carry capacity than HDMI cables). - Key Features
-
- HDMI and HDMI-converted RJ45 inputs
- 2x 3G/HD-SDI outputs with 4 channels of embedded audio
- Supports HDMI 1.2 and 1.3a
- Capable of and requires HDCP handshaking
- Capable of converting 1080p input to 1080i output
- Built-in Color Bar generator
- Analog Stereo output
- RJ45 input is Tahoma multiviewer compatible

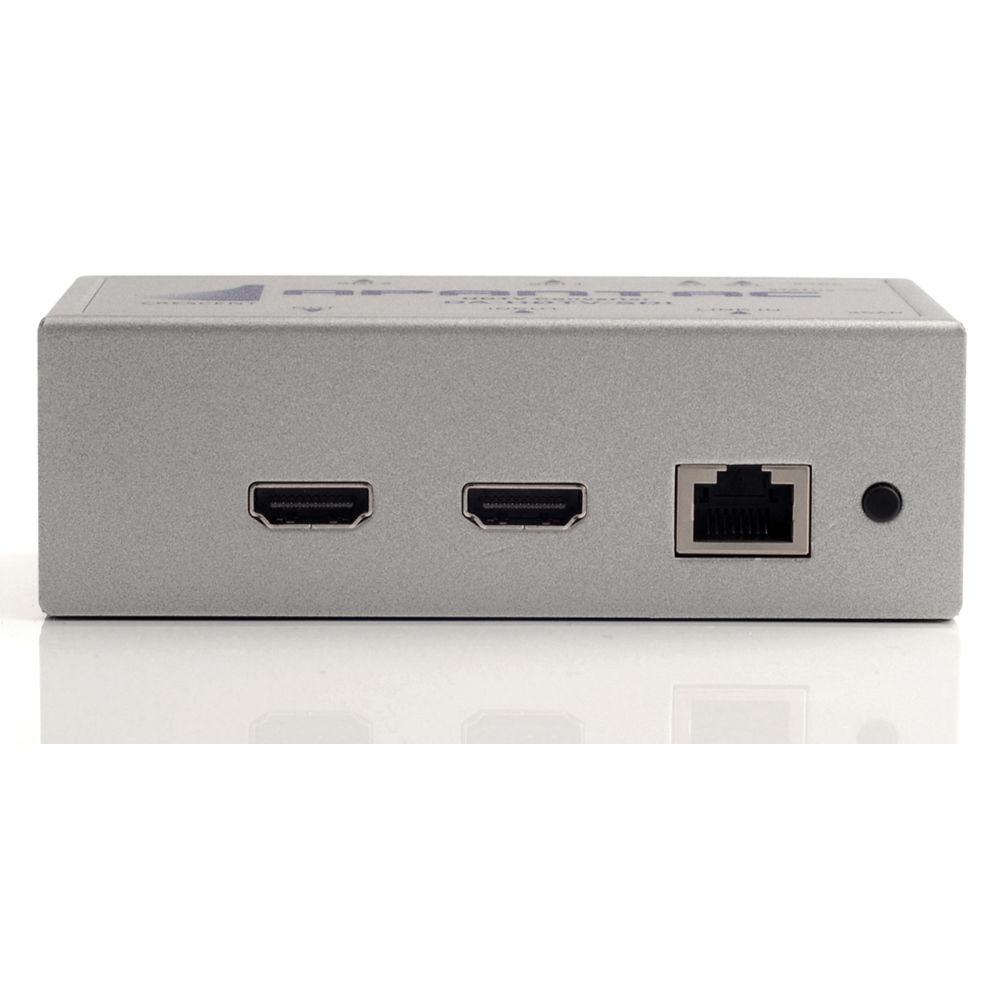

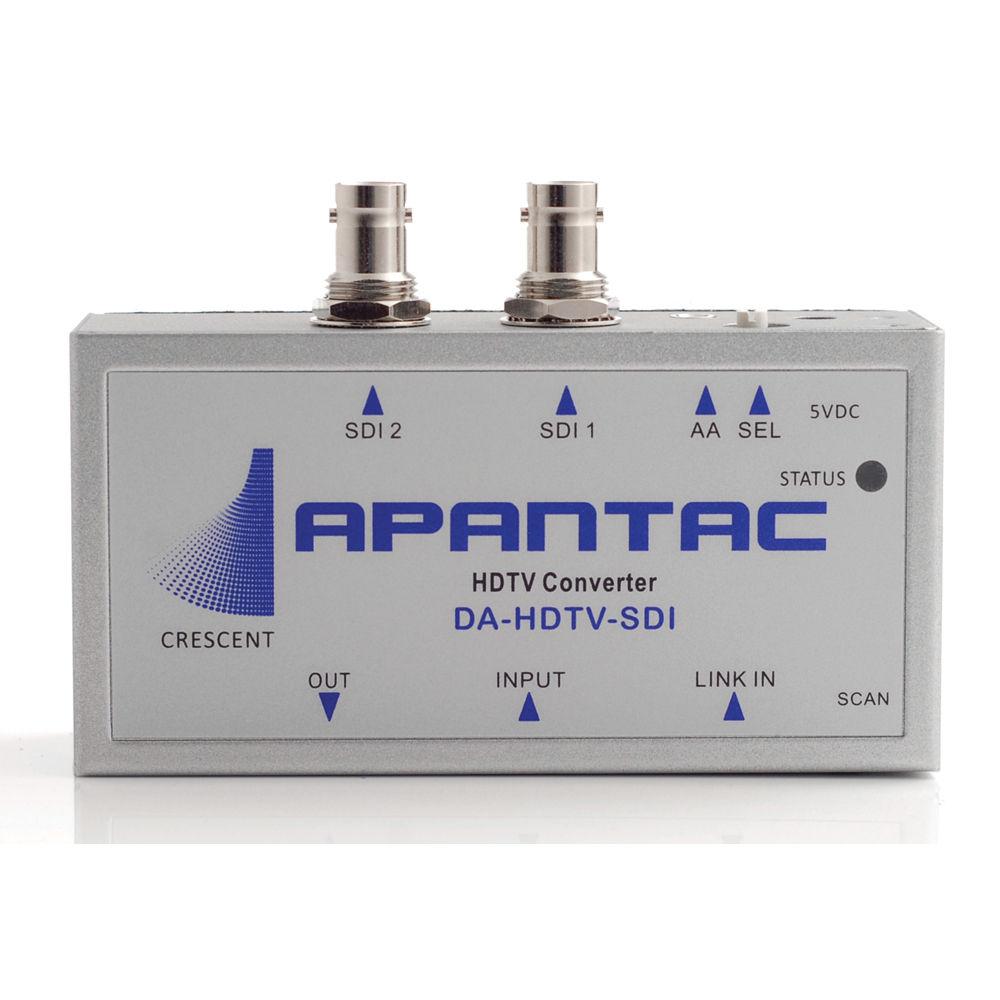

- Controls & Indicators
-
- Function Selection Rotary Switch: for interlacing and for internal color bars
- Scan Button: scans between the HDMI and RJ45 inputs to look for an active signal
- Status Indicator: turns green when power is on, amber when an HDMI signal is present
In the Box Apantac HDMI 1.3a to SDI Converter with Dual 3G-SDI Out 5V 3.2A Power Adapter Power Adapter Fastener Stereo Phone Jack Cable (1 x 2) 75 Ω Terminator Magnetic Mounting Plate Mounting Screws User Manual Limited 3-Year Warranty User Manual PDF 649.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac HDMI 1.3a to SDI Converter with Dual 3G-SDI Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DA-HDTV-SDI Specs | Inputs | 1x HDMI
1x RJ45 (for HDMI signals converted to CAT5/6 via optional converter) | | Outputs | 2x 3G/HD-SDI
1x Stereo audio jack
Terminator should be applied to the second SDI output when it isn't in use | | Maximum Resolution / Distance | HD-SDI up to 460 ft (140 m), 3G up to 393 ft (120 m) | | Power | 5V 3.2A power input | | Dimensions | 2.4 x 4.4 x 1.4" (6.2 x 11.2 x 3.5 cm) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.4 x 7.3 x 3.8" |
