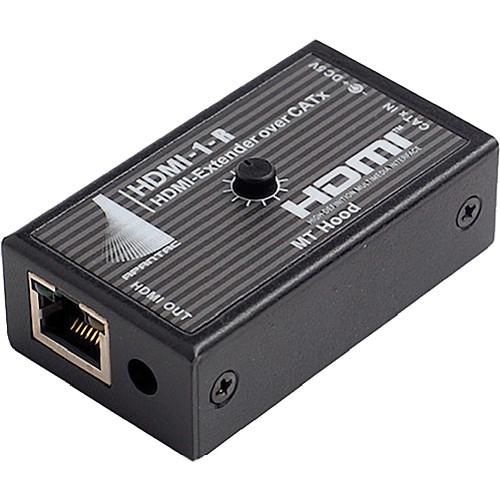

User Manual for Apantac HDMI-1-R MT HOOD CATx Single-Port HDMI Receiver Click to enlarge the picture
Contents of the user manual for the Apantac HDMI-1-R MT HOOD CATx Single-Port
- Product category: Video Extenders & Repeaters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Video Extenders & Repeaters
|
User manual for the Apantac HDMI-1-R MT HOOD CATx Single-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Apantac HDMI-1-R MT HOOD CATx Single-Port HDMI Receiver receives HDMI signals over a single CATx cable. It supports extension of 1080p resolution data up to 330’ (100m) when used with a compatible transmitter (sold separately) that supports HDBase-T technology. In addition to being compatible with HDMI 1.2 and 1.3, this single-port receiver also offers 3D and CEC pass-through and plug & play operation. Integration of the receiver into your system is effortless thanks to its plug & play capability, which eliminates the need for additional software. Moreover, a compact size allows for easy deployment in space-constrained locations. Note: The range of the receiver is reduced to up to 115' (35m) when any other HDMI transmitter is used. - Supports full 480p, 720p, 1080i, and 1080p resolutions
- Receives 1080p signals up to 115' (35m) via a single CATx cable
- Simple plug & play operation; no additional software required
- With the HDBase-T technology, it can receive 1080p signals up to 330' (100m) over a single CATx cable
- Supports HDMI version 1.2 and 1.3a and also supports version 1.4 with the 3D function
- Plug & play capability eliminates the need using for any software for installation
- Supports 3D pass-through technology for Blu-ray 3D movies, video games, and other 3D content
- Supports CEC pass-through for remotely controlling CEC-enabled devices like a TV set, set-top box, or DVD player
- Supports bi-directional data transfer via RS-232 interface
- Supports all frequency bandwidths for remote IR control
In the Box Apantac HDMI-1-R MT HOOD CATx Single-Port HDMI Receiver 5V, 1A Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac HDMI-1-R MT HOOD CATx Single-Port HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac HDMI-1-R Specs | Type | Single-port HDMI receiver | | Input | 1 x RJ45 | | Output | 1 x HDMI (A-type female) | | Maximum Resolution | 1920 x 1080p @ 60 Hz | | Cable Distance | Up to 115' (35 m) | | Adjustments | Equalizer | | Power | 5 VDC, 1 A | | Dimensions (W x D x H) | 2.64 x 1.46 x 0.94" (67.00 x 37.00 x 24.00 mm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.35 x 3.05 x 2.95" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
