User Manual for Apantac HDMI-4x4 Matrix Switch Click to enlarge the picture
Contents of the user manual for the Apantac HDMI-4x4 Matrix Switch
- Product category: Routers & Switchers Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Routers & Switchers
|
User manual for the Apantac HDMI-4x4 Matrix Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

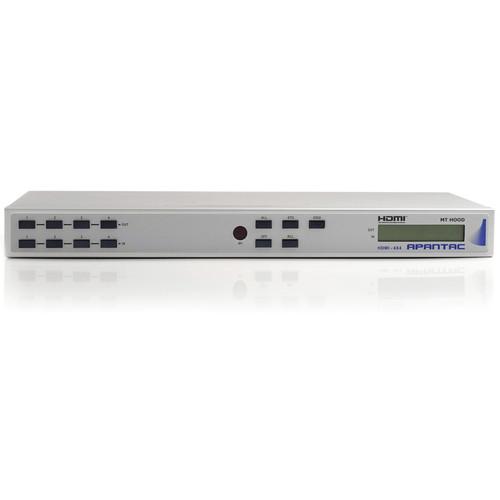

Product description The HDMI-4x4 Matrix Switch from Apantac allows you to route any of four inputs to any of four outputs - each input can have a dedicated output, or you can use the HDMI-4x4 as a distributor, sending a single input to two, three, or even all outputs. It supports video resolutions up to 2K (2048 x 1080) and VESA computer resolutions up to WUXGA (1920 x 1200); and it supports up to 12-bit per channel color (Deep Color). - Front Panel LCD Display
- Operate and check device status directly using the front panel LCD display and menu navigation and input/output selection buttons
- EDID Management
- Passes a connected display's unique device ID signature to the video source, ensuring a compatible signal is delivered. In cases where one source is routed to several displays of different resolution, the ID of the lowest resolution display will be used
- HDCP Support
- View copy-protected content from sources such as commercial Blu-ray Discs
- IR Remote Port
- For installations where direct line-of-sight contact with the switch cannot be made, an IR "EYE" (included) can be hardwired into the unit and placed where it can receive a signal from the remote control
- RS-232 Port
- For integration with automation systems such as Crestron or to operate the switcher remotely using custom-developed software
- Rackmountable Form Factor
- Fits in a 1RU-high rack space, and includes the rack "ears" required for installation
In the Box Apantac HDMI-4x4 Matrix Switch Power Supply Rack Ears IR Remote IR Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac HDMI-4x4 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac HDMI-4X4 Specs | | | Inputs | 4 x HDMI | | Outputs | 4 x HDMI | | Control | 1 x IR port on 3.5 mm mini jack 1 x RS-232 on DB9 female | | | | Supported Resolutions | 480i, 480p, 720p, 1080i, 1080i, 1080p, 1920 x 1200, 2048 x 1080 | | Color Depth | Up to 12-bit per channel (Deep Color) | | EDID Management | Yes | | | | Power Requirements | Device: 12V DC | | Rack Height | 1 RU | | Dimensions (W x D x H) | 17.3 x 7.3 x 1.7" / 440 x 185 x 43 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 23.0 x 10.0 x 4.0" |
