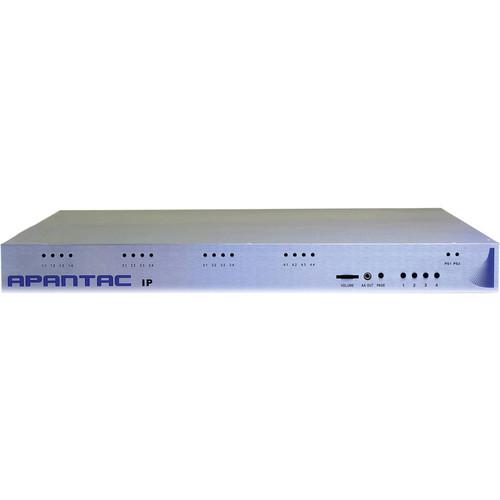

Product description The IP-4 TAHOMA IP/ANSI Multiviewer from Apantac is capable of decoding up to four streams and providing output resolutions up to 2048 x 1080 (1080p). It features built-in video and audio alarm detections with multiple modes, including No Audio, Audio High/Low, No Video, Video Black, and Video Frozen modes. In addition, it supports Apantac skin technology which allows users to design on-screen graphical elements with any graphics tool. - Key Features
-
- Decodes up to four streams
- Output resolutions up to 2048 x 1080p
- MPEG2 MP @ HL, resolution up to 1080p/i @ 60 Hz
- Compliant to ISO/IEC 13818-1 MPEG-2 transport stream specifications
- Demultiplex incoming SPTS/MPTS
- Supports AFD, WSS
- MPEG2/H.264 decoding
- Supports both 50 and 60 Hz frequencies
- Built-in CatX extender for each output
- Supports passive short-distance receivers up to 35’, and active long-distance receivers up to 115’
- Multiple labels per video windows—UMD, OMD, IMD, standalone labels
- Built-in video, audio alarm detections—No Audio, Audio High/Low, No Video, Video Black, and Video Frozen
- Apantac skin technology allows on-screen graphical elements to be designed with any graphics tool
- Front panel headphone jack with volume adjustment for audio monitoring
- Front panel buttons for quick preset recalls
- 1 RU with optional redundant power supply
In the Box Apantac IP-4 TAHOMA IP/ANSI Multiviewer Cat5 Cable (15') DVI and HDMI Short Distance Receiver SCSI to DB9 Adapter RJ50 to DB9 Adapter RJ45 to DB9 Adapter Rack Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac IP-4 TAHOMA IP ANSI Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac IP-4 Specs | Video Inputs | MPEG2 transport stream, H.264, MPEG4 | | Connectors | BNC, IEC 61169-8 Annex A | | Total Windows | 4 | | Metadata | AFD, WSS, close captioning | | Decoding | MPEG2/H.264 decodes up to four video streams at 1080i; decodes one stereo audio stream per video stream | | Audio Alarm Modes | No Audio / Audio High/Low / No Video / Video Black / Video Frozen | | Control | Front panel buttons for quick preset recalls, GPIs, Apantac ASCII protocol (AXP), Director (config & control app) | | Outputs | 2 x DVI, HDMI (RJ45); SDI (optional) | | Output Resolution | 2048 x 1080p | | On-Screen Display | Skin technology for customizing borders, labels (4/window), fonts, tally LED, clock faces, logos, UMD, OMD, IMD | | General Purpose IO | Up to 24 inputs with DB9 connectors | | Serial Port | RS-232 with RS-422 or 485 option
RJ45 connector
Baud rate up to 115,200 bps
Format: TSL, TSI, AXP | | IP | 100 Base-Tx, TSL, AXP
RJ45 connector | | EMI/RFI | Complies with FCC part 15 class A, CE, EU EMC, C-Tick | | Power | 100 W, 90 to 250 V, 50/60 Hz
Supports optional redundant power supply | | Dimensions (WxD) | 17.5 x 19.7" (44.5 x 50 cm)
1 RU |
