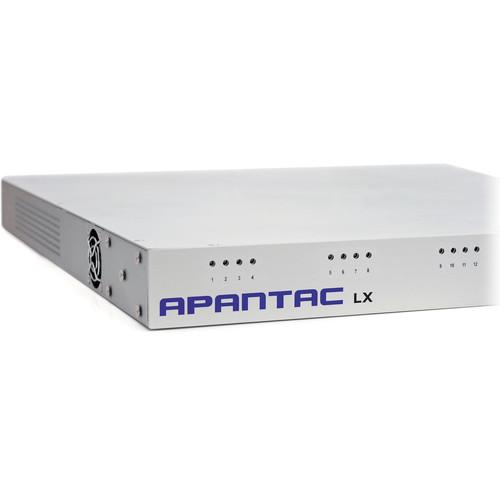

User Manual for Apantac LX-16HD HD SD-SDI Multiviewer with Router Click to enlarge the picture
Contents of the user manual for the Apantac LX-16HD HD SD-SDI Multiviewer with
- Product category: Multiviewer Processors Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Multiviewer Processors
|
User manual for the Apantac LX-16HD HD SD-SDI Multiviewer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Apantac LX-16HD HD/SD-SDI Multiviewer with Router consists of a built-in 16x16 SDI routing switcher, which accepts 16 HD-SDI inputs and displays any input to one ore more of the 16 available windows. Regardless of the output configuration, any input is switchable to 1 or more image windows. With single frame processing delay, it offers support for up to 16 channels of embedded audio per SDI input. The SCSI connectors on each input board can take in 16 channels of audio through a SCSI adapter (not included), which is 4 channels of discrete audio per input window. The multiviewer provides DVI, HDMI, and full 10-bit HDMI 1.3 outputs with a resolution of up to 2048 x 1080 (including 1080p). Optional accessories are available for converting CATx DVI/HDMI to VGA or SDI. The unit is also field upgradable, and allows discrete audio (AES/AA).
A built-in CATx transmitter extends the range up to 35' for 1080p resolution with a passive, short-distance receiver (included); or up to 115' with an active, long-distance receiver (not included). The Multiviewer includes analog and digital clocks for time of day and up/down counters, as well as LTC timecode and NTP for clock synchronization. It includes multiple labels, and with Apantac skin technology allows customizing borders, labels (4 / window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, and dynamic UMD.
With automatic input aspect ratio detection, it has a built-in video, audio alarm detections like no audio, audio high/low, no video, video black, video frozen, WSS/AFD. The LX-16HD Multiviewer comes with front panel buttons for quick preset recalls and a front panel headphone jack with volume control, and comes with a 1 RU size. - Built-in 16x16 SDI Routing Switcher - accepts 16 HD/SD-SDI inputs, and displays any input to any of the 16 available windows
- Offers support for up to 16 channels of SDI embedded audio and 4 channels of discrete audio per input (optional)
- Any input switchable to 1 or more image windows regardless of the output configuration
- Single frame processing delay
- Supports DVI, HDMI, VGA (optional), SDI (optional), and full 10-bit HDMI 1.3 outputs with a resolution of up to 2048 x 1080 (including 1080p)
- Field upgradable and allows discrete audio (AES/AA)
- Features a built-in CATx extender that extends up to 35' with a passive receiver (included) or up to 115' with an active receiver (not included)
- Includes analog and digital clocks for time of day and up/down counters with LTC timecode and NTP for clock synchronization
- Includes multiple labels, and with Apantac skin technology allows customizing borders, labels (4 / window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, and dynamic UMD
- Automatic input aspect ratio detection
- Built-in video, audio alarm detections like no audio, audio high/low, no video, video black, video frozen, WSS/AFD
- Supports closed captions (line 21, CEA 608, CEA 708)
- Front panel buttons for quick preset recalls
- Front panel headphone jack with volume control
In the Box Apantac LX-16HD HD/SD-SDI Multiviewer with Router (16 Inputs) CAT5 Cable (15') DVI and HDMI Short Distance Receiver Rack mount SCSI to DB9 for GPI RJ50 to DB9 for GPI per module Director Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac LX-16HD HD SD-SDI Multiviewer with Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac LX-16HD Specs | Video Inputs | 16 HD/SD-SDI | | Connectors | BNC IEC 61169-8 Annex A | | Total windows | 16 | | Serial Digital | SMPTE 424M, 292M, 259M | | Equalization | 120 m at 2.97 Gbps, 140 m at 1.48 Gbps, 400 m at 270 Mbps with Belden 1694A | | Video Return Loss | > 15db up to 1.5 Gbps
> 10db up to 3G | | Embedded Audio | SMPTE-272M-A | | Signal Level | 1V nominal | | DC Offset | 0V, ±0.1V | | Impedance | 75 Ω | | Embedded Audio Return Loss | 40 dB up to 5 MHz | | Alarm | No audio, audio high / low, no video, video black, video frozen, WSS, AFD | | Control | Front panel buttons for quick preset recalls, GPIs, Apantac ASCII Protocol (AXP), Director (configuration and control application) | | AES Audio | 4 channels / video input (2 pairs, balanced / unbalanced) | | Analog Stereo | 4 channels / video input (balanced / unbalanced) | | Outputs | DVI, HDMI, VGA (option), 1 SDI (option) | | Output Resolution | 800 x 480 - 2048 x 1080 (1080p) | | Built-in CATx Extender | Up to 35.0' (10.7 m) with passive receiver (included)
Up to 115.0' (35.1 m) with active receiver (not included) | | Built-in Routing Switcher | Route any input source to any Multiviewer output | | On-Screen Display | Skin Technology for customizing borders, labels (4 / window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, dynamic UMD | | General Purpose IO | 24 inputs with DB9 connectors | | Serial Port | RS232 with RS422 or RS485 option
Connector: RJ45Baud Rate Up to 115200
Supported Protocols: TSL, TSI, AXP | | IP | 100 Base-TX, Supported Protocols: TSL, AXP, Connector: RJ45 | | Electrical | 110W, 90-250V 50/60 Hz | | EMI/RFI | Complies with FCC Part 15, Class A, CE, EU EMC, C-tick | | Power | Optional redundant power supply | | Dimensions | 17.5 x 19.7" (44.5 x 50.0 cm), 1 RU | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 26.0 x 23.0 x 8.0" |
