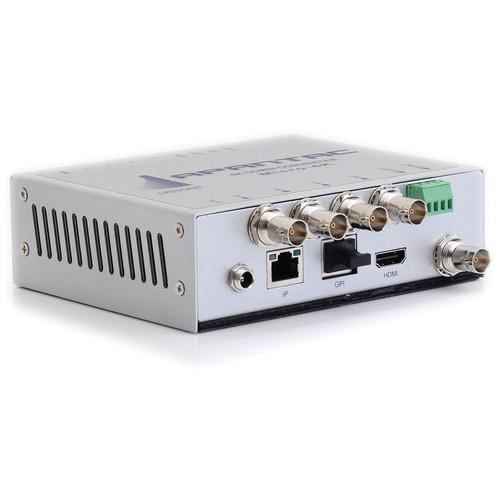

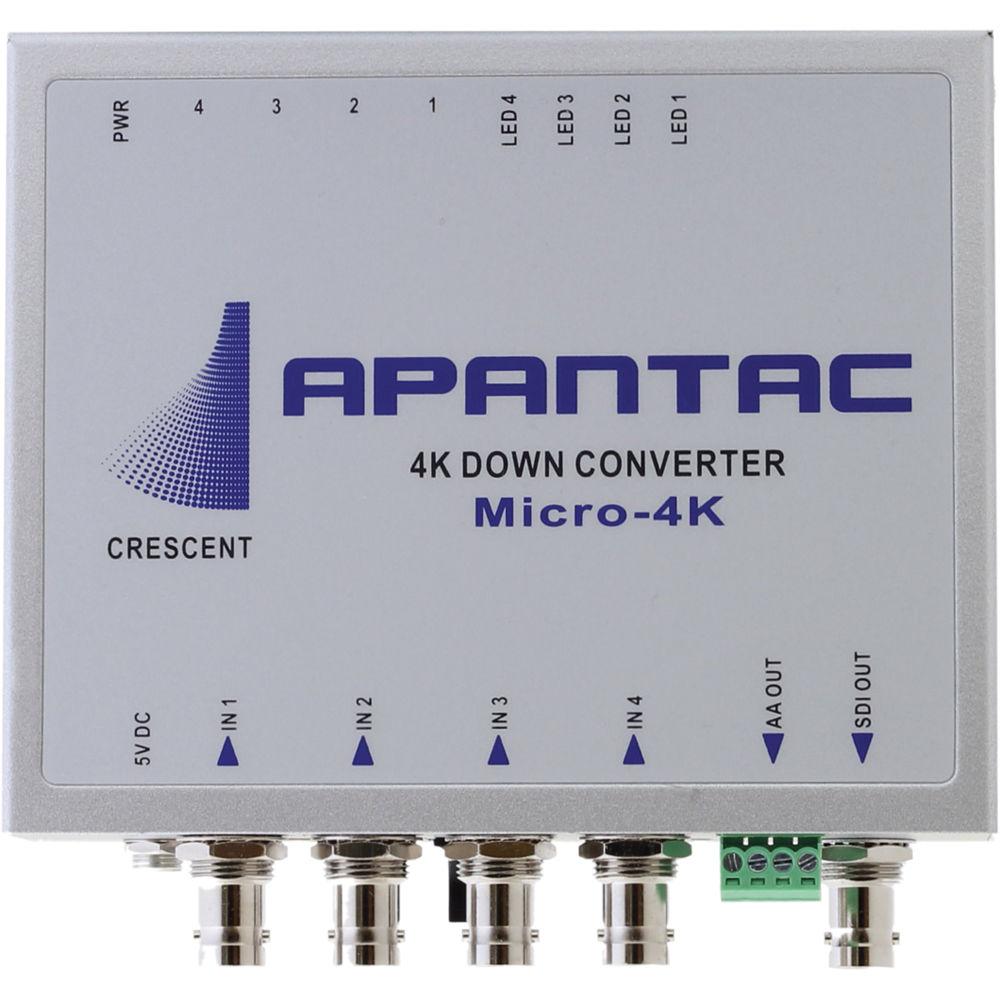

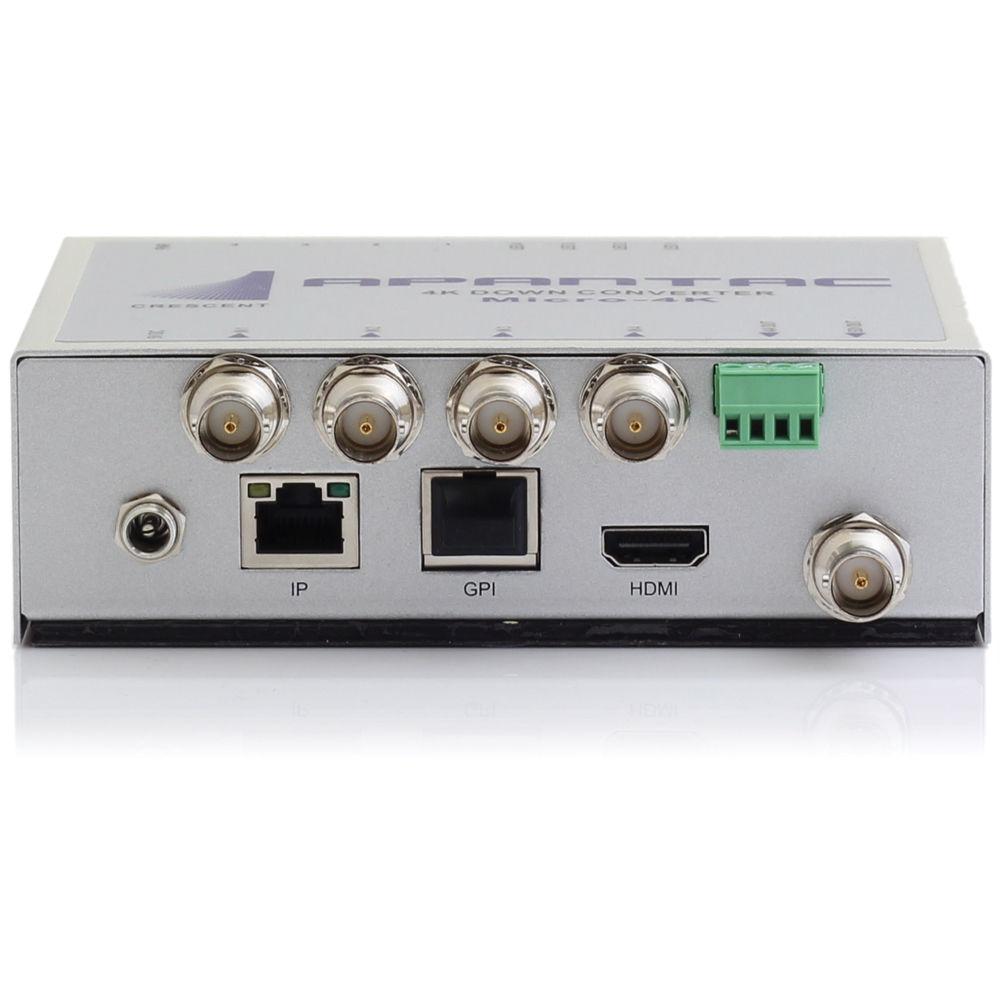

Product description The Micro-4K 4K to HD Down Converter from Apantac features total of 4 BNC connectors each of which can auto-detect 3G-SDI, HD-SDI, or SD-SDI input. It is able to downconvert 4K video signals sent via quad-link HD-SDI or 3G-SDI. After processing, it is capable of producing HDMI and SDI outputs of up to 1080p resolution. For audio, it supports up to 8 channels of embedded audio and provides stereo analog audio output. -
- Supports 4K over four SDI inputs
- HDMI and SDI output with embedded audio for monitoring
- Supports HDMI and SDI output resolution up to 1080p
- Supports up to 8 channels of embedded audio
- IP control
- Stereo analog audio output
- Features safe area indicators
- Supports Dynamic Tally via TSL (IP) or GPI

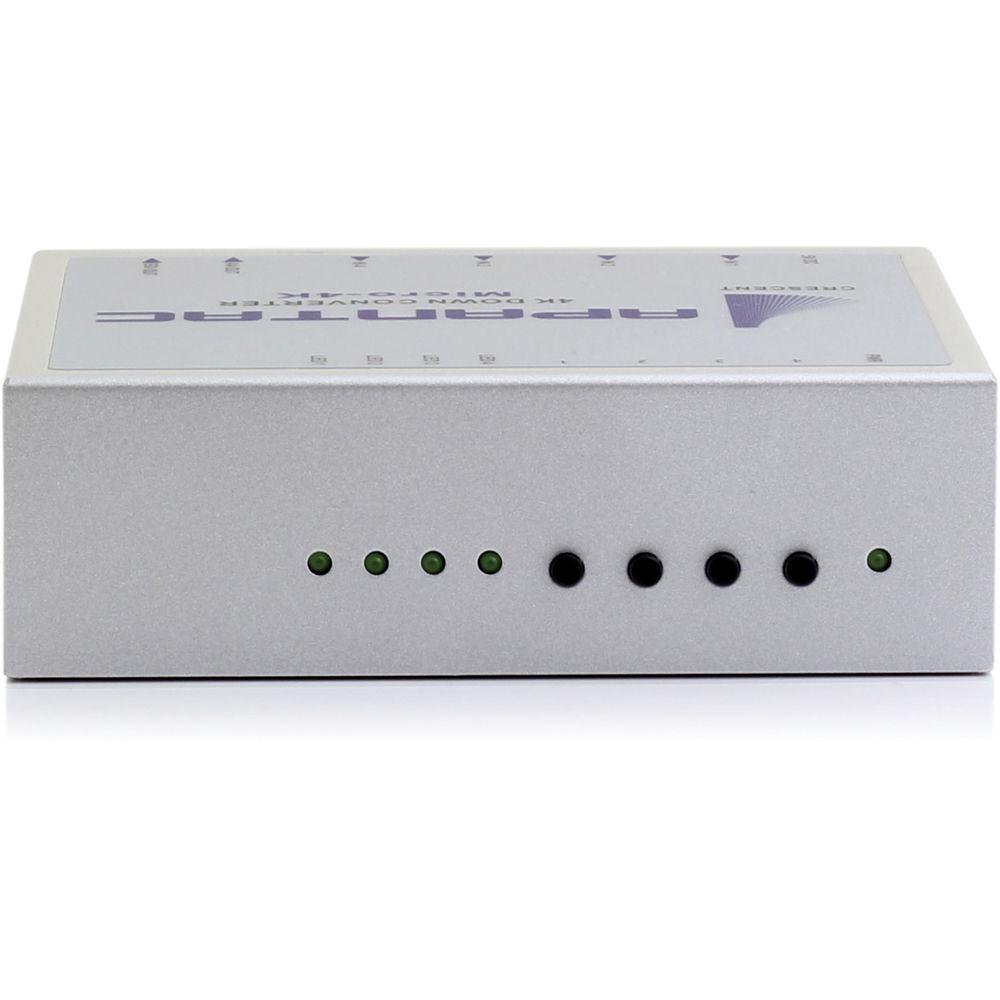

- Front panel buttons to recall presets; each button is dedicated for each input
In the Box Apantac Micro-4K 4K to HD Down Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Micro-4K 4K to HD Down Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac MICRO-4K Specs | Video Inputs | 4 x 3G/HD/SD-SDI via BNC Connector | | Video Outputs | 1 x HDMI
1 x 3G/HD/SD-SDI via BNC Connector | | Total Windows | 1 | | Serial Digital | SMPTE 424M, 292M, 259M | | Equalization | 394' (120 m) at 2.97 Gb/s, 459' (140 m) at 1.48 Gb/s, 1312' (400 m) at 270 Mb/s with Belden 1694A | | Return Loss | >15 dB up to 1.485 Gb/s; >10 dB up to 3G | | Embedded Audio | SMPTE-272M-A | | HDMI Resolutions | 800 x 480 to 1920 x 1200 (1080p) @ 50/60 Hz | | SDI | Matching HDMI output resolution up to 3G | | Audio Output | Stereo analog | | On-Screen Display | Border, label, alarms, and audio meters | | GPI | 8 for tally, preset recall or ASCII | | IP | 100 Base-Tx, TSL, AXP | | EMI / RFI | Complies with FCC Part 15, Class A, CE, EU, EMC, C-tick | | Mount | Magnetic | | Electrical | 12 W, 90 to 250 VAC, 50/60 Hz | | Power | 5 VDC, 3 A | | Dimensions | 9 x 7 x 5" (23 x 18 x 13 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.3 x 7.0 x 5.1" |
