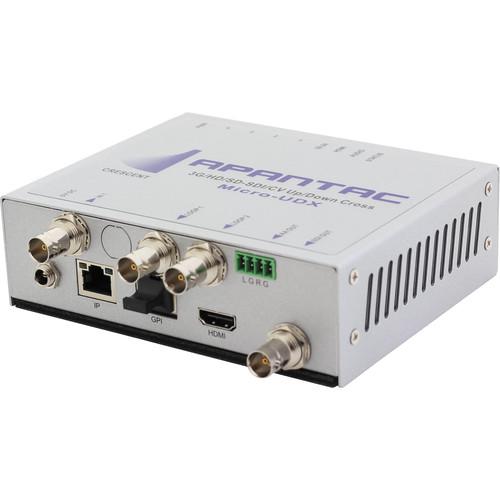

User Manual for Apantac Micro-UDX Up Down Cross Converter Click to enlarge the picture
Contents of the user manual for the Apantac Micro-UDX Up Down Cross Converter
- Product category: Signal Converters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Signal Converters
|
User manual for the Apantac Micro-UDX Up Down Cross Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Micro-UDX Up / Down / Cross Converter from Apantac allows you to convert signals between 3G-SDI, HD-SDI, SD-SDI, and composite video signals. It supports 8 embedded audio per SDI input signal and provides mirrored HDMI and SDI output with embedded audio for monitoring. - Stereo analog audio output
- Silent operation with low power consumption
- Accepts 1 x auto-detect 3G-SDI, HD-SDI, SD-SDI, and composite video signals
- HDMI and SDI output with embedded audio for monitoring
- Decodes up to 8 embedded audio per SDI input
- Ethernet port for configuration
- Audio monitoring output analog, HDMI
- Four configurable front panel buttons to recall presets
- Features 8 GPI contacts that can be configured for tally or ASCII protocols
In the Box Apantac Micro-UDX Up / Down / Cross Converter Mounting Plate RJ50 to DB9 cable for GPI/Tally 75 Ω BNC Terminator 5VDC, 3.2A Power Adapter Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Micro-UDX Up Down Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac MICRO-UDX Specs | Video Inputs | 1 x BNC that supports 3G/HD/SD-SDI & Composite Signals | | Outputs | 1 x HDMI
1 x BNC that supports 3G/HD/SD-SDI Signals | | Total Windows | 1 | | Serial Digital | SMPTE 424M, 292M, 259M | | Equalization | 393.7' (120.0 m) at 2.97 Gb/s, 459.3' (140.0 m) at 1.48 Gb/s, 1312.3' (400.0 m) at 270 Mb/s with Belden 1694A | | Return Loss | > 15 dB up to 1.485 Gb/s
> 10 dB up to 3G | | Embedded audio | SMPTE-272M-A | | Composite | NTSC (SMPTE-170M), PAL (ITU624-2) | | Signal Level | 1 V nominal | | DC Offset | 0 V, ± 0.1 V | | Source Impedence | 75 Ω | | Return Loss | 40 db up to 5 MHz | | GPI | 8 for tally or AXP (ASCII commands) | | HDMI | 800 x 480 to 1920 x 1200, (1080p) 50/59.94/60 Hz | | SDI | Matching HDMI output resolution up to 3G | | IP | 100 Base-Tx, TSL, AXP, AXP_Lite | | EMI/RFI | Complies with FCC Part 15, Class A, CE, EU, EMC, C-tick | | Electrical | 12 W, 90 to 250 V 50/60 Hz | | Power | 5 VDC 3.2 A | | Mount | Magnetic | | Dimensions (W x D x H) | 6.7 x 4.7 x 1.7" (17.1 x 12.0 x 4.4 cm) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.0" |
