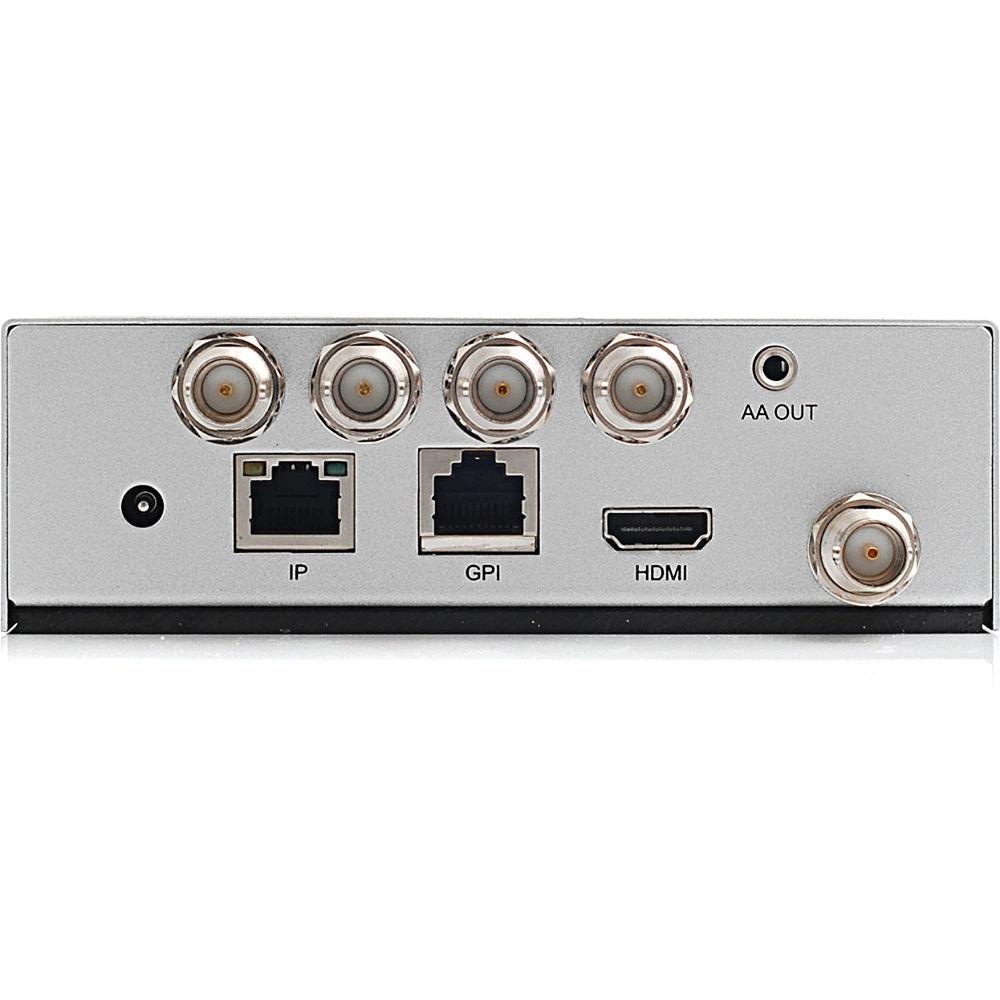

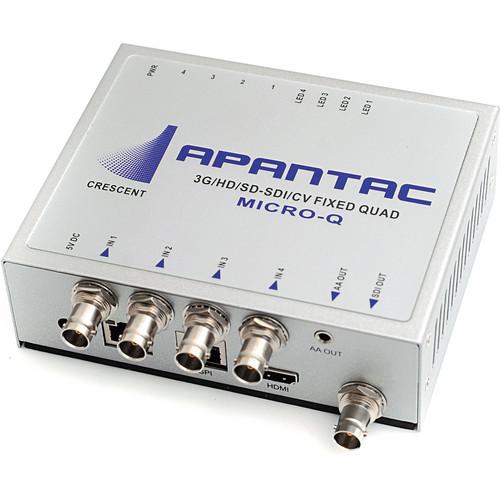

Product description The Apantac MicroQ-S Simple Quad-Split supports 3G/HD-SDI and composite input in 50/60 Hz, and HDMI and SDI output with embedded audio for monitoring. Any window can be made full screen. - Key Features
-
- Supports 3G/HD-SDI and composite input in 50/60Hz
- HDMI and SDI output with embedded audio for monitoring
- Stereo analog audio output
- Any Window can be made full screen

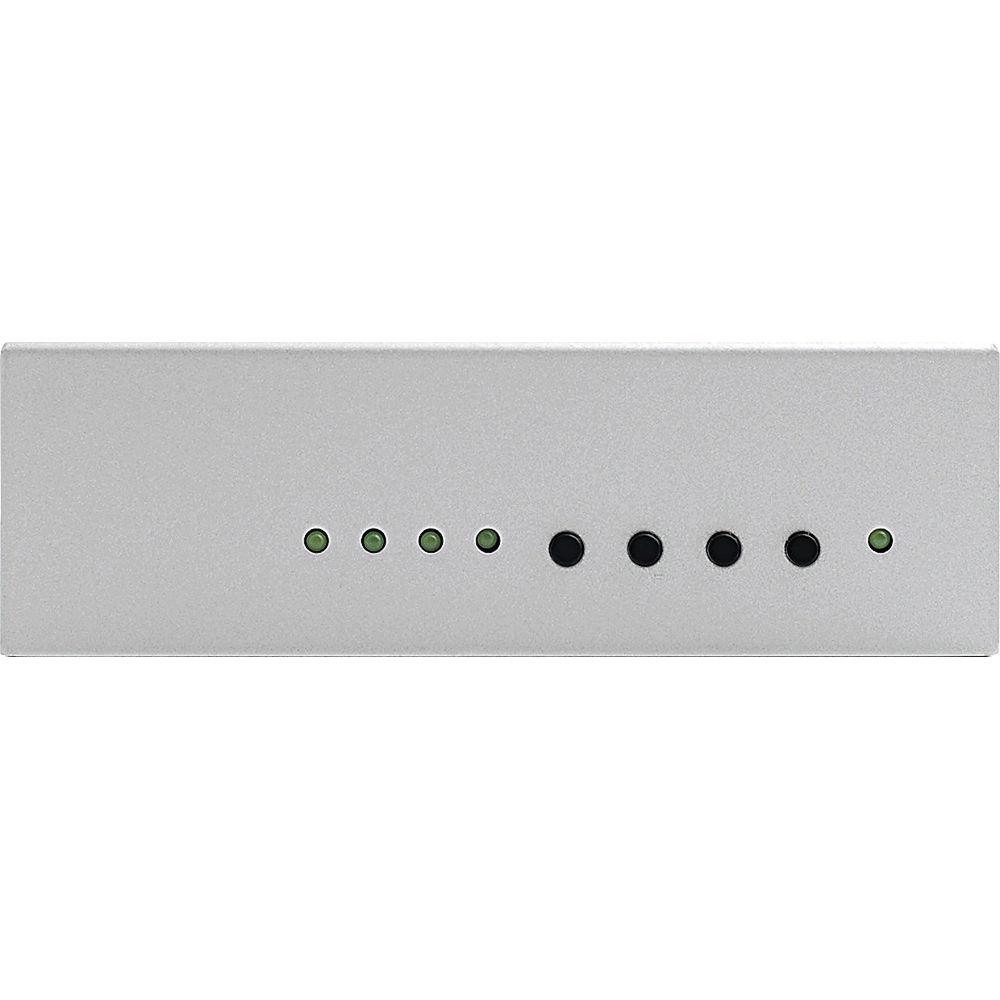

- Front panel preset buttons
- IP control
In the Box Apantac MicroQ-S Simple Quad-Split 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac MicroQ-S Simple Quad-Split in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac MICROQ-S Specs | Video Inputs | 3G/HD/SD-SDI, composite | | Windows | 4 | | Serial Digital | SMPTE 424M, 292M, 259M
Equalization: 393 ft (120 m) at 2.97 Gbps, 460 ft (140 m) at 1.48 Gbps, 1312 ft (400 m) at 270 Mbps, with Belden 1694A
Return Loss: > 15 db up to 1.485 Gbps < > 10 db up to 3G
Embedded Audio: SMPTE-272M-A | | Composite | NTSC (SMPTE-170M), PAL (ITU624-2)
Signal Level: 1 V nominal
DC Offset: 0 V, +/- 0.1 V
Impedance: 75 ohm
Return Loss: 40 db up to 5 MHz | | Outputs | 1x HDMI, 1x SDI | | HDMI | 800 x 480 to 1920 x 1200 (1080p) 50/60 Hz | | SDI | Matching HDMI output resolution up to 3G | | On Screen Display | Border, Label, Alarms, and Audio Meters | | GPI | 8 for preset recall or ASCII | | IP | 100 Base-Tx, TSL, AXP | | Electrical | 12 W, 90-250 V, 50/60 Hz | | EMI/RFI | Complies with FCC Part 15, Class A, CE, EU, EMC, C-Tick | | Mount | Magnetic | | Power | 5 DC 3A | | Dimensions | 6.7 x 3.5 x 11.2" (17.1 x 12 x 4.4 cm) | | | | Package Weight | 3.33 lb | | Box Dimensions (LxWxH) | 9.25 x 7.15 x 5.2" |
