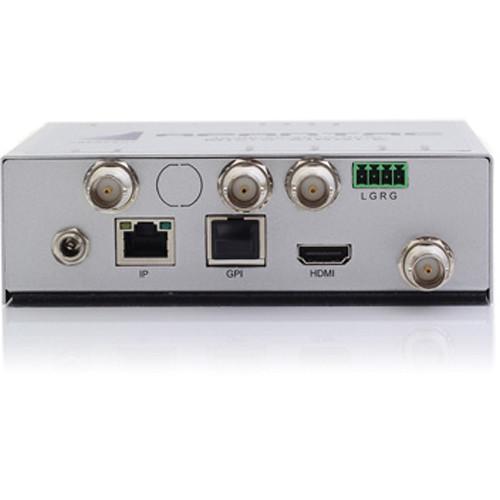

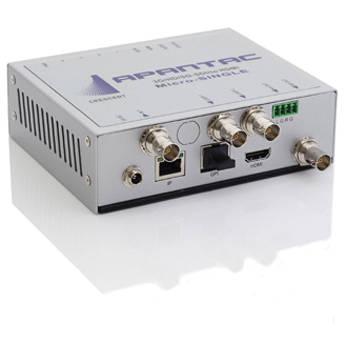

User Manual for Apantac MicroQ-Single 3G-SDI Converter Scaler with HDMI and SDI Output Click to enlarge the picture
Contents of the user manual for the Apantac MicroQ-Single 3G-SDI Converter Scaler with
- Product category: Signal Converters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Signal Converters
 |
User manual for the Apantac MicroQ-Single 3G-SDI Converter Scaler with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The MicroQ-Single 3G-SDI Converter/Scaler with HDMI and SDI Output from Apantac allows an HDMI display such as a TV or computer monitor to be used to view an SDI signal, effectively turning an inexpensive display into a production monitor. The MicroQ-Single supports 3G-, HD-, and SD-SDI input bandwidths and outputs an HDMI signal at up to 1920 x 1200 and 60 Hz. There is also an SDI output that matches any scaling applied to the HDMI signal. Furthermore, there are two SDI loop-outs which exactly mirror the SDI input to send a "clean" signal to other downstream devices. Up to 8 channels of embedded audio are supported, and there is a stereo analog output for local monitoring. - Use a regular HDMI display such as a TV or computer monitor with SDI sources
- Supports embedded audio and features a stereo analog audio output for local monitoring
- Decodes up to 8 channels of embedded audio with meters
- Supports GPI tally or dynamic tally (TSL) via in IP connection
- Front Panel Buttons to recall presets
In the Box Apantac MicroQ-Single 3G-SDI Converter/Scaler with HDMI and SDI Output Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac MicroQ-Single 3G-SDI Converter Scaler with HDMI and SDI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac MICROQ-SINGLE Specs | | | Input | 1 x 3G-SDI on BNC connectors
Switchable: 3G-SDI / HD-SDI / SD-SDI | | Outputs | 1 x HDMI
1 x SDI (scaled)
2 x SDI loop-outs (mirror inputs)
1 x Stereo analog output on 4-pin terminal block | | GPI | 1 x GPI for tally or control | | LAN | 1 x RJ45 for IP-based tally or control
Protocol: 100Base-Tx, TSL, AXP | | Supported Resolutions | HDMI: 800 x 480 to 1920 x 1200 (1080p); 50/60 Hz
SDI: Matching HDMI output resolution up to the limits of 3G-SDI | | Supported Standards | SDI: SMPTE 424M, 292M, 259M
Composite: NTSC (SMPTE-170M), PAL (ITU624-2) | | Equalization | 2.97 Gb/s: 393.7' / 120 m
1.48 Gb/s: 459.3' / 140 m
270 Mb/s: 393.7' / 120 m
Note: When using Belden 1694A cable | | Return Loss | Inputs: >15 db up to 1.485 Gb/s; >10 db up to 3G | | Embedded Audio | SDI: SMPTE-272M-A | | Signal Level | 1 V nominal | | DC Offset | 0 V ±0.1 V | | Impedance | 75 ohm | | Return Loss | 40 db up to 5 MHz | | | | On-Screen Display | Border, Label, Tally, Safe Area Indicators, Alarms, and Audio Meters | | Mount | Magnetic | | Power Consumption | 12 W | | Power Requirements | Device: 5 VDC, 3 A
AC Adapter: 90 to 250 VAC 50/60 Hz | | Mount | Magnetic | | Dimensions | 6.7 x 4.7 x 1.8" / 171 x 120 x 44.5 mm | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 5.0" |
