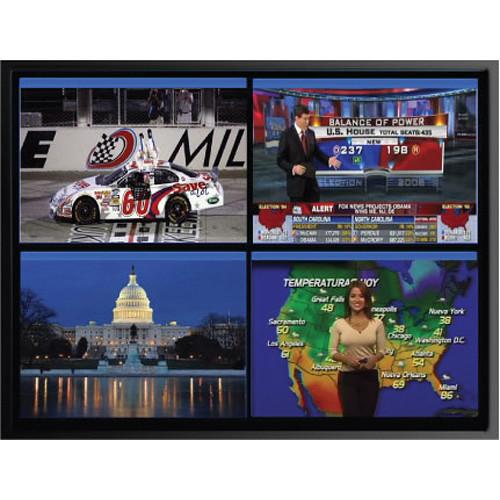

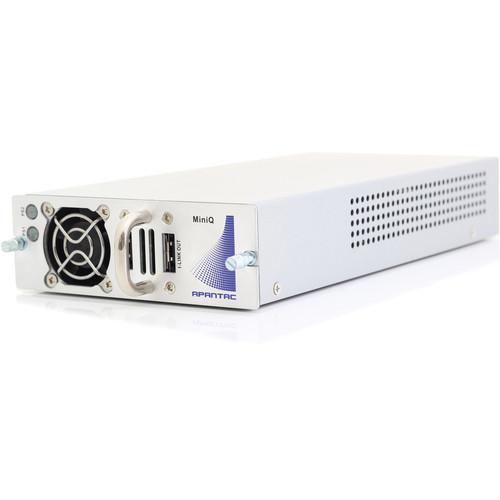

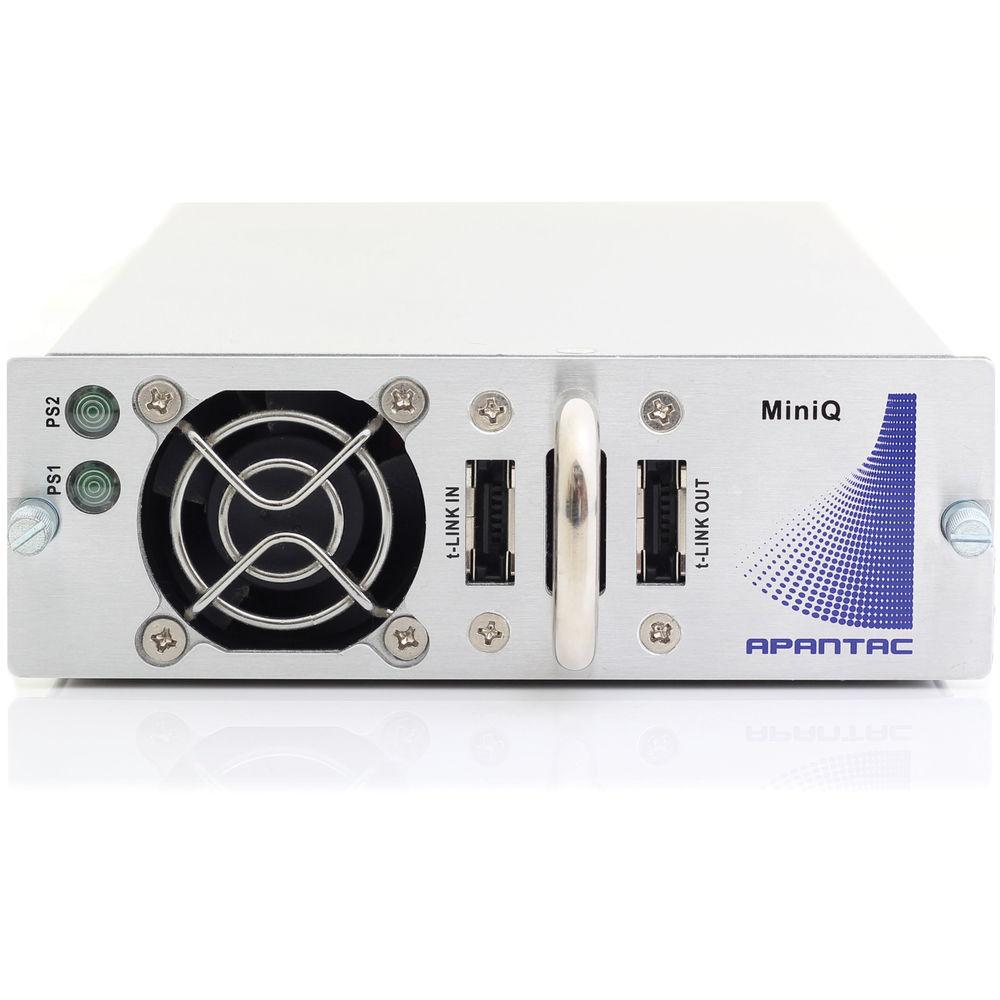

Product description The Mini-Q Modular Multiviewer from Apantac is a compact, low-power consumption multiviewer with hot-swappable boards and power supplies. Up to three modules can be inserted in a 1RU frame, or up to eight in a 3RU frame; alternatively, the Mini-Q can be used as a standalone unit. The Mini-Q features four auto-detect 3G/HD/SD-SDI and composite PAL/NTSC inputs. The SDI output can be converted to DVI or VGA using optional accessories (such as an HDMI to DVI adapter or a HDMI to VGA RJ-45 receiver). This modular multiviewer supports output resolutions of up to 1920 x 1200 (including 1080p). The Mini-Q is equipped with a built-in CATx extender capable of transmitting 1080p up to 115' to a compatible receiver (not included). - Single frame processing delay
- Low power consumption (15W per MiniQ)
- Hot-swappable boards and power supplies
- Four auto-detect 3G/HD/SD-SDI, composite PAL/NTSC inputs
- Any module can be removed to work as a standalone

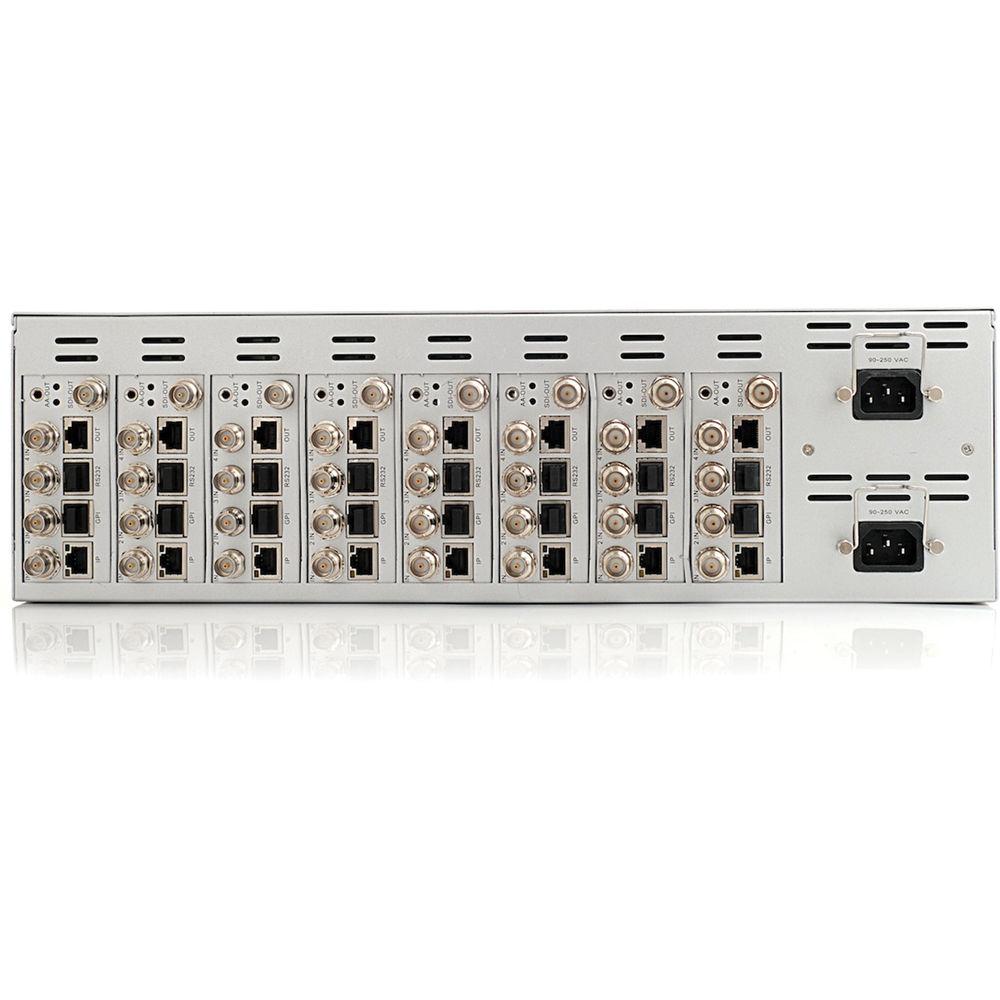

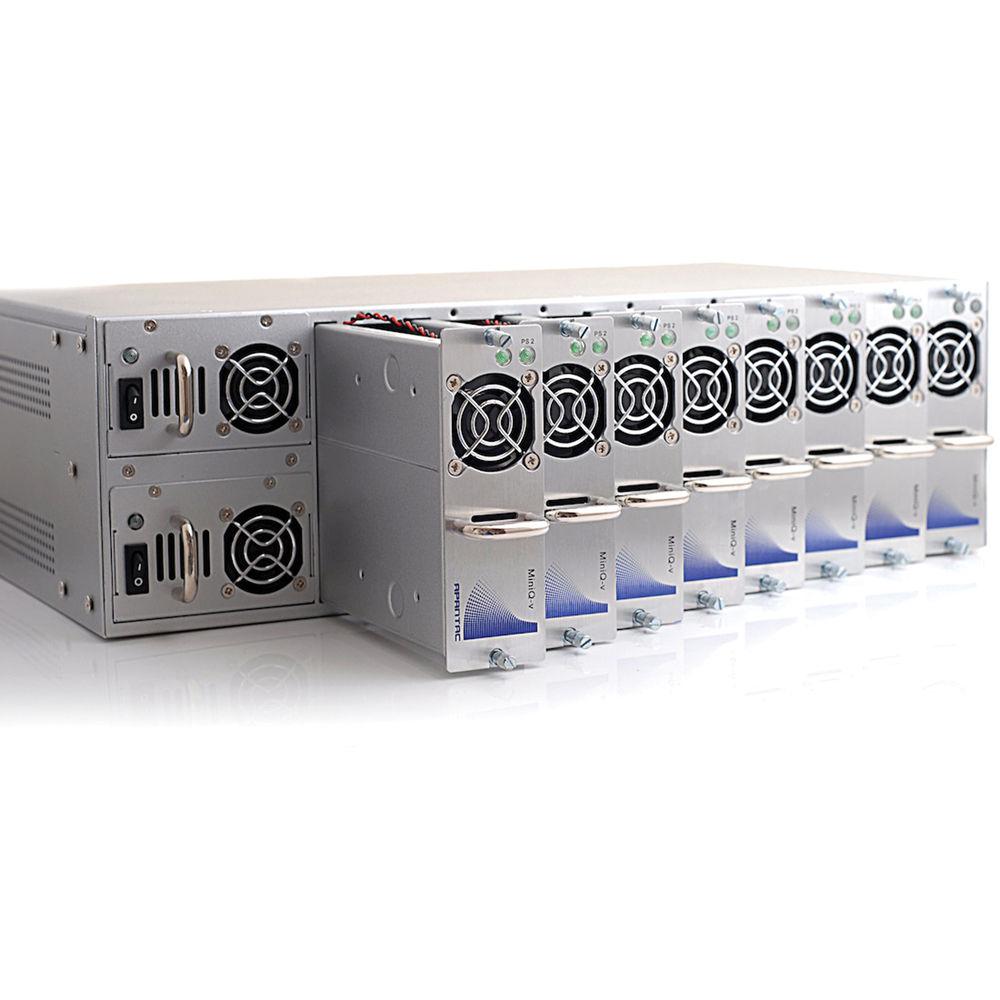

- Up to eight modules can be inserted into a 3RU frame
- Up to three modules can be inserted into a 1RU frame
- 16 channels of embedded audio per SDI input
- Output resolution up to 1920x1200 (including 1080p)
- Built-in CATx extender transmits 1080p up to 115' to compatible receiver (not included)
- Automatic input aspect ratio detection
- Built-in video/audio alarm detection: no audio, audio high/low, no video, video black, video frozen
In the Box Apantac Mini-Q Modular Multiviewer CAT6 to HDMI cable (9') RJ50 to DB9 for GPI RJ45 to DB9 for Serial Director Configuration and Control Software Rack mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Mini-Q Modular Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

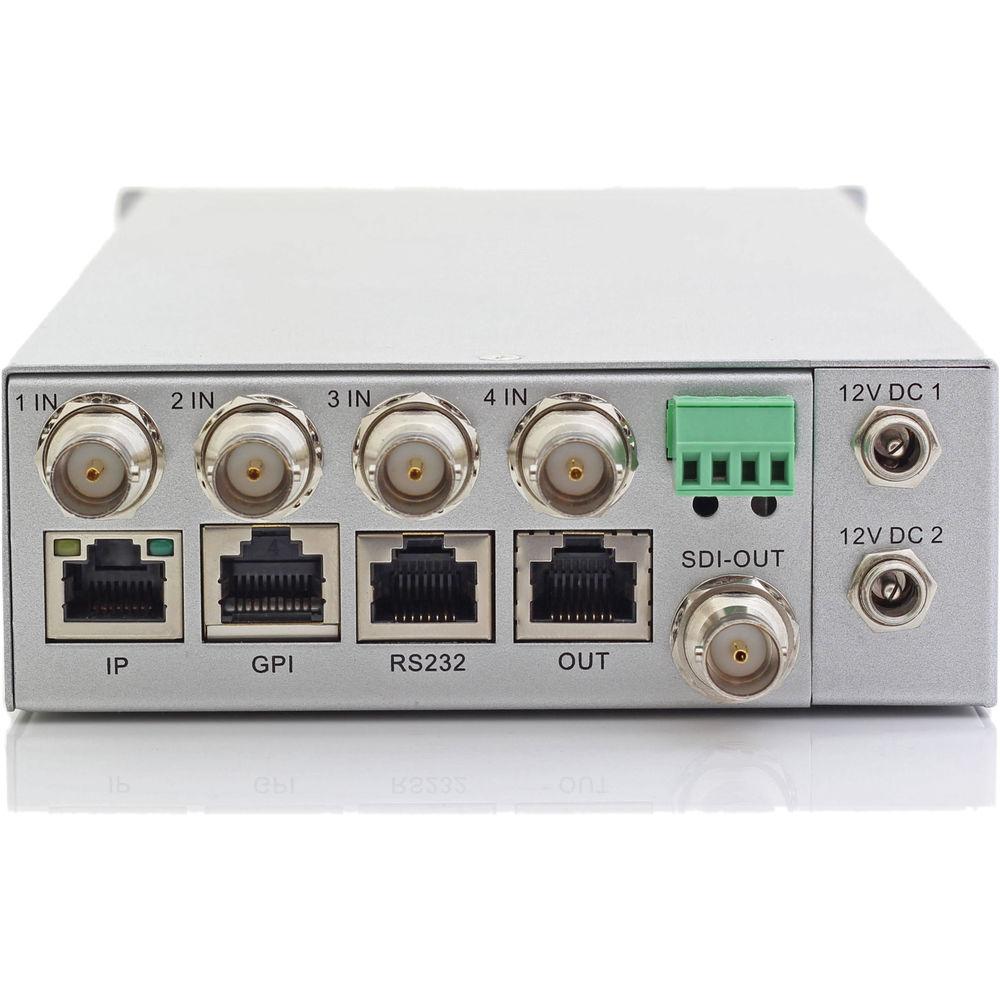

Technical parametersApantac MINIQ Specs | Video Inputs | 4 3G/HD/SD-SDI, Composite (PAL/ NTSC) | | Connectors | BNC IEC 61169-8 Annex A | | Windows | 4 auto-detect inputs
3G/HD/SD-SDI/CVBS | | Serial Digital | Standards: SMPTE 424M, 292M, 259M
Equalization: 393.7' (120.0 m) at 2.97 Gbps, 459.3' (140.0 m) at 1.48 Gbps, 1312.3' (400.0 m) at 270 Mbps with Belden 1694A
Return Loss: > 15 dB up to 1.485 Gbps, > 10 dB up to 3G
Embedded Audio: SMPTE-272M-A | | Composite | Standards: NTSC (SMPTE-170M), PAL (ITU 624-2)
Signal Level: 1 V nominal
DC Offset: 0 V, +/- 0.1 V
Impedance: 75 ohms for BNC
Return Loss: 40 dB up to 5 MHz | | Alarms | No audio, audio high/low, no video, video black, video frozen, WSS, AFD | | Output Resolution | 800 x 480 - 1920 x 1200 | | Built-in Extender | Up to 35 feet with passive receiver | | On Screen Display | Borders, labels, tally, UMD, OMD, IMD, dynamic UMD | | General Purpose IO | Up to 8 inputs with RJ45 - DB9 connectors | | Serial Port | Connector: RJ45, baud rate up to 115200
Format: TSL, TSI, AXP | | IP | 100 Base-Tx, TSL, AXP
Connector: RJ45 | | Electrical | Standalone: 15 W, 90-250 V 50/60 Hz
3RU Frame: 120 W, 90-250 V 50/60 Hz | | EMI / RFI | Complies with FCC Part 15 Class A, CE, EU, EMC, C-tick | | Power | Standalone: 12 VDC power supply
3RU Frame: Standard redundant power supply | | Control | Front panel buttons for quick preset recalls, GPIs, Apantac ASCII Protocol (AXP), Director (Config & control app) | | Size | 5.25" (13.34 cm) |
