User Manual for Apantac MT HOOD DP-1X2-II DisplayPort 1x2 II Distribution Amplifier Splitter Click to enlarge the picture
Contents of the user manual for the Apantac MT HOOD DP-1X2-II DisplayPort 1x2
- Product category: Distribution Amplifiers (DA's) Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Distribution Amplifiers (DA's)
|
User manual for the Apantac MT HOOD DP-1X2-II DisplayPort 1x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

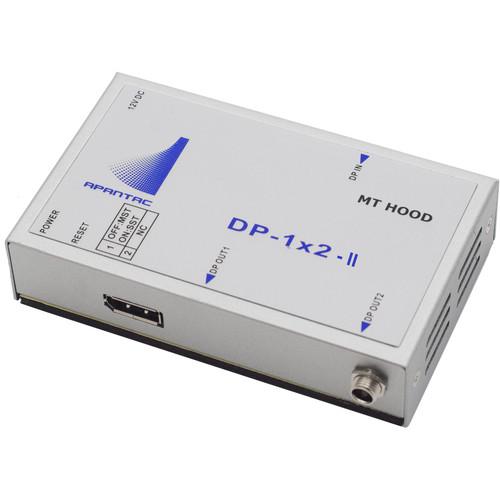

Product description Send one video source to two DisplayPort displays with this MT HOOD DP-1X2-II DisplayPort 1x2 II Distribution Amplifier/Splitter from Apantac. The splitter supports DisplayPort 1.2a and HDCP 1.3 and can input up to 4K60 video at 21 Gb/s.
The DP-1X2-II features a DIP switch with SST and MST modes. When set to SST mode, the same image is sent to both displays, and when set to MST mode, one image is split evenly across both displays. - Split one DisplayPort input to two DisplayPort outputs up to 16.4 feet away
- Input up to 4K60 resolution with a maximum data rate of 21.6 Gb/s
- Supports DisplayPort 1.2a, HDCP 1.3, and HBR2/HBR/RBR (high bit rate)
- Dual-mode outputs allow DisplayPort to be configured as HDMI output
- Splitter supports SST and MST modes via DIP switches; SST sends the same image to two separate displays, while MST splits the image evenly across both output displays
- The EDID is not stored on the splitter and passes through from the display to the source. The EDID of the first display plugged in will be used until the splitter is power cycled
In the Box Apantac MT HOOD DP-1X2-II DisplayPort 1x2 II Distribution Amplifier/Splitter 12 VDC Power Adapter 4 x Foot Pad Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac MT HOOD DP-1X2-II DisplayPort 1x2 II Distribution Amplifier Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DP-1X2-II Specs | Input | 1 x DisplayPort | | Output | 2 x Dual-Mode DisplayPort/HDMI | | Compliance | DisplayPort 1.2a
HDCP 1.3 | | Supported Resolutions | 4K60
4K30
1080p60 | | EDID Function | Display-to-Source Pass-Through
FIFO Pass-Through for Multiple Displays | | Maximum Distance | 16.4' / 5 m | | Maximum Data Rate | 21.6 Gb/s | | Supported Bit Rate | HBR2, HBR, RBR | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | 0 to 80% RH | | Power | 12 VDC, 1 A | | Dimensions | 6.1 x 3.3 x 1" / 15.6 x 8.3 x 2.5 cm | | Weight | 10.9 oz / 310 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.3 x 7.0 x 5.3" |
