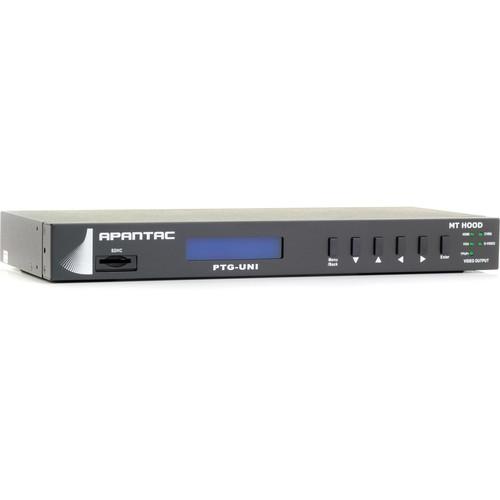

User Manual for Apantac PTG-UNI Universal Pattern Generator Click to enlarge the picture
Contents of the user manual for the Apantac PTG-UNI Universal Pattern Generator
- Product category: Video & Audio Signal Generators Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Video & Audio Signal Generators
|
User manual for the Apantac PTG-UNI Universal Pattern Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The PTG-UNI Universal Pattern Generator from Apantac is a rackmountable test pattern generator. The PTG-UNI features 31 different patterns and 51 possible output resolutions of up to UXGA/1080p. This test generator accepts customized bitmap patterns via its SD/SDHC card slot, and supports analog and digital audio output. The unit comes with a 12VDC power adapter and is HDMI, HDCP and DVI compliant. - Supports HDMI, VGA, YPbPr, CVBS, and S-video
- HDMI, HDCP, and DVI compliant
- Supports a total of 51 timings (up to UXGA/1080P)
- Provides a total of 31 patterns
- Accepts customized bitmap (.bmp) patterns via SD/SDHC card slot
- User friendly interface with up/down/left/right buttons and LCM display
- Supports analog and digital audio (SPDIF) out with 48 KHz sample rate, 1 KHz tone
In the Box Apantac PTG-UNI Universal Pattern Generator 12 VDC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac PTG-UNI Universal Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac PTG-UNI Specs | Connectors | Front Panel:
1 x SD/SDHC card slot
Rear Panel:
1 x HDMI Type A output
1 x 15-pin D-Sub, VGA female, output
3 x BNC, YPbPr output
1 x BNC, CVBS output
1 x 4-pin mini DIN S-Video female, output
2 x Analog audio L/R output
1 x Coax audio output
1 X 12 VDC power | | Controls | 1 x Menu/back button
4 x Navigation button
1 x Enter button | | Indicators | 1 x HDMI video
1 x VGA video
1 x YPbPr video
1 x CVBS video
1 x S-VIDEO video | | Max Resolution | UXGA/1080p | | Supported Formats | HDMI, VGA, YPbPr, CVBS and S-Video | | Compliance | HDMI, HDCP and DVI | | Sampling Rate | 48 kHz, 1 kHz tone | | Frequency | 225 MHz (max) | | Power Supply | 12 VDC, locking | | Dimensions (H x W x D) | 1.8 x 6.8 x 15.1" (4.5 x 17.3 x 38.4 cm) | | Weight | 4.2 lb (1.9 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 18.0 x 10.3 x 3.6" |
