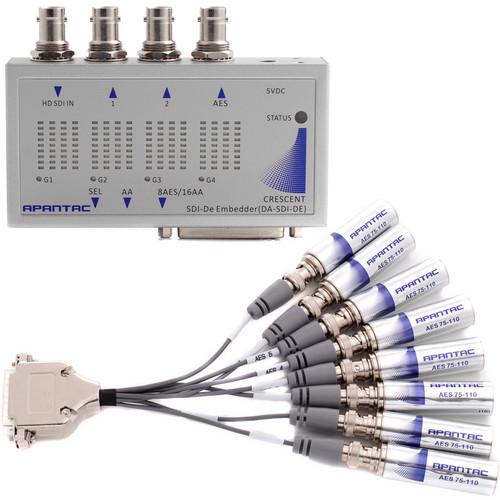

Product description The Apantac SDI Audio De-Embedder with Balanced AES Stereo Audio Breakout Cable -- outstanding among its features is a 16 channel audio meter that upon your plugging in an SDI signal instantly confirms whether the signal has embedded audio.
The de-embedder functions as a DA -- all the outputs can function simultaneously. Altogether five outputs are available: two reclocked SDIs that both carry the video and audio of the input, an AES BNC out, a AA headphone jack analog audio out, and a DB-25 out for a breakout cable. A rotary switch linked to the AA output will let you switch between the 16 channels of the input and listen to each separately. The data rate for the SDI input and outputs is up to 2.97 Gbps.
The included breakout cable features 8 balanced AES stereo XLR outputs that will each carry 2 of the 16 channels of the input. If your SDI input has only 8 channels, the first 4 connectors on the breakout cable will be the active ones. - Key Features
-
- 16 channel audio meter instantly lights up if the SDI signal you plug in has embedded audio
- 5 simultaneous outputs: 2 reclocked SDIs, an AES, an AA, a DB-25
- Rotary switch linked to the AA output switches between the 16 channels of the input
- AES Breakout cable with 8 balanced AES stereo audio XLRs
In the Box Apantac SDI Audio De-Embedder with Balanced AES Stereo Audio Breakout Cable Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac SDI Audio De-Embedder with Balanced AES Stereo Audio Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DA-SDI-DE-AES-BL Specs | Input | 1x SDI (125 Mbps to 2.97 Gbps data rate) | | Output | 2x reclocked SDI (125 Mbps to 2.97 Gbps data rate)
1x AES, 8 pairs balanced or unbalanced
1x AA, 16 channels
1x DB-25 for breakout cable | | Breakout Cable Connectors | DB-25 to 8x balanced AES stereo audio XLRs | | Power | 5 VDC | | Mount Type | Magnetic | | Dimensions | 2.44 x 4.45 x 1.14" (6.2 x 11.3 x 2.9 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 16.0 x 10.0 x 4.0" |
