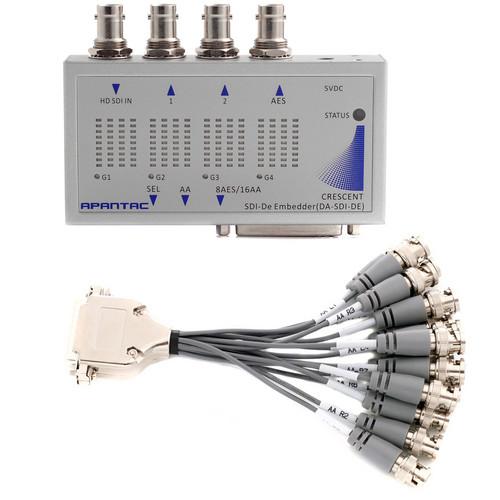

User Manual for Apantac SDI Audio De-Embedder with Unbalanced Analog Audio Breakout Cable Click to enlarge the picture
Contents of the user manual for the Apantac SDI Audio De-Embedder with Unbalanced
- Product category: Embedders & De-Embedders Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Embedders & De-Embedders
|
User manual for the Apantac SDI Audio De-Embedder with Unbalanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Apantac SDI Audio De-Embedder with Unbalanced Analog Audio Breakout Cable -- outstanding among its features is a 16 channel audio meter that upon your plugging in an SDI signal instantly confirms whether the signal has embedded audio.
The de-embedder functions as a DA -- all the outputs can function simultaneously. Altogether five outputs are available: two reclocked SDIs that both carry the video and audio of the input, an AES BNC out, a AA headphone jack analog audio out, and a DB-25 out for a breakout cable. A rotary switch linked to the AA output will let you switch between the 16 channels of the input and listen to each separately. The data rate for the SDI input and outputs is up to 2.97 Gbps.
The included breakout cable features 16 mono analog unbalanced BNC outputs that will each carry one of the 16 channels of the input. If your SDI input has only 8 channels, the first 8 connectors on the breakout cable will be the active ones. - Key Features
-
- 16 channel audio meter instantly lights up if the SDI signal you plug in has embedded audio
- 5 simultaneous outputs: 2 reclocked SDIs, an AES, an AA, a DB-25
- Rotary switch linked to the AA output switches between the 16 channels of the input
- Breakout cable with 16 mono analog audio unbalanced BNCs
In the Box Apantac SDI Audio De-Embedder with Unbalanced Analog Audio Breakout Cable Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac SDI Audio De-Embedder with Unbalanced Analog Audio Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac DA-SDI-DE-AA-UNBL Specs | Input | 1x SDI (125 Mbps to 2.97 Gbps data rate) | | Output | 2x reclocked SDI (125 Mbps to 2.97 Gbps data rate)
1x AES, 8 pairs balanced or unbalanced
1x AA, 16 channels
1x DB-25 for breakout cable | | Breakout Cable Connectors | DB-25 to 16x unbalanced BNCs | | Power | 5 VDC | | Mount Type | Magnetic | | Dimensions | 2.44 x 4.45 x 1.14" (6.2 x 11.3 x 2.9 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.5 x 7.5 x 3.7" |
