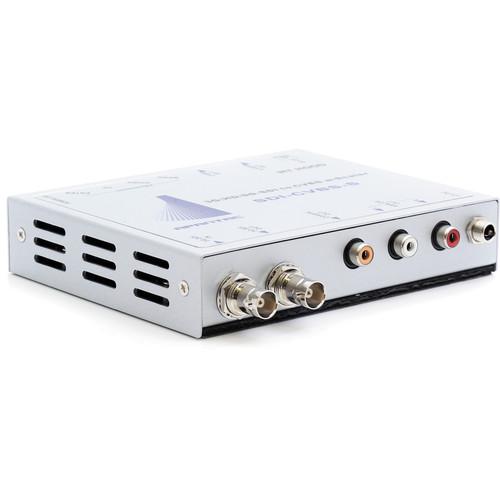

Product description The SDI-CVBS-S 3G/HD/SD-SDI to Composite Video Converter from Apantac features an auto-detect 3G/HD/SD-SDI input and an RCA Composite Video output. It is intended for monitoring use only, not for transmission or on-air use. It also features a looping SDI, RCA Stereo analog audio, and coaxial audio outputs. - 3G/HD/SD-SDI to CVBS converter
- Auto-detect 3G/HD/SD-SDI input
- RCA Stereo analog audio and coaxial audio output
- Supports RS232 control protocol
In the Box Apantac SDI-CVBS-S 3G/HD/SD-SDI to Composite Video Converter 12VDC Power Adapter Mounting Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac SDI-CVBS-S 3G HD SD-SDI to Composite Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac SDI-CVBS-S Specs | SDI Input | 1 x BNC | | SDI Loop Output | 1 x BNC (non-reclocked) | | Output | CVBS: 1 x RCA | | Video Support | 480i: 59.94 Hz
576i: 50 Hz
720P: 50/59.94/60 Hz
1080i: 50/59.94/60 Hz
1080P: 23.97/24/25/29.97/30/50/59.94/60 Hz | | Serial Digital | SMPTE 424M, 292M, 259M | | Equalization | 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A | | Return Loss | > 15db up to 1.485 Gbps > 10db up to 3G | | Embedded Audio | SMPTE-272M-A | | Composite | NTSC (SMPTE-170M), PAL (ITU624-2) | | Signal Level | 1 V nominal | | DC Offset | 0 V, +/- 0.1 V | | Source Impedence | 75 Ω for BNC, 100 Ω for DVI-I | | Return Loss | 40 db up to 5 MHz | | Analog Audio Output | 2 x RCA | | Coaxial Output | 1 x RCA (SPDIF) | | Sample Rate | Analog/Digital Audio: 48 KHz | | Baud Rate | 4800 bps, 8-bit data, 1 stop bit | | Power | 12 DC | | Dimensions (L x W x H) | 6.7 x 4.7 x 0.9" (17.1 x 11.9 x 2.5 cm) | | Weight | 3.0 lb (1.5 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.2 x 7.0 x 5.2" |
